Automotive fluid transfer systems rely entirely on the integrity of their connections to operate safely. A bare tube offers no practical utility without proper terminations to connect it to pumps, valves, or cylinders. Catastrophic failures in braking, steering, or fuel systems rarely happen in the middle of the line. They typically fail at the connection points due to improper specification, incorrect pressure ratings, or incompatible fittings. Evaluating a fluid transfer system requires understanding the exact mechanical and chemical demands of the vehicle. This guide provides a technical framework for evaluating, specifying, and selecting a reliable Hose Assembly for car applications. You will learn how to balance manufacturer requirements with aftermarket realities, routing geometry, and strict safety standards. By applying these engineering principles, you can eliminate leaks, prevent pressure drops, and ensure the long-term reliability of any automotive fluid system.
Definition: Answering "what are hose assemblies": A hose assembly is a complete, pressure-rated fluid transfer unit consisting of a specific hose, compatible end fittings, and a secure attachment mechanism (crimp or swage).
Evaluation Framework: Selection must follow industry-standard criteria (e.g., the S.T.A.M.P.E.D. method) to ensure exact matches for Size, Temperature, Application, Material, Pressure, Ends, and Delivery.
Risk Mitigation: Accurate measurement (accounting for fitting cut-offs and offsets), proper routing (respecting minimum bend radius), and strict fabrication best practices are mandatory to prevent abrasion, downtime, and premature failure.
Compliance: Automotive assemblies—particularly for brakes and high-pressure hydraulics—require strict adherence to manufacturer ratings and safety certifications (e.g., DOT).

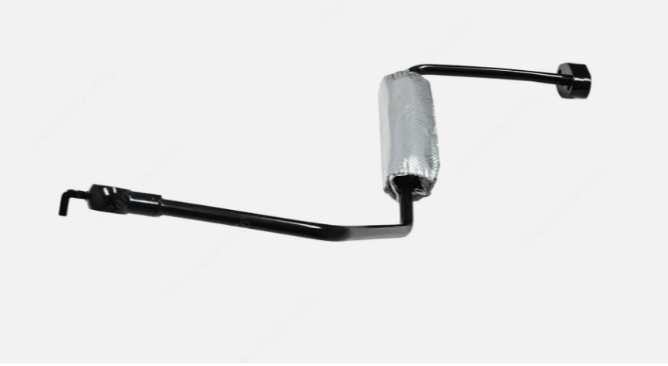

Evaluating an assembly requires understanding its composite parts. A weakness in any single layer compromises the entire fluid transfer system. Automotive fluid lines operate under extreme conditions, facing high pressures, aggressive chemicals, and constant vibration. Each component must perform flawlessly to maintain system integrity. When we build or inspect these lines in the shop, we look at four distinct elements: the core, the reinforcement, the cover, and the terminations.
The inner tube makes direct contact with the fluid. Its primary function is containment and chemical resistance. You must match the tube material to the specific fluid being transferred. Nitrile (NBR) offers excellent resistance to petroleum-based oils, making it standard for engine oil and transmission fluid coolers. Ethylene Propylene Diene Monomer (EPDM) handles glycol-based coolants and brake fluids but degrades rapidly if exposed to petroleum. If you accidentally run power steering fluid through an EPDM line, the inner tube will swell to twice its size and turn into a gummy paste, instantly destroying the pump.
Polytetrafluoroethylene (PTFE) provides near-universal chemical compatibility and withstands extreme temperatures. We use PTFE extensively for aggressive racing fuels, high-temperature hydraulics, and performance brake lines. Using an incompatible inner tube leads to swelling, internal flaking, and eventual system blockage. The core must remain smooth to minimize friction and prevent turbulent flow, which generates unwanted heat in hydraulic systems.
The reinforcement layer dictates the maximum working pressure and volumetric expansion limits. It wraps around the inner tube, providing the structural strength necessary to contain pressurized fluids. Low-pressure applications, such as windshield washer lines or basic coolant overflow hoses, use simple textile braids. Medium to high-pressure systems rely on braided steel wire. Power steering and heavy-duty hydraulic systems often require multiple layers of high-tensile steel wire applied in a spiral configuration.
Spiral wire reinforcement handles severe pressure spikes and pulsation much better than braided wire. In a braided design, the wires can scissor against each other during rapid pressure cycles, eventually causing fatigue. Spiral wires lay parallel, eliminating this friction. The reinforcement also limits volumetric expansion. In a brake system, you want the pressure generated by the master cylinder to transfer immediately to the calipers. If the line expands, you get a spongy pedal and increased stopping distances.
The outer cover protects the reinforcement and inner tube from the harsh environment of an engine bay. It must resist ozone, ultraviolet light, ambient heat, and physical abrasion. Neoprene and synthetic rubbers are common cover materials, offering a good balance of flexibility and environmental resistance. In applications with extreme abrasion risks, manufacturers add a layer of ultra-high-molecular-weight polyethylene (UHMWPE) or wrap the assembly in protective nylon sleeving.
If the outer cover fails, the internal structure is exposed to the elements. When steel reinforcement gets wet, it rusts. Rust weakens the wire, leading directly to a burst failure under pressure. Mechanics often see cover failures caused by poor routing where the line rubs against a moving suspension component or a sharp chassis edge.
End fittings transition the flexible line to the rigid components of the vehicle. The mechanics of this connection determine the safety of the entire assembly. Modern automotive applications primarily use crimped fittings. A hydraulic press permanently compresses a metal collar (ferrule) around the hose, biting into the outer cover and squeezing the inner tube against the fitting's stem. This creates a permanent, leak-free seal.
Thread identification is critical for proper mating. You must match the thread pitch and sealing surface exactly. Common automotive standards include AN (Army-Navy) with a 37-degree flare, JIC (Joint Industry Council), NPT (National Pipe Taper), and various metric O-ring boss fittings. Mismatched threads strip easily and guarantee fluid leaks. Never use thread sealant tape on flared or O-ring fittings; the seal is created by the mechanical mating of the metal surfaces or the compression of the O-ring, not the threads themselves.
Mapping the general concept of a fluid line to specific automotive subsystems reveals unique success criteria for each. Specifying a reliable Hose Assembly requires matching the subsystem's exact demands. A component designed for coolant will fail instantly if used for power steering.
Power steering systems generate severe pressure spikes, often exceeding 1,500 PSI during tight parking maneuvers. These assemblies require high-pressure handling and excellent pulsation resistance. The inner tube must resist synthetic hydraulic fluids, while the reinforcement typically consists of dual-wire braids or spiral steel. Exact OEM pressure ratings are non-negotiable.
An underrated assembly will burst under load, resulting in immediate loss of steering assist and a severe fire hazard if the atomized fluid hits the exhaust manifold. Factory power steering lines often incorporate internal restrictor pills or tuning cables to dampen hydraulic noise and vibration. When building custom lines, omitting these dampeners can result in a loud, whining steering pump, even if the system is fully bled.
Fuel injection systems operate at moderate pressures (40 to 80 PSI) but demand exceptional chemical resistance. Modern fuels contain ethanol blends (E10, E85) and aggressive additives that rapidly degrade older rubber compounds. Fuel assemblies require strict permeation resistance to prevent fuel vapors from escaping through the walls, which causes fuel odors in the garage and violates emissions standards.
PTFE or specialized fluoroelastomer (FKM) inner tubes are standard for modern fuel lines. Secure, leak-free crimps are mandatory to prevent high-pressure fuel sprays, which are a primary cause of vehicle fires. When routing fuel lines, we always keep them on the opposite side of the chassis from the exhaust system to prevent vapor lock and minimize fire risks.
Brake lines represent the most critical safety system on any vehicle. They require absolute minimal volumetric expansion. When you press the brake pedal, the hydraulic pressure must move the brake pads, not expand the line. High expansion results in a spongy pedal feel and increased stopping distances. Performance vehicles upgrade to PTFE inner tubes wrapped in tightly woven stainless steel braid to eliminate expansion entirely.
Furthermore, brake assemblies must comply with strict Department of Transportation (DOT) testing standards, specifically FMVSS 106. This standard mandates rigorous whip testing, burst testing, and tensile strength verification. A street-legal brake line must have specific markings and utilize crimped fittings that have passed these federal tests. Field-assembled reusable fittings are strictly prohibited for highway use in brake systems.
Cooling and air conditioning systems deal with temperature extremes and specific phase-changing chemicals. Heater core lines and radiator hoses must withstand continuous exposure to 200°F+ glycol mixtures. HVAC assemblies require specialized barrier materials, such as nylon inner linings, to contain volatile refrigerants like R134a or R1234yf. These gases easily permeate standard rubber.
Additionally, suction lines in the HVAC system require vacuum resistance. If the line lacks sufficient structural integrity, the vacuum created by the compressor will collapse it, halting refrigerant flow and destroying the compressor. We often see collapsed lower radiator hoses on older vehicles where the internal anti-collapse spring has rusted away.
Professional fabricators and engineers use the S.T.A.M.P.E.D. acronym as the authoritative lens for specification. This framework ensures no variable is overlooked during the design or replacement process. Skipping even one of these steps usually results in a comeback or a failure on the track.
| Letter | Parameter | Description | Automotive Example |
|---|---|---|---|
| S | Size | Inner diameter (I.D.), outer diameter (O.D.), and overall length. | Matching a -6 AN (3/8" I.D.) line for fuel delivery. |
| T | Temperature | Ambient engine bay heat and internal fluid temperature. | Specifying PTFE for a turbo oil feed line exceeding 300°F. |
| A | Application | The specific system, routing constraints, and environmental hazards. | Routing a line away from moving suspension components. |
| M | Material | Chemical compatibility between the fluid and the inner tube. | Using EPDM for coolant, never for petroleum-based oil. |
| P | Pressure | Maximum working pressure and required safety margins (burst pressure). | Ensuring a power steering line handles 1,500+ PSI spikes. |
| E | Ends | Fitting thread type, sealing surface, and orientation. | Selecting a 90-degree metric O-ring fitting for a steering rack. |
| D | Delivery | Testing, certification, and packaging requirements. | Requiring DOT FMVSS 106 certification for street-legal brake lines. |
Incorrect sizing severely impacts system performance. The inner diameter (I.D.) dictates fluid velocity. If the I.D. is too small, fluid velocity increases, causing turbulent flow, excessive friction, and massive heat generation. This heat degrades the fluid and damages pumps. We use flow nomographs to calculate the exact I.D. needed based on the pump's gallon-per-minute (GPM) output.
Conversely, an oversized I.D. adds unnecessary weight, bulk, and fluid volume. The outer diameter (O.D.) dictates routing feasibility. A line with a massive O.D. will not fit into standard chassis clips or navigate tight clearances around exhaust manifolds. Upgrading to a higher-pressure rating often increases the O.D. because of the thicker reinforcement layers, which can cause installation headaches if space is limited.
Engineers design fluid lines with strict pressure margins. The operating pressure is the normal continuous pressure of the system. The burst pressure is the point of catastrophic failure. Industry standards typically require a 4:1 safety factor; a line rated for 1,000 PSI working pressure should not burst until 4,000 PSI.
However, ambient engine bay temperatures derate the working pressure. As temperatures rise, the elastomer softens, reducing its pressure-holding capability. A line rated for 2,000 PSI at room temperature may only safely hold 1,200 PSI at 250°F. Users must always verify against the manufacturer's specific temperature-pressure derating curves. Running a line at its maximum pressure and maximum temperature simultaneously will drastically shorten its lifespan.
Matching the inner tube material to the specific automotive fluid prevents rapid degradation. Using a compatibility matrix prevents costly mistakes. Petroleum-based oils require Nitrile (NBR) or Neoprene. Synthetic brake fluids require EPDM. Aggressive racing fuels and high-temperature synthetic lubricants require PTFE.
Fluid compatibility also extends to the outer cover. If you have a hydraulic line routed beneath an engine that leaks oil, the outer cover must be oil-resistant. If a non-oil-resistant cover gets soaked in engine oil, it will soften, swell, and eventually peel away, exposing the wire reinforcement to moisture and rust.
The most common point of failure in custom or replacement assemblies is not the material, but incorrect measurement and poor installation geometry. Even the highest quality components will fail rapidly if routed improperly. Mechanics spend a significant amount of time planning the routing path before cutting any material.
Accurate measurement distinguishes a professional installation from a sloppy one. Overall Length (OAL) is measured from sealing surface to sealing surface, not end-to-end of the fittings. To achieve the correct OAL, fabricators must calculate the cut-off length. The cut-off factor is the distance from the bottom of the fitting collar (where the flexible material stops) to the sealing surface of the thread.
You subtract the cut-off factors of both fittings from the desired OAL to determine the exact length of bare material required. Ignoring the cut-off factor results in an assembly that is too long, leading to bowing, rubbing, and eventual abrasion failure. If it is too short, the line will stretch under pressure, pulling the fittings off the ends.
When an assembly uses two angled fittings (e.g., two 90-degree elbows), their angular relationship is critical. This is known as the fitting offset, clocking, or orientation angle. You must specify this angle during fabrication. We usually measure this by holding the far fitting pointing straight down at 6 o'clock and measuring the angle of the near fitting clockwise.
If the offset is incorrect, the technician will have to twist the line to align the threads with the vehicle ports. Twisting introduces torsion. Torsion is highly destructive to wire-reinforced lines; a mere 5-degree twist can reduce the service life of a high-pressure line by 70%. The reinforcement wires bind against each other, causing premature fatigue and burst failures.
Every line has a minimum bend radius specification, which is the tightest arc it can form without kinking or stressing the reinforcement. Routing a line tighter than its minimum bend radius flattens the inner tube, restricting flow and weakening the outer cover. Proper routing requires planning.

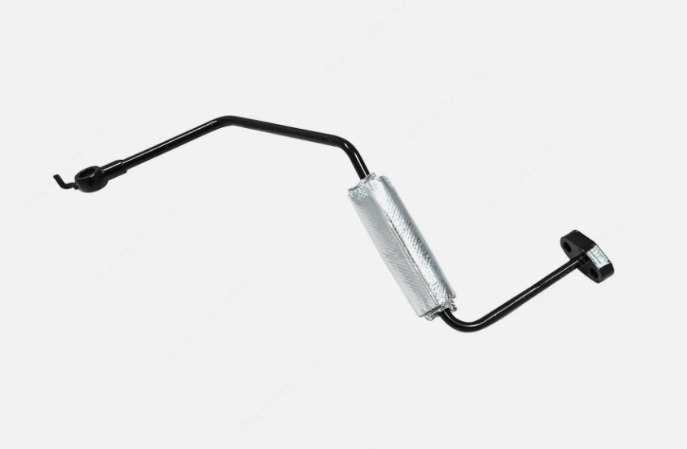

Use pre-formed hard lines for tight corners and reserve flexible lines for areas requiring movement or vibration isolation.
Secure the lines with cushioned P-clamps every 12 to 18 inches to prevent whipping under pressure surges.
Keep lines away from extreme heat sources like exhaust headers, using reflective heat sleeving (firesleeve) if close proximity is unavoidable.
Prevent abrasion by ensuring the line does not rub against the chassis, suspension components, or other hoses.
Allow enough slack to accommodate engine roll during heavy acceleration. An engine can shift an inch or more on its mounts under load.
Building a reliable assembly requires strict adherence to fabrication best practices. The process begins with a perfectly square cut using a specialized fine-tooth blade or a dedicated cut-off saw. An angled cut prevents the material from seating fully into the fitting, leading to blow-offs.
Depending on the fitting design, the line may require skiving. Skiving involves stripping a precise length of the outer cover to allow the metal fitting to bite directly into the steel reinforcement. Non-skive fittings bite through the cover, but require specific material types. After inserting the fitting to the correct depth, the fabricator uses a hydraulic press to crimp the ferrule.
Finally, the fabricator must verify the final crimp diameter using precision micrometers, comparing the measurement against the manufacturer's exact specifications. A crimp that is 0.010 inches too loose will leak; one that is 0.010 inches too tight will crush the inner tube and restrict flow.
Proactive maintenance and failure analysis are crucial to safe vehicle operation. Catching issues early prevents catastrophic fluid loss, expensive mechanical damage, and dangerous accidents on the road. When a vehicle comes into the shop, inspecting the fluid lines is a mandatory part of the diagnostic process.
Understanding how components fail allows you to prevent those failures. Improper crimp diameter remains a leading cause of blow-offs and leaks. Torsion from twisted installation causes the reinforcement layers to separate and rupture. Heat exposure bakes the elastomers, causing the outer cover to harden, crack, and flake away.
Cover abrasion occurs when a line rubs against a moving suspension part or a sharp chassis edge, eventually wearing through to the steel reinforcement. Once the steel is exposed, moisture causes rust, rapidly leading to a burst. Fluid incompatibility is another major killer; putting the wrong fluid in the system breaks down the inner tube from the inside out, sending debris through the entire system.
Preventing downtime requires treating fluid lines as wear items rather than lifetime components. A burst power steering line at track speeds or a ruptured brake line in heavy traffic presents severe safety hazards. Implementing strict routing protocols, utilizing heat shields, and ensuring zero torsion during installation mitigates the vast majority of premature failures.
Always use a backup wrench when tightening fittings. Holding the hex on the crimp collar with one wrench while tightening the nut with another prevents the twisting force from transferring into the flexible material. This simple mechanic's habit saves countless lines from torsion damage.
Establish an evidence-based schedule for inspecting assemblies. Perform visual inspections during every oil change or track prep session. Look for weeping fittings, which indicate a failing crimp or a damaged sealing surface. Check the outer cover for blistering; a blister indicates that fluid has breached the inner tube and is trapped under the cover.
Feel the lines for stiffness. If a rubber line feels brittle or cracks when flexed, the elastomer has degraded from heat and requires immediate replacement. Look for shiny spots on the cover, which are early signs of abrasion rubbing. If you find a shiny spot, adjust the routing or add a protective sleeve before it wears through to the wire.
A fluid transfer line is a highly engineered system, not a generic commodity. The reliability of an automotive fluid system is dictated by the weakest link in the assembly. Prioritize exact fluid compatibility, verified pressure ratings, and certified crimping processes to ensure maximum safety and performance.
Consult the vehicle’s factory service manual to verify exact OEM specifications for fluid types, operating pressures, and thread standards before ordering replacements.
Apply the S.T.A.M.P.E.D. method rigorously when designing custom routing for engine swaps or performance upgrades to ensure no variable is overlooked.
Partner with certified hydraulic or automotive fluid transfer specialists for fabrication, ensuring all crimps are micrometer-verified and pressure-tested.
Implement a routine inspection schedule, checking all connections for weeping, cover blistering, and abrasion during regular maintenance intervals.
A: A hose is just the flexible tubing made of an inner core, reinforcement, and outer cover. An assembly includes the tubing cut to a specific length, with compatible metal end fittings permanently attached (usually via crimping) to both ends, making it ready to install in a fluid system.
A: Measure the Overall Length (OAL) from the sealing surface of one fitting to the sealing surface of the other. Do not measure just the flexible tubing. When building a new one, you must subtract the fitting cut-off factors from the OAL to determine the exact length of bare material to cut.
A: Crimped and swaged fittings are permanently deformed during installation and cannot be reused. Reusable fittings (often called field-attachable fittings) exist for certain low-pressure or specific PTFE applications, but standard high-pressure automotive crimp fittings must be discarded and replaced.
A: The most common causes are improper crimp diameters, twisting the line during installation (torsion), routing the line too tightly (violating the minimum bend radius), severe cover abrasion from rubbing against the chassis, and degradation from extreme heat or incompatible fluids.
A: Inspect them visually during every routine service for weeping, cracks, blisters, or abrasion. Replacement intervals vary by application, but rubber brake lines are typically replaced every 5 to 7 years, while fuel and steering lines should be replaced at the first sign of hardening or leakage.
A: STAMPED is an industry acronym used to specify fluid lines accurately. It stands for Size (I.D. and O.D.), Temperature (ambient and fluid), Application (system use), Material (fluid compatibility), Pressure (working and burst), Ends (fitting thread types), and Delivery (testing and certification requirements).
