Rebuilding an engine or diagnosing catastrophic failure requires more than a basic understanding of automotive anatomy. It demands precise visual identification and technical evaluation of internal components. Before tearing down a block, mechanics must understand how car engines work as a cohesive system. Every component plays a distinct role in the 4-stroke combustion cycle—intake, compression, combustion, and exhaust. A failure in one area rapidly cascades into others.
Selecting replacement components based solely on initial expense often leads to premature failure, poor tolerances, and repeated labor costs. The challenge lies in accurately diagnosing component wear, utilizing exploded-view diagrams for exact part identification, and choosing the right replacements that align with the vehicle's operational demands. This guide provides a technical breakdown of essential car engine parts, detailing their failure symptoms, material trade-offs, and critical evaluation criteria to ensure reliable repairs and upgrades.
Structural Integrity Dictates Longevity: The cylinder block and head form the foundation; evaluating them for micro-fractures, cylinder wall scoring, and deck warpage is a mandatory first step before sourcing internal components.
Rotating Assembly Tolerances are Unforgiving: Pistons, rings, and crankshafts require exact machining clearances; deviations here lead directly to compression loss or bearing failure.
Timing System Risks: Failure to accurately assess and replace worn timing components (chains, belts, tensioners) alongside major engine parts risks catastrophic valve-to-piston contact.
Sourcing Strategy: Prioritize OEM or high-tier aftermarket parts for critical internal components (head gaskets, bearings, oil pumps) where the labor cost of replacement far exceeds the part's purchase price.
The cylinder block serves as the massive central housing for the entire combustion process. It contains the cylinders, which act as the actual combustion chambers where fuel ignites. The block also routes liquid coolant through water jackets and directs pressurized oil through internal galleries to lubricate moving parts. Structural rigidity here is non-negotiable. Any flex in the block under heavy load distorts the cylinders, leading to immediate compression loss and severe piston wear.
Material selection heavily influences block performance and vehicle dynamics. Cast iron blocks offer immense durability, excellent thermal retention, and high resistance to cylinder distortion under extreme boost pressures. They handle detonation better than lighter materials but add significant weight over the front axle. Cast aluminum blocks reduce overall vehicle weight and improve thermal dissipation. Manufacturers press steel or iron sleeves into these aluminum blocks to provide a durable wear surface for the piston rings. Aluminum blocks often utilize open-deck or closed-deck designs, dictating their maximum cylinder pressure limits.
Evaluating a bare block requires precision measuring tools. Mechanics must inspect the cylinder walls for deep vertical scoring caused by debris or broken rings. You measure the cylinders with a dial bore gauge to check for out-of-roundness and taper. Deck warpage is another failure point. You check this using a precision machinist's straight edge and feeler gauges across the block surface. Finally, inspect the coolant jackets for severe rust or corrosion, which indicates poor maintenance and threatens future cooling efficiency. Before ordering any internal components, the block must be magnafluxed (for iron) or dye-penetrant tested (for aluminum) to rule out microscopic cracking.
Engine Block Material Comparison
| Material Type | Weight | Thermal Dissipation | Rigidity / Boost Tolerance | Common Application |
|---|---|---|---|---|
| Cast Iron | Heavy | Poor | Extremely High | Diesel, Heavy-Duty, Older V8s |
| Cast Aluminum (Sleeved) | Light | Excellent | Moderate to High | Modern Passenger Cars, Sports Cars |
| Billet Aluminum | Moderate | Excellent | Maximum | Professional Drag Racing |
The cylinder head bolts directly to the top of the engine block. It seals the combustion chamber and houses the entire valvetrain assembly. This includes the valves, springs, lifters, and often the camshafts. The head dictates engine airflow characteristics through its intake and exhaust port designs. Sitting atop the cylinder head is the valve cover. This component seals the oil splashing around the valvetrain and manages internal crankcase pressure via the PCV (Positive Crankcase Ventilation) system.
Checking a cylinder head involves several strict evaluation dimensions. You inspect the casting for hairline cracks, particularly in the thin metal between the intake and exhaust valve seats. High exhaust gas temperatures often cause these micro-fractures. Surface flatness is just as critical here as it is on the engine block. A warped cylinder head will never seal a head gasket properly. Mechanics use a straight edge to ensure the deck surface does not deviate more than 0.002 inches across its length. You must also inspect the valve cover for warping, especially if it is made of composite plastic. Check the internal PCV baffles for heavy sludge accumulation, which causes crankcase pressure to blow out main seals.
Implementation risks during reassembly are high. Improper torque sequencing or incorrect torque specifications lead directly to immediate head gasket failure. Mechanics must follow factory service manuals to stretch the head bolts evenly, often using a torque-angle gauge for modern torque-to-yield fasteners. Similarly, over-tightening a valve cover distorts the gasket, causing frustrating oil leaks onto the hot exhaust manifold.
Pistons convert the extreme pressure of expanding combustion gases into downward mechanical force. They travel up and down inside the cylinders thousands of times per minute. Piston rings wrap around the piston to seal the combustion chamber. The top two compression rings trap the expanding gases to maximize downward force. The bottom oil control ring scrapes excess oil off the cylinder wall, preventing it from burning in the combustion chamber.
Choosing piston materials involves distinct trade-offs. Cast aluminum pistons serve as the standard replacement for most naturally aspirated engines. They feature low thermal expansion, allowing for tight factory clearances and quiet cold starts. Hypereutectic cast pistons add silicon to the alloy, increasing strength and scuff resistance. Forged aluminum pistons are mandatory for high-stress or forced-induction applications. Materials like 2618 forged aluminum withstand massive detonation forces. However, they have higher thermal expansion rates. This requires looser cold clearances, often resulting in minor piston slap until the engine reaches operating temperature.
Wear indicators on pistons tell the story of an engine's life. Ring land failure usually points to severe detonation or pre-ignition. Skirt scuffing indicates oil starvation or excessive heat expansion. Excessive blow-by—where combustion gases push past the rings into the crankcase—signals worn compression rings or glazed cylinder walls. When sourcing engine parts for a rebuild, matching the piston ring material to the cylinder wall finish is absolutely critical for proper seating. Mechanics must also manually file-fit the piston rings to achieve the exact end-gap specified for the engine's intended heat range.

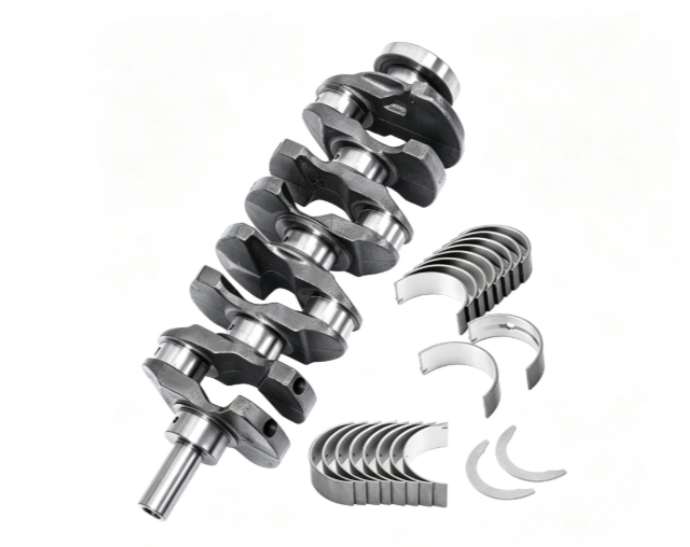

The crankshaft and connecting rods translate the linear up-and-down motion of the pistons into rotational force. The connecting rod attaches the piston to the crankshaft. As the piston pushes down, the rod turns the crankshaft journals. The crankshaft then sends this rotational torque out through the flywheel to the vehicle's transmission. This assembly endures immense compressive and tensile loads during every single revolution.
Evaluation dimensions for these components rely entirely on exact measurements. You inspect the crankshaft journals for scoring, grooving, or heat discoloration. Use a micrometer to measure the journals for out-of-roundness and taper. You cannot order replacement bearings without knowing the exact dimensions of the crankshaft journals. Connecting rods require inspection for straightness and big-end bore distortion. A rod that is slightly bent will push the piston sideways into the cylinder wall, causing rapid wear.
Scalability and upgrades depend on the intended power output. Standard OEM connecting rods often use powdered metal construction. These handle factory power levels reliably. High-torque applications require forged steel rods. H-beam rods offer excellent stiffness for high compressive loads, while I-beam rods provide superior tensile strength for high-RPM applications. Upgrading rod bolts to high-tensile steel is often the most cost-effective way to increase the RPM limit of a stock rotating assembly.
The camshaft mechanically regulates the intake of the air/fuel mixture and the expulsion of exhaust gases. It features eccentric lobes that push against lifters or rocker arms to open the valves at precise moments. The intake valves open to let the mixture in, and the exhaust valves open to push burned gases out. Valve springs immediately snap the valves closed once the camshaft lobe rotates away.
Evaluating the valvetrain requires close visual and mechanical inspection. You inspect the camshaft lobes for pitting, galling, or flat spots caused by poor lubrication. Measure the valve stems for excessive wear, which allows oil to leak down the valve guides into the combustion chamber. Check the valve spring tension using a benchtop spring pressure tester. Weak springs cause valve float at high RPMs, leading to severe power loss and potential piston contact.
Balancing performance versus reliability is a major consideration here. Installing high-lift or long-duration camshafts increases high-RPM horsepower. This upgrade requires stiffer valve springs to control the aggressive valve motion. Aggressive camshafts also reduce idle vacuum, which negatively impacts power brakes and overall street drivability. You must match the camshaft profile to the vehicle's intended use and verify piston-to-valve clearance using checking clay during mock-up assembly.
The timing system provides precise synchronization between the crankshaft and the camshafts. The crankshaft drives the timing system, which in turn rotates the camshafts at exactly half the speed of the crank. This mechanical link ensures the valves open and close in perfect harmony with the piston's position. Manufacturers use either a rubber-toothed timing belt or a metal timing chain to achieve this synchronization.
Implementation risks are severe if this system fails. Most modern powerplants are interference engines. In an interference engine, the valves and pistons occupy the same physical space inside the cylinder, just at different times. If a timing belt snaps or a timing chain jumps a tooth, the synchronization is lost. The pistons will violently smash into the open valves, destroying the cylinder head and often ruining the pistons.
Strict replacement protocols prevent this disaster. You replace tensioners, plastic chain guides, and idler pulleys concurrently with the timing belt or chain. A new belt will quickly fail if a worn tensioner loses pressure. Furthermore, if the timing system drives the water pump, you replace the pump during the timing service. This prevents overlapping labor costs if the old water pump fails a few months later.
The intake manifold distributes the incoming air or air/fuel mixture evenly to each cylinder. Its runner length and plenum volume dictate where the engine produces peak torque. Long runners build low-end torque, while short runners favor high-RPM horsepower. The exhaust manifold collects the extremely hot, spent combustion gases from the cylinder head ports and routes them down into the exhaust system. Both manifolds must maintain perfect seals against the cylinder head to function correctly.
Evaluating these manifolds involves checking for distinct failure points. Modern plastic intake manifolds are prone to hairline cracks and warping around the coolant crossover passages. These defects create vacuum leaks, allowing unmetered air into the engine and causing lean misfires. Mechanics use a smoke machine to pressurize the intake tract and visually locate these leaks. You inspect cast-iron exhaust manifolds for heat-cycling fractures. Extreme temperature fluctuations cause the iron to crack or the mating flanges to warp. A warped exhaust manifold will repeatedly blow out exhaust gaskets, creating a loud ticking noise under acceleration.
Fluid management keeps the internal components alive. The oil pan acts as the reservoir, storing the engine oil at the bottom of the block. The oil pump pulls oil from the pan and forces it under high pressure through the engine block galleries to lubricate bearings and cool the pistons. The water pump circulates liquid coolant through the block and cylinder head to absorb combustion heat, pushing it out to the radiator for cooling.
Evaluation dimensions for these pumps focus on flow and pressure. You inspect the oil pan baffles for structural integrity. Broken baffles allow oil to slosh away from the pickup tube during hard cornering, causing instant oil starvation. Oil pumps require inspection for internal gear scoring or housing wear, which drops oil pressure. Mechanics check the clearance between the pump gears and the housing using feeler gauges. Water pumps typically fail at the weep hole. Coolant leaking from the weep hole indicates the internal mechanical seal has failed.
When sourcing replacements, strongly avoid budget aftermarket oil pumps. The oil pump is the heart of the engine. A cheap pump with poor internal machining tolerances will cause pressure drops at idle or cavitation at high RPMs. The high risk of total engine failure makes OEM or premium high-volume aftermarket oil pumps the only logical choice.

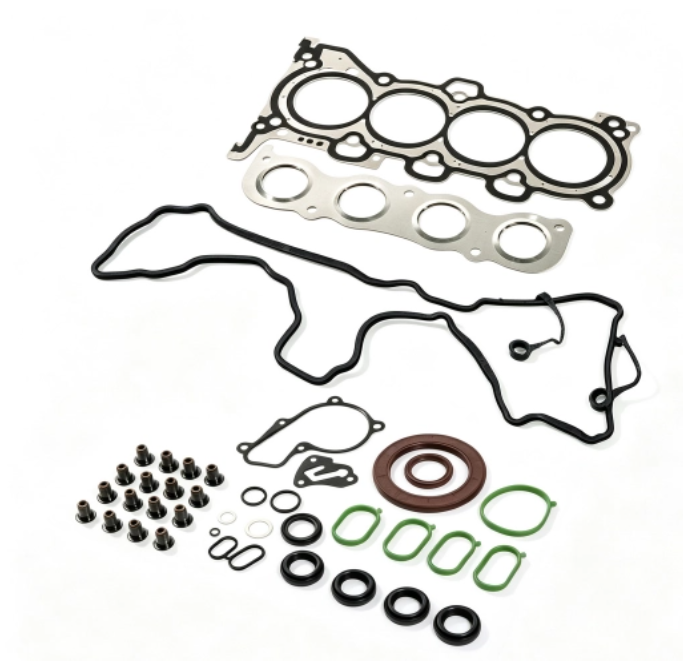

Gaskets and seals keep fluids separated and contained. The head gasket seals the immense pressure of the combustion chamber while keeping oil and coolant passages isolated. Intake and exhaust manifold gaskets seal airflow. The valve cover gasket keeps oil off the exhaust. Front and rear main seals prevent pressurized oil from leaking out around the spinning crankshaft ends.
Material specifications define gasket performance. Older engines used composite or copper head gaskets. Modern engines almost exclusively use Multi-Layer Steel (MLS) gaskets. MLS gaskets offer superior clamping force and blowout resistance. MLS gaskets demand extremely smooth block and head surface finishes. If the Roughness Average (Ra) of the machined surface is too coarse (typically anything above 30 Ra for modern MLS), the gasket will not seal cold fluids, resulting in external coolant leaks.
Gasket Material Comparison Guide
| Gasket Type | Common Application | Durability | Surface Finish Requirement |
|---|---|---|---|
| Multi-Layer Steel (MLS) | Head Gaskets, Exhaust Manifolds | Excellent | Very Smooth (Low Ra) |
| Composite / Graphite | Older Head Gaskets, Intakes | Moderate | Forgiving (Higher Ra acceptable) |
| Molded Rubber / Silicone | Valve Covers, Oil Pans | Good | Clean, oil-free surface |
| Copper | High-Boost Racing Applications | Excellent (Requires O-rings) | Extremely Flat |
Choosing between Original Equipment Manufacturer (OEM) and aftermarket components defines the success of a rebuild. OEM parts guarantee exact factory fitment, correct metallurgical properties, and predictable longevity. Premium aftermarket parts often exceed OEM specifications, offering forged materials and improved designs for specific weaknesses. Budget aftermarket parts frequently suffer from poor quality control and dimensional inaccuracies.
Success criteria dictate when specific tiers are mandatory. OEM is absolutely mandatory for electronic sensors, critical internal bearings, and head gaskets. The factory engineering behind these specific components is rarely matched by budget alternatives. Aftermarket parts become acceptable, or even superior, when upgrading internal strength. Forged pistons, performance rod fasteners, and high-volume oil pumps from reputable aftermarket manufacturers provide durability that factory parts cannot match under high stress.
Purchasing the highest quality components is entirely useless if machine shop tolerances are incorrect. The relationship between the machined block and the new parts dictates engine survival. Cylinder honing must match the specific piston ring material to ensure proper break-in and sealing. If the cross-hatch angle is wrong, the rings will never seat, leading to permanent oil consumption.
Implementation risks multiply during the machining phase. Line honing the main journals is required if you change main caps or install high-strength main studs. This ensures the crankshaft spins perfectly straight. Torque plate honing simulates the distortion caused by bolting the cylinder head to the block, ensuring the cylinders remain perfectly round under clamping load. You verify all machine shop measurements with your own precision tools before final assembly.
Secure a factory service manual for your specific engine to access exact torque specifications and clearance limits.
Utilize exploded-view diagrams to identify every small dowel pin, thrust washer, and hardware piece before ordering.
Invest in precision measuring tools, including micrometers, dial bore gauges, and straight edges, to verify component wear yourself.
Consult with a reputable automotive machine shop regarding surface finish requirements before purchasing MLS head gaskets.
A: The most critical components include main and rod bearings, piston rings, the oil pump, and all timing components. You must also replace all single-use torque-to-yield bolts, the head gasket, and front/rear main seals. Reusing these high-stress or wear-heavy items drastically increases the risk of immediate engine failure upon startup.
A: An engine block requires replacement if it has irreparable external cracks leaking coolant or oil. Severe cylinder wall scoring that exceeds the maximum safe overbore limit also ruins a block. Additionally, spun main bearings that tear away the cast iron webbing of the main journals often render the block unusable.
A: It depends entirely on the manufacturing tier. Premium aftermarket parts often exceed OEM quality, utilizing stronger forged materials and addressing factory design flaws. Budget aftermarket parts frequently suffer from poor quality control, weak metallurgy, and dimensional inaccuracies, making them highly unreliable for critical internal use.
A: Piston rings fail due to severe detonation, which shatters the ring lands. Lack of lubrication causes the rings to scuff and weld to the cylinder walls. Excessive heat from poor cooling system performance causes rings to lose their spring tension. Abrasive dirt entering through a failed air filter also rapidly grinds away the ring face.
A: Yes, if the timing belt drives the water pump, you must replace it. The labor to access the water pump is identical to the timing belt labor. If you leave the old pump and its bearing fails a few months later, you will pay for the entire teardown process a second time.
A: Modern Multi-Layer Steel (MLS) head gaskets require an extremely smooth surface finish to seal correctly. If the block or cylinder head is machined too roughly, the microscopic peaks and valleys in the metal prevent the thin rubberized coating on the MLS gasket from creating a watertight and airtight seal.
