Key Takeaway
Translate workshop findings into a verified cylinder-head replacement scope without equating symptoms with a diagnosis. Start with the OE reference and engine application, verify the exact configuration and supplied scope, then approve a documented sample before bulk release. A category listing does not establish any specific Hyundai or Kia SKU.
Overheating, coolant loss and exhaust changes can justify investigation, but none alone proves that a cylinder head must be replaced.
Ask the workshop for the test findings and failed component, not just a dashboard description. A leaking hose, cooling-system fault, gasket failure or cracked casting can present overlapping symptoms. The buyer should obtain the diagnosis before ordering an expensive casting.
Separate driver complaints from measured workshop findings. Coolant loss, overheating and exhaust changes can arise from several faults, including the gasket and other cooling components. Ask which tests located the failure and whether the head itself is cracked, warped or otherwise beyond the allowed repair route. This prevents ordering a casting to solve a symptom that has not been traced.
Record the reported symptom and when it occurs; do not label it a failed head.
Ask the workshop for its cooling, compression or leak findings and the part it has identified as faulty.
Approve a head order only if the diagnosis and repair plan call for replacing the casting or assembly.
Observed symptom | Diagnostic distinction to request | Buyer part decision |
|---|---|---|
Unexplained coolant loss or white exhaust | Workshop evidence distinguishing a gasket leak from casting damage or another coolant path | Hold head order until the failed sealing or casting component is identified |
Overheating | Cooling-system findings and inspection of head flatness or cracks, if indicated | Quote the head only if the repairer rejects repair or reuse; list cooling parts separately |
Oil and coolant mixing | Confirmed route between circuits and condition of head, gasket and block | Order the diagnosed component and matching gasket scope, not a head by symptom alone |

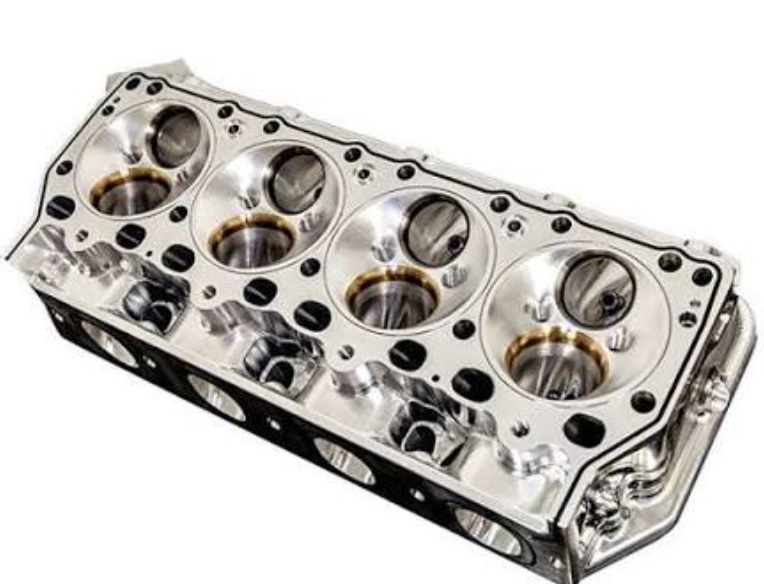

A replacement cylinder head must match the engine variant and the supplied assembly scope.
Capture VIN, engine code, casting or OE number and build details. Confirm combustion-chamber layout, port pattern, cam and valve arrangement, sensor and coolant passages, and whether the item is a bare casting or assembled head. The same vehicle badge may span multiple engines.
Record the VIN, engine code, original casting mark and build range. Compare combustion-chamber and port layouts, coolant and oil passages, sensor provisions, cam supports and mounting features. If a new casting number supersedes the old one, ask for its application basis. A side photograph is useful but cannot confirm hidden galleries or machined dimensions.
A head quote should state which related parts are supplied and which remain a separate purchase.
Ask about valves, springs, cam components, seals, head gasket, bolts and timing components. Some may be reusable only after workshop inspection and service-procedure review. Do not assume a new head includes a gasket kit or that old bolts are suitable for reuse.
Define whether the purchase is a bare casting, partially dressed head or complete assembly. List valves, springs, seals, guides, cam parts, gasket, bolts and timing pieces as included or excluded. The workshop must decide what can be reused under the engine service procedure. A lower quoted price may simply reflect less supplied hardware.
Hold point: Do not turn an unverified test, material, fitment or performance claim into buyer-facing copy.
Check the component maker technical guidance for the documented limit; use the vehicle-specific procedure for the actual repair.
The buyer should request evidence tied to the specific replacement head and the intended repair route.
For a new or remanufactured head, ask for identity, measured critical surfaces, inspection method, casting condition and any pressure-test record actually available. A remanufactured label does not identify the machining scope. Compare the supplier’s scope with the workshop’s diagnosis before releasing the PO.
For a remanufactured head, ask what machining, component replacement and inspection were performed. A general tested label is not enough; request the method, acceptance basis and traceable part or lot record. Inspect sealing faces, ports and exposed valve-train areas at arrival, and agree on packing protection before bulk purchase.
Obtain the casting identity and decide whether the offer is bare, partially dressed or assembled.
Request the actual surface, passage and component-inspection record for the proposed head.
Compare that record with the workshop repair plan and retain any unresolved condition as a purchase hold.
A complete application and failure record helps distinguish wrong-part claims from unresolved engine faults.
Attach photos of the removed head and casting marks, workshop findings, required assembly scope, approved sample or drawing, pack protection and destination. Keep the removed component and service documentation until the incoming head has been verified.
Keep the diagnosis, removed-part photographs, casting marks and approved replacement record together. If overheating caused the original failure, document the cooling-system corrective work. This helps distinguish an incorrect head from an unresolved engine fault and provides a defensible return record.
Attach the symptom report, workshop diagnosis and removed-head casting marks to the RFQ.
State whether the quote is for a bare or assembled head and itemize valves, cam parts, gasket and bolts.
Record the approved head inspection evidence and how sealing faces will be protected in transit.
Keep the cooling-system corrective work and incoming head inspection with the return record.
Explore the Engine Parts category
For cylinder head purchasing, release a grade or replacement order only when the application, physical specification, supplied contents and evidence record agree.
For a cylinder-head quotation, the most useful attachment is a worksheet with three columns: observed fault, workshop finding and part or operation required. A coolant-loss complaint belongs in the first column; a verified crack or rejected flatness result belongs in the second only when the workshop has actually documented it. The final column may call for a gasket, a repaired head or a replacement assembly. This prevents the purchasing team from confusing a diagnostic possibility with an approved remedy. If a head is required, ask the supplier to sign off on the casting and assembly scope against the removed part. Record any uncertainty about cam or valve-train transfer as an open workshop decision. Incoming inspection should then check casting identity, protected sealing faces and the exact contents before the old parts are discarded.
A symptom report should lead to a documented workshop finding before a cylinder head is purchased. Keep the head assembly, gasket set and any related repair parts on separate quotation lines until the repair scope is confirmed.
No. Persistent white exhaust can be consistent with coolant entering combustion, but it does not locate the leak. Ask the workshop to record its findings for the head gasket, head casting and cooling circuit before buying a replacement head. Keep the confirmed failed component on the purchase request.
No. Overheating calls for a cooling-system diagnosis and, where indicated, inspection of head condition. Ask whether the casting is cracked or outside the engine-specific repair limits. If the cooling fault remains unresolved, replacing the head alone may not complete the repair.
A bare head is principally the casting; an assembled offer may include some valve-train components. Those labels vary by seller, so list valves, springs, guides, seals and cam parts individually. Compare the quotation with what the workshop can reuse and what it must replace.
Only the itemized quotation can answer what is in the box. Ask the workshop which gasket, bolts and timing-related parts its repair procedure requires, then list missing items on separate order lines. Do not assume old fasteners are reusable or that a head assembly includes a sealing kit.
No. A casting mark helps identify the removed head, but it does not by itself establish the complete vehicle application or assembly scope. Reconcile it with VIN or model-year and engine details, the OE reference and the supplier’s supersession information before release.
Ask what was cleaned, measured, machined and replaced on the offered head. Request the inspection or pressure-test method and acceptance basis if those claims are made, plus a traceable part or lot record. Inspect protected sealing faces and supplied components when it arrives.
