Key Takeaway
To source Hyundai or Kia control arms, define the exact vehicle and suspension variant, then approve the arm geometry, mounting interfaces, bushing and ball-joint configuration, supplied hardware and SKU-level evidence. Do not use an OE cross-reference or vehicle name as a substitute for confirming the proposed assembly.
A control arm is sold as an assembly, but the content of that assembly varies. A buyer may receive a bare arm, an arm with bushings, or an arm with a ball joint depending on the part number and market. Sourcing an aftermarket program therefore starts with an application matrix and ends with a controlled order specification. This guide is for importers and distributors planning the range, not a claim that any specific Hyundai or Kia SKU is currently available from Kingmay.
Separate vehicle, production, market, axle, side and suspension variants into distinct candidate lines before comparing suppliers.
Collect model, generation, model year, build date where available, engine or drivetrain if relevant, axle and left/right position. Record the OE number and supersession source for every line. A VIN decoder can help identify a vehicle, but does not prove a third-party control arm's fit. The sourcing matrix should show unresolved cases rather than silently rolling them into the nearest high-volume line.
Check whether the same arm is described under different regional model names or whether two visually similar arms belong to different brake or suspension packages. Prioritize the market's actual vehicle parc and replacement demand, but do not invent volumes from a catalogue. Ask suppliers for a machine-readable application list and a process for handling fitment corrections.
Record model, market, build period, axle and side separately.
Log each OE reference and supersession source.
Hold unresolved suspension variants as separate candidate lines.

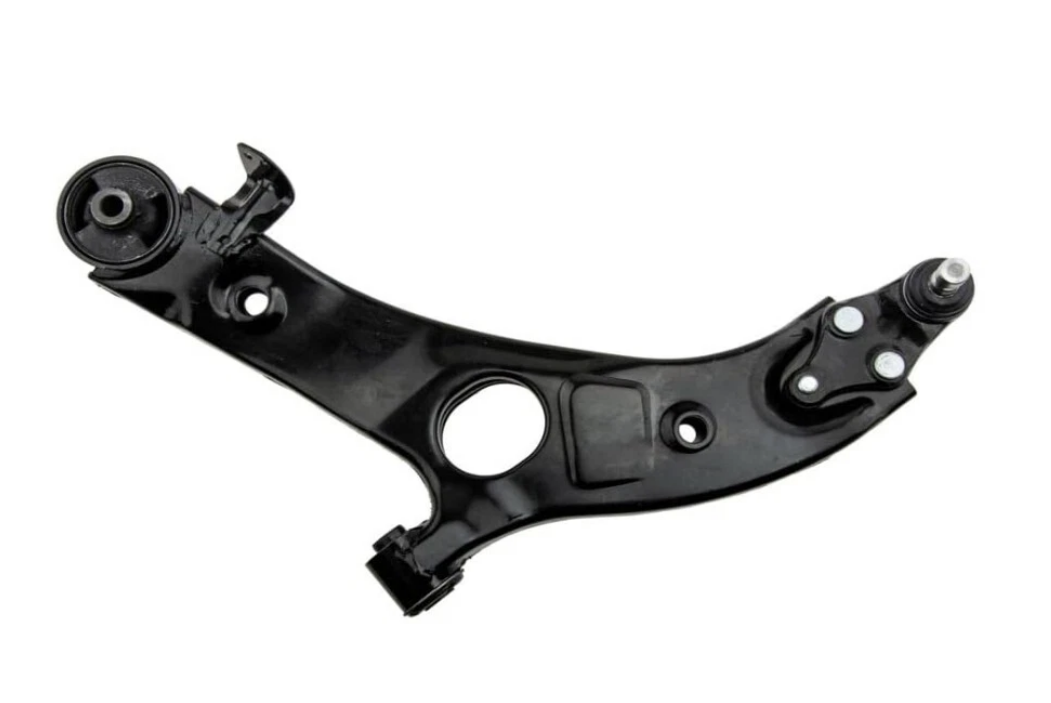

Verify pivot spacing, arm shape, bushing positions, ball-joint interface and mounting hardware against the approved application, not just the stamped arm outline.
The body may be pressed steel, cast or forged in different applications. That observation alone is not a grade ranking. Request a drawing or labelled sample for the exact proposed SKU, with datums and critical dimensions that a technical team can compare. Confirm clearance to nearby suspension and drivetrain components through the approved application data.

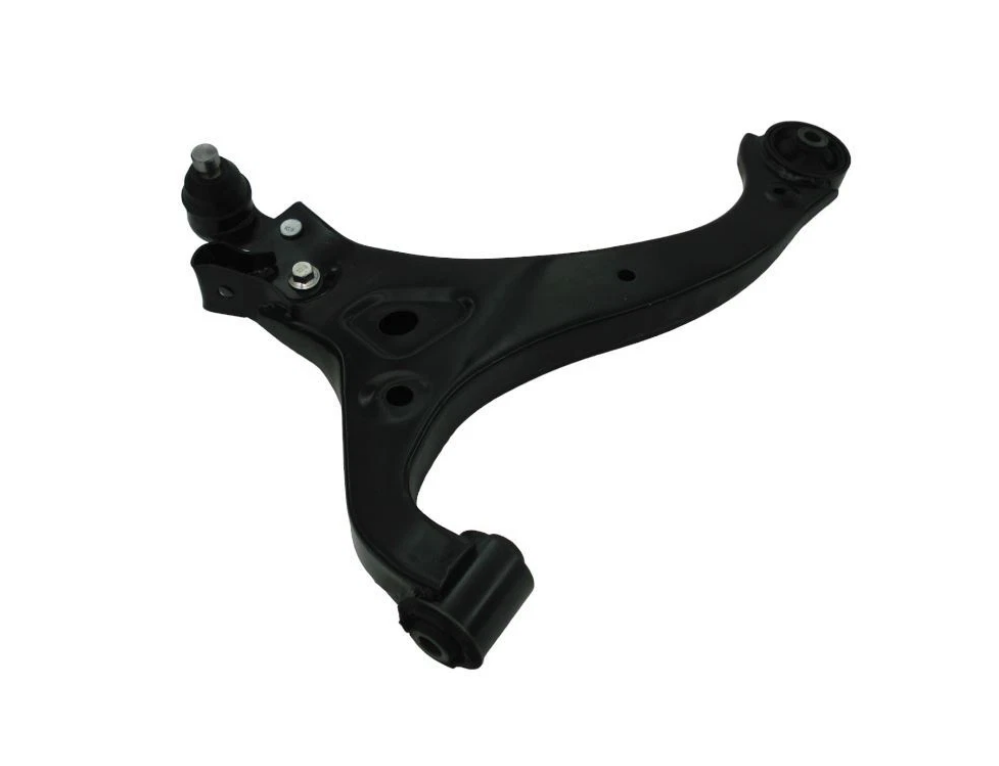

Establish whether bushings are preinstalled, what their orientation is, and whether the ball joint is integrated, bolt-on or absent. The mating knuckle connection and bushing sleeves are especially important. A control arm that fits the subframe but has the wrong ball-joint interface is not an acceptable substitute. Monroe's control-arm technical guidance is useful background for understanding these interfaces, but does not validate a Kingmay part.
Approval field | Required comparison |
|---|---|
Arm geometry | Compare pivot spacing, arm profile and side-specific mounting points. |
Bushing and joint | Confirm installed bushings, orientation and ball-joint interface or absence. |
Supplied hardware | List fasteners and installation items included with the exact SKU. |
Ask for product-specific drawings, material and inspection records and a labelled sample before approving a new control-arm line.
For a first order, identify critical characteristics such as pivot geometry, bushing seating, joint retention and coating coverage in a mutually agreed inspection plan. Any supplier test or certification claim should name the actual SKU or family covered, method, date and source document. Avoid adopting a generic 'OE quality' phrase as a pass criterion.
Compare the sample with a known-correct reference and record deviations. Discuss installation-sensitive items with the workshop or technical team; the purchase specification should not prescribe torque values without vehicle service information. If the arm is supplied without a ball joint or fasteners, put that exclusion plainly on the quotation, label and order line.
A familiar OE cross-reference or generic 'OE quality' statement is not SKU-level proof of geometry, installed parts or test results.
Approve each supplier SKU only when fitment, assembly contents, sample evidence and packaging identity are linked to the same application row.
Use a purchase-order line with the supplier number, OE reference, left/right position, vehicle scope, drawing revision, kit contents and quantity. Require separate labels for arms that differ by side or assembly contents. Agree how packaging will prevent bushing, boot or finish damage in transit and how a receiving team will recognize a mixed lot.
Keep unresolved supersessions and fitment questions out of released stock. For a new supplier, start with a controlled sample or pilot lot and log field mismatch reports by batch and application. Kingmay's chassis category lists control arms and its site invites fitment enquiries, so submit the application matrix and request a product-specific response rather than assuming a category page proves every desired SKU.
Approve the application row and sample revision.
Confirm assembly contents and product-specific evidence.
Release separate labels and lot records for each approved variant.
Explore Kingmay chassis parts and request SKU-level confirmation
To source Hyundai or Kia control arms, define the exact vehicle and suspension variant, then approve the arm geometry, mounting interfaces, bushing and ball-joint configuration, supplied hardware and SKU-level evidence. Do not use an OE cross-reference or vehicle name as a substitute for confirming the proposed assembly.
For a control-arm program, keep each vehicle variant tied to the arm geometry, installed bushing and joint contents and the supplier sample revision; isolate unresolved sides or supersessions before stocking.
It is a starting cross-reference. Confirm vehicle variant, side, suspension package and the proposed assembly's physical interfaces.
Do not assume so. Treat them as separate order lines unless the approved application data specifically identifies a shared part.
No. Specify whether the quoted assembly is bare, includes bushings, and includes an integrated or separate ball joint.
Compare mounting-point geometry, bushing position and orientation, joint interface, supplied hardware and the exact drawing revision.
No. Ask for a current SKU-level quotation, lead-time confirmation and application evidence for the exact line.
Record the approved sample and drawing, application row, order quantity, pack label, lot identity and the process for reporting fitment exceptions.
