Key Takeaway
Approve a water-pump sample and repeat-order specification with visible fitment and packaging evidence. Start with the OE reference and engine application, verify the exact configuration and supplied scope, then approve a documented sample before bulk release. A category listing does not establish any specific Hyundai or Kia SKU.
A water-pump sample should be checked against the OE reference and exact engine application before dimensions are compared.
Record VIN or model/year/engine code, driven type, electrical interface where applicable and superseded references. A visually similar casting can carry a different pulley, port or connector. Keep the sample and approved cross-reference linked to a single supplier SKU.
Classify the exact pump first: mechanical drive and electric control bring different interfaces. Record OE reference, VIN or engine code and build range. Where a replacement supersedes an earlier reference, obtain the supplier’s application comparison. Approve one sample for each distinct configuration rather than assuming all pumps in a model family interchange.
Separate mechanical and electric pump applications by engine and build range.
Reconcile the OE reference and any supersession with the supplier’s exact SKU.
Approve a physical sample for each distinct drive or connector configuration.

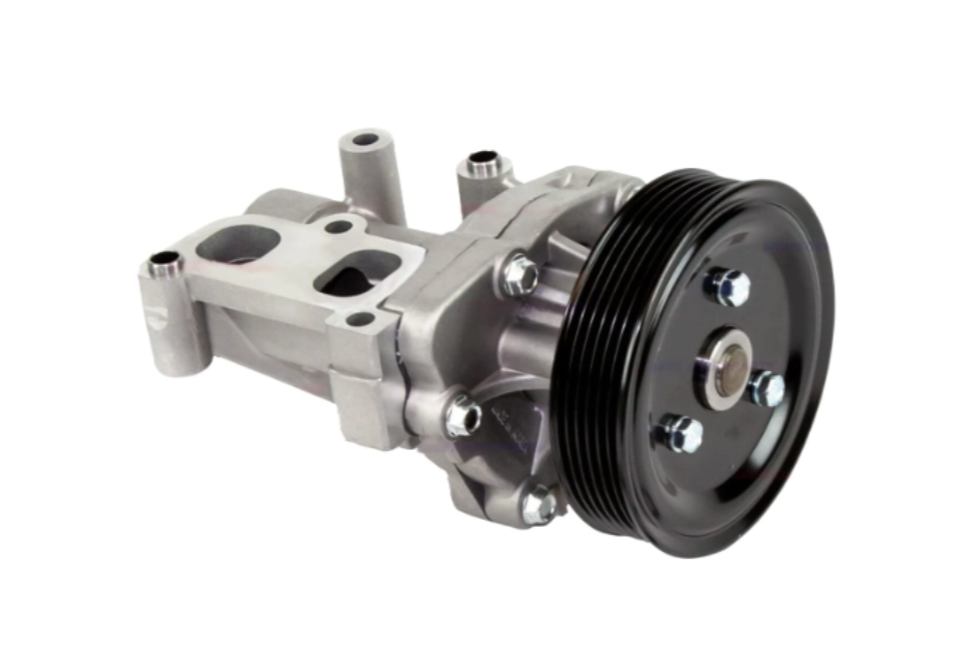

The checklist should capture mounting and drive interfaces, fluid ports and sealing surfaces on the actual pump.
Compare bolt-hole centers, housing depth, pulley offset or drive interface, inlet and outlet geometry, gasket land and any bypass passage. For an electric pump, record connector shape, keying and pin count, then obtain the exact electrical specification rather than inferring it from photographs.
Measure the interfaces that actually govern installation: mounting pattern, housing depth, drive or pulley offset, hose ports, gasket land and any bypass channel. For an electric pump, verify connector keying, pin count and the documented electrical specification. Do not infer pin functions from wire colors or a photograph.
Pump interface | Sample check | Supplier record to request |
|---|---|---|
Mounting and seal land | Bolt-hole pattern, housing depth and gasket seat | Drawing or measured comparison to target OE reference |
Mechanical drive and coolant ports | Pulley or drive offset, inlet, outlet and bypass positions | Application-specific configuration and included gasket |
Electric connector, if fitted | Keying, pin count and protection of contacts | Exact electrical specification; do not infer pin functions from appearance |
Material and seal claims should be documented for the quoted pump rather than borrowed from a generic catalogue.
Request the housing, impeller and seal material declarations and any test method or acceptance criteria that the supplier actually uses. Do not convert a material name into a durability claim. Gates notes that rubber or O-ring gaskets may not require added sealant; follow the pump and vehicle-specific instructions.
Ask for housing, impeller and seal material declarations, but treat material as a description rather than a durability result. If the supplier claims a leak, flow or life test, request the method, conditions and acceptance criteria. Sealing instructions depend on the gasket design; inappropriate sealant can itself contribute to failure.
Hold point: Do not turn an unverified test, material, fitment or performance claim into buyer-facing copy.
Check the component maker technical guidance for the documented limit; use the vehicle-specific procedure for the actual repair.

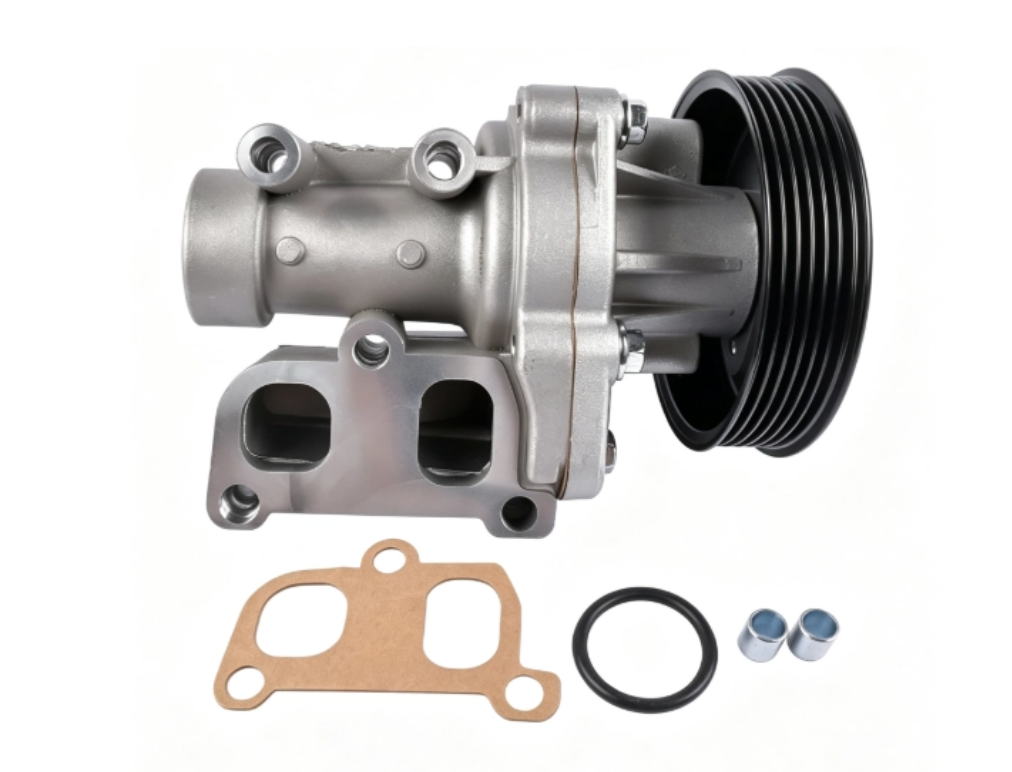

A sample inspection should document identity, physical condition, included pieces and protection in transit.
Check for handling damage, clean ports, protected machined faces, intact connector and supplied gasket or O-ring. Photograph the label and match the supplier SKU, OE reference and carton quantity to the purchase record. Define inner packing, moisture protection and mixed-SKU identification before bulk shipment.
Check the sample for clean ports, undamaged machined faces, intact connector and the promised gasket or O-ring. Match the SKU and OE reference on the inner label, outer carton and packing list. Require protective packing that prevents the impeller, connector and sealing faces from contacting other parts during shipment.
Check the pump marking and OE cross-reference against the approved application.
Inspect machined faces, impeller, ports and connector for damage or contamination.
Photograph the included seal, inner protection and carton label before accepting the sample.
Approve water-pump production only when the sample, drawing or specification, testing evidence and packing record all refer to the same SKU.
Record permitted substitutions and who authorizes them. Keep any leak, flow or life-test promise out of the sales copy unless the exact method, sample basis and result are documented. Provide the supplier the application, quantity, destination and packaging needs in one controlled RFQ.
Approve bulk production against the same drawing or sample, inspection scope and carton specification. Record who can authorize substitutions and how lot changes are reported. If test evidence is missing, keep claims about leak resistance or service life out of the sales copy while still providing a useful fitment and packing checklist.
Freeze mounting, drive or connector interfaces for the approved pump SKU.
List housing, impeller and seal materials as declarations, with test method only if documented.
Match gasket contents, protective packing and carton labels to the sample record.
State lot traceability, quantity, destination and who may approve a design substitution.
Explore the Engine Parts category
For water pump purchasing, release a grade or replacement order only when the application, physical specification, supplied contents and evidence record agree.
A useful water-pump approval form separates fitment, quality evidence and logistics. Under fitment, record OE reference, engine, mounting geometry and connector or drive details. Under quality evidence, write the material declarations and only the tests whose methods and results were supplied. Under logistics, record gasket contents, label text, inner protection and cartons per SKU. The form gives receiving staff a way to compare bulk stock with the approved sample. It also shows exactly where a supplier answer is missing. If a housing material or impeller design changes between sample and production, request a revised approval instead of silently treating the old sample as current. Buyers should hold a mixed shipment line when a carton label cannot be reconciled with the purchase order.
Use the water-pump checklist as a sample approval record: attach the interface measurements, connector or pulley details where applicable, supplied sealing parts and packing photos to the exact supplier SKU.
No. Use the photo to screen visible differences, then verify the OE application, mounting dimensions, drive or connector and coolant-port geometry against a sample or drawing. A similar casting can hide an offset or sealing difference. Hold the SKU if a critical interface is undocumented.
No. The supplied gasket design and applicable pump and vehicle instructions govern sealant use. Ask whether the quoted unit includes an O-ring, flat gasket or another seal. Do not add a generic sealant promise to the product description; inappropriate use can contribute to failure.
Compare connector body, keying and pin count, then obtain the exact electrical requirements for the application. Pin function and operating characteristics should come from technical documentation, not wire color or a photograph. Keep electric and mechanical pump variants on separate approval records.
No. Require the quote to name the gasket or O-ring and inspect the packed sample. If it is absent, place the correct seal on a separate purchase line with the workshop’s repair specification. Compare offers at the same supplied scope.
Ask which dimensional, leak or functional checks the supplier actually performs on this SKU and request the method, sample basis and acceptance criteria. Do not imply flow or service-life performance from a material declaration. Publish a measurable claim only when its test record supports the exact wording.
Agree one label format linking each carton to an approved SKU, OE reference and quantity. The packing list should distinguish engine and connector variants. Inspect inner protection and a sample carton before bulk release; hold any carton whose label cannot be reconciled with the order.
