45822-3B250
45822-3B250
Hyundai, Kia
Santa Fe, Tucson, Sonata, IX35, IX45, Sorento, Sportage, Optima (K5）
2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009
Chassis System
Differential / Differential Housing
| Quantity: | |
|---|---|
Product Description
This differential case pairs with A6LF1, A6LF2, A6MF1, and A6MF2 automatic transmissions built for 4WD/AWD configurations. It fits Hyundai models including the Santa Fe, Santa Fe Sport, Santa Fe XL, ix35, ix45, and Tucson, as well as Kia models including the Sorento and Sportage, covering model years from 2009 to 2018. It works with both gasoline and select diesel powertrain configurations, supporting consistent power transmission across daily commuting and varied road conditions.
Parameter | Specification |
OE Part Number | 45822-3B250 |

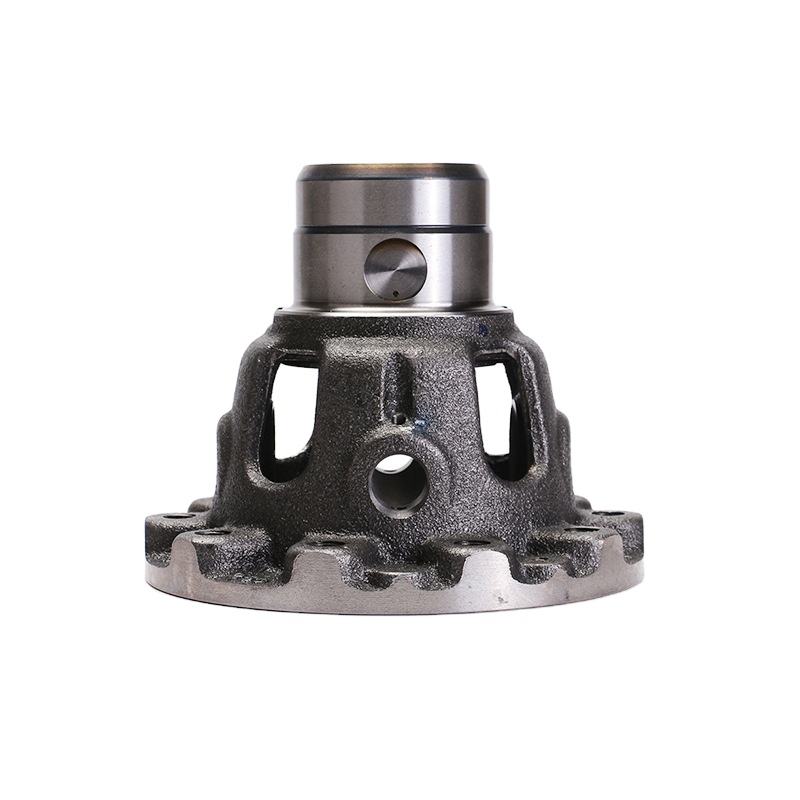

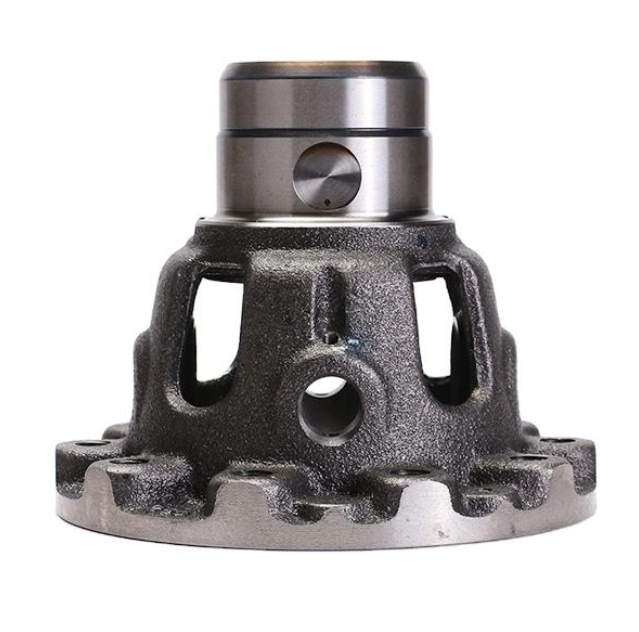

Part Type | Differential Housing (Cup Diff Case, RH Passenger Side) |
System | Chassis Drivetrain System |
Material | QT450-10 Ductile Iron |
Internal Spline Count | 47 |
Mounting Hole Count | 10 |
Overall Height | 133 mm |
Neck Diameters | 62.90 mm, 65.05 mm |
Satellite Pin Hole Diameter | 16.85 mm |
Mounting Skirt Outer Diameter | 162.10 mm |
Compatible Transmissions | A6LF1, A6LF2, A6MF1, A6MF2 (4WD/AWD) |
Applicable Brands | Hyundai, Kia |
Cast from QT450-10 ductile iron and processed with integral heat treatment, this differential case delivers defined impact resistance and structural stability. It maintains dimensional integrity under continuous all-wheel-drive load and repeated mechanical stress, reducing deformation and cracking risks during long-term operation under variable load conditions.

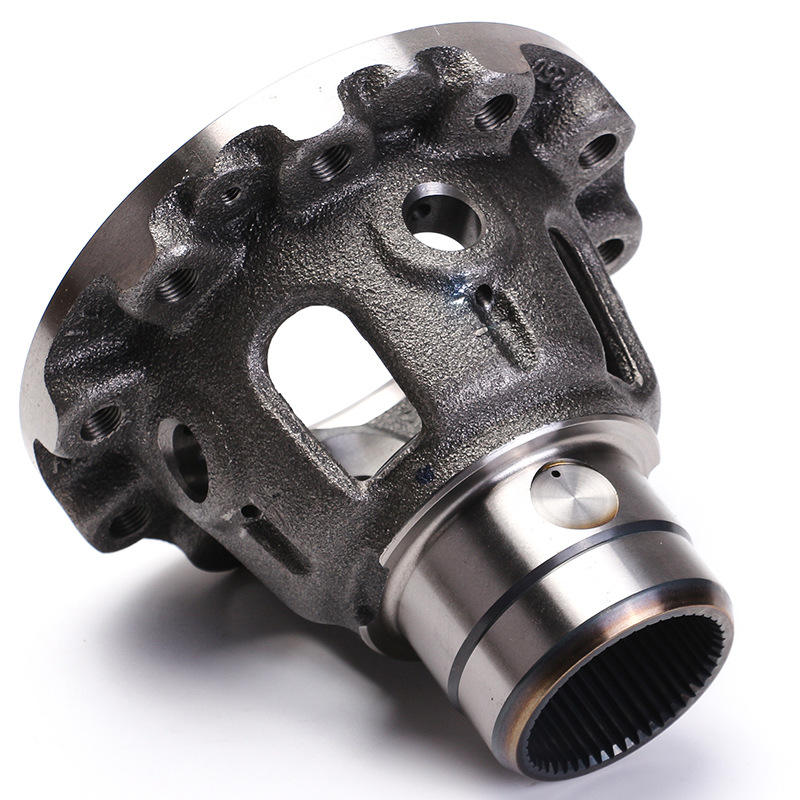

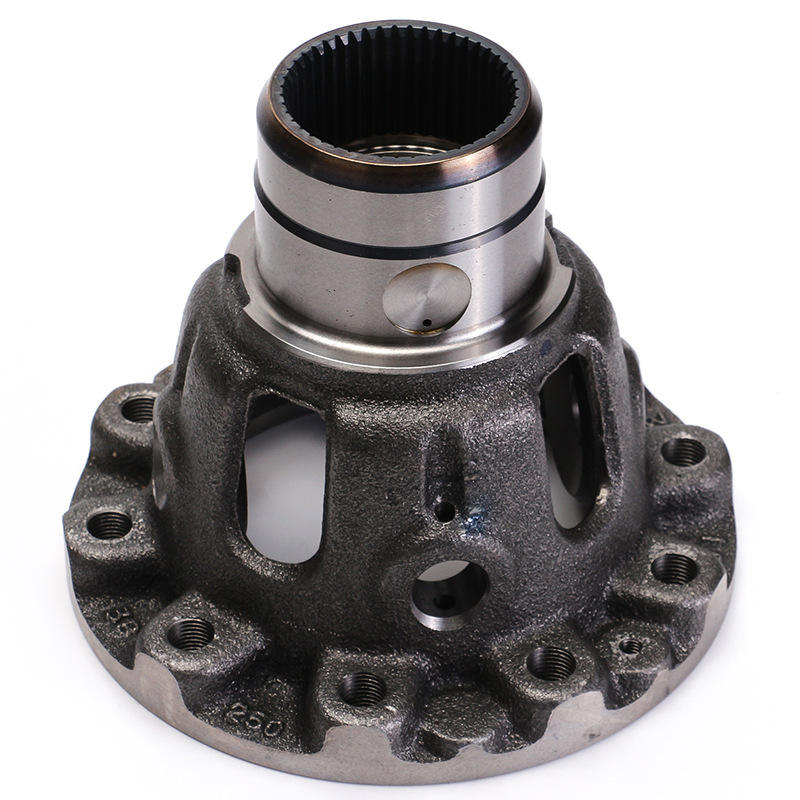

The 47 internal splines are machined via CNC processes to controlled tolerances. This precision machining method ensures uniform engagement with mating gears, supports steady power transfer across acceleration and deceleration cycles, and minimizes slippage during sudden load changes.
Bearing bores and sealing surfaces are machined to controlled flatness and concentricity standards. This level of precision reduces transmission vibration and operating noise during vehicle operation, contributing to consistent drivetrain performance over extended service life.
The component features an optimized oil gallery design and standard sealing grooves. This structure maintains consistent lubrication for internal gear components, reduces wear between moving parts, and blocks external dust and moisture from entering the assembly to extend overall service life.

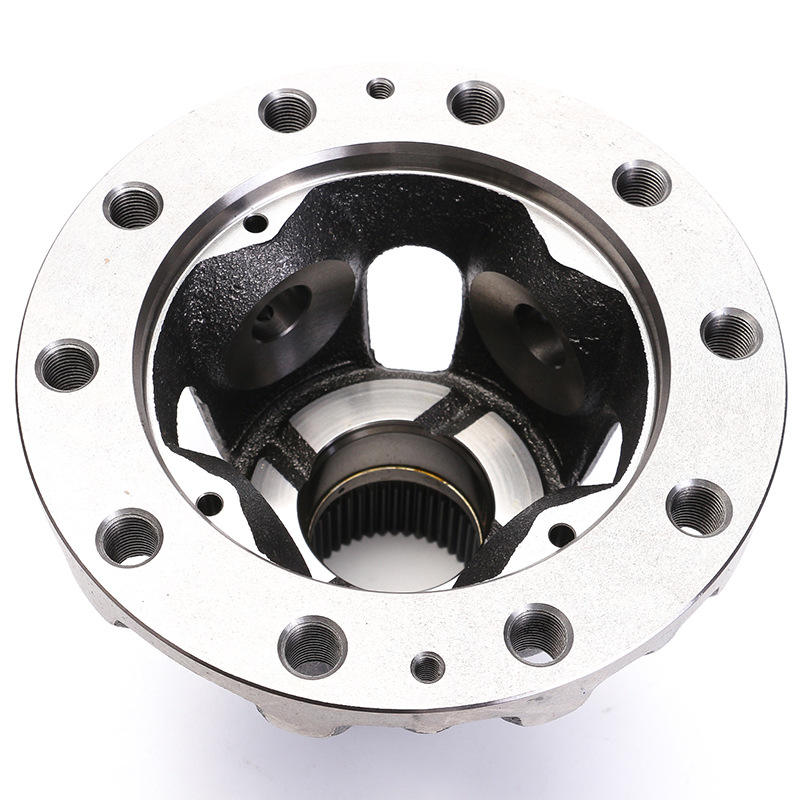

The 10-hole flange aligns with the OEM bolt pattern exactly. This dimensional consistency allows for direct replacement without modification or rework, reducing installation time for repair workshops and transmission rebuild operations.
Manufactured in an IATF16949-accredited facility, each 45822-3B250 differential case undergoes full dimensional inspection and pressure testing before leaving the production line. These inspection steps verify dimensional accuracy across critical mating surfaces and confirm sealing performance under simulated operating pressure. Batch inspection records are maintained to support quality traceability for commercial clients, ensuring consistent part quality across all order volumes.
For chassis parts wholesalers and transmission rebuilders, orders start from 500 units, with flexible MOQ options up to 1000 units based on project requirements and delivery schedules. Multiple packaging solutions are available, including MOBIS-standard packaging, neutral unbranded packaging, and custom branded packaging with client-specified logos and labels. These packaging options support distributors in building their product portfolios and meeting varied client demands across regional markets. Custom branding and private labeling services are provided for qualifying volume orders.
This is an aftermarket replacement part produced to meet or exceed OEM dimensional and performance specifications. It matches the fit, form, and function of the original equipment part for all compatible vehicle models.
It fits select AWD/4WD Hyundai and Kia models including the Santa Fe series, ix35, ix45, Tucson, Sorento, and Sportage. For exact fitment confirmation, cross-reference the OE part number with your specific vehicle details.
Standard automotive hand tools are sufficient for most installation procedures. A torque wrench is recommended to tighten all fasteners to factory torque specifications as outlined in the corresponding vehicle service manual.
Warranty applies to manufacturing defects under normal use conditions. Damage caused by improper installation, racing applications, or unauthorized modification falls outside the scope of warranty coverage.
The most reliable fitment verification method is to cross-reference the OE part number 45822-3B250 with your vehicle VIN through an authorized dealer or online compatibility checking tool.
