45822-3B850
45822-3B850
Hyundai, Kia
Santa Fe, Tucson, Sonata, Sorento, Sportage, Optima (K5）
2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009
Chassis System
Differential / Differential Housing
| Quantity: | |
|---|---|
Product Description
Our IATF 16949-certified foundry supplies this differential case to differential rebuild specialists and chassis parts distributors. The minimum order quantity ranges from 500 to 1000 units, with adjustable volume options for large-scale procurement demands. Multiple packaging solutions are available, including neutral packaging, branded packaging, and MOBIS-standard packaging, to match different inventory and sales scenarios. Each unit undergoes dimensional inspection and material testing before shipment to ensure consistency with listed specifications. Customized production adjustments can be discussed for bulk orders with specific requirements.
Specification Item | Details |
OE Part Number | 45822-3B850 |
Part Category | Differential / Differential Housing |
Applicable System | Chassis System |
Base Material | QT450-10 ductile iron |
Supported Transmissions | A6MF1, A6MF2, A6LF1, A6LF2, A6LF3 |
Compatible Vehicle Makes | Hyundai, Kia |
Drive Type Compatibility | Gasoline 4WD configurations |

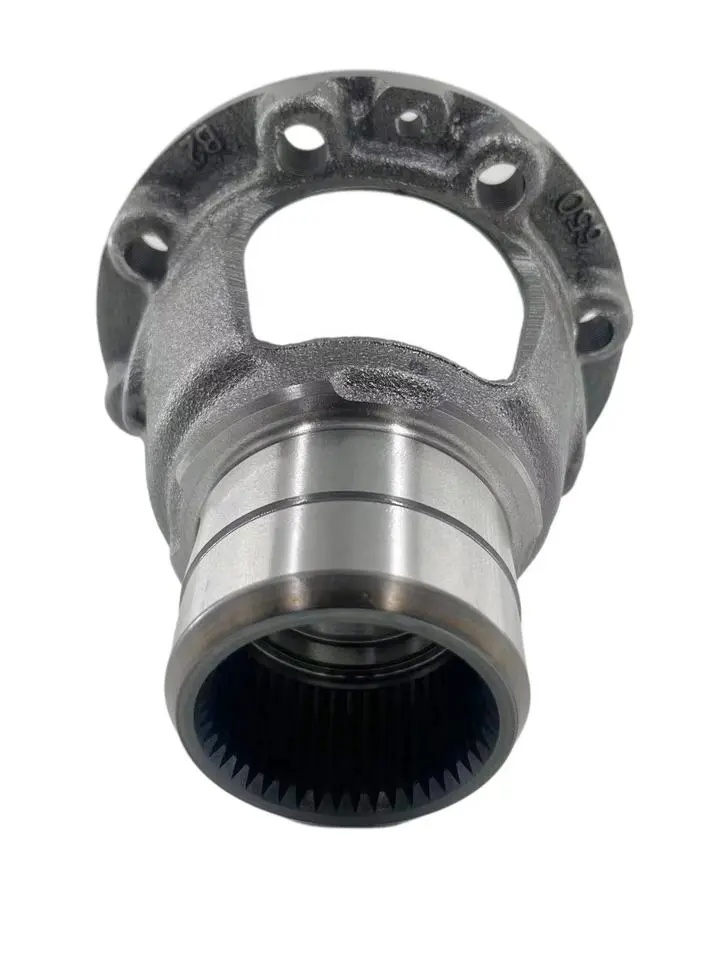

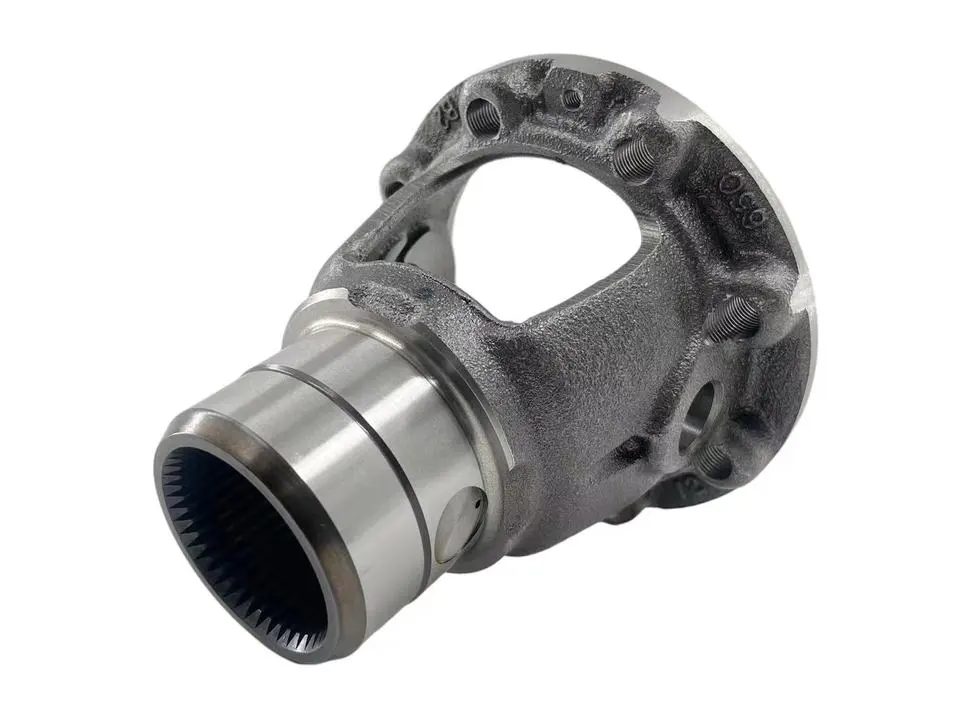

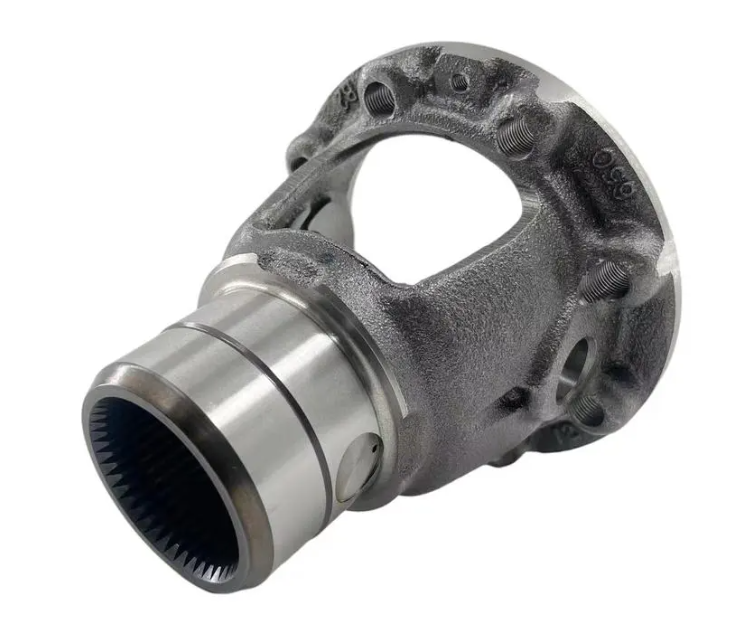

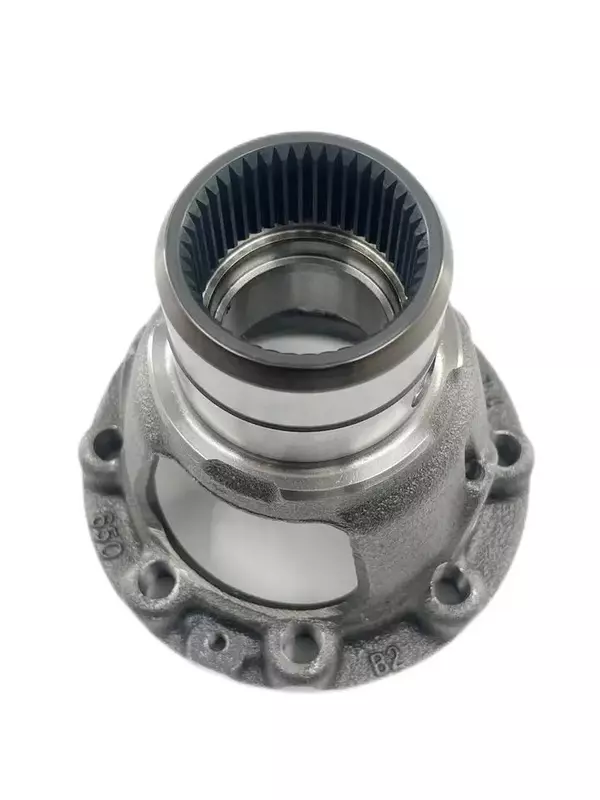

This differential case is cast from QT450-10 ductile iron and processed with integral heat treatment. Per GB 1348 standards, the material has a minimum tensile strength of 450 MPa and minimum elongation of 10 percent, with a ferrite matrix structure that supports crack and deformation resistance under continuous load conditions. The heat treatment process adjusts the material microstructure to improve impact resistance during variable torque and road vibration conditions, suitable for both daily urban driving and rough road operation. All casting processes follow IATF 16949 production specifications, with consistent material properties across batch production.
All mating surfaces and mounting positions are machined with CNC equipment under controlled tolerance ranges. The precision machining ensures consistent gear meshing clearance, which reduces vibration and operational noise during differential operation. The internal oil grooves are optimized in shape and position to guide transmission fluid through gear contact surfaces, improving lubrication coverage. This design also supports heat dissipation during continuous high-load operation, which contributes to extended service life of internal gear components.
The housing is designed with a standard sealing groove and integrated positioning stop. The sealing groove provides a stable mounting surface for matching seals, which reduces the risk of transmission fluid leakage under pressure changes. The positioning stop ensures accurate alignment during assembly, preventing misalignment that could cause seal wear or dust ingress. This structure protects internal gears from contamination by external dust and debris during vehicle operation.
This differential case is designed for gasoline 4WD variants of Hyundai and Kia vehicles. Verified fitment includes:
Hyundai: Santa Fe (2009-2015), Santa Fe Sport, ix45, Maxcruz
Kia: Sorento (2009-2018), Sportage (2014-2016)
All dimensions match the original OEM part specifications, allowing direct replacement without modification to mounting points or surrounding components.
The 45822-3B850 differential case works with A6MF and A6LF series automatic transmissions, including A6MF1, A6MF2, A6LF1, A6LF2 and A6LF3. It functions as the carrier for differential gear sets, managing torque distribution between drive wheels and supporting differential rotation during steering.
This is an aftermarket replacement part produced to meet or exceed OEM dimensional and performance specifications. It matches the fit, form and function of the original part, and can be installed as a direct replacement for the OEM 45822-3B850 unit.
The most reliable method is to cross-reference the OEM part number 45822-3B850 with your vehicle’s part catalog. You may also provide your vehicle VIN to our support team for fitment verification. Confirm that your vehicle uses a gasoline 4WD configuration and matching A6MF/A6LF series transmission before ordering.
Standard automotive hand tools are sufficient for most installation procedures. A torque wrench is recommended to tighten all mounting fasteners to factory torque specifications. Refer to the official service manual for your specific vehicle model for complete assembly procedures and torque values.
Warranty coverage applies to manufacturing defects under normal use and installation conditions. Damage caused by improper installation, competitive racing use, or unauthorized modification is not covered by the warranty. Refer to our full warranty policy for detailed coverage terms and claim procedures.
It is recommended to replace matching gaskets, seals and transmission fluid at the same time as the differential case. This practice helps ensure consistent sealing performance and avoids repeated labor costs from secondary disassembly.
