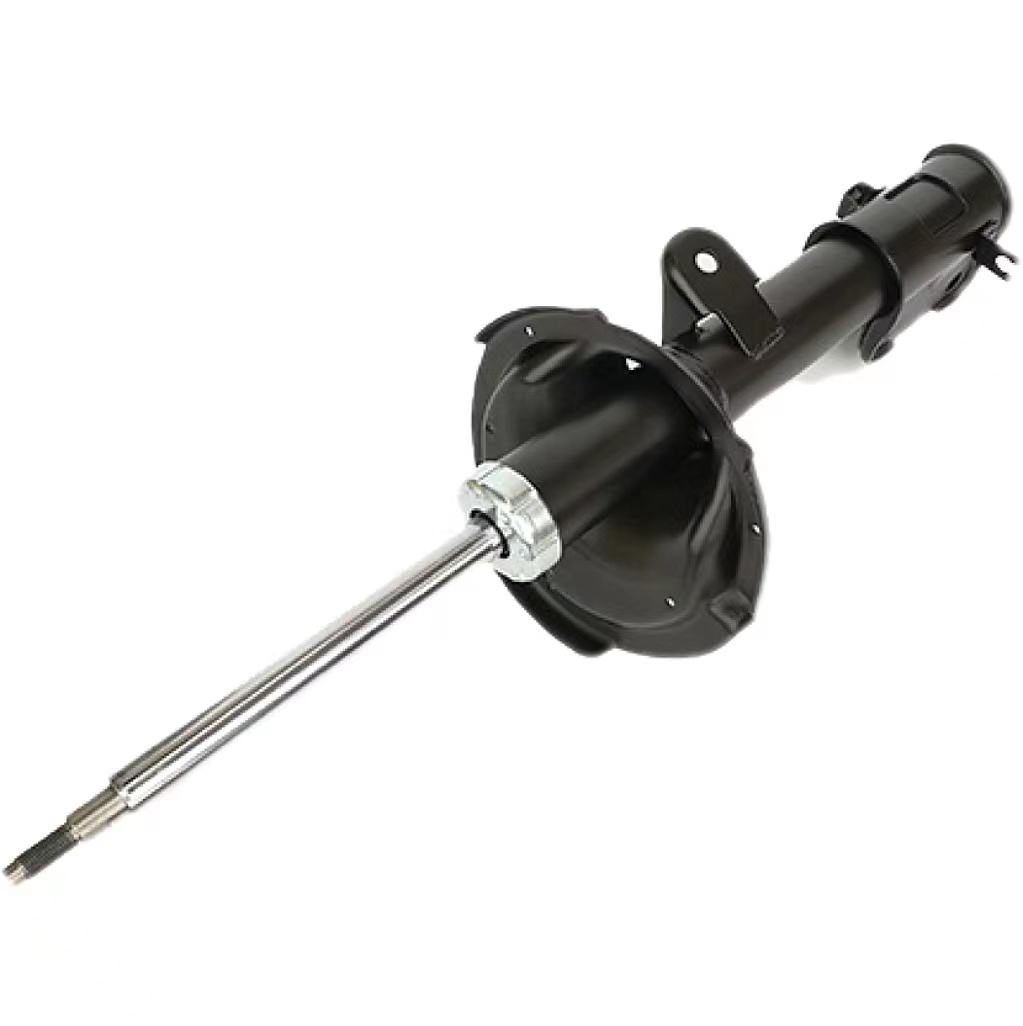

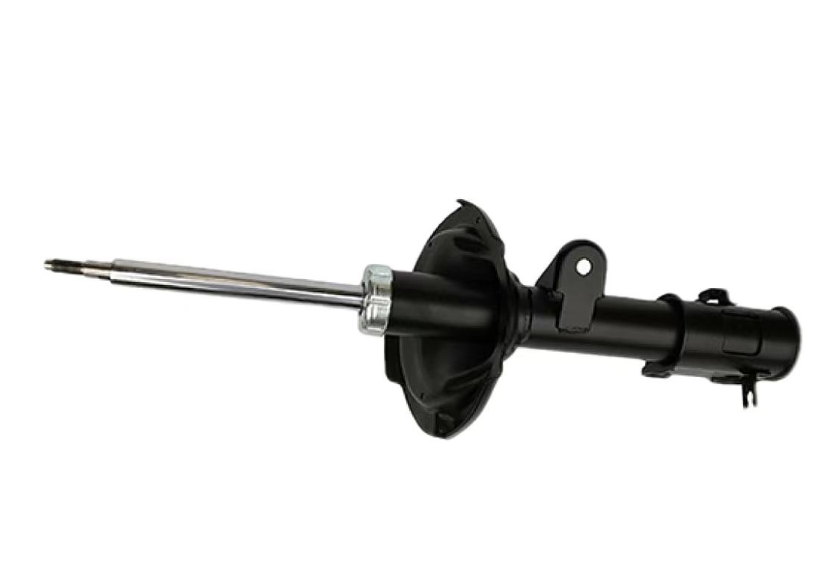

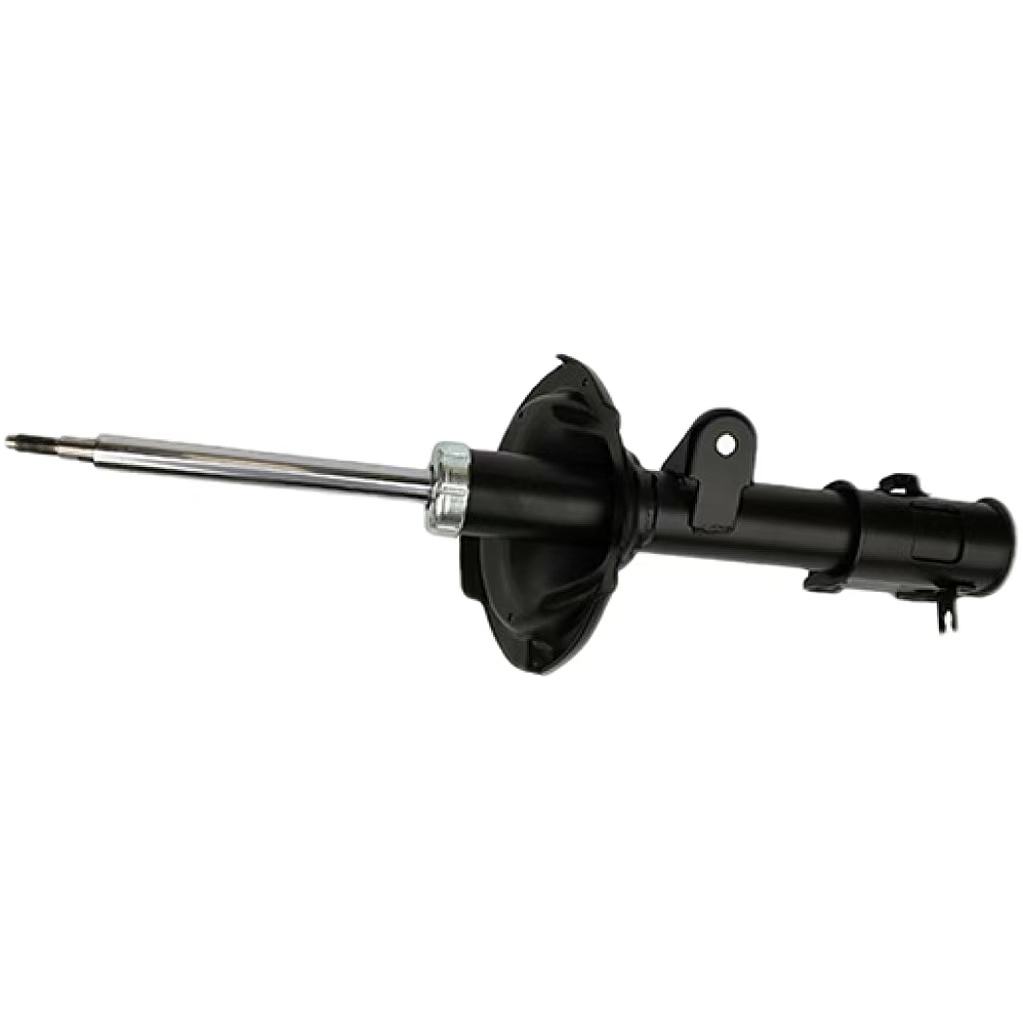

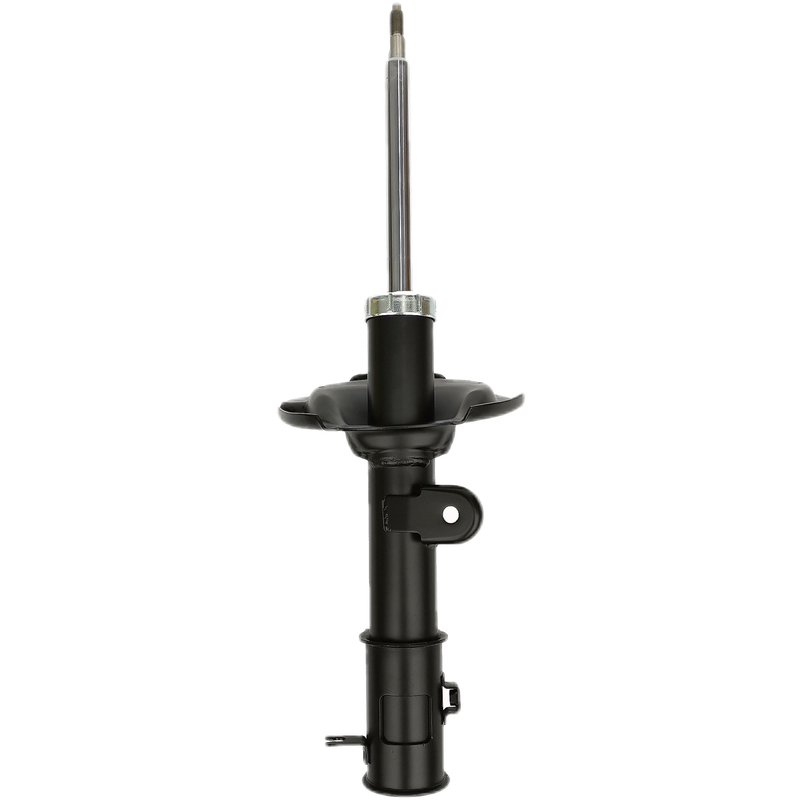

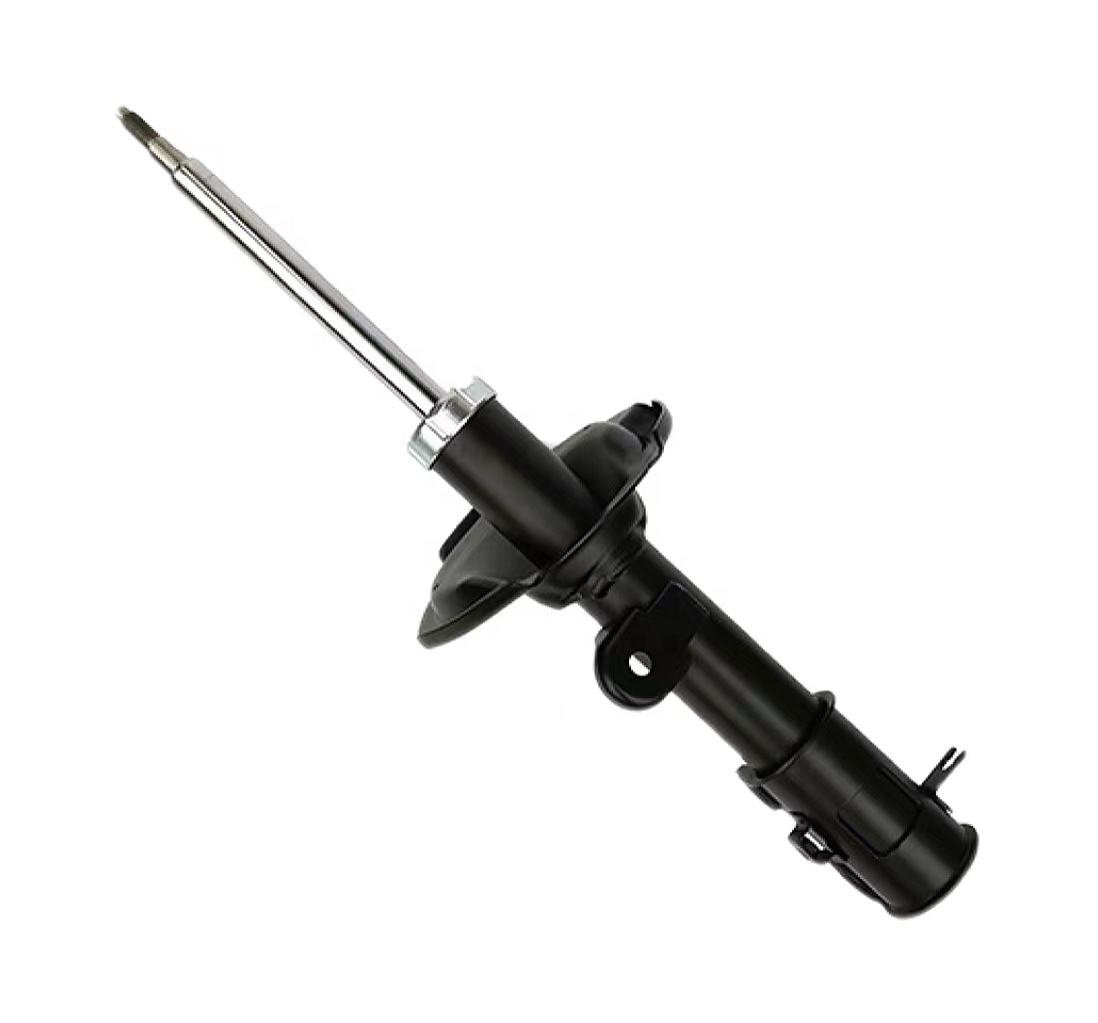

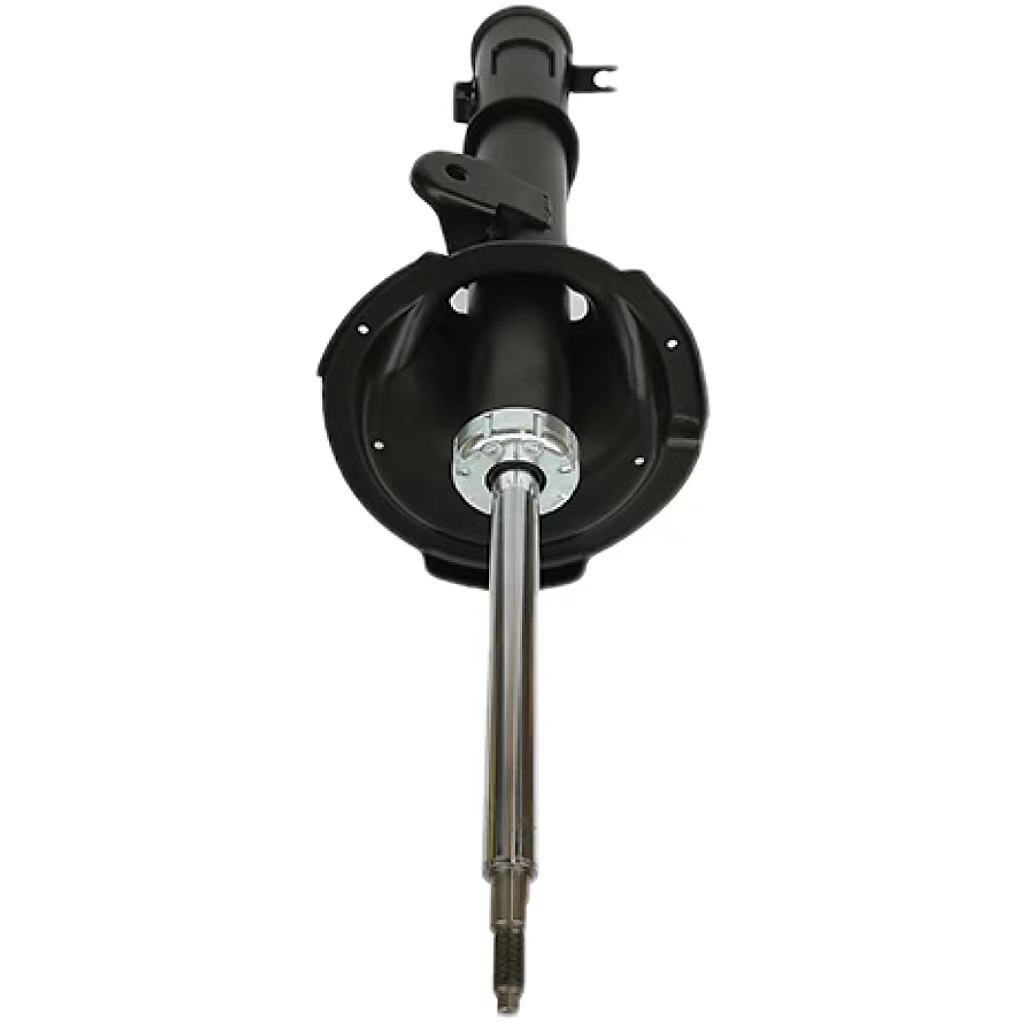

Smooth Buffering Front Right Shock Absorber (54660-4H050)

The 54660-4H050 front right shock absorber is a chassis system component engineered for Hyundai commercial vans. Manufactured in a facility with 15 years of suspension part production experience, this part adheres to IATF 16949 quality standards and follows Mobis/Hyundai OEM suspension specifications. Each unit undergoes 100 percent end-of-line damping testing before delivery, with a 25bar high-pressure nitrogen charge designed to maintain damping performance under heavy load conditions. The facility supplies wholesale buyers and repair chains across global markets, with consistent production quality supported by standardized quality control processes. This product is suited for commercial procurement by commercial van parts distributors, fleet maintenance teams and repair chains serving commercial vehicle operations.

54660-4H050 Shock Absorber Technical Specifications

Core Performance Features of 54660-4H050 Front Right Strut

Heavy-Load Damping Stability

The 25bar high-pressure nitrogen charge maintains constant positive pressure on the internal oil column, preventing cavitation and damping fade under heavy cargo loads or extended high-frequency driving. This design addresses the demands of commercial van operations, including freight transport and passenger shuttle services, by retaining consistent damping performance through full work shifts. The sintered bronze valve assembly with stacked spring steel reed valves is calibrated to match the higher sprung mass of commercial van models.

Hardened Chrome Piston Rod for Durability

The piston rod features industrial hard-chrome plating with a minimum 20 micron thickness and a mirror-polished finish below 0.2 micrometer Ra surface roughness. This surface reduces friction wear on the oil seal lip to extend service life under high-mileage commercial operation, and resists corrosion pitting from road salt and humid operating environments. Consistent sliding friction is maintained across the full temperature range, supporting predictable damping performance for fleet vehicles.

Vehicle-Specific Tuning for Commercial Vans

The internal valve assembly is calibrated with targeted valve port sizes and reed valve stiffness rates to match the Hyundai H-1/Starex platform’s spring rate, unsprung mass and roll-gradient characteristics. This tuning balances load-bearing support and ride comfort for commercial applications, controlling body roll during cornering and minimizing nose-dive during braking with full cargo loads. This vehicle-specific calibration ensures fit and performance matching the original equipment design.

Restored Commercial Vehicle Dynamics

A replacement shock absorber reduces excessive body bounce over uneven road surfaces, minimizes squat during loaded acceleration, and stabilizes handling during urban delivery route transitions. It also maintains consistent tire-to-road contact, which supports braking performance and tire wear uniformity for commercial fleets. For balanced handling and load control, shock absorbers should be replaced in axle pairs.

54660-4H050 Shock Absorber Vehicle Applications

This front right shock absorber is compatible with the Hyundai H-1/Starex TQ (Van/Wagon) for model years 2007-2018, covering both cargo and passenger MPV/minivan configurations. Parts distributors and fleet maintenance teams can cross-reference the OEM part number 54660-4H050 with vehicle VIN information to confirm fitment for specific units.

54660-4H050 Shock Absorber FAQ & Troubleshooting

Common Failure: Oil Leak from Shock Body

Root Causes: Worn internal piston seal from normal high-mileage wear (60,000-80,000 km typical service life); debris damage to the chrome piston rod that cuts the seal lip; overheating from sustained heavy-load rough road driving that causes seal hardening.

Diagnosis: Visible oil film or dripping on the shock body; fluid accumulation on lower suspension components. Wipe the surface clean, operate the vehicle for 10 km, and reinspect to confirm an active leak; minor oil film staining is considered normal.

Solution Steps: Replace shock absorbers in axle pairs; replace the upper strut mount and bearing during disassembly; replace dust boot and bump stop if deteriorated; torque the top strut mount nut to 50-60 N·m; professional wheel alignment is recommended after front strut replacement.

Common Failure: Knocking Noise from Suspension

Root Causes: Worn upper strut mount bearing (a mounting component, not the shock itself); loose mounting bolts from sustained heavy vibration; broken internal rebound spring.

Diagnosis: Knocking or rattling sound during low-speed loading maneuvers; noise when driving over small, sharp pavement imperfections on delivery routes.

Solution Steps: Inspect and replace the upper strut mount/bearing if worn; tighten all mounting bolts to factory specification; replace the 54660-4H050 unit if internal damage is confirmed.

Is 54660-4H050 suitable for heavy-load commercial use?

This aftermarket replacement is manufactured to meet or exceed OEM specifications for the target commercial van platform. It is engineered to support the load ranges and operating cycles typical of commercial vehicle applications.

Should related components be replaced during service?

It is recommended to replace paired wear items simultaneously, including the opposing side shock, strut mounts and dust boots. This supports balanced performance and reduces repeated labor costs for commercial service operations.

Procurement & Customization for 54660-4H050 Strut Assembly

This product supports minimum order quantities ranging from 500 to 1000 units for wholesale buyers and commercial service chains. Packaging options include genuine (MOBIS) standard packaging, neutral aftermarket packaging (the most common option), and branded aftermarket packaging to align with different business operations and distribution channels.
