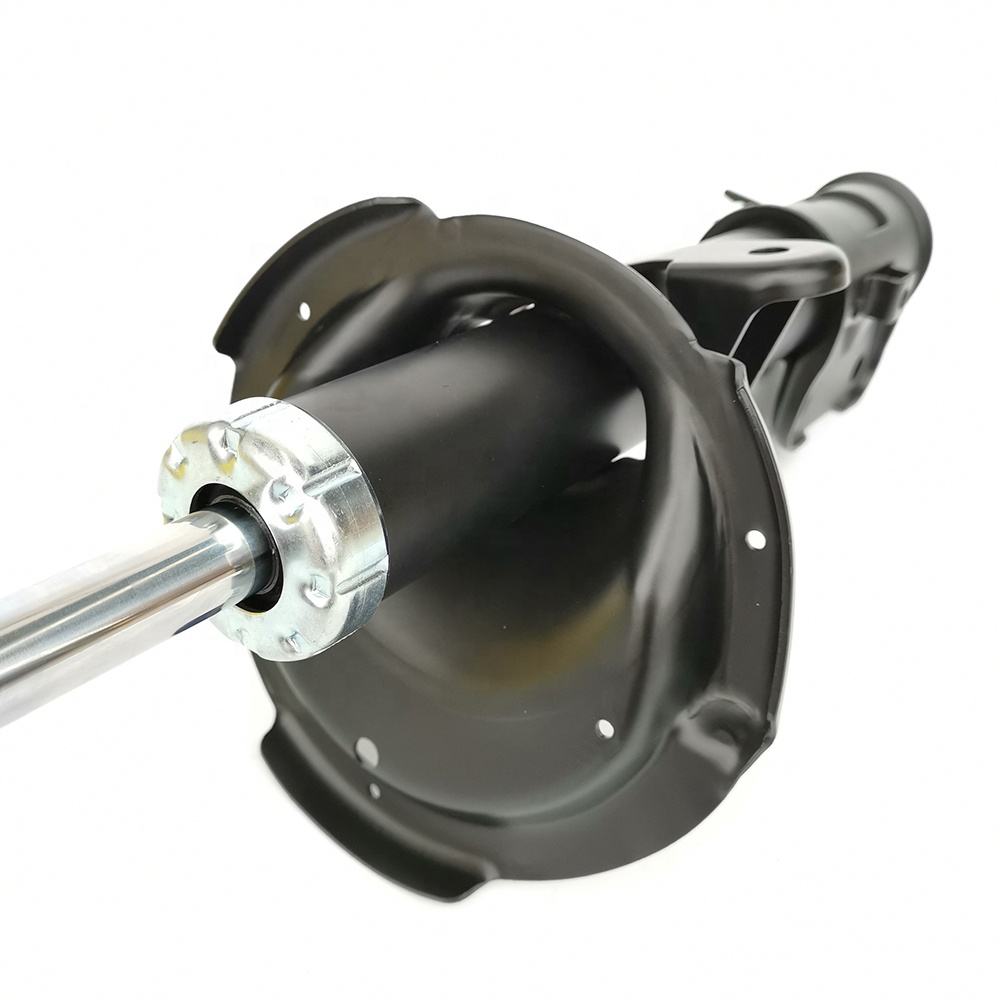

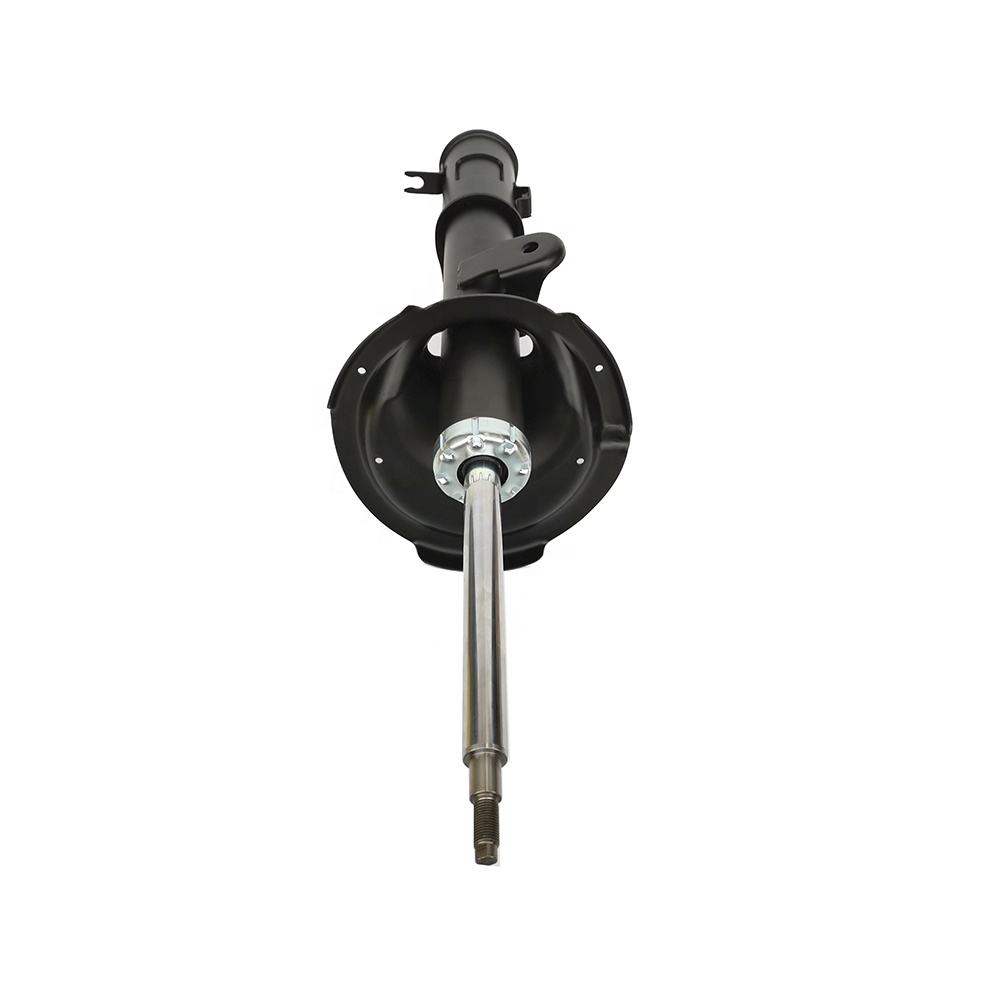

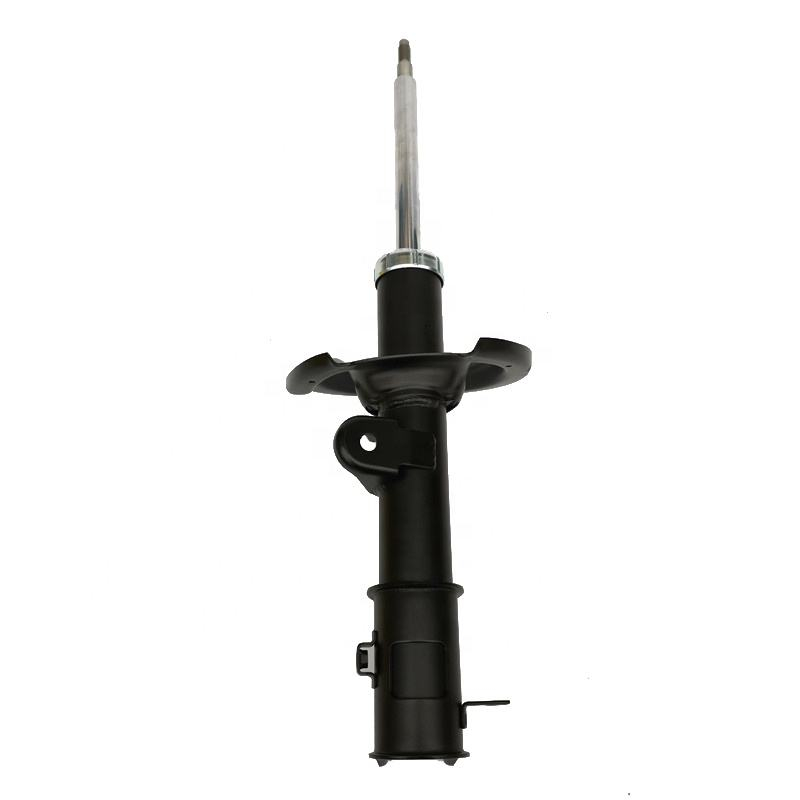

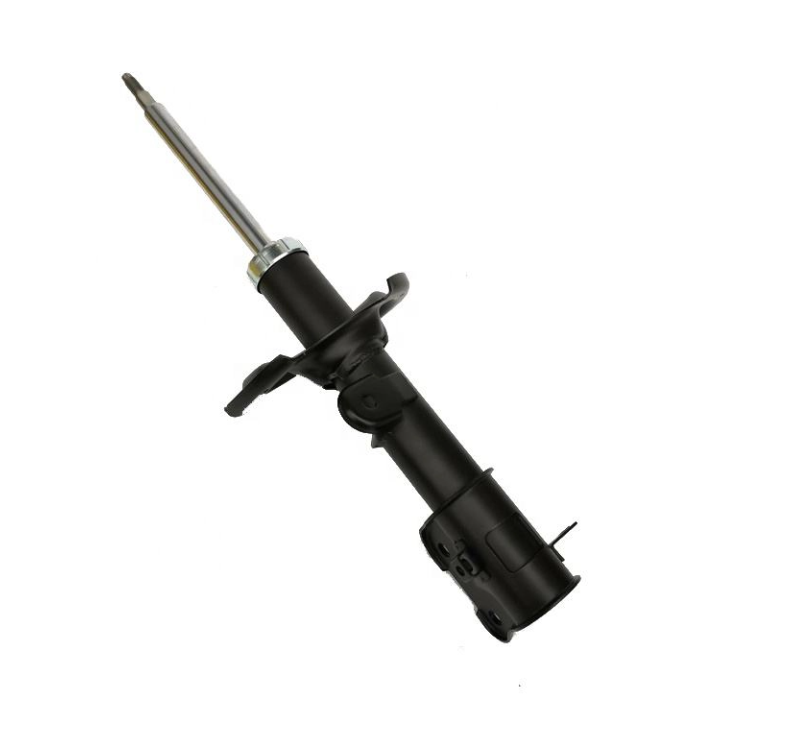

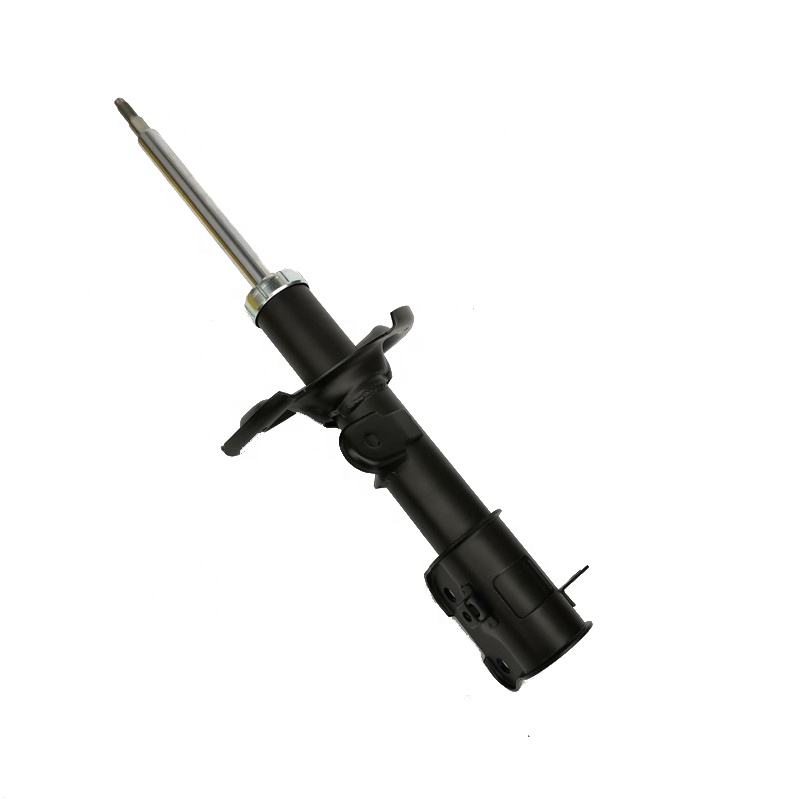

Stable Cushioned Front Left Shock Absorber (54650-4H050)

The 54650-4H050 front left shock absorber is engineered for Hyundai H-1/Starex MPV models produced from 2007 to 2018. Manufactured on an IATF16949 certified production line with statistical process control, each damper undergoes 3-stage performance validation before distribution. The component supports aftermarket suppliers and commercial procurement needs with flexible order terms and custom packaging solutions.

Product Overview of 54650-4H050 Front Left Shock Absorber

This strut assembly serves as a direct replacement for the original front left suspension damper on target vehicle models. It adopts a gas-pressurized structure with vehicle-specific valving tuning, designed to match original ride and handling characteristics. The product is intended for use in commercial repair operations, aftermarket parts distribution, and fleet maintenance programs.

Technical Specifications for 54650-4H050 Strut Assembly

Core Design and Performance Characteristics

Vehicle-Specific Damping Force Calibration

The internal piston valve assembly uses calibrated combinations of valve port orifice sizes and spring steel reed valve stiffness rates. Tuned to match the target vehicle’s sprung mass, spring rate and roll-couple characteristics, it delivers OEM-specified ride comfort for small road texture isolation, plus body motion control during braking dive, acceleration squat and cornering roll.

Hardened Chrome-Plated Piston Rod Construction

The piston rod is made of C45 steel with industrial hard-chrome plating to a minimum thickness of 20 microns, with a mirror-polished finish below 0.2 micrometer Ra surface roughness. This ultra-smooth, hardened surface reduces friction against the oil seal lip to extend seal service life, resists corrosion pitting from road salt and moisture, and maintains consistent sliding friction characteristics across the full operating temperature range, supporting 60,000+ km of seal life under normal use conditions.

Gas-Pressurized Cavitation Prevention Structure

Mono-tube and twin-tube gas-pressurized designs incorporate a high-pressure nitrogen gas chamber separated from the oil chamber by a floating piston or emulsion barrier. The gas charge maintains constant positive pressure on the oil column, preventing cavitation (vapor bubble formation) during rapid repetitive stroking that causes momentary damping force loss on washboard gravel roads or extended high-speed cornering loads.

Vehicle Dynamics Restoration Capability

Replacing worn dampers with this unit reduces excessive body bounce oscillation over bumps, addresses nose-dive under braking and squat under acceleration, and improves handling stability during cornering transitions. It also helps maintain consistent tire contact with the road surface, reducing tire skip or chatter over surface imperfections. It is recommended to replace shock absorbers in axle pairs (both fronts or both rears) to maintain balanced vehicle dynamics.

Vehicle Compatibility for 54650-4H050 Shock Absorber

This shock absorber is designed for the Hyundai H-1 and Starex model lines, covering model years 2007 through 2018, for the MPV / Minivan vehicle class. It installs in the front left position of the chassis system. For precise fitment verification, cross-reference the OEM part number 54650-4H050 with your vehicle VIN through an authorized dealer or online compatibility checker.

Common Failure Diagnosis and Replacement Guidance

Oil Leak from Shock Body

Root causes include normal seal wear (60,000-80,000 km typical life), chrome rod damage from road debris, and seal hardening from sustained rough road use. Diagnosis is confirmed by visible oil film or dripping after a 10 km test drive following surface cleaning; slight staining is considered normal. Solutions include axle-pair replacement, upper strut mount/bearing replacement, dust boot and bump stop inspection and replacement, 50-60 N·m top nut torque, and post-installation wheel alignment.

Bouncy or Unstable Ride

Root causes include worn internal piston seals allowing uncontrolled fluid bypass, leaked gas charge from gas-pressurized shocks, and broken internal valves. Diagnosis can be performed via a bounce test: push down firmly on each corner of the vehicle — if it bounces more than 1.5 times, the shock is worn. Additional signs include a floaty feel at highway speeds, excessive body roll during cornering and nose-diving during braking. The solution is to replace 54650-4H050 shock absorbers in pairs, followed by a test drive to recheck suspension stability.

Suspension Knocking Noise

Root causes include worn upper strut mount bearings, loose shock absorber mounting bolts, and broken internal rebound springs. The issue presents as knocking or rattling sounds during low-speed steering maneuvers, or noise when driving over small, sharp bumps. Solution steps include inspecting the upper strut mount and bearing and replacing if worn, tightening all mounting bolts to specification, and replacing the 54650-4H050 unit if internal damage is confirmed.

Procurement and Packaging Options for Business Buyers

Minimum order quantity starts at 500 units, with support for order volumes between 500 and 1000 units. Urgent orders can be fulfilled with a 7-day lead time. Multiple packaging options are available: Genuine (MOBIS) standard packaging, neutral aftermarket packaging, and custom branded packaging to suit different distribution needs.

FAQ About 54650-4H050 Shock Absorber

Is 54650-4H050 produced to OEM specifications?

This is an aftermarket replacement manufactured to meet or exceed original equipment specifications. It provides equivalent fit, form and function to the genuine part for target vehicle models.

Which vehicles are compatible with this shock absorber?

The 54650-4H050 fits Hyundai H-1/Starex TQ (Van/Wagon) models from 2007 to 2018. If your specific vehicle is not listed, contact customer support with your VIN number for fitment verification.

What tools are needed for installation?

Standard automotive hand tools are sufficient for most installations. A torque wrench is strongly recommended to ensure all fasteners are tightened to factory specifications. Refer to a professional service manual for your specific vehicle model for detailed instructions.

What is the warranty for this part?

Warranty applies to manufacturing defects under normal use conditions. Improper installation, racing use or product modifications will void the warranty. Refer to the full warranty policy for specific coverage details.

Should related parts be replaced together?

It is recommended to replace related wear components simultaneously, including matching axle-side dampers, seals and mounting hardware, to ensure optimal performance, balanced operation and reduced repeated labor costs.
