Product Description
The kit combines the major gaskets, seals and O-rings required to restore sealing between the cylinder head, engine block, valve cover, intake system, exhaust system and other engine assemblies. Using one matched overhaul gasket set helps workshops reduce the time required to source separate sealing components.
During engine operation, the combustion chamber, lubrication system, cooling passages, intake system and exhaust system must remain properly separated. Aging, overheating and repeated heat cycles can cause engine gaskets to harden, deform or lose their sealing performance, leading to oil leakage, coolant loss, low cylinder compression, overheating or exhaust leakage.
The 20910-2EA00 Engine Overhaul Gasket Kit is designed to replace worn sealing components during engine disassembly and rebuilding. When installed correctly, the kit helps restore sealed connections between major engine surfaces, maintain combustion pressure and prevent engine oil, coolant, intake air and exhaust gases from entering the wrong passages. Public parts catalogues identify 209102EA00 as an engine-overhaul gasket kit and associate it with vehicles including the Hyundai Elantra, Avante, ix35/Tucson and Sonata YF Hybrid.

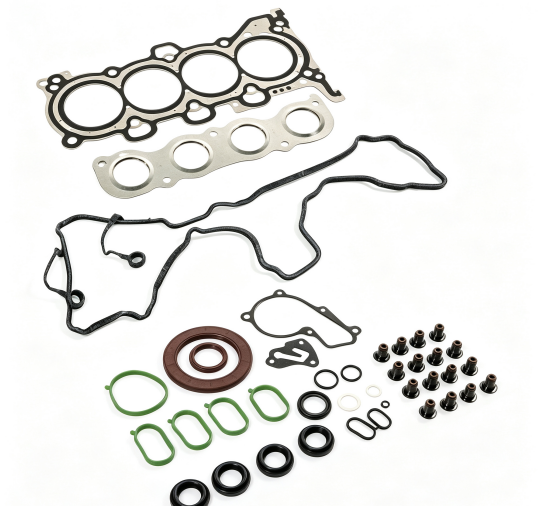

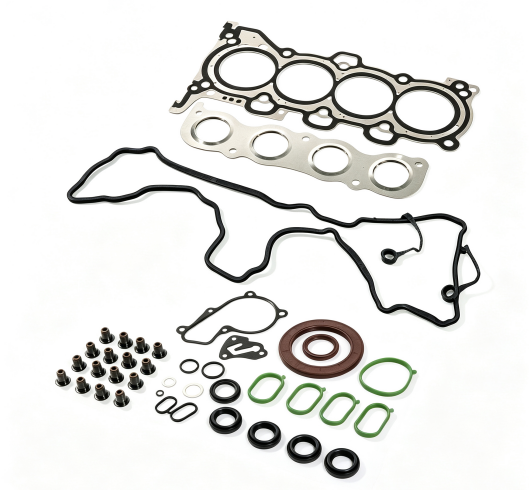

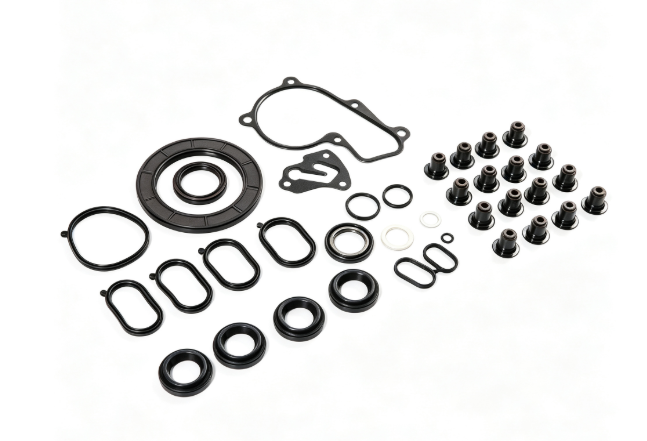

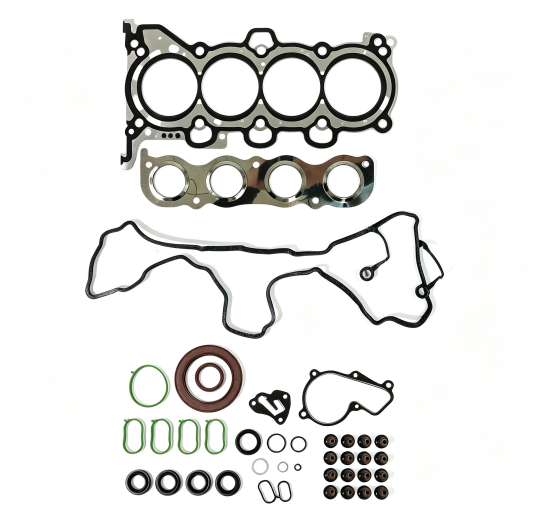

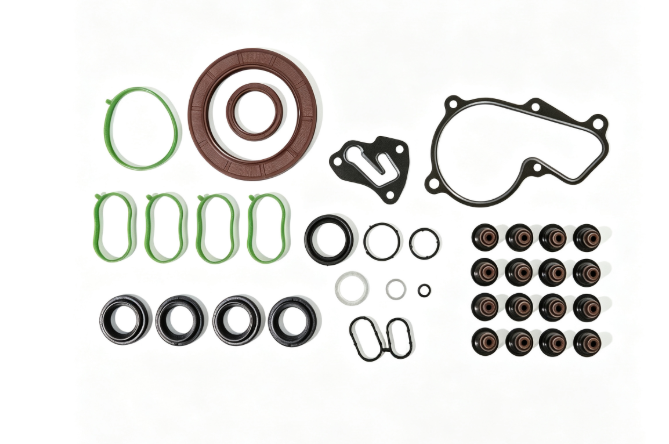

The kit provides multiple sealing components required for engine overhaul work, reducing the need to purchase individual gaskets separately. A typical full gasket set may include the cylinder-head gasket, valve-cover gasket, intake-manifold gasket, exhaust-manifold gasket, valve-stem seals, crankshaft seals and assorted O-rings.
The exact contents may vary by production batch and engine configuration. Customers should request a packing-list photograph before ordering.
Different sealing positions require different materials. Depending on the application, the kit may use metal, molded rubber, graphite or composite gasket materials to withstand combustion pressure, engine heat, lubricating oil and coolant exposure. Public product listings for this part number describe the primary material combination as metal and rubber.
The gasket profiles and bolt-hole positions are produced according to the corresponding engine sealing surfaces. Correct alignment helps the technician install the gaskets without unnecessary trimming or modification.
Properly installed gaskets create barriers between oil passages, coolant passages, combustion chambers and external engine surfaces. This helps reduce engine oil seepage, coolant leakage and mixing between engine fluids.
A correctly fitted cylinder-head gasket helps maintain combustion pressure between the cylinder head and engine block. This is important for stable engine power, smoother combustion and reliable starting performance.
The set is suitable for automotive repair workshops, engine rebuilding companies, aftermarket distributors, fleet maintenance businesses and wholesale auto-parts buyers.
| Parameter | Specification |
|---|---|
| Product Name | Full Engine Gasket Kit |
| Alternative Name | Engine Overhaul Gasket Kit / Complete Engine Gasket Set |
| OE Number | 20910-2EA00 |
| Number Without Hyphen | 209102EA00 |
| Product Category | Engine Parts – Gaskets & Seals |
| Primary Application | Hyundai and Kia gasoline engines |
| Reference Engine Codes | G4NB 1.8L; selected G4NA 2.0L applications |
| Engine Family | Hyundai/Kia NU-series gasoline engine |
| Number of Cylinders | 4-cylinder |
| Reference Material | Metal, molded rubber and composite sealing materials |
| Typical Components | Head gasket, valve-cover gasket, manifold gaskets, oil seals, valve-stem seals and O-rings |
| Installation Position | Multiple internal and external engine sealing positions |
| Product Condition | New |
| Purpose | Engine overhaul, engine rebuilding and gasket replacement |
| Reference Package Size | Approximately 46 × 27 × 5 cm |
| Reference Weight | Approximately 1.30 kg |
| Packaging | Neutral packaging or customized packaging |
| MOQ | Contact Kingmay for current wholesale MOQ |
| Lead Time | Subject to stock quantity and order requirements |
| Quality Inspection | Appearance, dimensions, material and fitment inspection |
| Fitment Verification | OE number, VIN, engine code and gasket shape required |

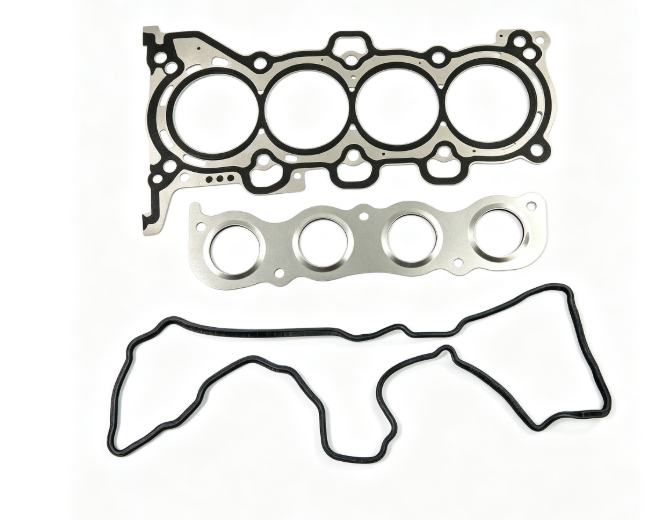

The cylinder-head gasket creates a sealing layer between the cylinder head and cylinder block. It helps contain combustion pressure while separating the combustion chamber from oil and coolant passages.
Valve-cover gaskets, crankshaft seals and other sealing components help keep lubricating oil inside the engine and reduce leakage around covers, shafts and connection surfaces.
Cooling-system gaskets and O-rings help keep coolant inside the designated cooling passages. This reduces coolant loss and helps the engine maintain a stable operating temperature.
Intake-manifold gaskets help prevent unmetered air from entering the engine, while exhaust-manifold gaskets help prevent exhaust gases from escaping through the manifold connection.
The kit is commonly used when the engine has been disassembled because of overheating, high mileage, oil consumption, cylinder-head repair, coolant contamination or gasket failure.
Providing multiple engine seals in one package helps workshops organize overhaul work more efficiently and reduces the risk of missing an individual gasket during reassembly.
No. Hyundai and Kia use different gasket kits for different engine codes, production plants, markets and model years. Always compare the OE number and engine code, and provide the VIN before ordering.
The kit normally contains the main engine gaskets and seals, but the exact contents can vary between manufacturers and production batches. Cylinder-head bolts, piston rings, bearings and timing components are generally not assumed to be included unless specifically stated.
Engine gaskets should generally be replaced after disassembly, especially the cylinder-head gasket, compressed manifold gaskets, valve-stem seals and critical oil seals. Reusing compressed or heat-aged gaskets may cause leakage.
Possible causes include an uneven cylinder-head surface, incorrect bolt torque, damaged sealing surfaces, incorrect gasket orientation, excessive sealant or use of the wrong engine version. The cylinder head and block should be checked for flatness before installation.
Not every gasket requires sealant. Applying excessive sealant can block oil or coolant passages. Installation should follow the engine manufacturer’s repair procedure, and sealant should only be used at the specified joints.
Please provide the OE number, VIN, vehicle model, production year, engine displacement, engine code and clear photographs of the old gasket or engine label. These details help reduce incorrect-fitment orders.
Some engines use torque-to-yield cylinder-head bolts. These bolts may require replacement rather than reuse. The technician should follow the relevant engine repair manual and specified tightening sequence.
Installation should be carried out by a trained engine technician. Before fitting the new gasket set, all mating surfaces should be cleaned without scratching them, and the cylinder head should be checked for warping or damage.
The technician should confirm gasket orientation, use the specified tightening sequence and torque values, and replace torque-to-yield bolts when required. Fresh engine oil and coolant are recommended after major engine rebuilding. After installation, inspect the engine for leaks and recheck all fluid levels following the first complete heat cycle.
Kingmay states that its parts are produced according to original-equipment fit, form and function requirements. The company carries out dimensional inspections and can provide material certification such as SGS or TÜV documentation on request. Batch traceability and pre-shipment inspection help wholesale customers check product consistency before goods leave Guangzhou.
Kingmay focuses strongly on Japanese and Korean vehicle parts, particularly Hyundai and Kia chassis, drivetrain and engine-related products. Buyers can provide a VIN, chassis number, OE reference or photograph of the original component, and the sourcing team offers OEM-number cross-reference and fitment-verification support. This service helps reduce incorrect orders and costly international returns.
Kingmay supports flexible wholesale quantities, private-label packaging on qualifying bulk orders and consolidated shipments across engine, cooling, suspension and electrical product categories. The company also provides export documentation, including commercial invoices, packing lists and certificates of origin, allowing customers to combine different auto parts into one shipment and reduce logistics costs.
A: The minimum order quantity for this item is 10 pieces. Please contact us directly for more specific terms and customized requirements
