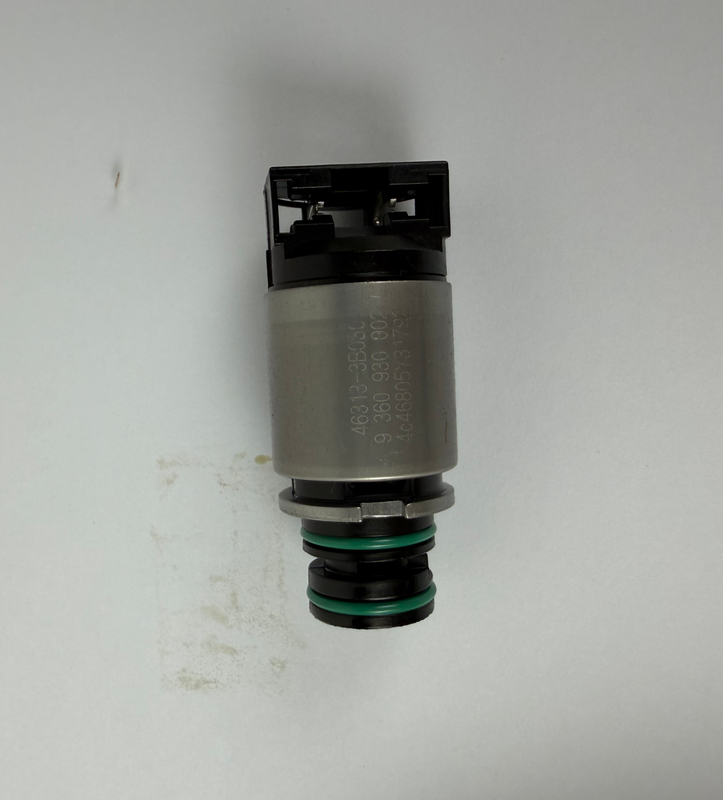

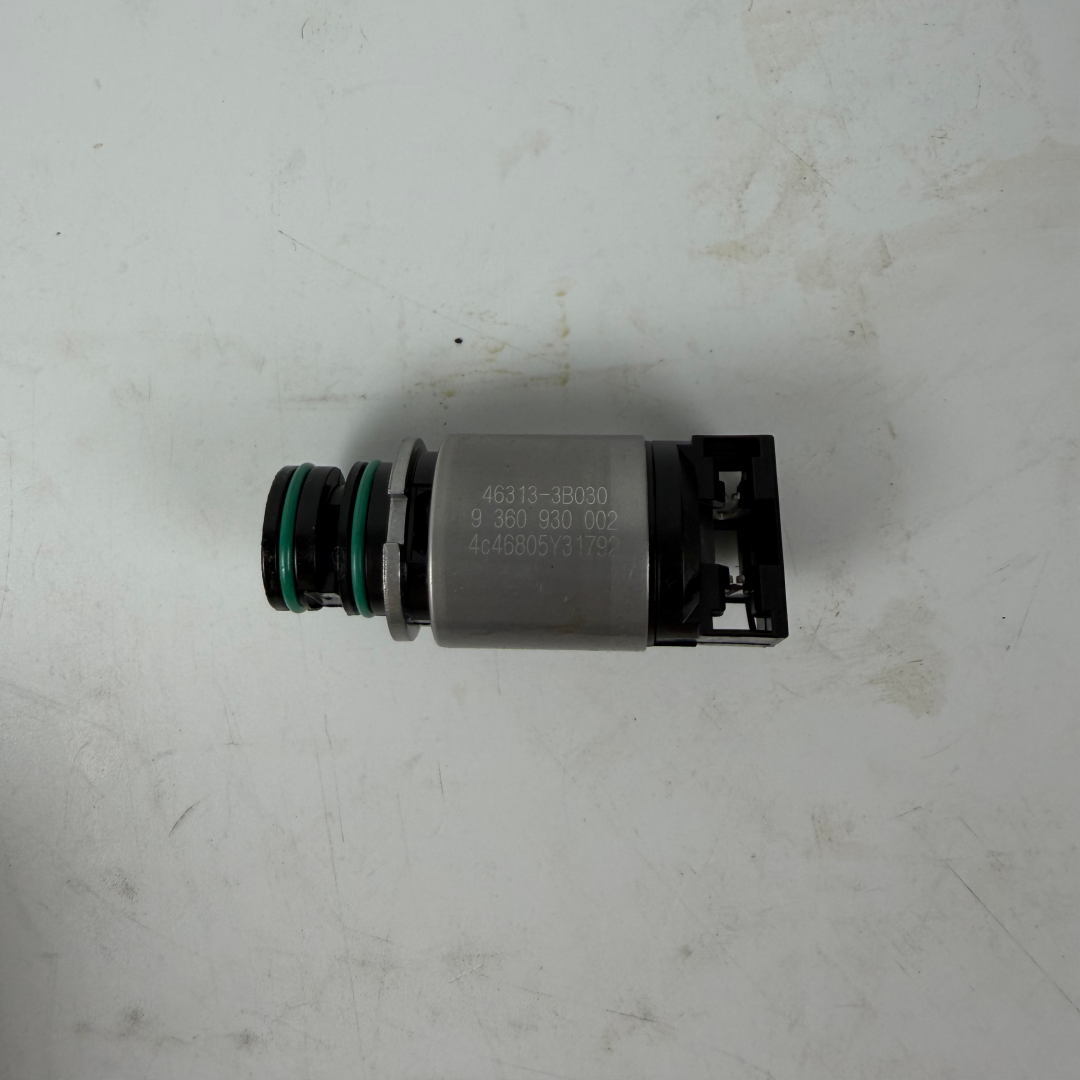

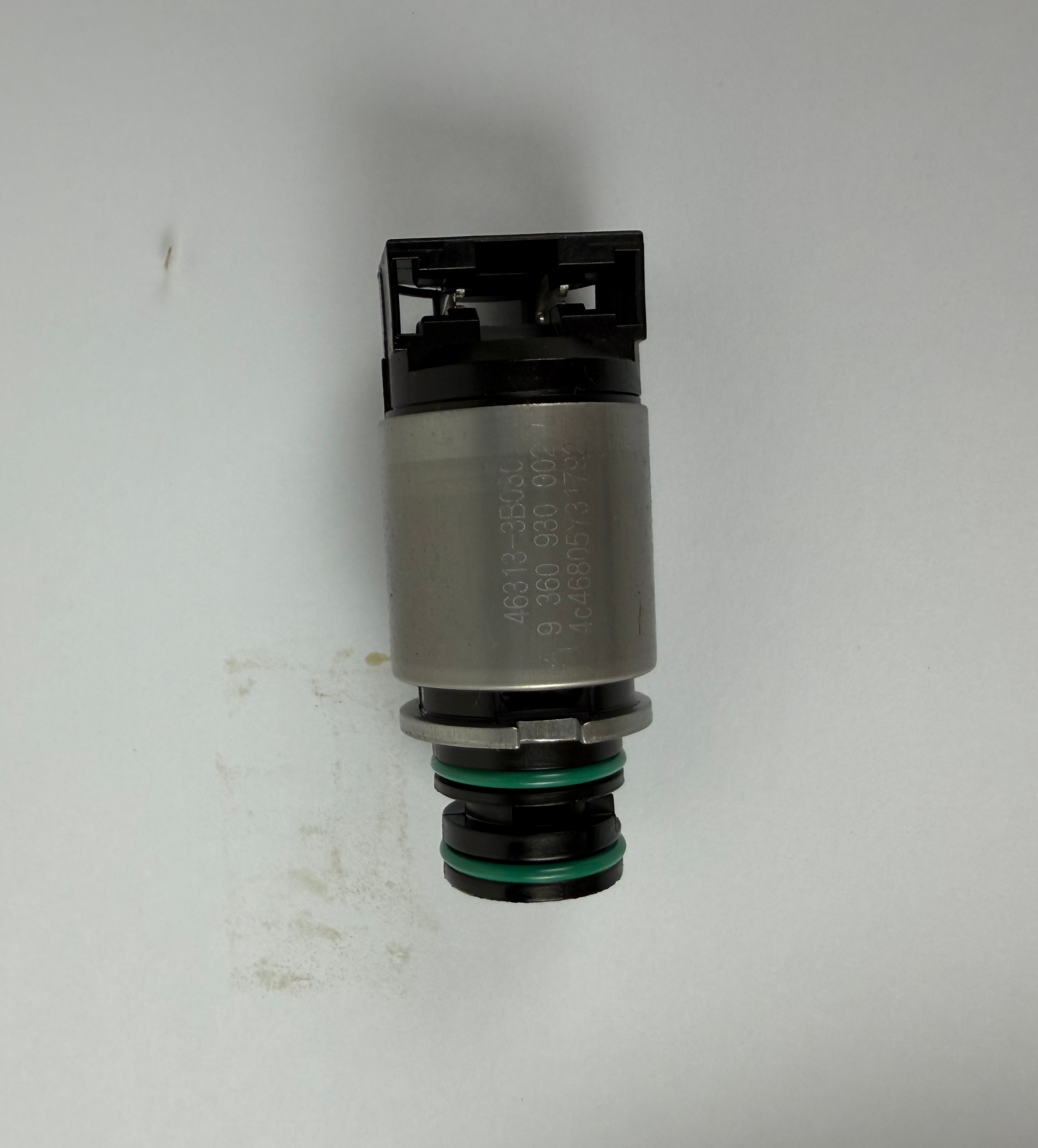

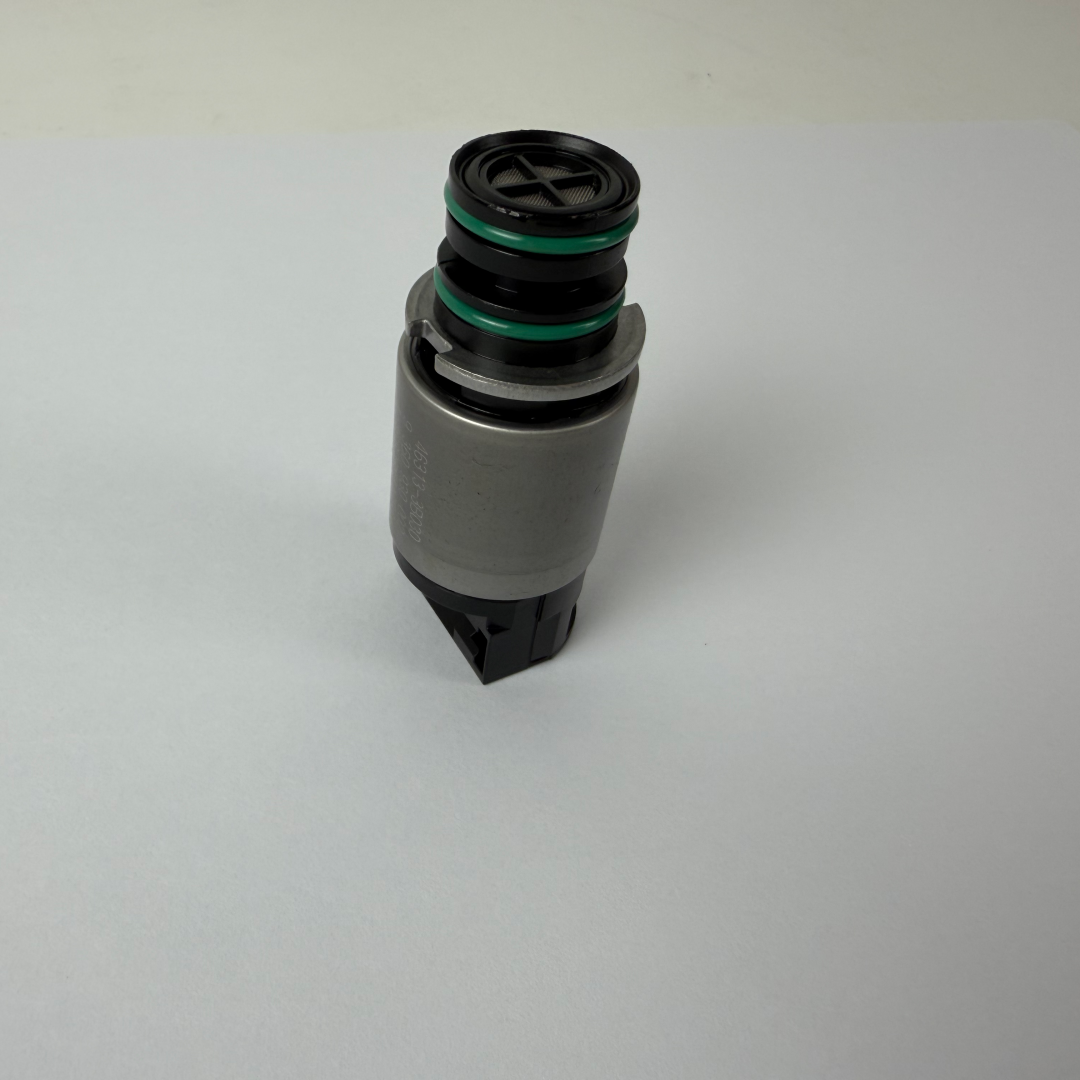

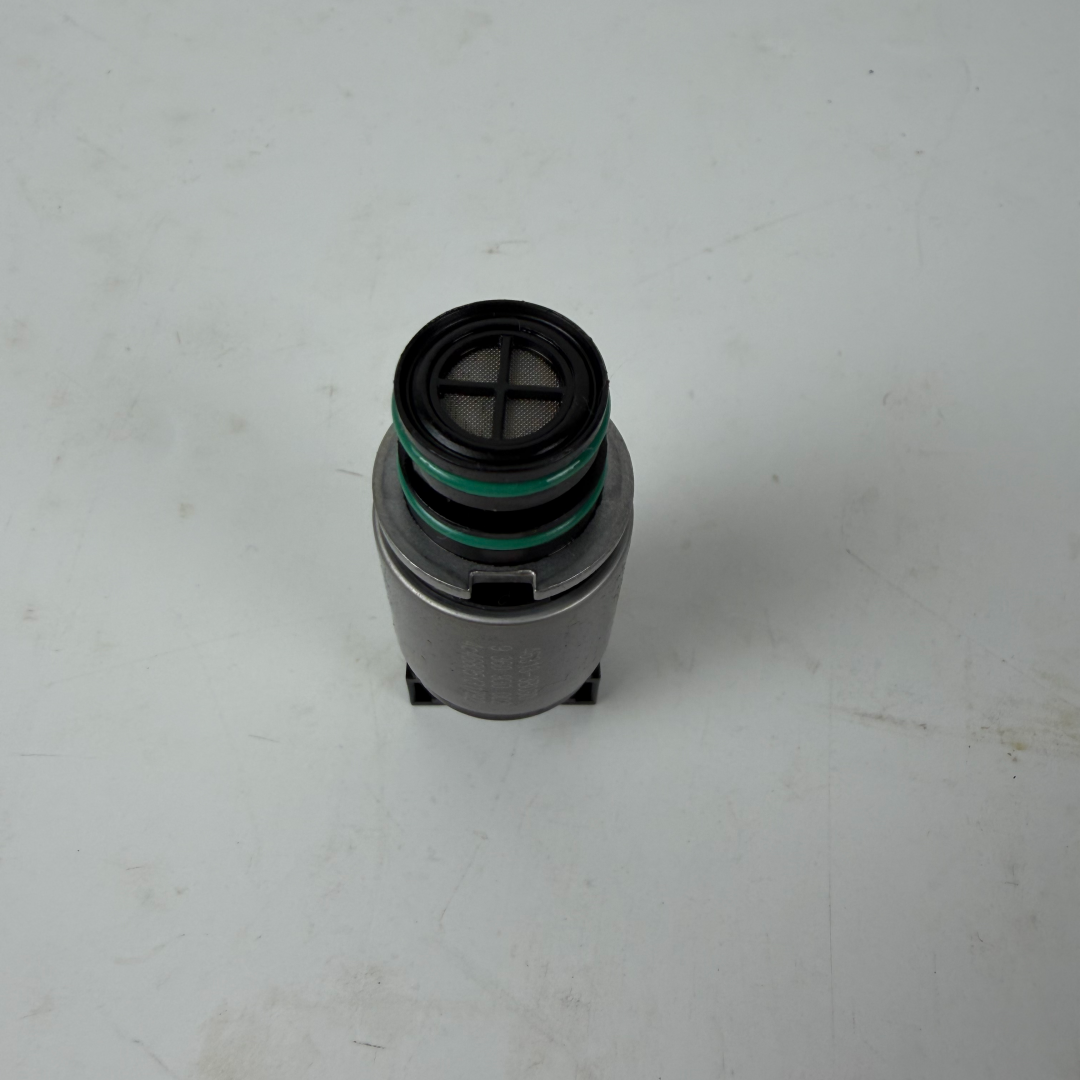

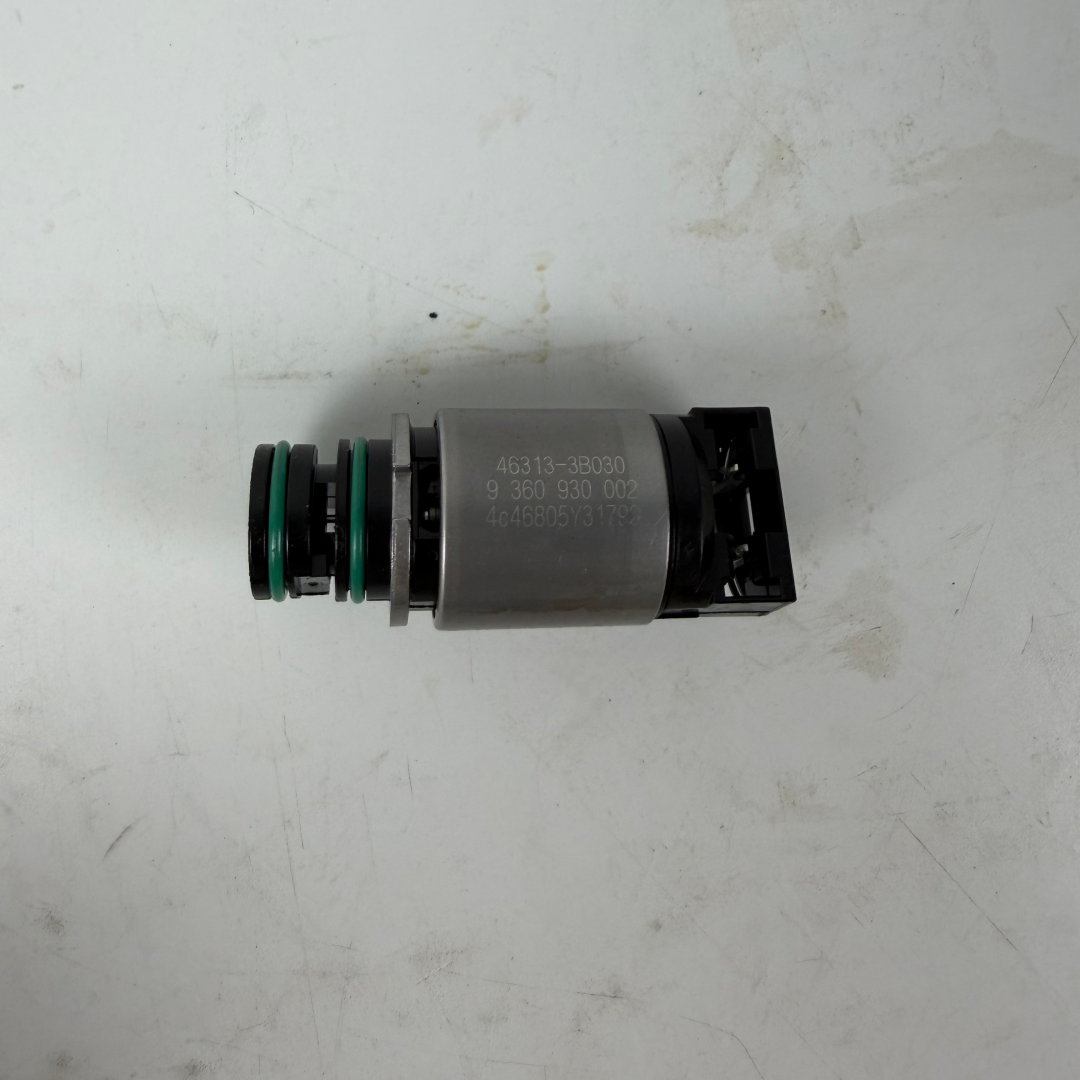

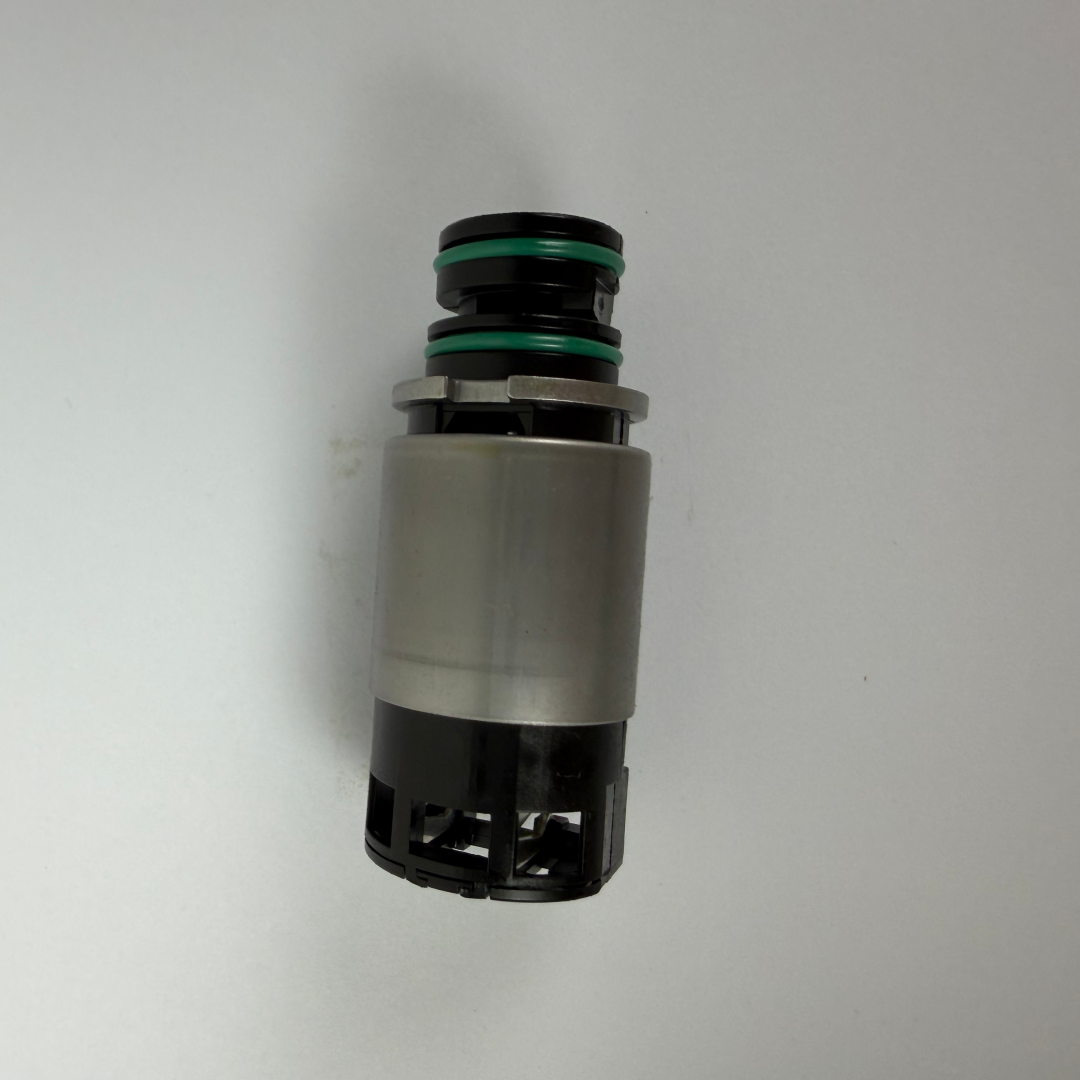

Perfectly Original-Fit Wearproof Tight-Fit Durable Automatic Solenoid Valve (46313-3B030)

The 46313-3B030 is an on/off type shift solenoid designed for Hyundai and Kia vehicles equipped with the A6MF1 six-speed automatic transmission. This component controls hydraulic pressure routing for clutch packs A and B during gear changes, directly influencing shift timing and smoothness. Manufactured to OEM dimensional specifications with a ±0.02 mm spool-to-bore tolerance, it serves as a direct replacement for transmission repair facilities and wholesale parts distributors. Minimum order quantities start at 500 units for commercial procurement.

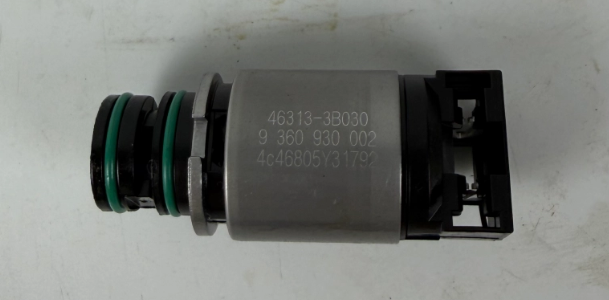

46313-3B030 Transmission Shift Solenoid for A6MF1

The 46313-3B030 shift solenoid operates as an electrically controlled hydraulic valve within the transmission valve body. When energized by pulse-width modulation signals from the Transmission Control Unit (TCU), it regulates fluid flow to specific clutch circuits, enabling precise gear engagement across all six forward speeds. Each unit undergoes 100 percent functional testing prior to packaging, including resistance verification and pressure leak testing at 150 psi.

Core Function in A6MF1 Transmission

In the A6MF1 transaxle architecture, the 46313-3B030 solenoid manages shift events involving the A and B clutch packs. It works in coordination with other pressure control solenoids to execute coordinated clutch-to-clutch shifts. Proper solenoid operation maintains consistent line pressure throughout the shift cycle, preventing flare conditions and ensuring predictable shift feel across varying load and temperature conditions.

Technical Specifications of 46313-3B030 Solenoid Valve

Material Composition and Build Standards

Valve Body and Spool Materials

The solenoid housing is molded from PA66-GF30 glass fiber reinforced nylon, a material selected for its dimensional stability when immersed in automatic transmission fluid at elevated temperatures. The valve spool is machined from case-hardened carbon steel with precision ground outer diameter surfaces, achieving surface roughness of Ra 0.4 μm to minimize wear and maintain consistent clearance over service life.

Sealing and Electrical Components

Sealing O-rings are manufactured from FKM (Viton-grade) fluorine rubber, formulated for resistance to ATF additives and continuous operation at temperatures up to 150°C. The coil winding uses high-purity oxygen-free copper wire with Class H insulation rating. The connector housing is constructed from PBT flame-retardant plastic with gold-plated terminal contacts to prevent corrosion and maintain consistent electrical connectivity.

Compatible Vehicles and Transmission Applications

Note: This solenoid is also compatible with A6GF1 and A6LF1 transmission variants where the same part number is specified. Verify compatibility against the vehicle VIN or original part number before ordering for commercial applications.

Quality Assurance and Manufacturing Standards

IATF16949 Compliance

Production takes place in facilities certified to IATF16949:2016 automotive quality management standards. All manufacturing processes follow documented work instructions with statistical process control monitoring of critical dimensions. Material certificates are available upon request for enterprise customers requiring traceability documentation for quality audits.

Factory Testing Protocols

Every 46313-3B030 solenoid completes a multi-stage testing sequence before leaving the production line. This includes coil resistance measurement at standardized temperature, pressure decay leak testing at operating pressure, and functional response time verification under simulated ATF conditions. Units that do not meet specification are rejected and quarantined per non-conforming material procedures.

FAQ about 46313-3B030

What transmission models use the 46313-3B030 solenoid?

The 46313-3B030 is primarily specified for the A6MF1 six-speed automatic transaxle used in front-wheel-drive Hyundai and Kia vehicles. It may also appear in A6GF1 and certain A6LF1 applications where the same shift solenoid design is utilized. Two units of this solenoid are typically required per valve body assembly (Shift A and Shift B positions).

How do I diagnose a faulty 46313-3B030 shift solenoid?

Diagnostic steps include scanning for DTC codes in the P0750-P0770 range (shift solenoid malfunction codes), comparing commanded versus actual gear ratio during road testing, and measuring solenoid resistance with a multimeter. Resistance readings outside the 4.7-5.3 ohm range at 20°C indicate a potential winding failure. A professional transmission scan tool capable of accessing TCM-specific codes is recommended for accurate diagnosis in industrial applications.

What is the expected service life of this solenoid?

Under normal operating conditions with regular ATF maintenance intervals, the solenoid is engineered for service life consistent with original equipment specifications. Actual service life varies based on driving conditions, fluid maintenance practices, and operating temperature. For transmission repair facilities, replacing all solenoids as a set during valve body overhaul is standard practice to minimize comeback rates.

Is calibration required after solenoid replacement?

No TCU reprogramming is required when replacing the 46313-3B030 solenoid, as it is a drop-in replacement with identical electrical characteristics and flow rates. After installation, technicians should perform a TCM adaptive reset using diagnostic equipment to clear learned shift values and allow the transmission to re-adapt to the new component. No additional calibration or adjustment is necessary.
