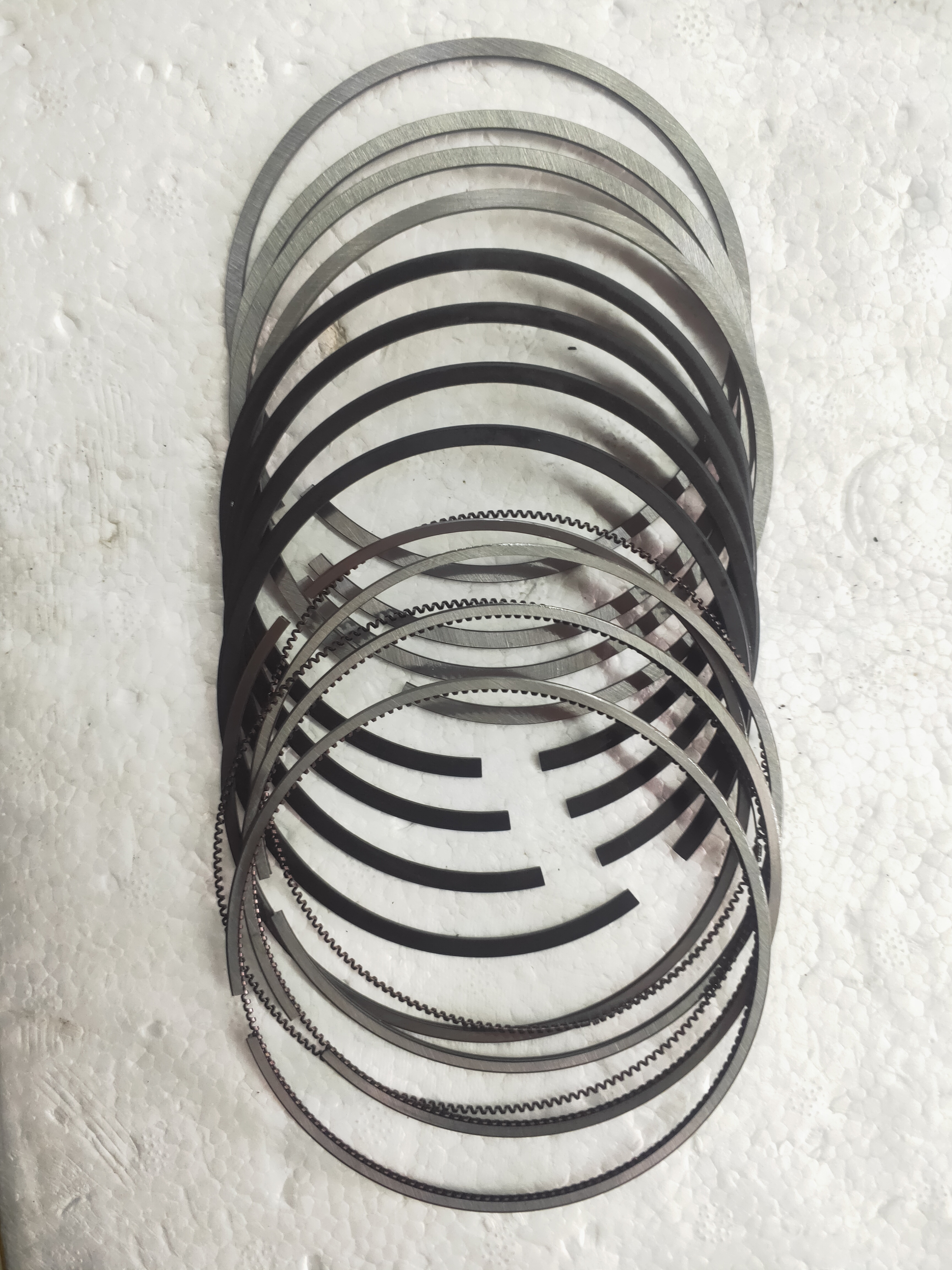

Piston Ring Set Engine Repair Replacement 23040-2G500

Hyundai 23040-2G500 Piston Ring Set Product Description

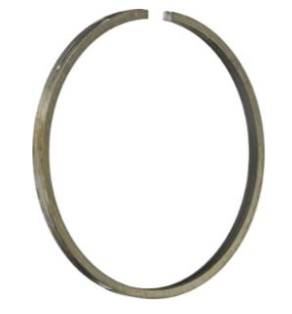

Product Overview

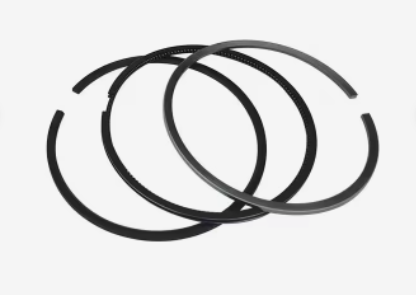

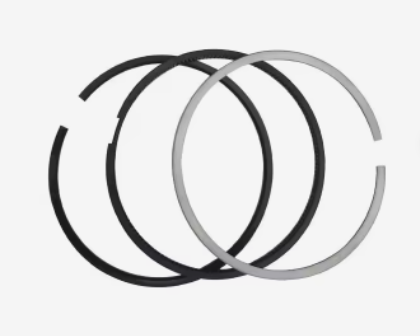

The Hyundai 23040-2G500 Piston Ring Set is a premium OEM-quality engine component specifically engineered for Hyundai 2.4L Theta II GDI engines. Designed as a direct replacement for the original factory part, this piston ring set restores engine compression, improves combustion efficiency, reduces oil consumption, and enhances overall engine performance. Manufactured to Hyundai OEM specifications, it ensures accurate installation, dependable sealing, and long-lasting reliability for engine rebuilding, repair, and maintenance applications.

Core Product Specifications

Hyundai's parts catalog lists 23040-2G500 at 0.30 lb (approximately 136 g) and gives catalog item dimensions of 8.0 × 6.2 × 3.1 inches.

Important: The 8.0 × 6.2 × 3.1-inch figure should be treated as a catalog/shipping-item dimension, not the physical diameter or thickness of an individual piston ring.

Likewise, the 88 mm specification refers to the engine cylinder bore of the relevant 2.4L Theta II GDI engine. It should not be advertised as an independently verified finished-ring outside diameter. Hyundai technical specifications list the 2.4L GDI engine at 2,359 cc with an 88 mm bore and 97 mm stroke.

Product Features

Standard-Size Engine Replacement

The STD designation is important. It means 23040-2G500 is intended for a standard-size cylinder/piston application, rather than being an oversize repair ring set.

This makes it suitable when the cylinder bore and pistons remain within the applicable standard service specification.

Before installation, the technician should still measure cylinder bore diameter, taper, out-of-round condition, piston condition and piston-ring end gap.

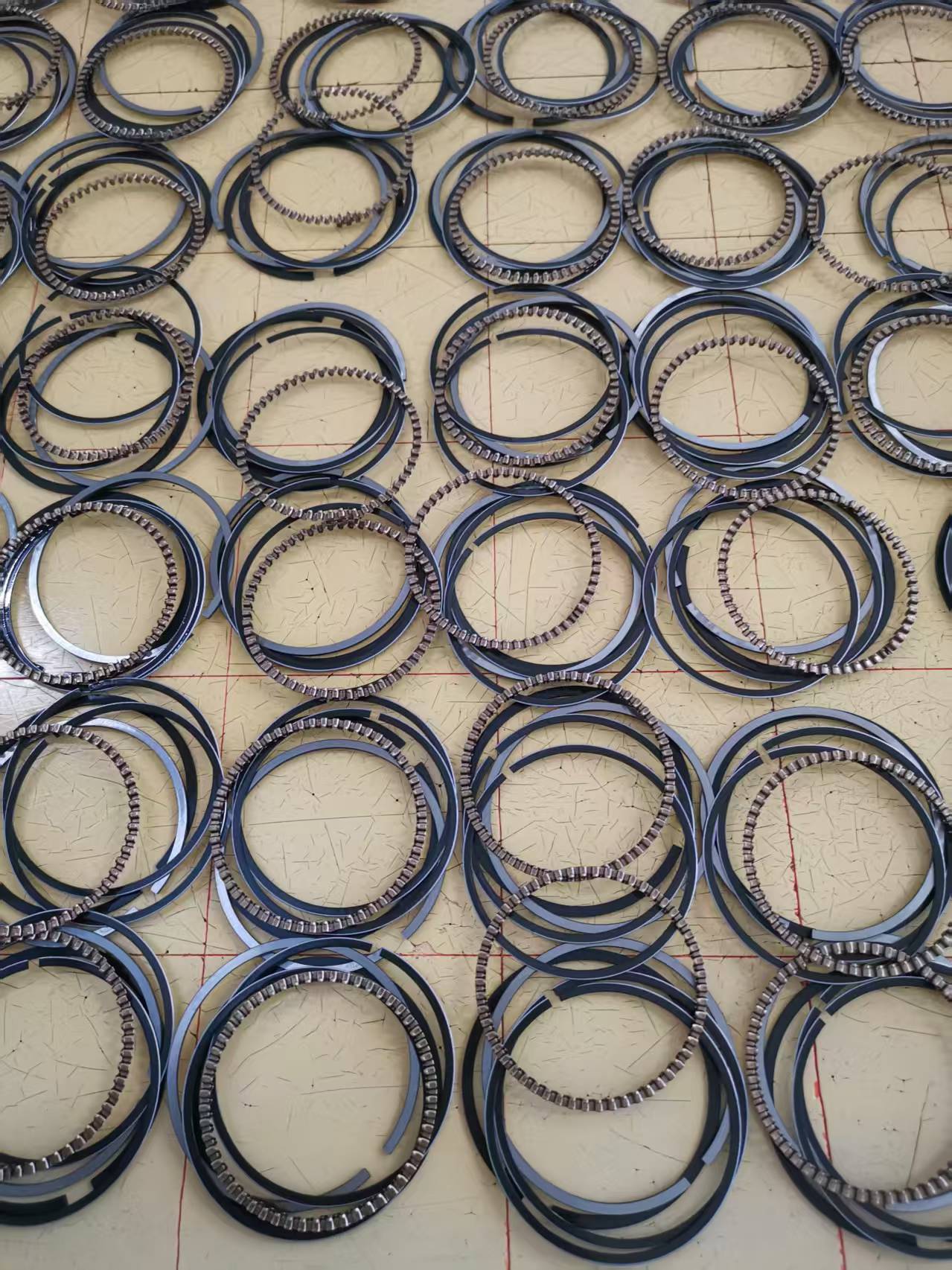

Complete Set for Four Pistons

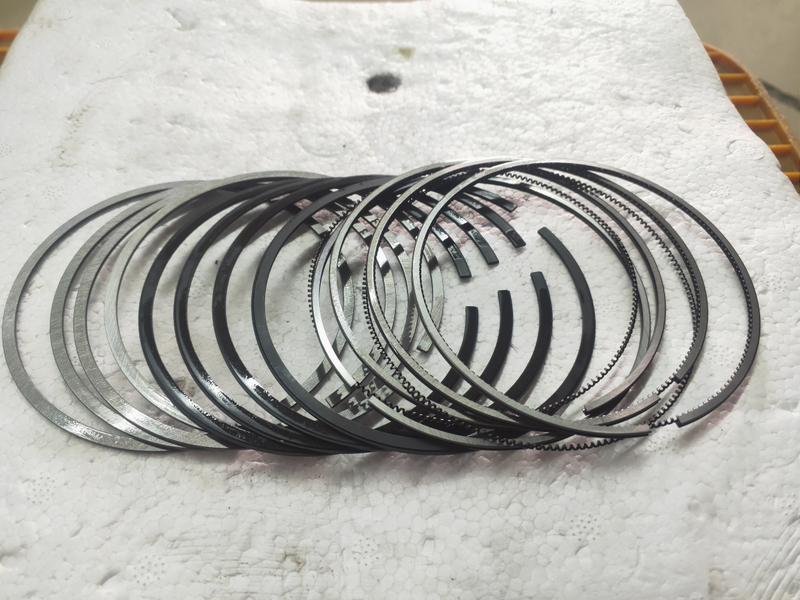

Kia catalog data describes 23040-2G500 as a complete set containing standard rings for all four pistons.

This is especially useful for engine overhaul work because piston rings are normally serviced as a matched engine set rather than replacing only one worn ring without checking the remaining cylinders.

Combustion Gas Sealing

The compression-ring portion of the piston ring system forms a seal between the piston and cylinder wall.

This reduces the amount of high-pressure combustion gas escaping from the combustion chamber into the crankcase.

Better sealing contributes to:

• Stable cylinder compression

• Efficient combustion

• More consistent engine power

• Reduced excessive blow-by

Engine Oil Control

The piston ring package also controls the amount of lubricating oil remaining on the cylinder wall.

During piston movement, excess oil is removed while a controlled lubricating film is retained.

Proper oil control helps reduce:

• Excessive engine oil consumption

• Blue exhaust smoke

• Combustion-chamber oil deposits

• Spark plug fouling

• Carbon accumulation

Heat Transfer

Piston rings are also part of the piston cooling path.

Heat generated at the piston crown can pass through the piston and rings toward the cylinder wall and engine cooling structure.

Therefore, correct contact between the piston rings and cylinder wall is important not only for sealing but also for thermal management.

Product Function

The 23040-2G500 Piston Ring Set performs three fundamental engine functions:

1. Seal Combustion Pressure

During the compression and combustion strokes, cylinder pressure rises significantly.

The piston rings help seal the clearance between the piston and cylinder wall so that combustion pressure remains above the piston where it can generate useful engine torque.

If this seal deteriorates, combustion gases can leak downward into the crankcase, producing excessive blow-by.

2. Control Engine Oil

Engine cylinder walls require lubrication, but too much oil entering the combustion chamber causes oil burning.

The piston ring system regulates this oil film by distributing lubrication and scraping excess oil away from the cylinder wall during piston movement.

3. Transfer Piston Heat

The piston is directly exposed to combustion temperature.

Part of this heat travels from the piston through the rings into the cylinder wall, helping prevent excessive piston temperature.

What Does 23040-2G500 Do Inside the Car?

The piston ring set operates continuously whenever the engine is running.

Each piston moves upward and downward thousands of times per minute. The piston rings remain in contact with the cylinder wall while following this reciprocating motion.

Their job can be summarized as:

Combustion Chamber
↓
Seal combustion pressure
↓
Maintain cylinder compression
↓
Control cylinder-wall oil
↓
Transfer piston heat
↓
Support stable engine operation

Without properly functioning piston rings, the engine can gradually lose compression and begin consuming excessive quantities of engine oil.

Typical Vehicle Applications

Hyundai's catalog lists 23040-2G500 for the following applications:

Kia dealer catalog information also identifies 23040-2G500 as a piston ring set used in relevant Optima and Sorento applications. For example, the 2013 Sorento catalog describes the part as a complete standard ring set. (Kia

Other parts suppliers also associate the OE number with 2.4L Hyundai/Kia applications including selected Sonata, Santa Fe Sport, Optima and Sorento models.

Because engine specifications and part revisions can change according to year and production date, always confirm:

OE Number + VIN + Engine Code

before ordering.

Common Problems and Solutions

1. Excessive Engine Oil Consumption

Possible symptoms:

• Engine oil level drops quickly

• Frequent need to add engine oil

• Blue exhaust smoke

• Oil-fouled spark plugs

• Carbon deposits in the combustion chamber

Possible causes:

Piston rings can become worn, stuck by carbon deposits, damaged or lose effective contact with the cylinder wall.

The oil-control portion of the ring package may then fail to remove excess lubricating oil from the cylinder wall.

Oil can subsequently enter the combustion chamber and burn together with the air-fuel mixture.

Recommended solution:

Perform an engine condition diagnosis before replacing the rings.

Check:

• Cylinder compression

• Leak-down results

• Cylinder-wall condition

• Piston-ring grooves

• Piston condition

• PCV system

• Valve stem seals

• Engine oil leakage

If ring wear or sticking is confirmed, remove the pistons and inspect the complete piston/cylinder assembly.

2. Low Cylinder Compression

Possible symptoms:

• Difficult starting

• Reduced engine power

• Rough idle

• Poor acceleration

• Increased fuel consumption

• Uneven cylinder performance

Possible cause:

Worn or damaged compression rings can allow combustion pressure to escape past the piston into the crankcase.

Recommended solution:

Perform both a compression test and, when necessary, a cylinder leak-down test.

If leakage is confirmed through the piston/ring area, inspect the:

• Piston rings

• Ring grooves

• Pistons

• Cylinder walls

• Cylinder bore wear

Do not automatically replace the piston rings without checking the cylinders.

3. Excessive Blow-By

Possible symptoms:

• Strong crankcase pressure

• Oil mist around the breather system

• Excessive vapor from the oil filler opening

• Oil pushed through seals

• Reduced compression

Possible cause:

Combustion gas can pass between the piston and cylinder wall when compression-ring sealing deteriorates.

Recommended solution:

Check compression and cylinder leakage.

Measure cylinder bore wear and inspect the ring lands and piston rings.

A new piston ring set cannot permanently correct a severely worn, tapered or damaged cylinder bore by itself.

4. Piston Rings Stuck by Carbon Deposits

Possible symptoms:

• High oil consumption

• Reduced compression

• Uneven engine operation

• Increased blow-by

• Carbon deposits

• Blue exhaust smoke

Possible cause:

Carbon and oxidized oil deposits can accumulate inside the piston ring grooves.

When a ring can no longer move freely inside its groove, it may not maintain proper contact with the cylinder wall.

Recommended solution:

During an engine overhaul, remove and inspect the pistons.

Clean the piston ring grooves correctly and replace damaged or heavily contaminated rings.

The underlying cause of excessive deposits should also be investigated.

5. Worn or Damaged Cylinder Walls

Installing new piston rings will not automatically solve an oil-consumption or compression problem if the cylinders are already excessively worn.

Possible cylinder problems include:

• Excessive bore wear

• Cylinder taper

• Out-of-round cylinder

• Vertical scoring

• Surface damage

• Incorrect honing finish

Recommended solution:

Measure the cylinders with appropriate precision instruments.

If the cylinder dimensions are outside the manufacturer's service limits, appropriate machining and correctly sized pistons/rings may be required.

Since 23040-2G500 is a STD-size ring set, it should not automatically be used after a cylinder has been bored oversize.

6. Incorrect Piston Ring End Gap

Ring end gap is the clearance between the ends of a piston ring when it is positioned inside the cylinder bore.

An incorrect gap can cause serious problems.

Gap too small:

When the ring becomes hot, thermal expansion may cause the ends to contact each other. This can increase ring pressure, damage the ring or piston and score the cylinder wall.

Gap too large:

Excessive clearance can reduce sealing performance and increase combustion-gas leakage.

Recommended solution:

Always place and measure each new ring in its corresponding cylinder before final assembly.

Use the applicable Hyundai/Kia workshop specification for the exact engine variant rather than assuming a universal ring-gap value.

7. Incorrect Ring Installation Direction

Piston rings can have different profiles, coatings and designated installation directions.

Installing a ring:

• Upside down

• In the wrong piston groove

• With incorrectly positioned gaps

• With excessive twisting

can lead to poor sealing or rapid failure.

Recommended solution:

Follow the markings and installation instructions supplied with the ring set and the corresponding engine service manual.

Use a proper piston-ring expander instead of excessively twisting the rings by hand.

Installation Recommendations

Because piston-ring replacement requires significant engine disassembly, professional engine repair is recommended.

A proper installation process should include:

1. Verify OE number 23040-2G500.

2. Confirm the vehicle VIN and engine specification.

3. Disassemble the engine according to the service procedure.

4. Remove the piston and connecting-rod assemblies.

5. Inspect every piston and piston-ring groove.

6. Measure cylinder bore diameter.

7. Check cylinder taper and out-of-round.

8. Inspect cylinder-wall condition.

9. Confirm that STD-size rings are appropriate.

10. Insert each ring into its corresponding cylinder.

11. Measure piston-ring end gap.

12. Check ring-to-groove clearance.

13. Install each ring in the correct groove and direction.

14. Lubricate the piston and rings with clean engine oil during assembly.

15. Compress the rings with a suitable piston-ring compressor.

16. Reinstall the piston assemblies carefully.

17. Replace related gaskets and seals as necessary.

18. Fill the engine with the specified engine oil and coolant.

19. Start the engine and check for abnormal noise, pressure or leakage.

Important Specification Notice

For 23040-2G500, I recommend publishing only parameters that can be reasonably verified.

Safe to Publish as Core Data

• OE Number: 23040-2G500

• Official Name: Ring Set-Piston

• Part Code: 23040A

• Size: STD / Standard Size

• Set Coverage: Rings for all four pistons

• Application: 4-cylinder Hyundai/Kia engine applications

• Common Engine Application: Theta II 2.4L GDI

• Engine Displacement: 2,359 cc

• Engine Bore × Stroke: 88 × 97 mm

• Hyundai Catalog Weight: 0.30 lb / approx. 0.136 kg

• Fitment: Direct Replacement

Do Not Present as Official Without Measuring Your Product

I would not recommend inventing or copying the following specifications from another 23040-series piston ring:

• Individual top-ring thickness

• Second-ring thickness

• Oil-ring thickness

• Finished ring outside diameter

• Exact ring end gap

• Ring material

• Surface coating

• Tensile strength

• Hardness

These values can vary between engine versions and manufacturers.

If Kingmay manufactures or supplies its own replacement version, these fields should be filled using the actual Kingmay engineering drawing or physical measurement, rather than copying figures from a similar Hyundai/Kia piston ring.
