46313-4J200
46313-4J200
Hyundai, Kia
2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010
Transmission System
Transmission Solenoid
| Quantity: | |
|---|---|
Product Description

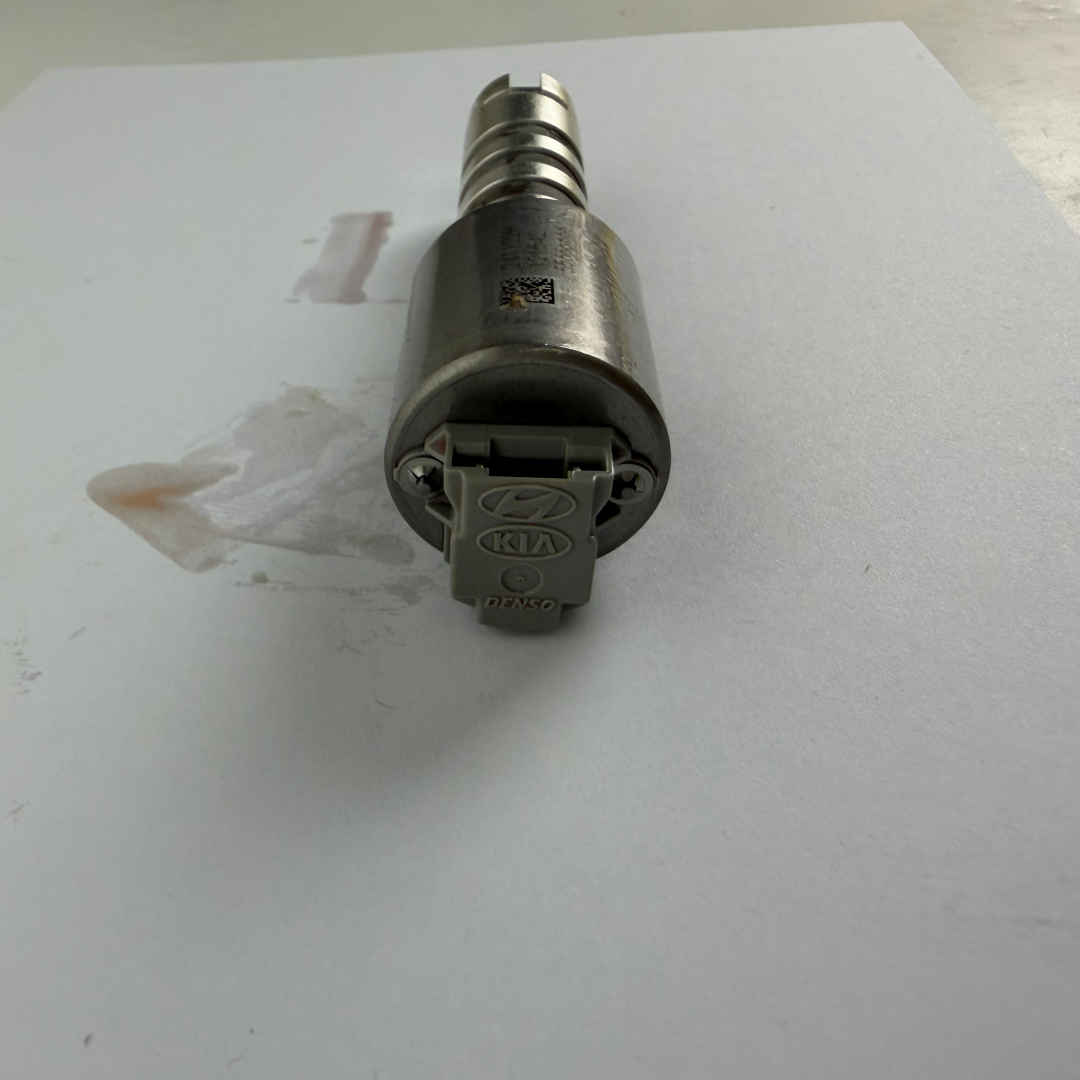

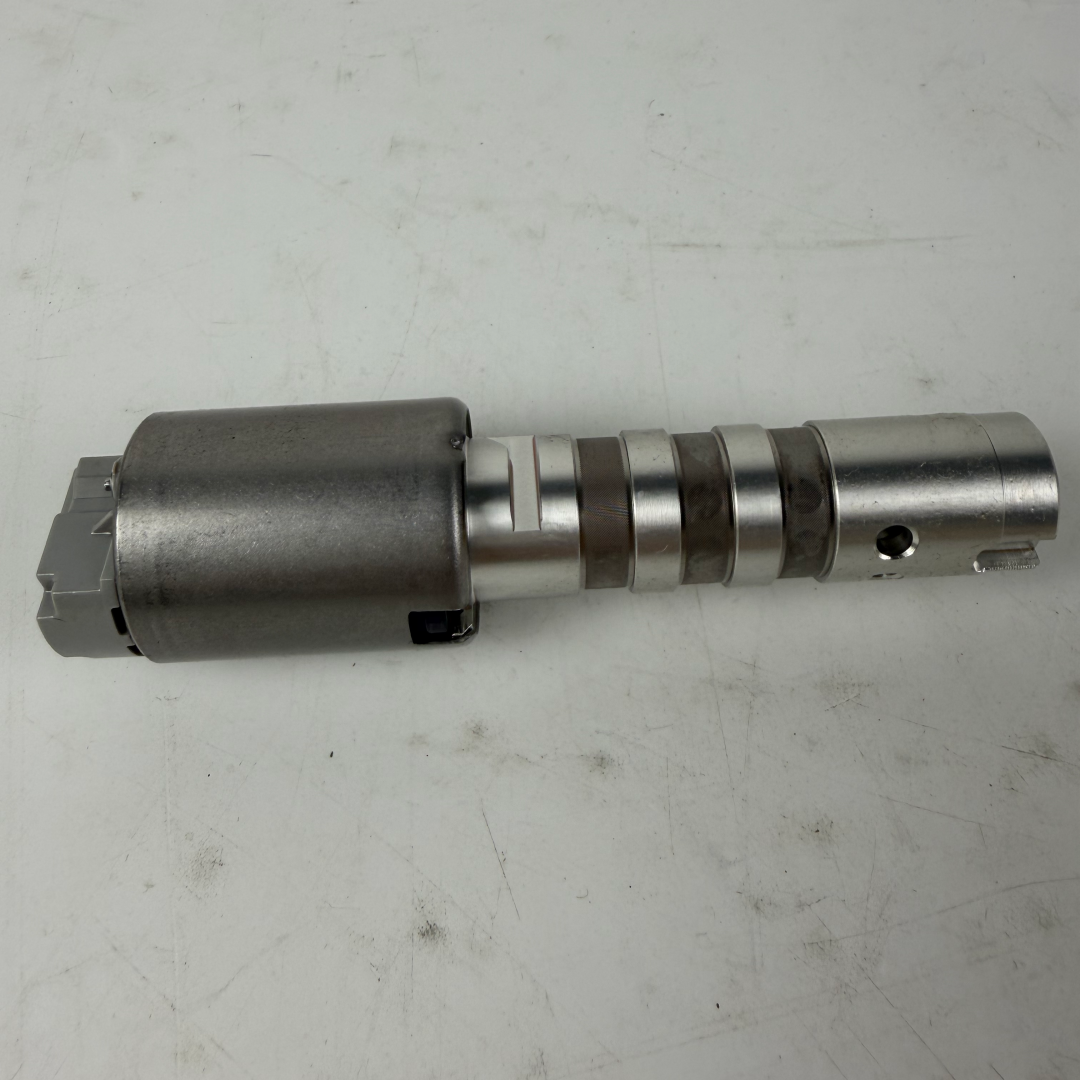

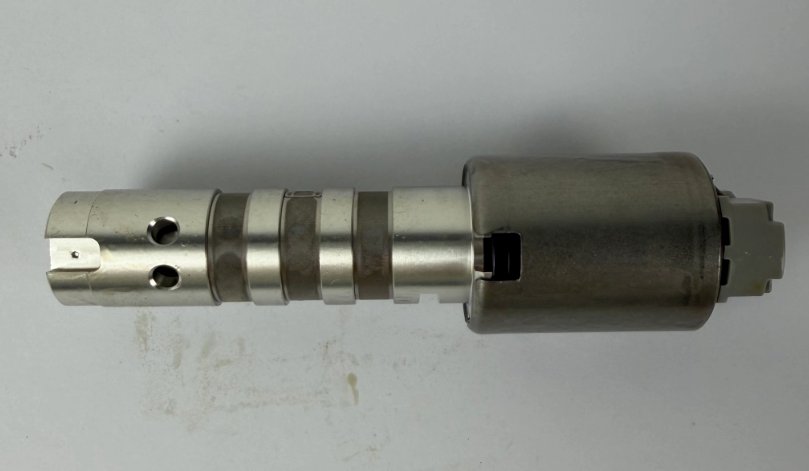

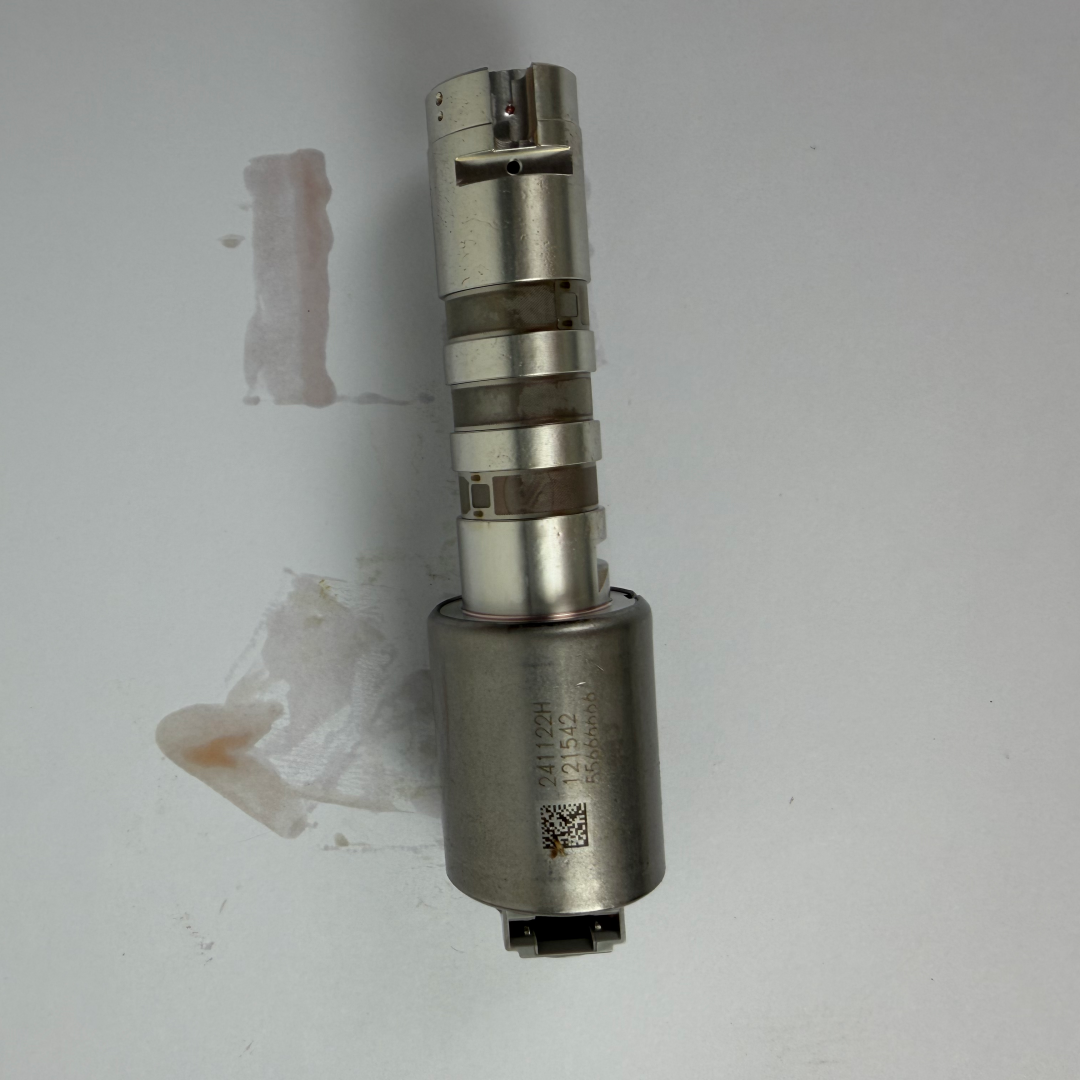

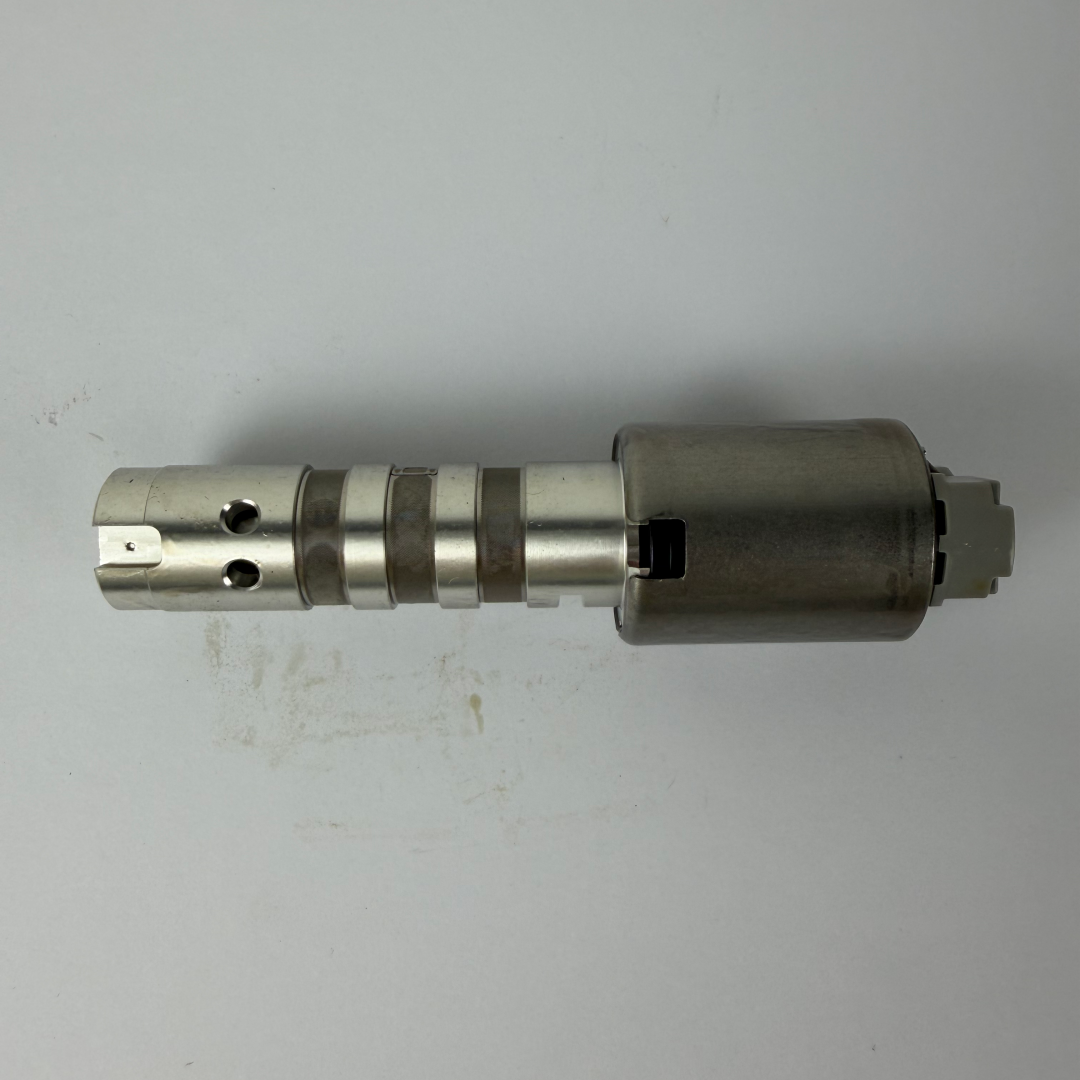

The 46313-4J200 is an electro-hydraulic control solenoid designed for 8-speed automatic transmissions in Hyundai Motor Group luxury vehicles. This solenoid regulates hydraulic pressure to the 3-5 reverse clutch, 4th gear clutch, and overdrive clutch circuits. It mounts on the left/center position of the transmission valve body, beneath the oil pan.
Manufactured under IATF 16949 automotive quality management standards, this unit serves as a direct drop-in replacement for the original equipment part. It receives pulse-width modulation signals from the Transmission Control Module (TCM) to control fluid flow and pressure distribution within the hydraulic circuit.
This solenoid addresses common transmission fault codes in the P0750-P0770 range, as documented in NHTSA Technical Service Bulletins for Genesis and Kia luxury sedan platforms.
Parameter | Specification |
OEM Part Number | 46313-4J200 |
Operating Voltage | 12V DC (vehicle electrical system) |
Connector Type | 2-pin sealed automotive connector with lock tab |
Mount Position | Left / Center (valve body) |
Controlled Circuits | 3-5 Reverse Clutch, 4 Clutch, Overdrive Clutch |
Operating Temperature Range | -40°C to +150°C (ATF environment) |
Production Standard | IATF 16949 certified manufacturing process |
Component | Material |
Solenoid Body | Glass-fiber reinforced PA66 engineering plastic |
Valve Spool | Case-hardened carbon steel with precision ground finish |
Armature Core | Soft magnetic steel |
Coil Winding | Copper magnet wire |
Sealing Elements | Fluorine rubber O-rings (ATF-resistant) |
Connector Housing | PBT plastic with tin-plated terminals |
This solenoid fits vehicles equipped with 8-speed automatic transmissions (A8LR1 / A8TR1 series):
Brand | Model | Model Years | Position |
Genesis | G70 | 2017-2023 | Left / Center |
Genesis | G80 | 2017-2024 | Left / Center |
Genesis | G90 | 2017-2024 | Left / Center |
Genesis | GV80 | 2021-2024 | Left / Center |
Kia | K900 | 2018-2023 | Left / Center |
Cross-reference part numbers: 463134J200, 46313-4J200.
Note: Always verify compatibility using the vehicle VIN through an authorized dealer parts catalog before placing commercial orders.
Common symptoms of a faulty 46313-4J200 solenoid include:
Harsh or delayed shifts between 3rd, 4th, and 5th gears
Transmission fault codes P0750 through P0770 stored in TCM memory
Shift flare during 3-4 or 4-5 upshifts
Transmission entering limp mode under certain operating conditions
Diagnostic steps for service technicians:
Scan TCM for stored diagnostic trouble codes
Measure solenoid resistance across terminals with a multimeter
Apply 12V power to verify mechanical click response
Inspect transmission fluid condition for contamination or debris
During replacement: remove the valve body cover plate, extract the faulty solenoid from its bore, install the new unit, and refill with manufacturer-specified ATF. Perform TCM adaptive value reset after installation.
The 46313-4J200 is specified for 8-speed automatic transmissions (A8LR1 and A8TR1 series) used in Genesis and Kia luxury vehicle platforms. It is not compatible with 6-speed A6MF1 transmissions.
Cross-reference the OEM part number 46313-4J200 against your vehicle's VIN through the official Hyundai/Kia parts catalog. The OEM part number is the most reliable identifier for commercial procurement matching.
The standard MOQ is 500 units per order. Mixed part number orders can be arranged for auto parts distributors with combined volume requirements. Contact our sales team for volume pricing schedules.
Production facilities operate under IATF 16949 quality management system certification. Each batch undergoes dimensional inspection, electrical resistance testing, and pressure cycle validation before shipment.
Yes. Custom branding options include private label packaging, customer-specified part number labeling, and customized box artwork. Neutral packaging is available as standard. Lead times for custom branded orders vary based on order volume.
For commercial procurement and bulk ordering:
Standard MOQ: 500 units
Packaging options: Neutral packaging, branded packaging, custom packaging
Lead time: 15-30 days depending on order volume and customization requirements
Payment terms: Negotiable for established enterprise customers
Contact our sales team with your specific requirements for a formal quotation and sample availability.
