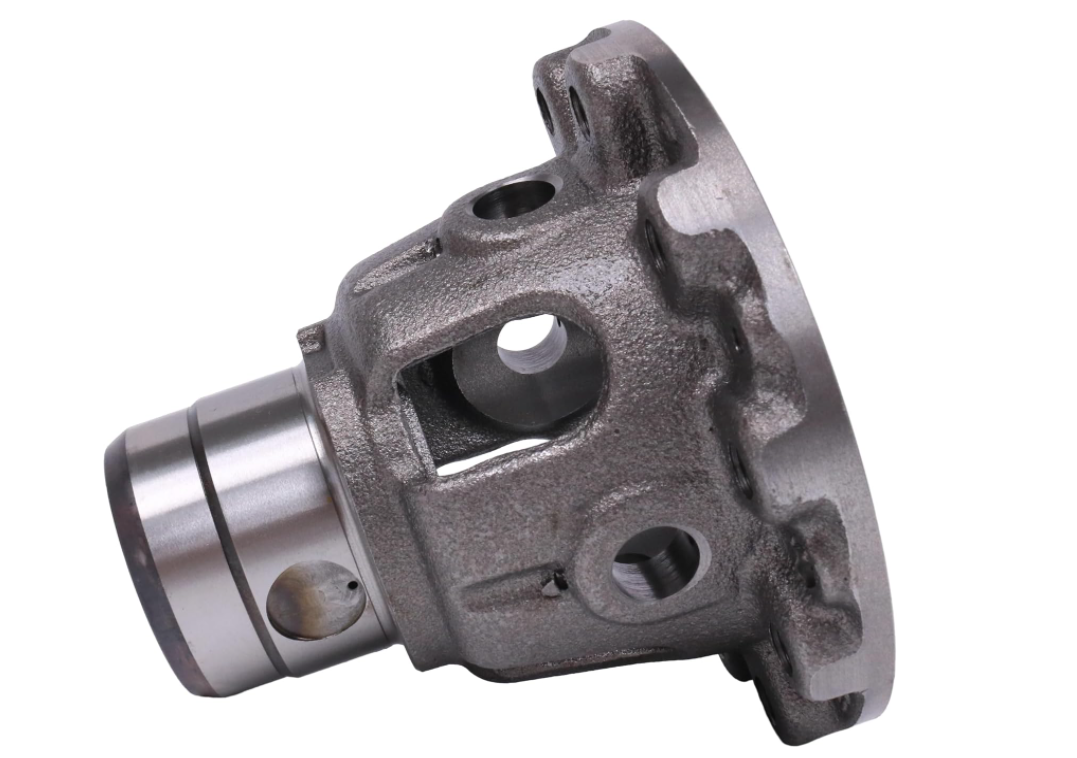

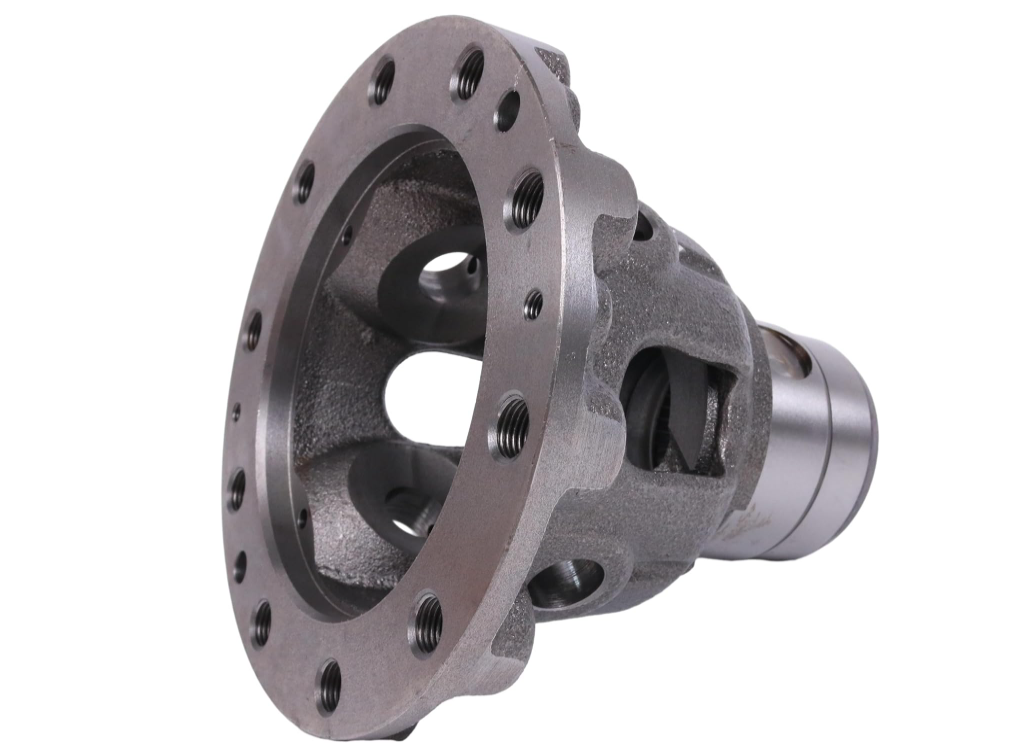

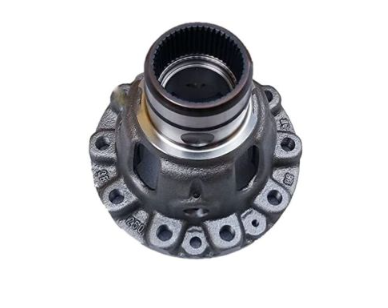

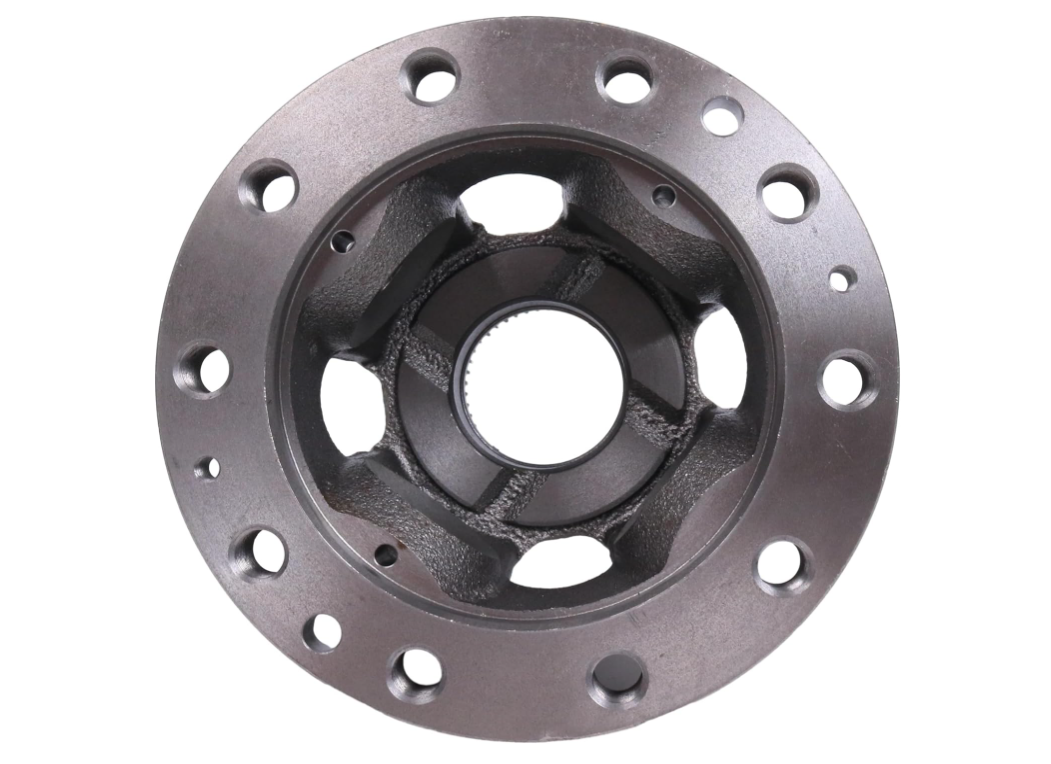

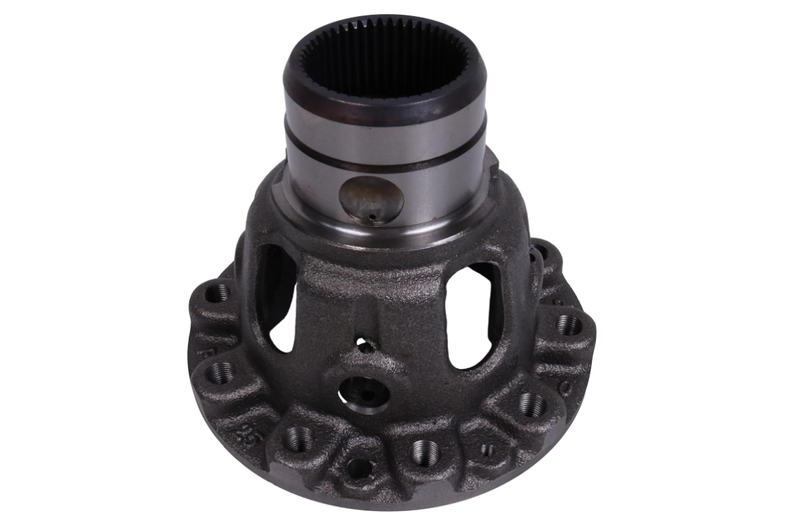

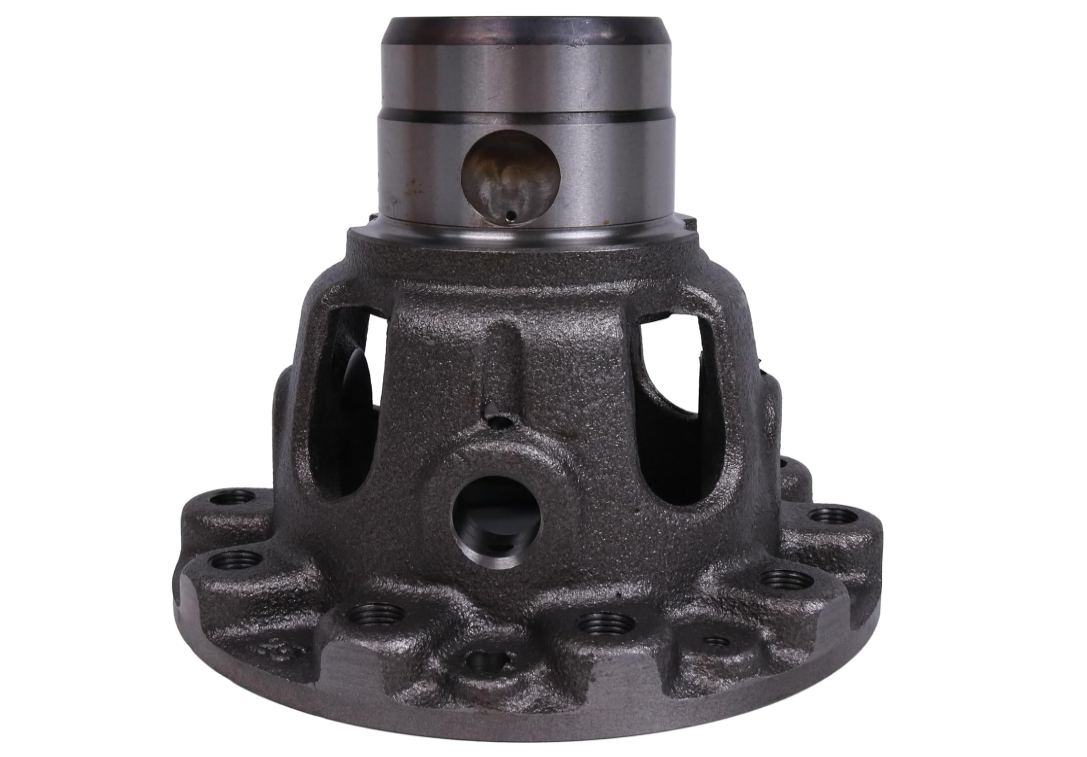

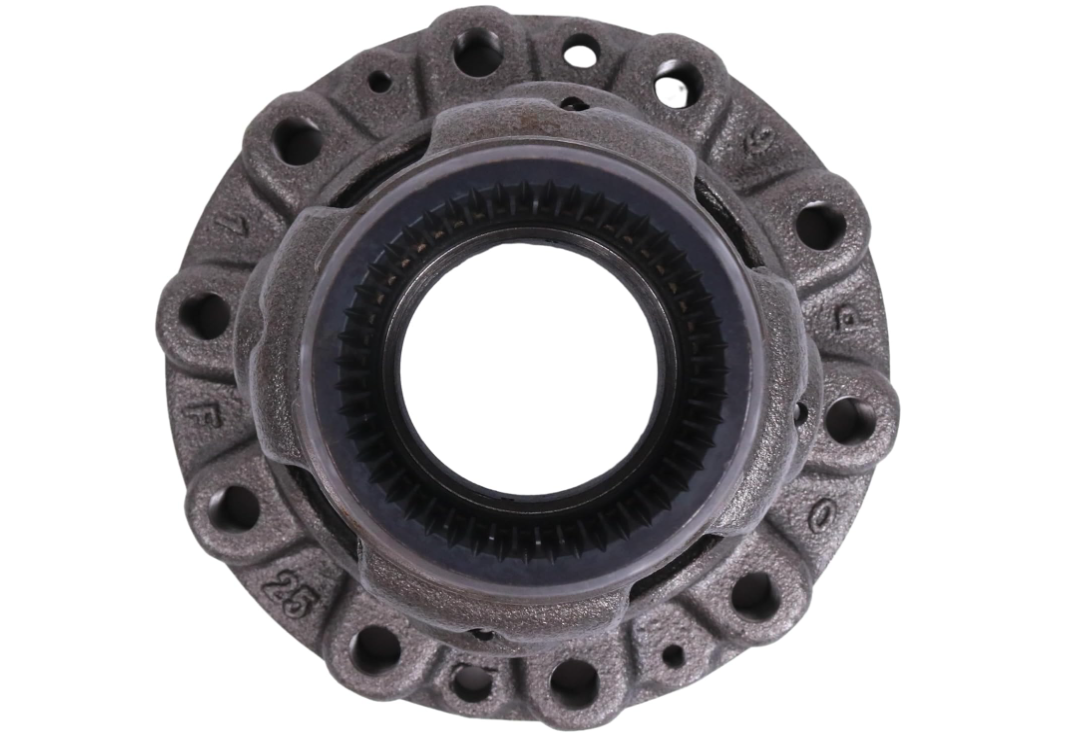

Automatic Transmission Differential Carrier Hyundai (45822-3B250)

Product Name

45822-3B250 Automatic Transmission Differential Carrier / Cup-Differential Case for Hyundai & Kia 4WD 6-Speed Transmission – 10-Hole, 47-Spline Precision Replacement

Product Overview

The 45822-3B250 Automatic Transmission Differential Carrier is officially referenced in Hyundai/Kia parts catalogs as a “Cup-Differential Case.” It is an internal transmission component used to support and locate the differential gear set inside compatible automatic transaxles. The part is associated mainly with 4WD/AWD 6-speed automatic transmission applications, and specialist transmission catalogs cross-reference it to A6MF1/A6LF-series applications. Hyundai/Kia EPC data also identifies 45822-3B250 as a direct differential-case component rather than an external transfer-case part.

For independent workshops, transmission rebuilders, wholesalers, and Hyundai/Kia spare-parts distributors, 45822-3B250 is suitable for replacing a worn, cracked, distorted, or spline-damaged differential housing. Its correct geometry is especially important because the carrier must keep the differential gears, bearings, and related drivetrain components correctly aligned while transmitting torque under acceleration, deceleration, and cornering loads.

Product Introduction

The Hyundai 45822-3B250 Differential Carrier / Differential Case Cup forms the structural body around the internal differential gear set. When the vehicle turns, the left and right drive wheels need to rotate at different speeds; the differential mechanism makes this possible while continuing to transfer engine torque to the drive wheels. The carrier provides the rigid and accurately machined structure required for this process.

Technical references for 45822-3B250 list 10 mounting holes, 47 internal splines, approximately 133 mm overall height, 62.90 mm and 65.05 mm neck diameters, a 16.85 mm pinion/satellite shaft hole, and approximately 162.10 mm mounting-flange outer diameter. These dimensions make part-number verification especially important because visually similar Hyundai/Kia differential cases can have different drive layouts or internal dimensions.

Product Features

• OEM Reference 45822-3B250: Designed as a replacement for Hyundai/Kia Cup-Differential Case applications carrying this OE reference.

• 4WD/AWD Transmission Application: EPC and transmission references associate this version with 4WD automatic-transaxle configurations.

• 47-Spline Internal Design: Provides the required mechanical interface for compatible differential/transmission components.

• 10-Hole Mounting Pattern: Precision mounting geometry helps ensure correct installation and differential alignment.

• Suitable for Transmission Rebuilding: Designed for repair of automatic transmissions affected by carrier, spline, bearing-seat, or differential housing damage.


• Wholesale-Friendly Supply: Suitable for transmission workshops, Hyundai/Kia parts importers, distributors, repair chains, and regional wholesalers.

Product Specifications

Function and ApplicationThe dimensions and 3.15–3.30 kg reference weight are supported by specialist transmission/parts listings. One separate Kia catalog database lists 19.10 lb for the same number, so actual net and packed weight should be confirmed with Kingmay before calculating international freight.

The primary purpose of the 45822-3B250 Differential Carrier is to provide a rigid and accurately located housing for the differential mechanism inside the automatic transmission.

Its key functions include:

• Supporting the differential gears: Keeps the internal gears and related components correctly positioned.

• Maintaining drivetrain alignment: Correct carrier geometry helps maintain proper bearing and gear alignment.

• Transmitting drivetrain loads: Handles mechanical loads generated while torque is transferred through the transmission to the drive wheels.

• Allowing different wheel speeds: Supports the differential mechanism that allows the inner and outer drive wheels to rotate at different speeds when the vehicle turns.

• Supporting smooth 4WD/AWD operation: Proper carrier condition contributes to stable torque transmission with reduced vibration and abnormal drivetrain noise.

• Protecting internal components: A structurally sound differential case reduces the risk of secondary damage to gears, splines, bearings, and shafts.

PartSouq's technical description likewise identifies the differential case cup as the structural part supporting the differential gears and helping distribute torque while allowing different wheel speeds during turns.

Common Problems and Solutions

For transmission rebuilding, Kingmay recommends matching the OE number with the VIN, chassis information, old-part photo, and transmission specification before shipment. Kingmay's website states that its parts-matching team supports VIN, chassis-number, photo, and OEM-number verification.

Installation and Fitment Notice

Installation should be carried out by a professional automatic-transmission technician. Before assembly, compare the replacement part with the removed unit and verify:

• OE number 45822-3B250

• 10 mounting holes

• 47 internal splines

• Neck diameters

• Bearing-seat condition

• Pinion/satellite shaft bore

• 4WD/AWD transmission configuration

• Differential gears and bearings for abnormal wear

Replacing only the carrier while retaining severely damaged bearings, gears, or contaminated transmission fluid may result in premature failure.

Quality Control

Kingmay states that its OEM-grade parts are sourced to match or exceed OE specifications for fit, form, and function, with technical datasheets available on request. Its published quality system includes dimensional inspection, material certification availability, batch traceability, pre-shipment inspection, and supplier qualification.

For a precision transmission component such as 45822-3B250, the recommended QC focus includes:

• Mounting-hole position

• Spline count and spline profile

• Bearing-seat dimensions

• Shaft-hole diameter

• Overall dimensional accuracy

• Surface defects or casting damage

• Burr and machining inspection

• Pre-shipment visual inspection

• OE-number and fitment verification

Packaging Options

Kingmay can support different packaging formats according to the distributor's market strategy:

• Neutral packaging

• Kingmay branded packaging

• Customer private-label packaging

• Customized outer carton labels

• OEM reference labels

• Vehicle-fitment labels

• Export carton / pallet packing

• Mixed-SKU container packing

Kingmay's website specifically states that export packing and labeling, private-label/OEM packaging on qualifying orders, and consolidated mixed-SKU shipments are available.

For heavy precision transmission parts, reinforced internal protection is recommended to prevent impact to machined edges, bearing seats, and mounting surfaces during international transportation.

MOQ and Wholesale Pricing

For this listing, the commercial MOQ can start from 10 pieces, with flexible quantity arrangements available for mixed orders.

Kingmay wholesale policy for this product can be presented as:

• MOQ from 10 pieces

• Buy more, receive a better unit price

• Better pricing for repeat and long-term cooperation

• Mixed-SKU orders supported

• Trial orders can be combined with other Hyundai/Kia parts

• LCL and full-container consolidation available

• Distributor-level quotations based on annual purchasing volume

Kingmay's current website describes flexible MOQ and volume-based wholesale pricing, while several category-specific Kingmay sourcing pages show mixed orders starting from 10 pieces per SKU. The exact MOQ varies by product category, so the final 45822-3B250 quantity should be confirmed in the quotation.

Logistics and Worldwide Shipping

Kingmay operates from Guangzhou, China, with shared export logistics through Nansha Port, which the company uses for international vehicle and auto-parts shipments. Its website specifically highlights consolidated shipping from Guangzhou and export loading through Nansha.

For bulk differential-carrier orders:

• Sea Freight: Recommended for larger wholesale quantities

• Departure: Guangzhou / Nansha Port

• FOB: Guangzhou / Nansha available

• CIF: Destination-port quotations available according to customer requirements

• Other major Chinese ports can be arranged depending on routing and consolidated cargo

• Mixed-SKU / LCL consolidation: Available

• Full Container Load: Available for larger orders

For planning purposes, sea shipments to Iraq, Saudi Arabia, and Turkey can be budgeted at approximately 25–30 days, depending on vessel schedule, destination port, transshipment, customs, and seasonal congestion. Some direct Saudi routes may be faster; Kingmay's published Saudi/Jeddah reference is approximately 18–22 days.

For urgent samples or small quantities:

• DHL

• UPS

• FedEx where available

• Air cargo upon request

Kingmay also publishes DHL/UPS/FedEx express options for urgent small-part orders.

After-Sales Service

For this 45822-3B250 listing, Kingmay can provide a 24-month warranty against manufacturing defects, subject to the terms confirmed in the final quotation and sales contract.

After-sales support can include:

• 24-month quality warranty

• OE-number and fitment verification before shipment

• Pre-shipment inspection

• Photo/video verification where required

• Batch traceability

• Technical support for installation-related product questions

• Quality-claim review

• Replacement or agreed commercial solution for verified manufacturing defects

• Dedicated support for long-term distributors

For warranty claims, customers should retain the product batch information, packaging label, invoice, installation record, and clear photos/videos showing the reported problem.

Kingmay Advantage – China Factory-Direct Sourcing

Kingmay uses a factory-integrated sourcing model, coordinating manufacturing resources, supplier factories, quality control, packaging, and export logistics from Guangzhou. This gives buyers access to production-side pricing while reducing unnecessary intermediary layers. Kingmay's own company page specifically states that it is “not just” a reseller and coordinates manufacturing and quality-control resources under one sourcing system.

For buyers, this means:

• More competitive wholesale pricing

• Fewer unnecessary intermediary markups

• Better access to production schedules

• Easier specification communication

• Centralized quality control

• One supplier for multiple Hyundai/Kia product categories

Kingmay Advantage – OEM-Grade Quality

Kingmay focuses on OEM-grade auto parts for Korean and Japanese vehicles, especially Hyundai and Kia applications. The company states that its parts are manufactured to match or exceed OE requirements for fit, form, and function and are supported by dimensional checks, traceability, and material certification options.

For 45822-3B250, this is particularly important because the differential housing depends on accurate:

• Spline geometry

• Bearing-seat dimensions

• Mounting-hole locations

• Shaft-hole dimensions

• Overall concentricity and alignment

Kingmay Advantage – More Orders, Better Pricing

Kingmay operates primarily as a B2B wholesale supplier, and its published product pages state that export prices vary according to order quantity. Larger purchases therefore allow more competitive volume quotations.

For regular distributors:

More Quantity → Better Unit Price → Better Long-Term Cooperation Price

Customers maintaining repeat purchasing plans, mixed-container programs, or annual procurement schedules can request distributor-level pricing rather than single-order pricing.

Kingmay Advantage – Flexible MOQ and Mixed Orders

Kingmay supports consolidated shipments across different product categories. Its company page specifically highlights the ability to combine engine, suspension, cooling, electrical, and other parts in a single shipment from Guangzhou, reducing logistics cost per SKU.

Commercial benefits include:

• MOQ from 10 pieces for this listing

• Mixed SKU purchasing

• Mixed Hyundai/Kia part-number orders

• LCL consolidation

• Full-container consolidation

• Lower inventory risk for new distributors

• Easier market testing before larger repeat orders

Kingmay Advantage – Private Label and Custom Packaging

Kingmay supports OEM/private-label programs for international distributors. Its private-label service includes factory matching, sample coordination, inspection, logistics management, and customized branding solutions.

Packaging options include:

• Neutral packaging

• Kingmay brand packaging

• Customer private label

• Custom logo

• Custom carton

• Custom product label

• OE-reference marking

• Market-specific labeling

This is especially suitable for wholesalers that want to establish their own transmission-parts brand.

Kingmay Company Strength

Guangzhou Kingmay Auto Parts Co., Ltd. specializes in B2B wholesale automotive parts, with a strong focus on Hyundai, Kia, Toyota, Nissan, and other Asian applications. Kingmay's website highlights 30,000+ SKU sourcing/warehouse capability, a supplier network with IATF 16949-qualified manufacturing resources, and business coverage across more than 50 countries through the wider Globalucar/Kingmay export ecosystem.

Its core strengths include:

• Strong Hyundai/Kia parts specialization

• 30,000+ SKU sourcing capability

• Factory-integrated China supply chain

• OEM-number cross-reference service

• VIN/chassis-based parts matching

• Pre-shipment inspection

• Batch traceability

• OEM-grade product sourcing

• Private-label support

• Mixed-container consolidation

• Nansha Port export logistics

• Dedicated B2B account support

• Response to OEM-number and technical inquiries within approximately 24 hours

Kingmay's Guangzhou location also provides access to one of China's largest automotive-parts trading and export ecosystems, making it suitable for international wholesalers that want to combine transmission, engine, cooling, suspension, steering, brake, electrical, and body parts into one procurement program.
