58350-3XA00
58350-3XA00
Hyundai, Kia
Santa Fe, Tucson, Sorento, Sportage
2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
Brake System

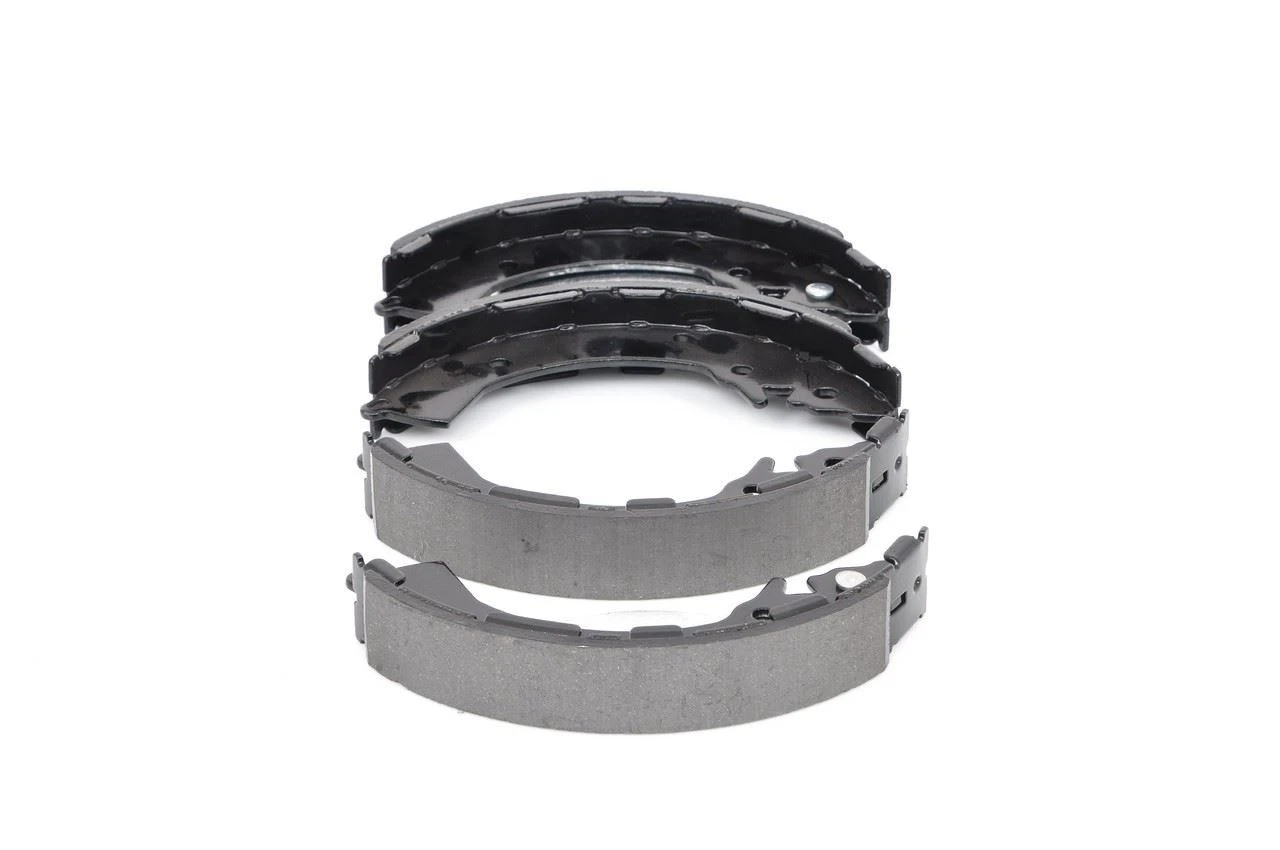

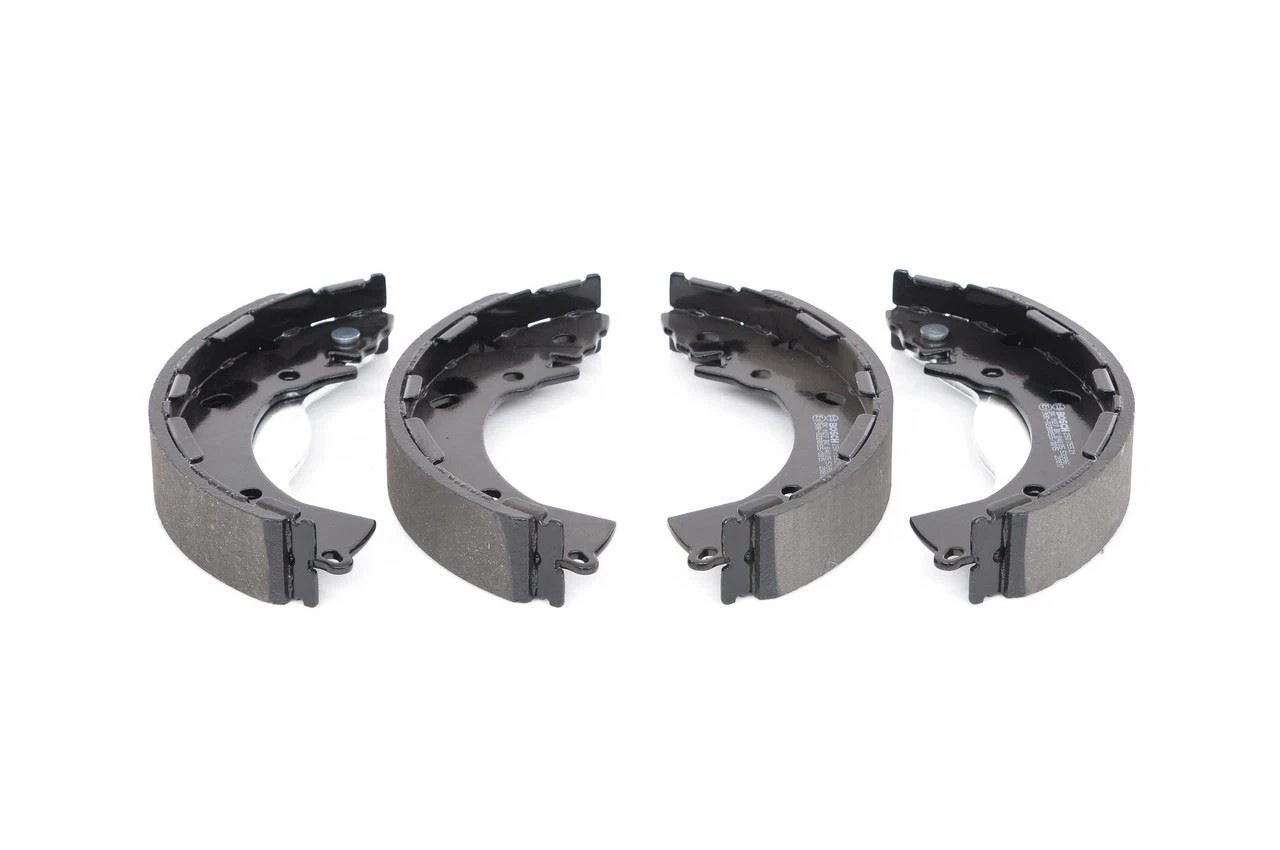

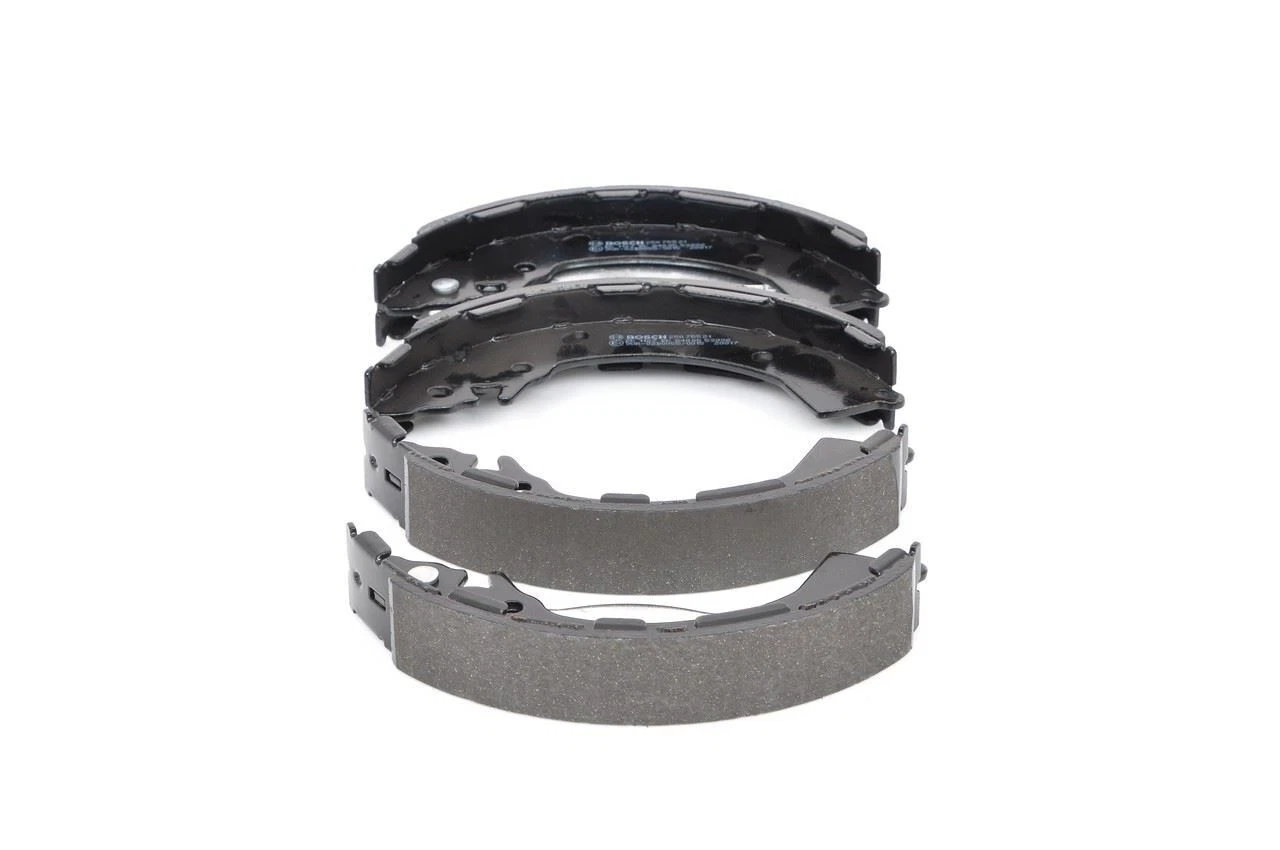

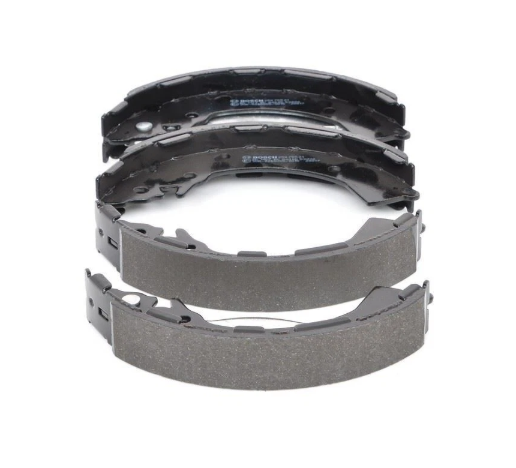

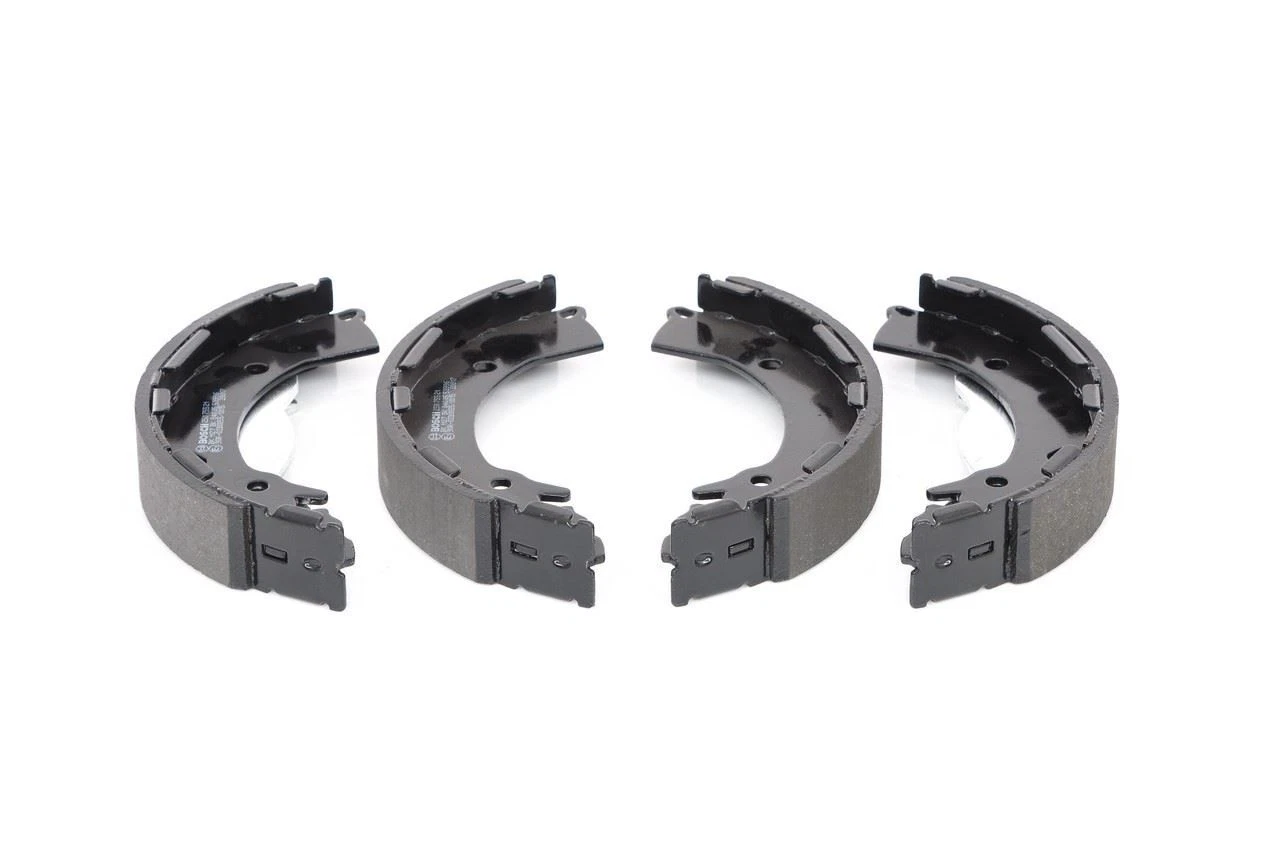

Brake shoes
| Quantity: | |
|---|---|
Product Description
Item | Details |
OE Number | 58350-3XA00 |
Official OEM Name | SHOE SET-PARKING BRAKE / DRUM BRAKE SHOE ASSEMBLY |
Interchange OEM Numbers | 58350-3XA00, 583503XA00 |
Applicable Vehicles | Hyundai Santa Fe DM/CN7, Sorento UM/MP, Tucson TL/NX4, Sportage QL/QLE (2015-2022) |
Brake Type | Integral parking brake shoes housed within rear disc brake rotor hat assembly (disc-in-drum design) |
Set Contents | Left shoe + Right shoe + hold-down spring kit + return spring kit + adjuster assembly |
Mount Position | Inside the inboard cavity of the rear disc brake rotor (parking brake drum section) |
Parameter | Specification |
Shoe Web Width | Varies by application (typically 35-45mm) |
Friction Lining Length | Arc length approx 180-210 degrees of drum circumference |
Lining Thickness | New approx 5.0-6.0mm (minimum service limit 1.0mm over shoe web table) |
Parking Brake Drum Inner Diameter (inside rotor hat) | Varies by model (typically 185-205mm) |
Net Weight per Set | Approx 0.9-1.4 kg (2.0-3.1 lbs) |
Package Size | 220 x 180 x 60 mm with all hardware included |
Component | Material & Process |
Shoe Web | Stamped high-carbon arc steel with precision-formed contour matching drum inner profile |
Friction Lining | Non-asbestos organic (NAO) friction material riveted or bonded to shoe web surface |
Adjuster Assembly | Zinc-plated steel threaded star-wheel adjuster with ratchet pawl mechanism |
Hold-down Springs | Heat-treated spring steel cup springs with rubber-isolated pin seats |
Return Springs | Extended-length coil tension springs with hooked ends |
Item | Details |
Production Standard | Assembled to Hyundai-Kia parking brake OEM specification, compliant with IATF16949 automotive brake system quality certification |
Alternative Aftermarket Part Numbers | BSHOE-3XA00, SHOE-PARK-58350-3X, PBS-XA00 |
The bonded or riveted non-asbestos organic friction material maintains a consistent coefficient of friction against the machined inner drum surface of the parking brake rotor cavity. Per OE design parameters, the set delivers static holding force on grades up to 30% slope without excessive lever effort or cable stretch. Each production lot undergoes 1000-hour dynamometer testing to validate performance stability across temperature and pressure ranges. A proprietary surface treatment optimizes the contact surface to reduce abnormal wear and brake noise under repeated stopping conditions.
Every shoe set includes new hold-down springs, return springs, an adjuster star wheel assembly and all required hardware. Aged springs lose free-height and tension over thermal cycles, while worn adjusters may develop stripped teeth or frozen threads. Replacing these components together supports proper shoe-to-drum clearance and automatic self-adjustment during normal driving. This reduces separate sourcing steps for commercial procurement and cuts on-site installation labor time.
Each shoe web is precision-stamped to the exact arc radius specified for the corresponding parking brake drum inner diameter. This accurate arc match ensures uniform lining contact pressure across the entire friction surface, helping prevent localized overheating, tapered lining wear, and uneven parking brake engagement or release. Consistent contact also extends lining service life and reduces maintenance frequency for fleet and distribution clients.
This brake shoe set addresses four common system issues: insufficient holding force on inclines from worn lining; parking brake drag causing rear overheating and reduced fuel economy from frozen adjusters or weak springs; excessive pedal travel from improper clearance due to damaged adjusters; and support for resolving dashboard warning lamps linked to wheel cylinder leakage (wheel cylinder inspection and replacement is recommended if leakage is detected).
Vehicle Make | Vehicle Model | Model Years | Vehicle Class | OE Number |
Hyundai | Santa Fe DM/CN7 | 2015-2022 | Mid-size SUV | 58350-3XA00 |
Hyundai | Tucson TL/NX4 | 2015-2022 | Compact SUV | 58350-3XA00 |
Kia | Sorento UM/MP | 2015-2022 | Mid-size SUV | 58350-3XA00 |
Kia | Sportage QL/QLE | 2015-2022 | Compact SUV | 58350-3XA00 |
This is an aftermarket replacement built to meet or exceed OEM specifications. It delivers equivalent fit, form and function as original equipment, priced for aftermarket distribution and commercial procurement.
Refer to the applications table above for the full compatibility list. For unlisted vehicles, contact customer support with your VIN for fitment verification.
Standard automotive hand tools work for most installations. A torque wrench is recommended to ensure fasteners meet factory torque specifications. Refer to your vehicle’s professional service manual for full procedures.
Warranty covers manufacturing defects under normal use. Improper installation, competition use or unauthorized modifications void the warranty. See the full warranty policy for complete details.
Replacing related wear items simultaneously is recommended, including both axle sides, associated seals, gaskets and fluids. This supports balanced performance and reduces repeated labor costs for service operations and fleet maintenance.
Cross-reference OEM part number 58350-3XA00 with your vehicle VIN through an authorized dealer or online compatibility checker. The OEM number is the most accurate identifier for correct part matching.
For distribution partners and commercial users, we support a minimum order quantity of 500-1000 sets. Packaging options include genuine MOBIS standard packaging, and aftermarket packaging covering neutral and custom branded options. With a monthly output of 400,000 sets, we maintain steady inventory to support just-in-time delivery for partners worldwide.
