93315-2W3254X
93315-2W3254X
Hyundai, Kia
2014, 2013
Electrical System
Switch
| Quantity: | |
|---|---|
Product Description

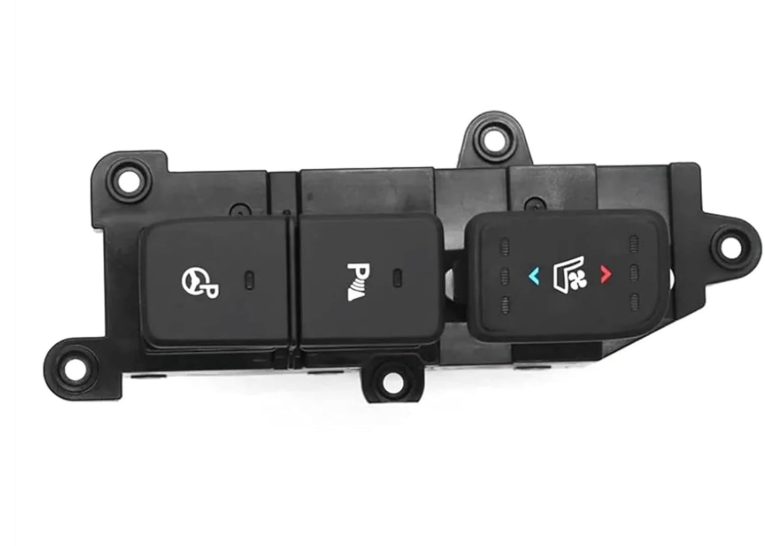

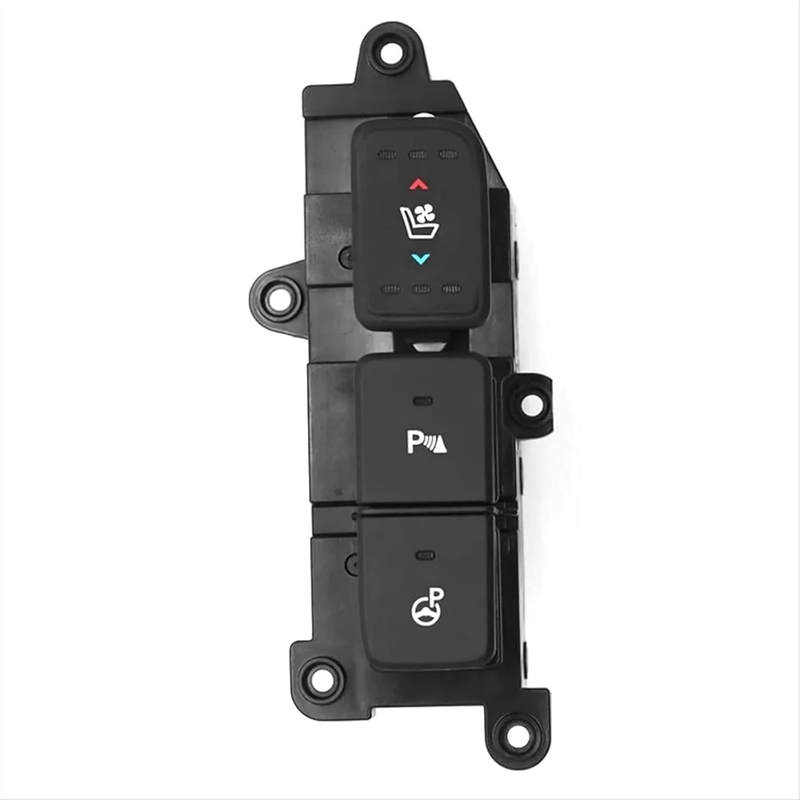

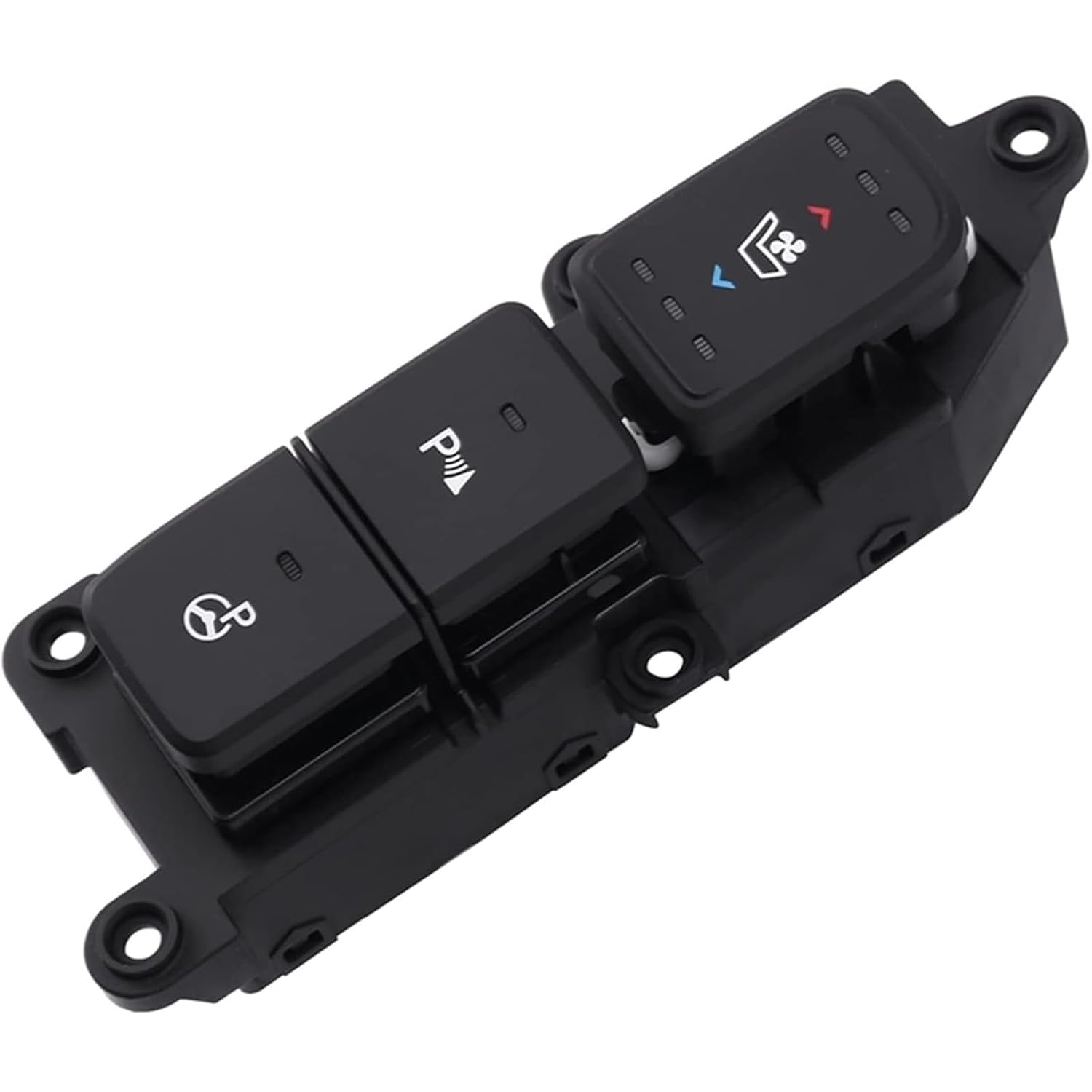

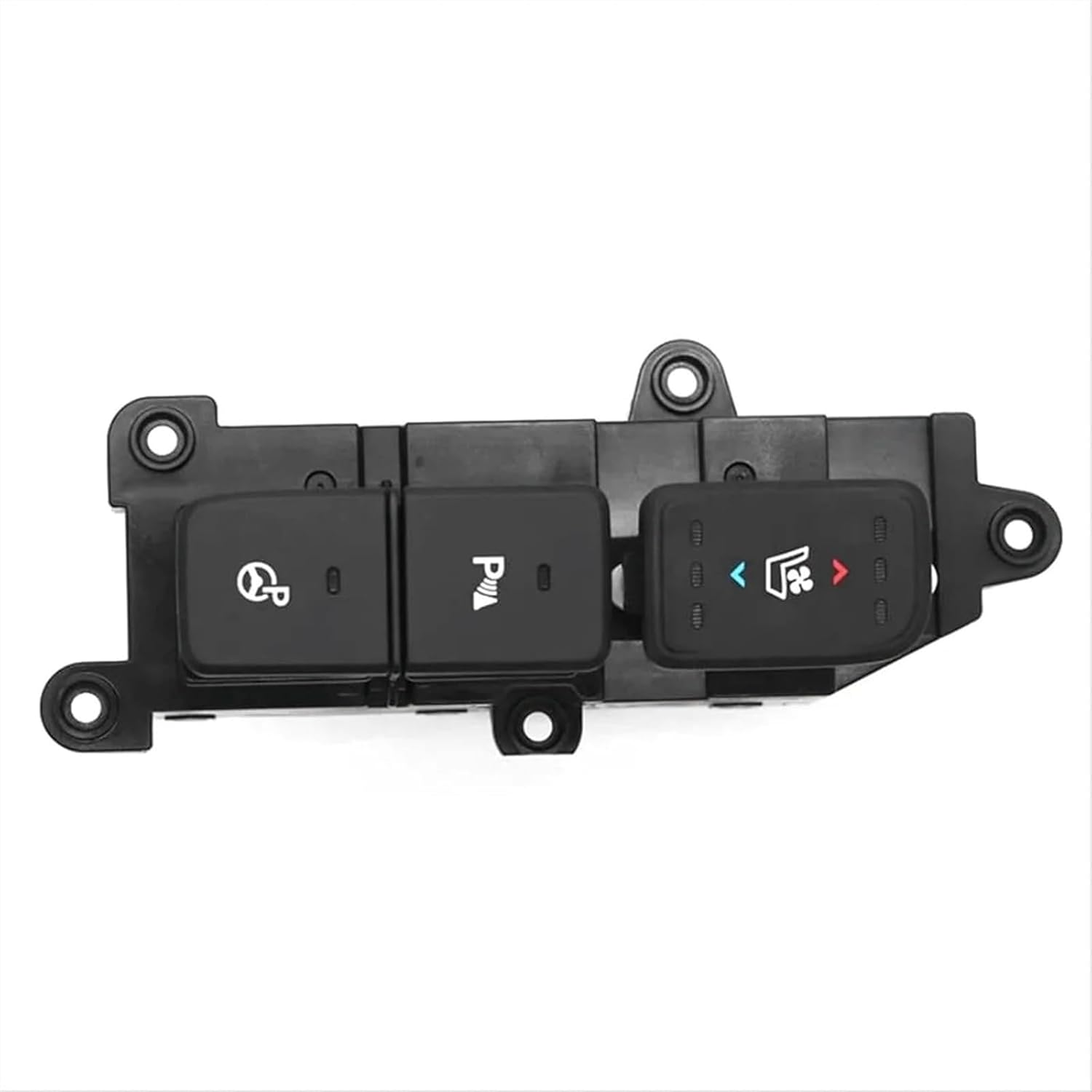

The 93315-2W3254X is an OE-replacement seat heating control switch engineered for Hyundai Santa Fe models from 2013 to 2014. It supports 3-level OFF-LOW-HIGH temperature adjustment with integrated LED status indicators, and is produced in alignment with original interior electrical specifications for Hyundai and Kia vehicles. This component serves as a direct replacement option for interior repair services and auto parts procurement in commercial operations.
Item | Detail |
OE Number | 93315-2W3254X |
Official OEM Name | SWITCH ASSY-SEAT HEATER / SEAT HEATING CONTROL SWITCH |
Interchange OEM Codes | 93315-2W3254X, 933152W3254XX, 93315-2W-00 |
Applicable Vehicles | Hyundai Santa Fe DM (Limited/SE Trim) (2013-2014) |
Switch Function | Driver/passenger seat heating control with 3-level (OFF-LOW-HIGH) temperature setting |
Make | Hyundai, Kia |
Part Type | Switch |
System | Electrical System |
Quantity per Unit | 1 |
Parameter | Specification |
Rated Operating Voltage | DC 12V automotive electrical system |
Rated Current Capacity | 5-15 amperes per circuit (function-dependent) |
Connector Configuration | 6-pin or 8-pin OEM sealed connector (model-dependent) |
Control Interface | Illuminated push-button or rocker switch with integrated LED indicator lamps |
Net Weight | Approx 0.08-0.18 kg (0.18-0.40 lbs) |
Overall Dimensions | Varies by switch type (typically 60 × 40 × 30 mm to 140 × 60 × 45 mm) |
Component | Specification |
Switch Housing | Flame-retardant ABS or PC+ABS plastic with UV-resistant finish |
Actuator Buttons | Wear-resistant polyamide or coated PC plastic with laser-engraved iconography |
Internal Contacts | Silver-plated copper alloy snap-action or slide-contact switches |
LED Illumination | Surface-mount LEDs with light guide panel (where illumination-equipped) |
Circuit Substrate | FR-4 glass-epoxy PCB or molded-in copper trace insert |
Connector Terminals | Tin-plated brass crimp terminals with locking CPA feature |
Production Standard | Manufactured to Mobis/Hyundai-Kia interior electrical OEM specification, compliant with IATF16949 |
Durability Test Cycle Rating | 50,000-100,000 operating cycles (depending on switch function type) |
Alternative Aftermarket Part Numbers | SW-SEAT-HEATING-254X, BTN-93315-2W |
Internal switching contacts adopt silver-plated or silver-alloy contact surfaces. This design resists oxidation, sulfidation and fretting corrosion common in automotive interior environments. New units maintain contact resistance below 50 milliohms, which reduces the risk of voltage drop, heat generation and functional intermittency associated with bare copper or tin-plated contact designs. Laser-etched icons on actuator buttons resist wear from repeated daily operation.
The switch body is molded with UL94 V-0 rated flame-retardant plastic compounds. The material self-extinguishes within 10 seconds when exposed to electrical fire or external flame sources. This design meets vehicle interior safety requirements for components installed near occupant positions and current-carrying wiring harnesses.
Where equipped, the switch integrates surface-mount LED backlighting with a light-guide panel. This structure provides visible status indication of switch position under both daytime and nighttime conditions. The LEDs have a rated lifespan of 50,000+ hours MTBF, which aligns with the typical service life of vehicle interior electronic components.
The switch shares identical connector pinout, mounting hole spacing and panel bezel cutout dimensions with the original factory part. It supports remove-and-replace installation without wiring modification, splice adapters or custom fabrication. Basic replacement operation does not require dealer scan tool coding or module programming; some memory-position functions may require initialization per vehicle service manual instructions.
This seat heating switch is designed for the Hyundai Santa Fe DM (Limited/SE Trim) produced in the 2013 and 2014 model years. It belongs to the vehicle electrical system category, and controls heating functions for both driver and passenger seats.
For bulk orders and commercial procurement needs, this product supports minimum order quantities ranging from 500 to 1000 units. Two primary packaging categories are available: genuine MOBIS standard packaging aligned with original factory specifications, and aftermarket packaging including neutral packaging (the most widely adopted option) and custom branded packaging for enterprise customers.
This aftermarket replacement part is produced to meet or exceed original equipment specifications for fit, form and function. It follows Mobis/Hyundai-Kia interior electrical production standards and holds IATF16949 automotive electronics quality certification.
It is designed for Hyundai Santa Fe DM (Limited/SE Trim) 2013-2014. For vehicles not listed, buyers may contact customer support with a vehicle VIN for fitment verification.
Every unit undergoes 100% functional testing on the production line, including voltage drop testing and illumination verification, to verify operational performance before delivery.
Standard automotive hand tools are sufficient for installation. A torque wrench is recommended to tighten fasteners to factory specifications. Basic replacement does not require scan tool programming; select memory functions may follow service manual initialization steps.
Bulk orders support genuine MOBIS standard packaging, neutral aftermarket packaging and custom branded packaging. Specific packaging configurations can be discussed for large-volume commercial procurement.
The most reliable fitment verification method is cross-referencing the OEM part number 93315-2W3254X with vehicle VIN records through an authorized dealer or online compatibility checking tools.
