OEM Hyundai Right Passenger Outer Axle Shaft 49501-2W650

Product Overview

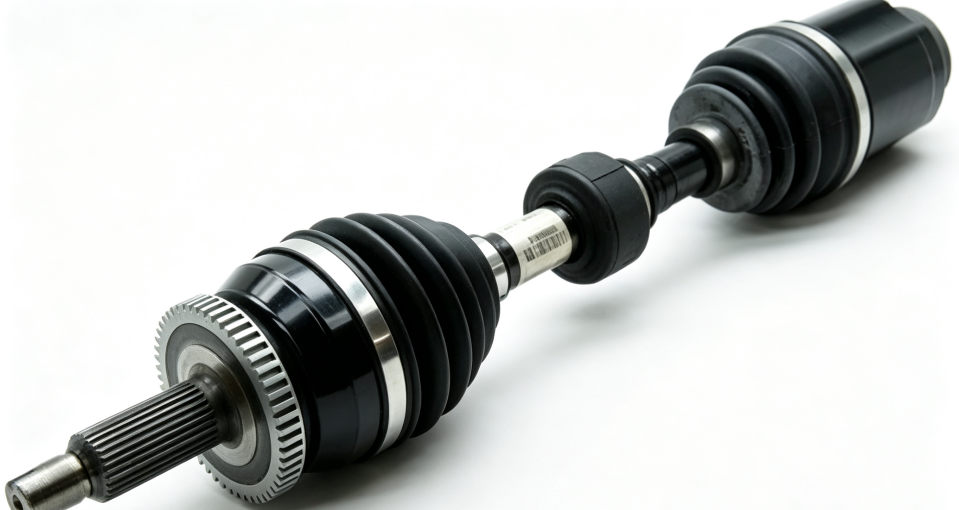

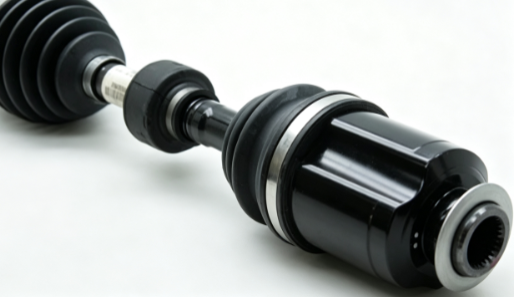

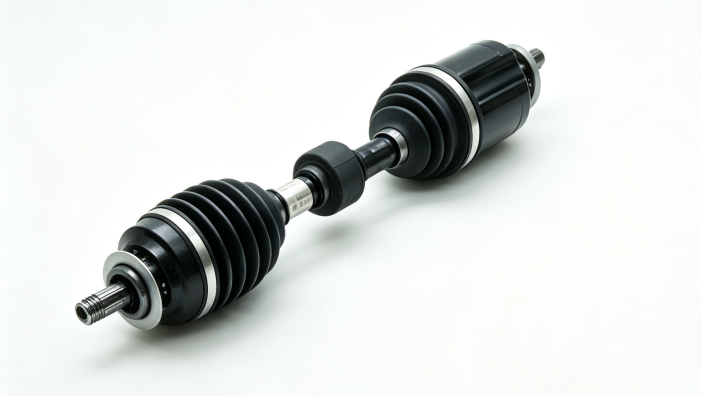

The Right Passenger Outer Axle Shaft 49501-2W650 is a front right CV axle assembly designed for Hyundai and Kia all-wheel-drive vehicles. As an important drivetrain component, it transfers engine torque from the transmission/differential to the passenger-side front wheel while allowing smooth operation during steering and suspension movement. The assembly is catalogued as Shaft Assembly-Drive, RH and is also known as an Axle Assembly or CV Axle Shaft Assembly.

This 49501-2W650 axle shaft is manufactured as a direct replacement solution for worn or damaged front right drive shafts. With precise spline matching, integrated CV joints, and balanced construction, it helps restore smooth power transmission, reduce vibration, and improve drivetrain reliability for vehicle repair and aftermarket replacement applications.

Product Description

The 49501-2W650 Right Passenger Outer Axle Shaft Assembly is engineered for Hyundai Santa Fe Sport and selected AWD applications. Positioned on the front right passenger side, this CV axle assembly connects the transmission output to the wheel hub, allowing continuous power delivery while accommodating changes caused by steering angles and suspension travel.

Designed for professional repair shops, distributors, and aftermarket suppliers, this replacement axle assembly offers reliable fitment and stable operating performance. It is an ideal choice when the original axle has problems such as CV joint wear, damaged boots, clicking sounds during turning, or vibration during acceleration. Before installation, buyers should confirm OEM number, VIN, drivetrain configuration, and vehicle specifications.

Product Features

1. OEM-Style Direct Replacement

The 49501-2W650 axle shaft follows original equipment specifications, providing accurate installation dimensions and compatibility with the original drivetrain system.

2. Front Right Passenger Side Application

Designed specifically for the right-hand front axle position, preventing incorrect installation caused by left/right axle differences.

3. Precision Spline Design

The axle uses accurately machined spline connections to ensure proper engagement with the wheel hub and differential side, supporting stable torque transfer.

4. Integrated CV Joint Structure

The constant velocity joint design allows smooth power transmission while maintaining flexibility during steering and suspension movement.

5. Durable Drivetrain Performance

Manufactured for continuous torque loading, vibration resistance, and long-term driving conditions, helping improve vehicle stability and driving comfort.

6. Complete Axle Replacement Solution

Supplied as a complete drive shaft assembly, reducing installation complexity compared with rebuilding individual CV joint components.

Product Specifications

Reference data comparison:

• Hyundai OEM parts catalogue lists the item size as 37.7 × 5.7 × 5.1 inches and weight 17.30 lbs, with passenger-side positioning and direct replacement fitment.

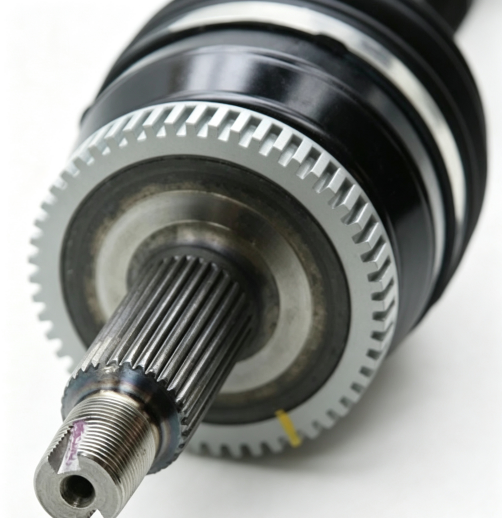

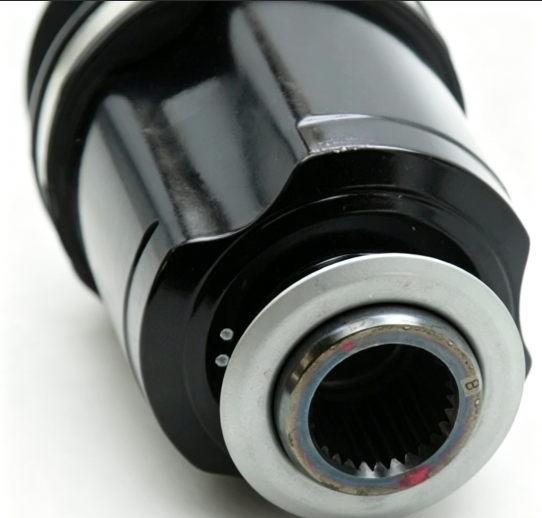

• Aftermarket axle catalogues list key engineering parameters including 598 mm length, 30 outer spline teeth, 28 differential-side teeth, 52 ABS ring teeth, 97 mm and 87 mm diameters, which are consistent across multiple suppliers.

Function & Application

The main functions of the 49501-2W650 CV Axle Assembly include:

• Transmitting engine torque to the front right wheel

• Maintaining power delivery during steering movement

• Supporting smooth acceleration and stable driving performance

• Allowing suspension movement without interrupting drivetrain operation

• Reducing vibration caused by worn or damaged axle components

Typical replacement situations:

• Clicking noise when turning

• Torn CV boot and grease leakage

• Front axle vibration during acceleration

• Excessive axle joint play

• Damaged shaft caused by collision or high mileage

Common Problems & Solutions

Problem 1: Clicking Noise During Turning

Possible Causes:

• Outer CV joint wear

• Damaged CV boot causing lubricant loss

• Excessive joint clearance

Solution:
Inspect the CV boot and joint condition. Replace the complete axle assembly if contamination or internal joint damage has occurred.

Problem 2: Vibration During Acceleration

Possible Causes:

• Bent axle shaft

• Worn inner CV joint

• Incorrect axle installation

Solution:
Check axle alignment, spline engagement, and surrounding drivetrain components. Confirm the replacement part matches OEM number 49501-2W650.

Problem 3: Grease Leakage Around Wheel Area

Possible Causes:

• Broken CV boot

• Loose boot clamp

• Aging rubber components

Solution:
Replace the damaged axle assembly or CV boot before dirt enters the joint and causes permanent damage.

Problem 4: Incorrect Fitment After Purchase

Possible Causes:

• Wrong left/right side selection

• Different drivetrain configuration

• Regional vehicle specification differences

Solution:
Verify VIN, original part number, vehicle year, engine type, and AWD/FWD configuration before ordering.

Kingmay Advantages Compared with Other Suppliers

1. OEM Quality Control & Reliable Fitment

Compared with many generic aftermarket suppliers, Kingmay focuses on OEM-standard replacement parts and performs product inspection before shipment. The company provides fitment verification support to reduce incorrect part matching risks for international buyers.

2. Professional Auto Parts Sourcing Capability

Kingmay specializes in Korean vehicle parts supply, including engine parts, drivetrain components, suspension parts, and electrical components. Compared with single-product suppliers, Kingmay provides wider product coverage and integrated purchasing solutions for distributors and repair networks.

3. Flexible Export Service & Customized Solutions

Kingmay provides international customers with customized packaging, wholesale supply support, export documentation assistance, and logistics coordination. This helps overseas distributors manage multiple product categories more efficiently.

Vehicle Fitment

The most commonly confirmed application is Hyundai Santa Fe Sport 2013–2016 2.4L AWD, where 49501-2W650 is listed as a complete right CV axle assembly.

Fitment Notice:
Always verify the OEM number, VIN, drivetrain system, and axle position before purchase to ensure correct compatibility.
