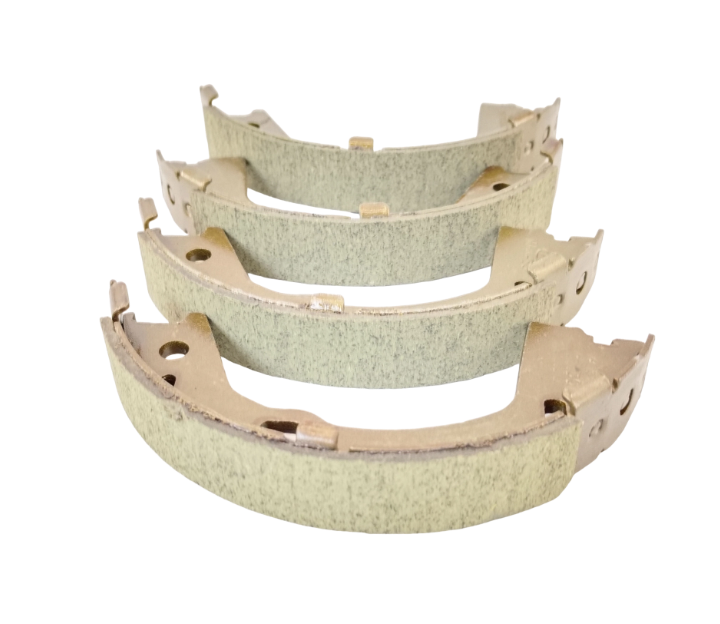

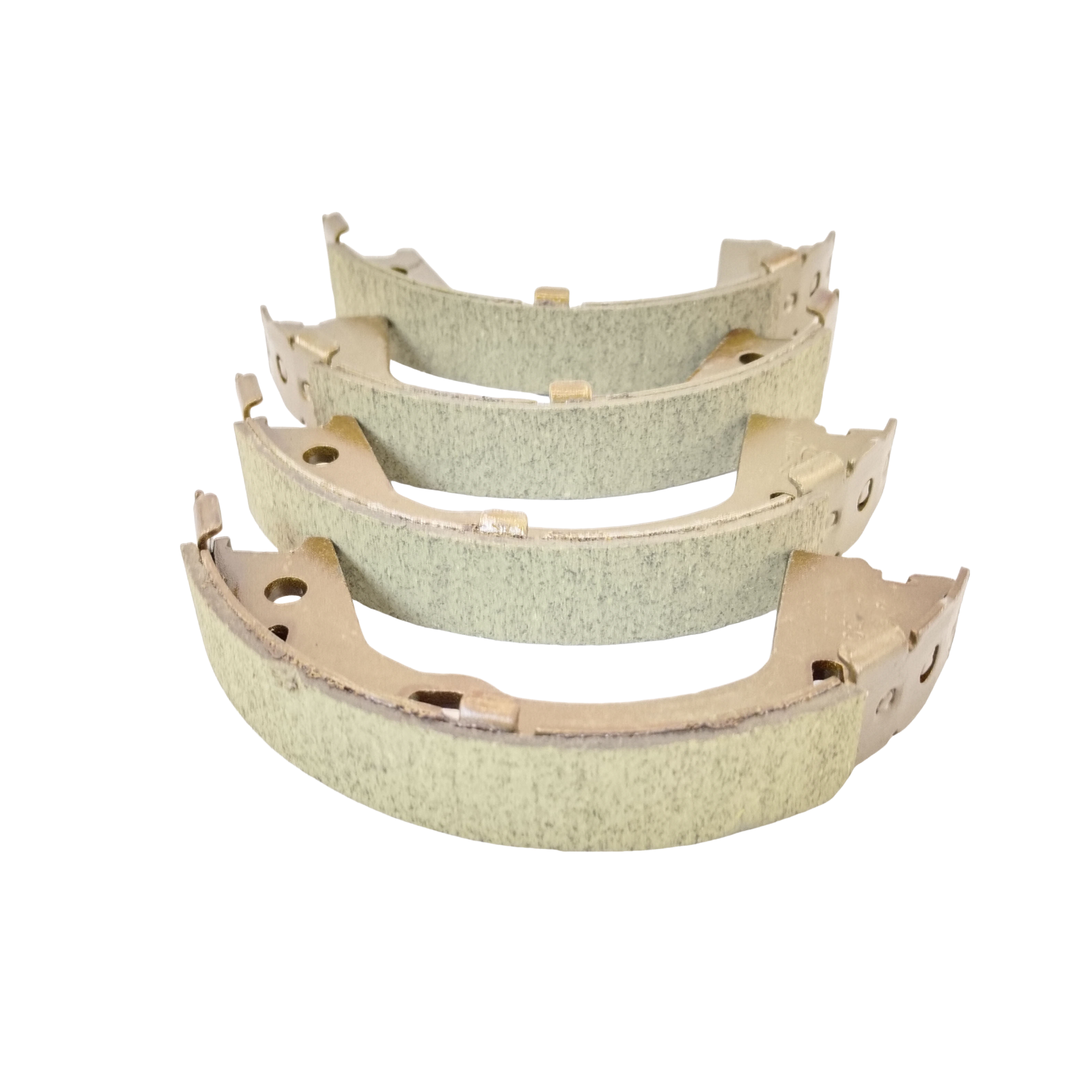

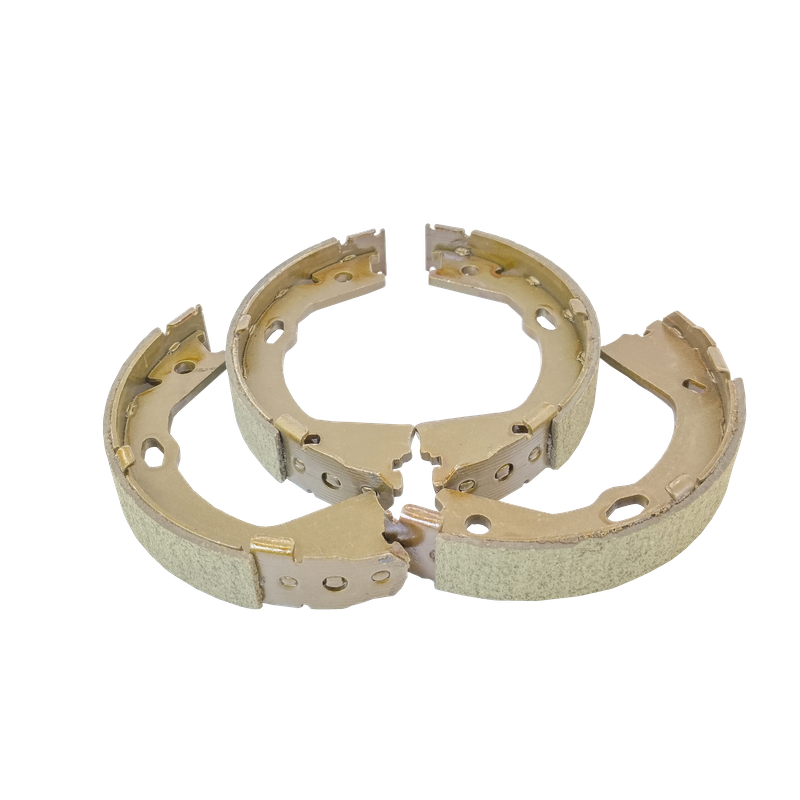

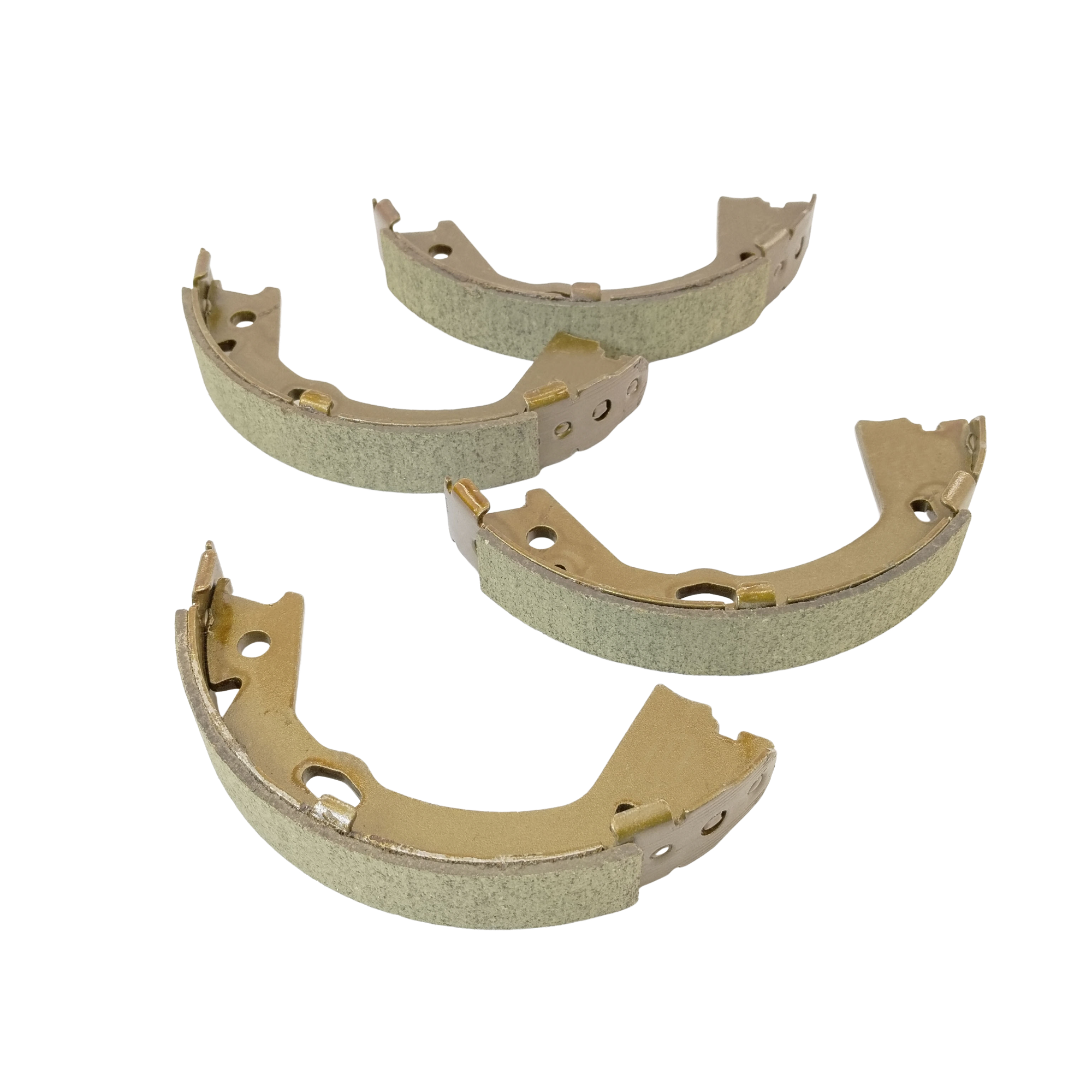

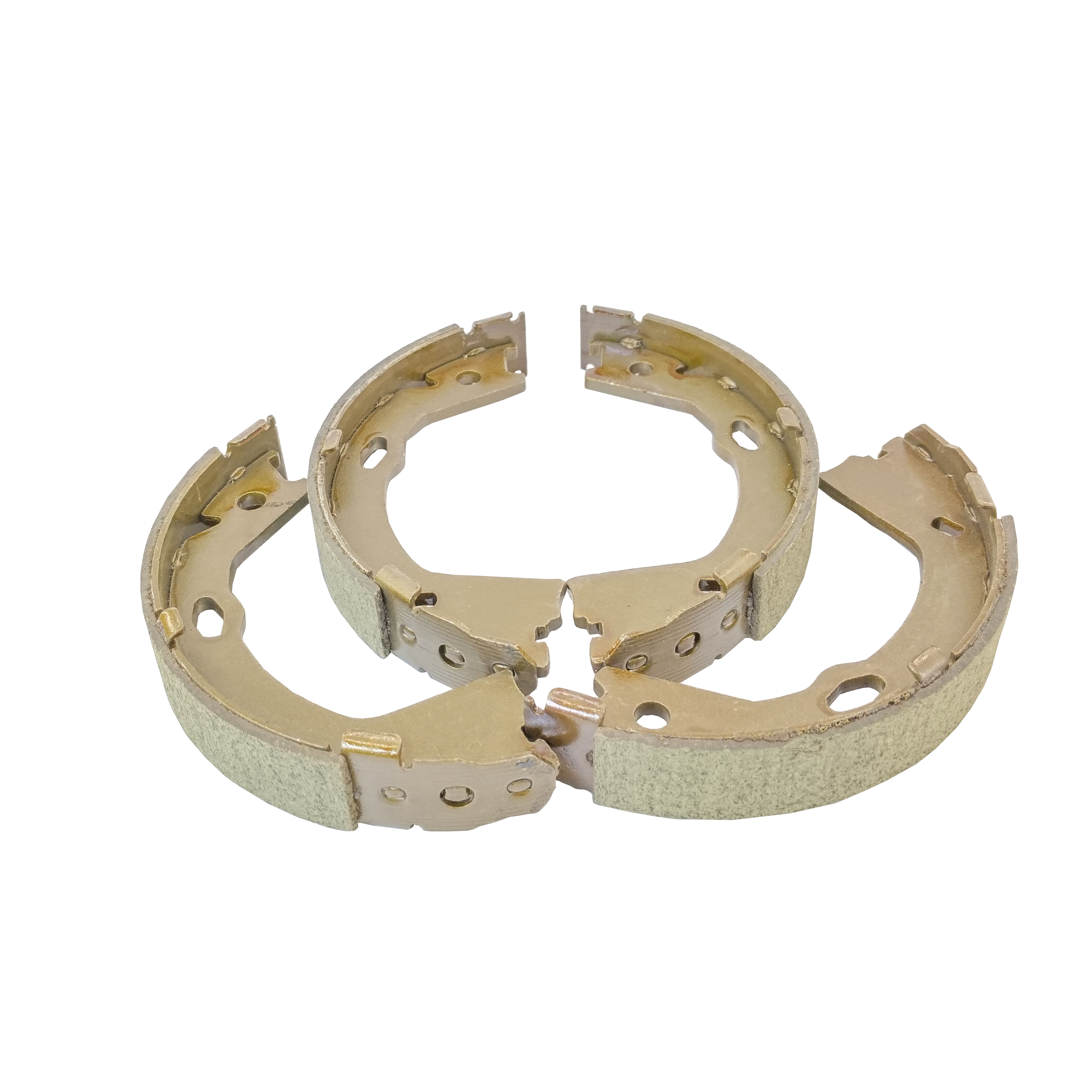

58305-2TA00
58305-2TA00
Hyundai, Kia
2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010
Brake System
Brake shoes
| Quantity: | |
|---|---|
Product Description
Item | Details |
OE Number | 58305-2TA00 |
Official OEM Name | SHOE SET-PARKING BRAKE / DRUM BRAKE SHOE ASSEMBLY |
Interchange OEM Numbers | 58305-2TA00, 583052TA00 |
Applicable Vehicles | Hyundai Tucson TL/NX4, Santa Fe DM/CN7, Sorento UM/MP, Sportage QL/QLE, Kia K5/Optima JF (2010-2020) |
Brake Type | Integral parking brake shoes housed within rear disc brake rotor hat assembly (disc-in-drum design) |
Set Contents | Left shoe + Right shoe + hold-down spring kit + return spring kit + adjuster assembly |
Mount Position | Inside the inboard cavity of the rear disc brake rotor (parking brake drum section) |
Parameter | Specification |
Shoe Web Width | Varies by application (typically 35-45mm) |
Friction Lining Length | Arc length approx 180-210 degrees of drum circumference |
Lining Thickness | New approx 5.0-6.0mm (minimum service limit 1.0mm over shoe web table) |
Parking Brake Drum Inner Diameter (inside rotor hat) | Varies by model (typically 185-205mm) |
Net Weight per Set | Approx 0.9-1.4 kg (2.0-3.1 lbs) |
Package Size | 220 x 180 x 60 mm with all hardware included |
Component | Material & Process |
Shoe Web | Stamped high-carbon arc steel with precision-formed contour matching drum inner profile |

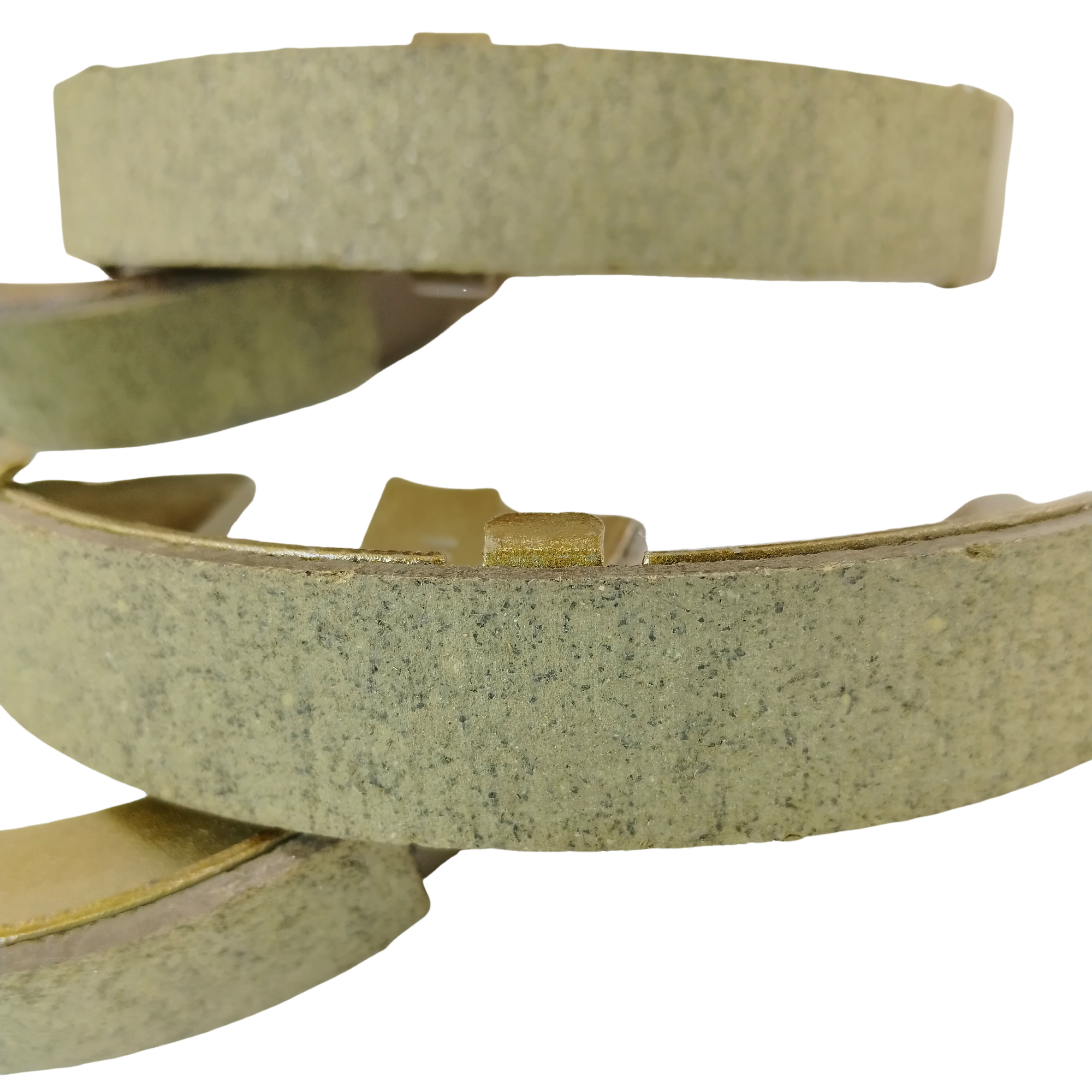

Friction Lining | Non-asbestos organic (NAO) friction material riveted or bonded to shoe web surface |
Adjuster Assembly | Zinc-plated steel threaded star-wheel adjuster with ratchet pawl mechanism |
Hold-down Springs | Heat-treated spring steel cup springs with rubber-isolated pin seats |
Return Springs | Extended-length coil tension springs with hooked ends |
Item | Details |
Production Standard | Assembled to Hyundai-Kia parking brake OEM specification, compliant with IATF16949 automotive brake system quality certification |
Alternative Aftermarket Part Numbers | BSHOE-2TA00, SHOE-PARK-58305-2T, PBS-TA00 |
The bonded or riveted non-asbestos organic friction material maintains a consistent coefficient of friction against the machined inner drum surface. Per OE design parameters, the set provides static holding force on grades up to 30% slope without excessive lever effort or cable stretch. Critical load-bearing sections receive heat treatment to create a uniform grain structure, which prevents crack propagation under heavy braking forces. All parts undergo anti-corrosion geometric passivation to extend service life in humid or corrosive operating environments.
Every shoe set includes new hold-down springs, return springs, an adjuster star wheel assembly and all required mounting hardware. Aged springs lose tension over repeated thermal cycles, and worn adjusters may develop stripped teeth or seized threads. Replacing these components as a full set restores proper shoe-to-drum clearance and automatic self-adjustment function. For commercial fleet operations, this reduces component sourcing complexity and minimizes vehicle downtime during maintenance.
Each shoe web is precision-stamped to the exact arc radius of the target parking brake drum inner diameter, ensuring uniform contact pressure across the entire friction surface. This reduces localized wear and uneven engagement. Every unit receives 100% crack inspection via magnetic particle testing to identify potential material defects, which lowers early failure rates and supports extended service intervals for stockists and fleet operators.
This brake shoe set resolves four common system issues: reduced holding force on inclines caused by worn friction lining; brake drag leading to rear overheating and increased fuel consumption from seized adjusters or fatigued springs; excessive pedal travel from improper clearance due to damaged adjusters; and support for clearing dashboard warning lamps related to wheel cylinder leakage (wheel cylinder inspection and replacement is advised if leakage is confirmed).
Vehicle Make | Vehicle Model | Model Years | Vehicle Class | OE Number |
Hyundai | Santa Fe DM/CN7 | 2010-2020 | Mid-size SUV | 58305-2TA00 |
Hyundai | Tucson TL/NX4 | 2010-2020 | Compact SUV | 58305-2TA00 |
Kia | Sorento UM/MP | 2010-2020 | Mid-size SUV | 58305-2TA00 |
Kia | Sportage QL/QLE | 2010-2020 | Compact SUV | 58305-2TA00 |
Kia | K5/Optima JF | 2010-2020 | Mid-size Sedan | 58305-2TA00 |
This is an aftermarket replacement manufactured to meet or exceed OEM specifications. It offers equivalent fit, form and function as original equipment, with a cost structure suited for spare parts stockists and commercial fleet operations.
Refer to the vehicle applications table above for the full compatibility list. For vehicles not included, contact customer support with your VIN number for fitment verification.
Standard automotive hand tools are sufficient for most installation work. A torque wrench is recommended to ensure all fasteners are tightened to factory torque specifications. Refer to the professional service manual for your specific vehicle model for step-by-step guidance.
Warranty covers manufacturing defects under normal use conditions. Improper installation, competition use or unauthorized modifications will void the warranty. Refer to the complete warranty policy for full coverage details.
Replacing related wear items simultaneously is advised, including both sides of the axle, associated seals, gaskets and brake fluids. This supports balanced system performance and reduces repeated labor costs for fleet maintenance and service operations.
Cross-reference the OEM part number 58305-2TA00 with your vehicle VIN through an authorized dealer or online compatibility checker. The OEM part number is the most accurate identifier for correct part matching.
For spare parts stockists and commercial users, we offer flexible minimum order quantities starting from 500-1000 sets, with mixed-container shipping available to help optimize inventory levels. Packaging options include genuine MOBIS standard packaging, and aftermarket packaging with neutral and custom branded choices. Our production setup supports comprehensive product coverage to match the diverse needs of distribution partners.
