49501-C1250
KINGMAY
49501-C1250
Hyundai
Santa Fe
2017, 2016, 2015, 2014
Chassis System
| Quantity: | |
|---|---|
Product Description

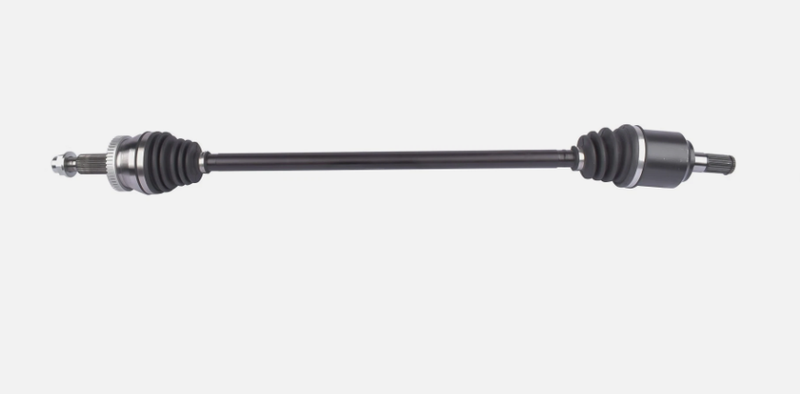

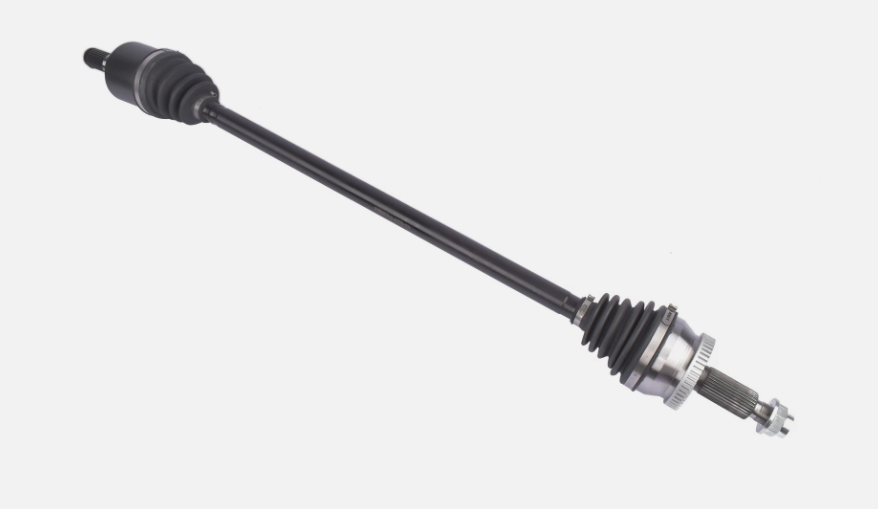

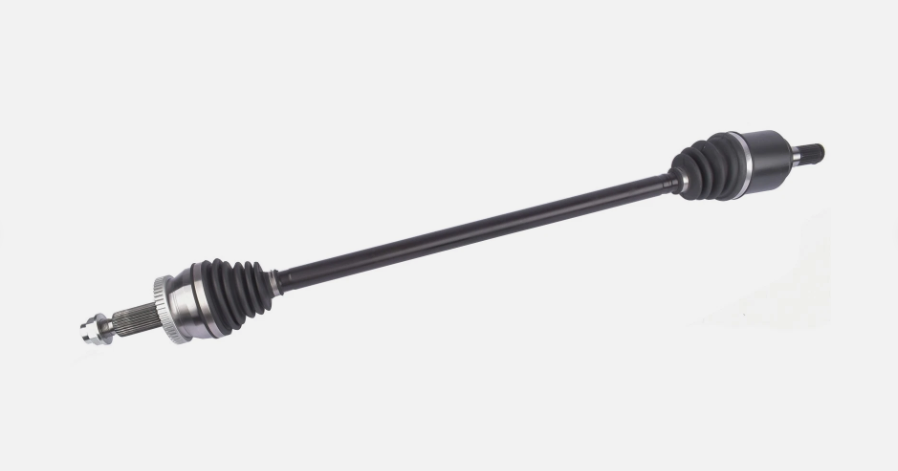

The 49501-C1250 Front Right CV Axle Assembly is a genuine specification replacement drivetrain component designed for selected Hyundai Sonata 2.4L Theta II models. The official Hyundai parts catalogue identifies this component as “Shaft Assembly-Drive, RH”, installed on the front right (passenger side) of the vehicle. It is designed for vehicles equipped with a 2.4L Theta II DOHC GDI engine, 6-speed automatic transmission, and 2WD system.
As a complete CV axle assembly, the 49501-C1250 transfers engine torque from the transaxle to the front wheel while allowing smooth movement during steering and suspension operation. It is an ideal replacement solution for worn axle shafts, damaged CV joints, torn boots, or drivetrain vibration issues, helping restore stable power delivery and driving comfort.
The 49501-C1250 Front Right CV Axle Assembly is engineered for accurate replacement of the original right-hand front drive shaft on Hyundai Sonata applications. The assembly integrates the axle shaft and constant velocity joints to maintain smooth torque transmission under different driving conditions, including acceleration, cornering, and suspension movement.
Designed for professional repair shops, wholesalers, and aftermarket distributors, this CV axle provides reliable fitment, stable rotation performance, and long service life. With OEM-matching specifications and precise manufacturing standards, it helps reduce common drivetrain problems such as clicking noise, vibration, and uneven power transfer. Always confirm VIN, engine specification, transmission type, and original part number before ordering.
The 49501-C1250 Shaft Assembly-Drive RH is manufactured according to original vehicle specifications, ensuring proper mounting position and compatibility with the factory drivetrain system.
This axle assembly is specifically designed for the front right wheel position, preventing incorrect installation caused by left/right axle differences.
The integrated constant velocity joints maintain consistent torque transfer while allowing changes in steering angle and suspension movement.

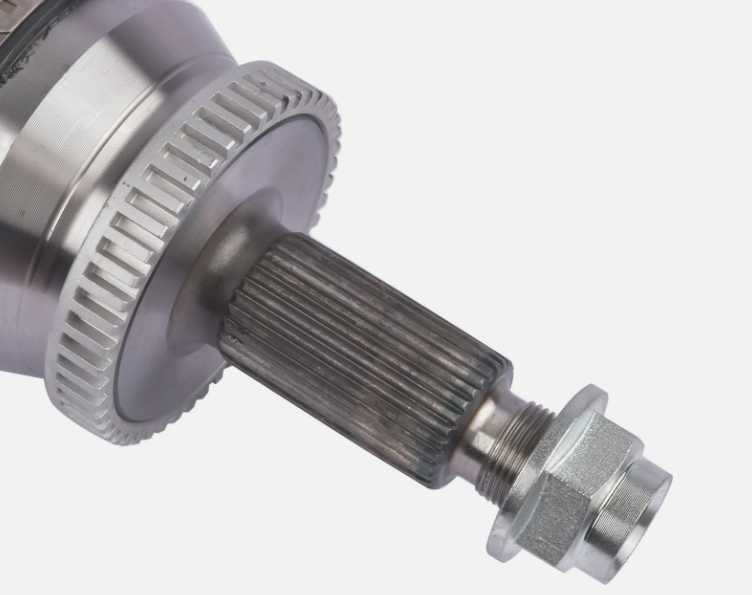

Accurate spline machining and balanced shaft construction help improve rotation stability, reduce vibration, and extend service life.
Supplied as a complete axle assembly, reducing replacement complexity compared with repairing individual CV joint components.
Built to withstand continuous torque loads, daily driving conditions, and repeated steering movement.
| Specification Item | Product Data |
|---|---|
| Product Name | Front Right CV Axle Assembly |
| Official Name | Shaft Assembly-Drive, RH |
| OEM Part Number | 49501-C1250 |
| Part Code | 49500R |
| Product Type | Complete CV Axle Shaft Assembly |
| Installation Position | Front Right / Passenger Side |
| Vehicle Brand | Hyundai |
| Engine Application | 2.4L Theta II |
| Engine Displacement | 2400 cc |
| Engine Type | DOHC GDI |
| Transmission | 6-Speed Automatic |
| Drivetrain | 2WD |
| Replacement Type | Direct Replacement |
| Condition | New |
| Item Weight | Approx. 5.52 kg |
| Package Weight | Approx. 5.52–6.0 kg |
| Assembly Included | Complete Drive Shaft Assembly |
| Main Application | Front Axle / Drivetrain System |
Reference verification: Hyundai parts catalog data identifies 49501C1250 as SHAFT ASSY - DRIVE, RH, for Sonata 17 , 2400cc Theta 2 DOHC GDI engine, 6-speed automatic transmission, 2WD application.
Weight data is based on aftermarket/OEM parts catalogue references and may vary slightly depending on packaging materials and supplier specifications.
The main functions of the 49501-C1250 Front Right CV Axle Assembly include:
Transmitting engine power from the transmission to the front wheel
Maintaining smooth torque delivery during acceleration
Supporting steering angle changes through CV joints
Allowing suspension movement without interrupting drivetrain operation
Reducing vibration and improving driving stability
Clicking noise during turning
Damaged or leaking CV boot
Excessive axle vibration
Worn CV joint
Reduced drivetrain efficiency
Bent or damaged axle shaft after impact
Possible Causes:
Outer CV joint wear
Damaged CV boot
Loss of grease inside the joint
Solution:
Inspect the CV joint condition and replace the complete axle assembly if internal damage or contamination has occurred.
Possible Causes:
Bent axle shaft
Worn inner CV joint
Incorrect installation
Solution:
Check axle alignment, spline engagement, and confirm the part number matches the original vehicle specification.
Possible Causes:
Broken CV boot
Loose clamp
Aging rubber boot material
Solution:
Replace the damaged boot or axle assembly before dirt and moisture cause permanent CV joint damage.
Possible Causes:
Wrong engine specification
Different transmission configuration
Left/right axle mismatch
Solution:
Verify OEM number 49501-C1250, VIN, engine displacement, transmission type, and drivetrain system before purchase.
Kingmay provides OEM reference checking and product matching support to help customers confirm correct applications before ordering. This reduces risks caused by incorrect part numbers, vehicle variations, or regional differences.
Compared with general aftermarket sellers, Kingmay focuses on accurate part identification and professional automotive sourcing.
Kingmay specializes in Hyundai, Kia, Toyota, Nissan, and other vehicle aftermarket parts. The company maintains a large product database covering multiple automotive systems, allowing customers to source drivetrain, engine, suspension, cooling, and electrical components from one supplier.
Kingmay provides international customers with wholesale supply services, customized packaging solutions, export documentation support, and logistics coordination. These services help distributors and repair networks manage multiple product categories more efficiently.
