Premium Durable Engine Timing Chain Guide Rail for Hyundai Kia 24431-03010

Product Overview

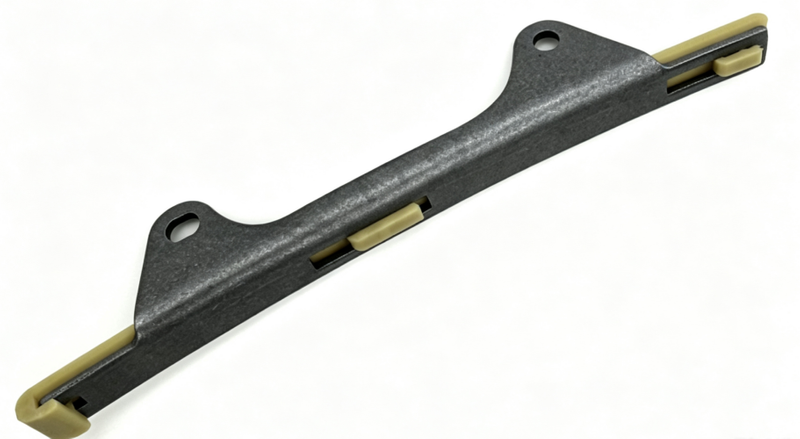

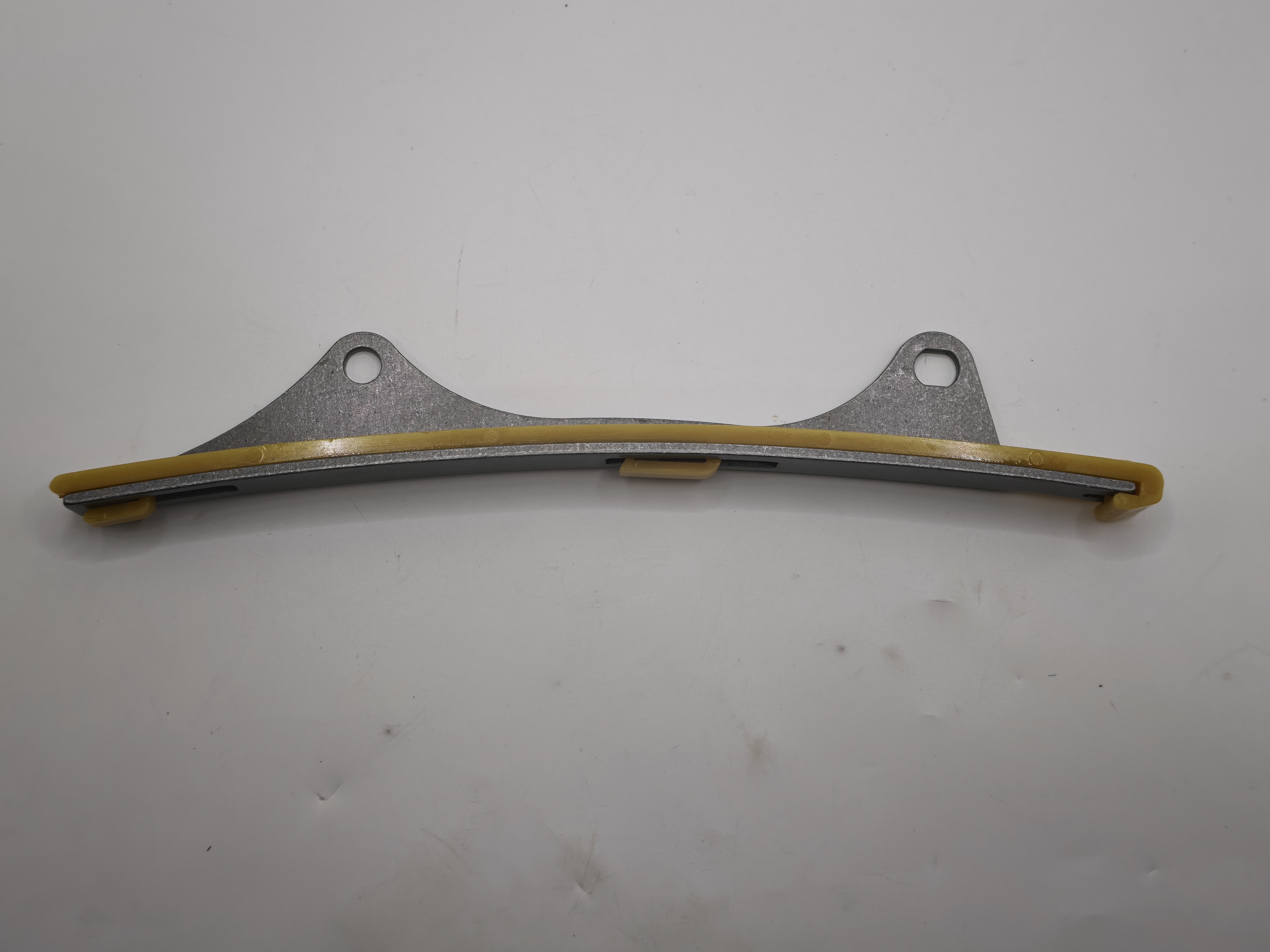

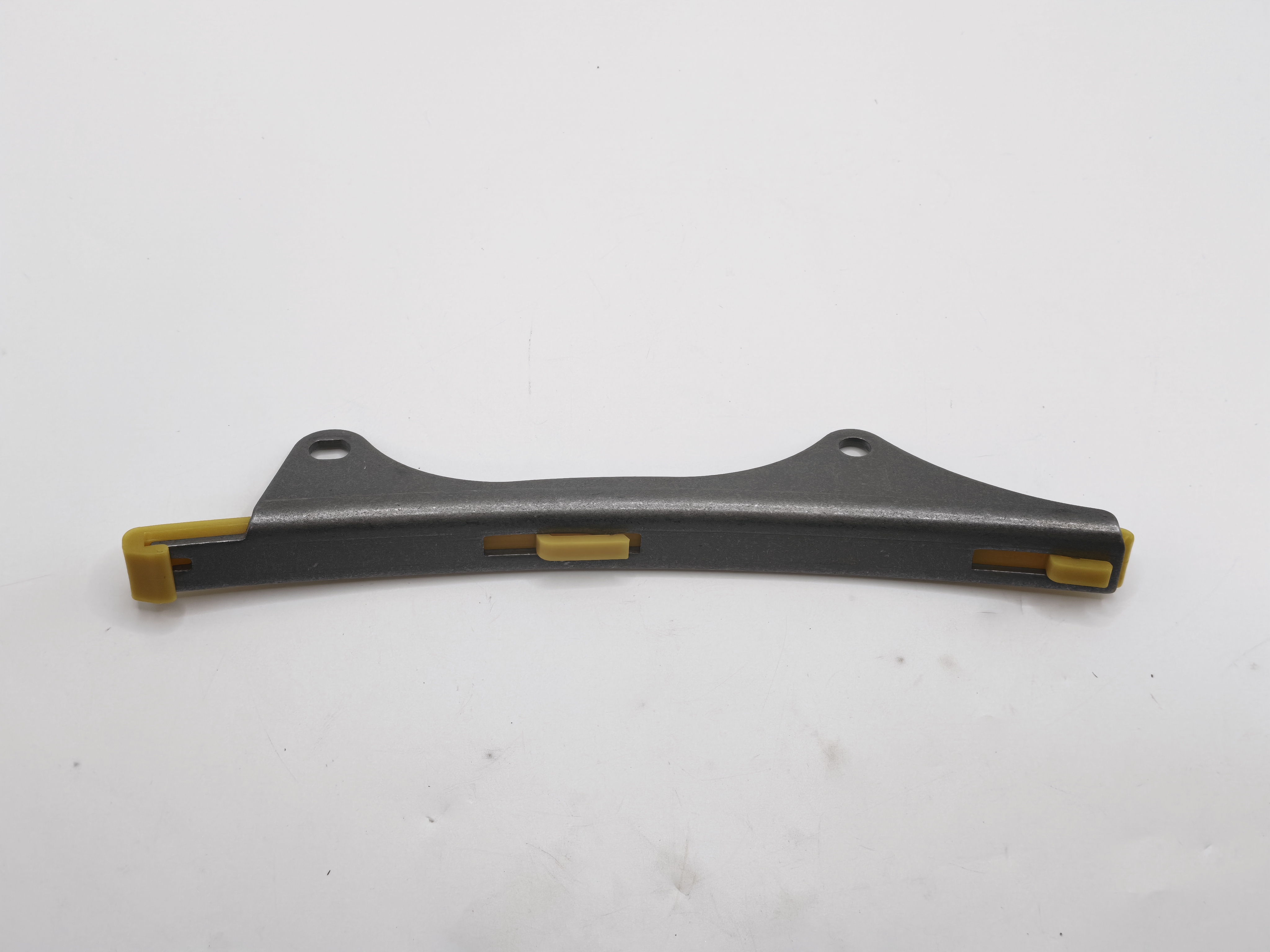

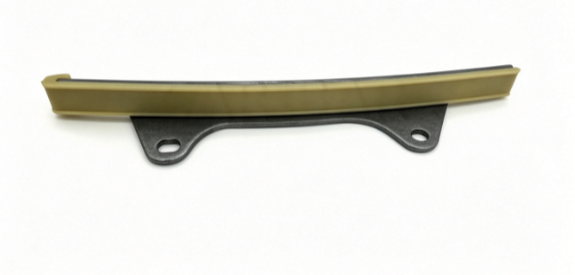

The 24431-03010 Timing Chain Guide Rail is a precision-engineered replacement component for the engine timing system of selected Hyundai and Kia vehicles. It supports the timing chain, maintains the correct chain-running path and helps prevent excessive vibration, friction and abnormal engine noise.

Designed according to OE-style dimensions, this guide rail provides reliable installation when the vehicle’s original OE number, engine code and production date match. It is commonly used with selected 1.2L and 1.25L Kappa gasoline engines, including the G4LA engine family.

Core Product Specifications

*Cross-reference numbers should be checked against the VIN and original part before ordering.

Reference Vehicle Fitment

Hyundai and Kia catalog records identify 24431-03010 as a Guide-Chain used in selected 1.2L Kappa applications, including Grand i10 and Picanto models. Vehicle configuration may differ between markets, so final compatibility must be verified by OE number, engine code or VIN.

Product Features

• Precision OE-style fit: Manufactured to match the installation profile of OE 24431-03010 for straightforward replacement on correctly matched engines.

• Wear-resistant guide surface: Designed to withstand continuous contact with the moving timing chain.

• Stable chain operation: Helps control chain movement and reduce excessive vibration during engine operation.

• Low-noise performance: A properly functioning guide can help reduce rattling and abnormal timing-chain noise.

• Reliable construction: Suitable for normal operating temperatures and demanding daily driving conditions.

• Ready for professional installation: Compatible with standard timing-system repair procedures.

Product Functions

The timing chain connects the crankshaft and camshaft, allowing the engine valves to open and close at the correct time. The 24431-03010 guide rail keeps this chain aligned as it moves at high speed.

Its main functions include:

• Maintaining the correct timing-chain running path.

• Limiting sideways chain movement and vibration.

• Supporting stable camshaft and crankshaft synchronization.

• Reducing direct contact between the chain and nearby engine components.

• Helping prevent premature wear of the chain, sprockets and related timing parts.

• Supporting smooth, quiet and reliable engine operation.

A cracked, worn or deformed guide may cause chain rattling, unstable timing, poor engine performance or accelerated wear of other timing components. In serious cases, incorrect valve timing may result in major engine damage.

Product Tips

• Confirm OE number 24431-03010, engine code and VIN before placing an order.

• Do not select the part using only the vehicle model and year because the same model may use different engines.

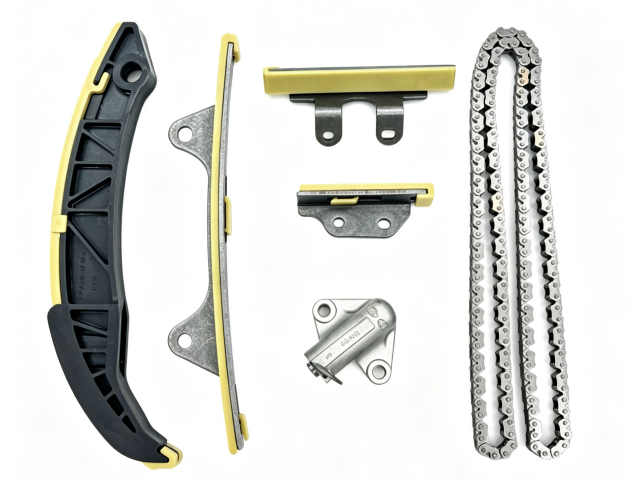

• Inspect the timing chain, tensioner, tensioner arm, sprockets and other guide rails at the same time.

• If the engine produces rattling during cold starts, inspect the complete timing system rather than replacing only one part.

• Keep the timing area clean during installation to prevent dirt from entering the engine.

• Use the tightening torque specified in the vehicle repair manual.

• Replace damaged seals and gaskets removed during timing-system service.

• Professional installation by a qualified mechanic is recommended.

• After installation, rotate the engine manually and recheck the timing marks before starting it.

Key Selling Points for Middle East Customers

• Accurate fitment support: Kingmay can help verify compatibility using the OE number, engine code, vehicle model or VIN.

• Reliable factory quality: Products are manufactured under controlled production and inspection procedures for stable batch consistency.

• Suitable for demanding markets: Reliable replacement quality supports vehicles operating in hot climates, urban traffic and long-distance driving conditions.

• Competitive wholesale pricing: China factory-direct supply reduces intermediate distributor costs and offers more favorable pricing for bulk orders.

• Complete Hyundai and Kia coverage: Mixed orders can combine timing parts with other Korean vehicle engine, cooling, transmission and suspension components.

• Flexible branding: Neutral packaging, Kingmay packaging and customized private-label packaging are available.

• Flexible order quantities: Mixed-SKU orders and shared-container shipments help importers test new products while controlling inventory costs.

Factory-Direct Price and Service Advantages

Order quantity directly affects the quotation. Larger orders, mixed batches and long-term purchasing plans can receive more competitive wholesale pricing.

Kingmay Logistics and After-Sales Service

Kingmay provides factory-direct automotive parts supply for wholesalers, distributors, repair networks and importers in Iraq, Saudi Arabia, the UAE, Turkey and other Middle Eastern markets.

• Shipment from Guangzhou, Nansha and other major Chinese ports.

• FOB, CIF, LCL and FCL shipping options available.

• Mixed batches and shared-container shipments supported.

• Reference sea-freight transit time to major Middle Eastern destinations: approximately 25–30 days, subject to port and shipping schedule.

• DHL, UPS and other express options available for samples or urgent small orders.

• Pre-shipment product number, quantity and appearance inspection.

• Neutral, Kingmay and customized packaging options.

• Samples available for quality and fitment confirmation.

• Flexible payment solutions for qualified B2B orders.

• 24-month product warranty and responsive after-sales assistance.

For an accurate quotation, please provide the required quantity, destination port, packaging request and vehicle or OE-number list.
