24377-2F000
KINGMAY
24377-2F000
Hyundai, Kia
2013, 2012, 2011, 2010, 2009
Engine System
Santa Fe, Tucson, IX35, Sorento, Sportage
Timing Chain
| Quantity: | |
|---|---|
Product Description

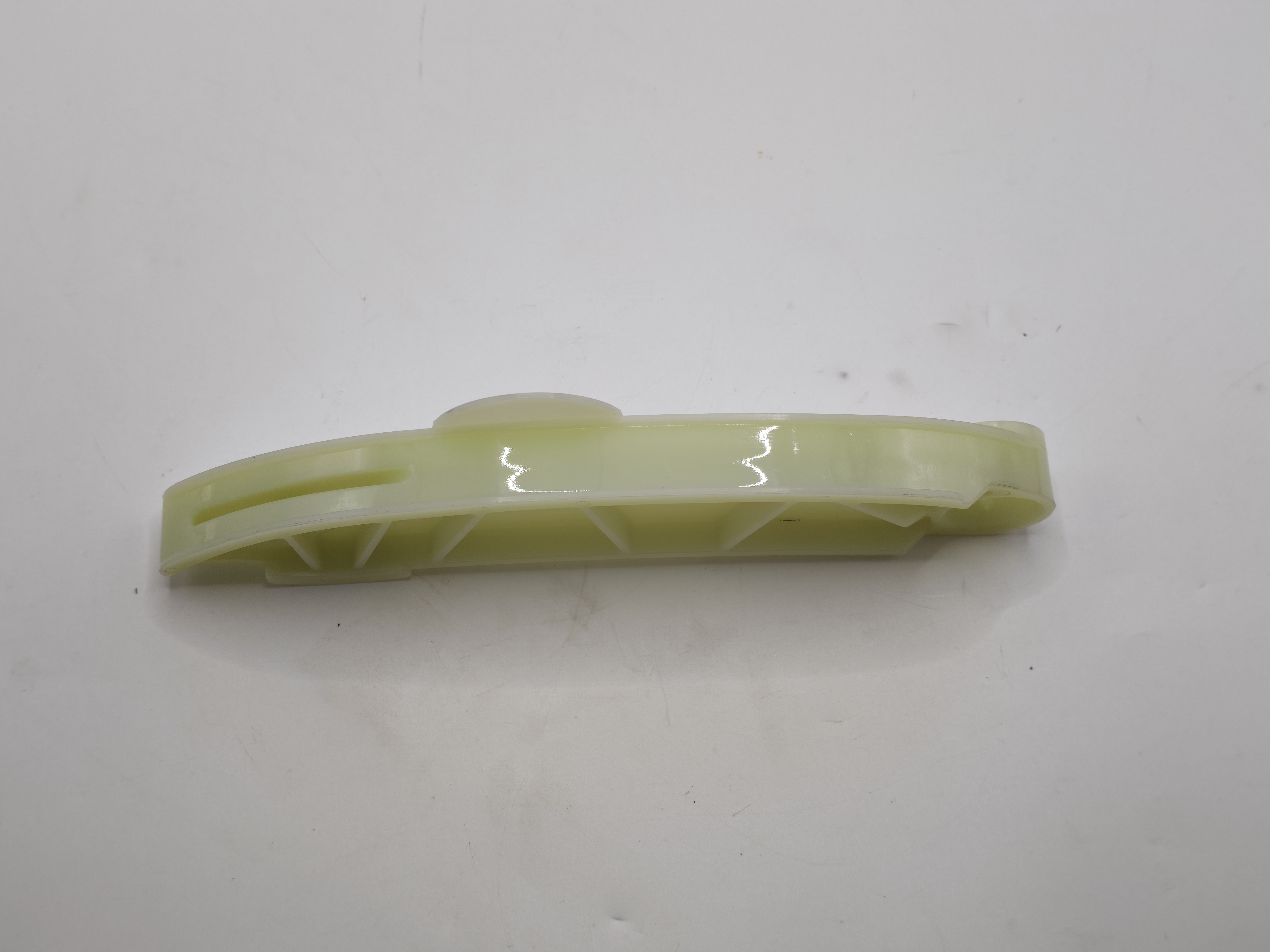

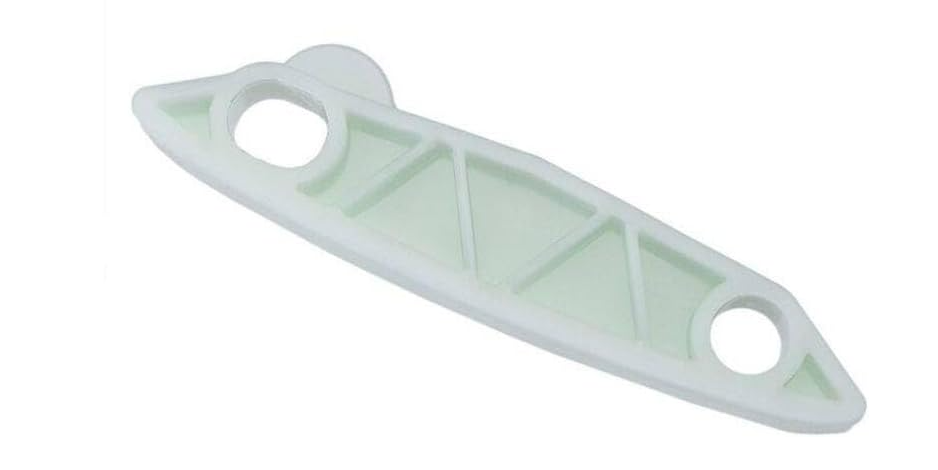

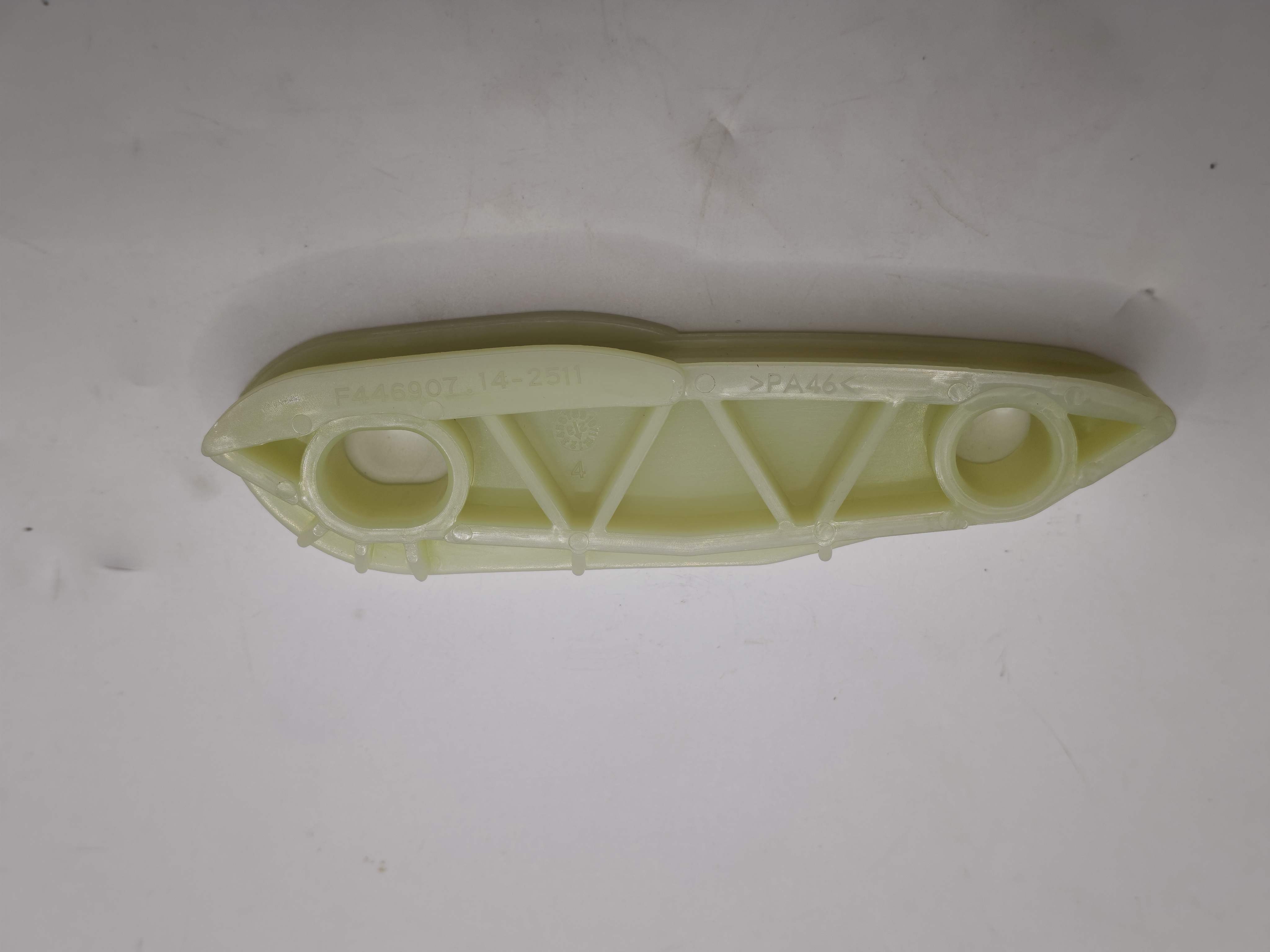

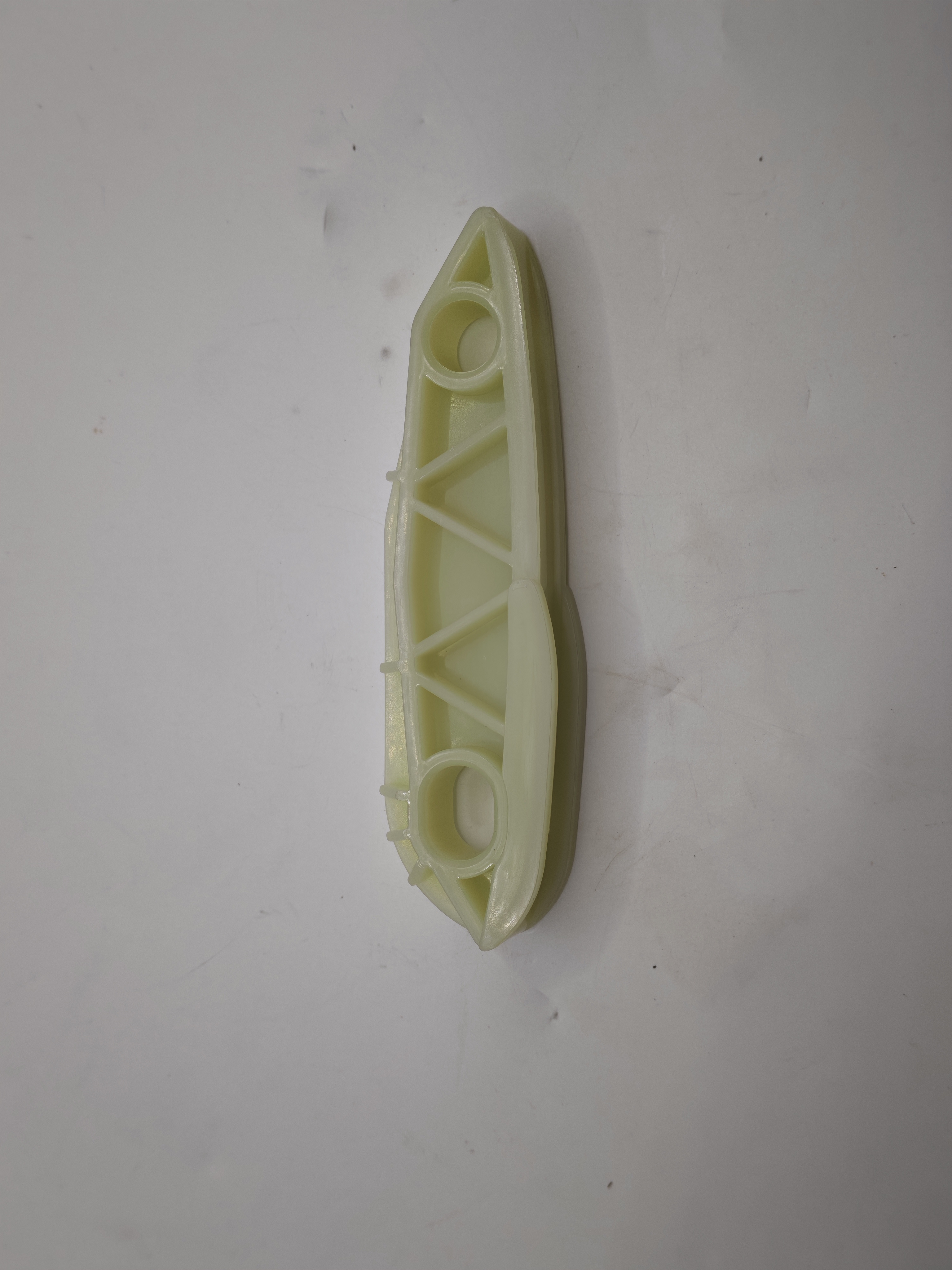

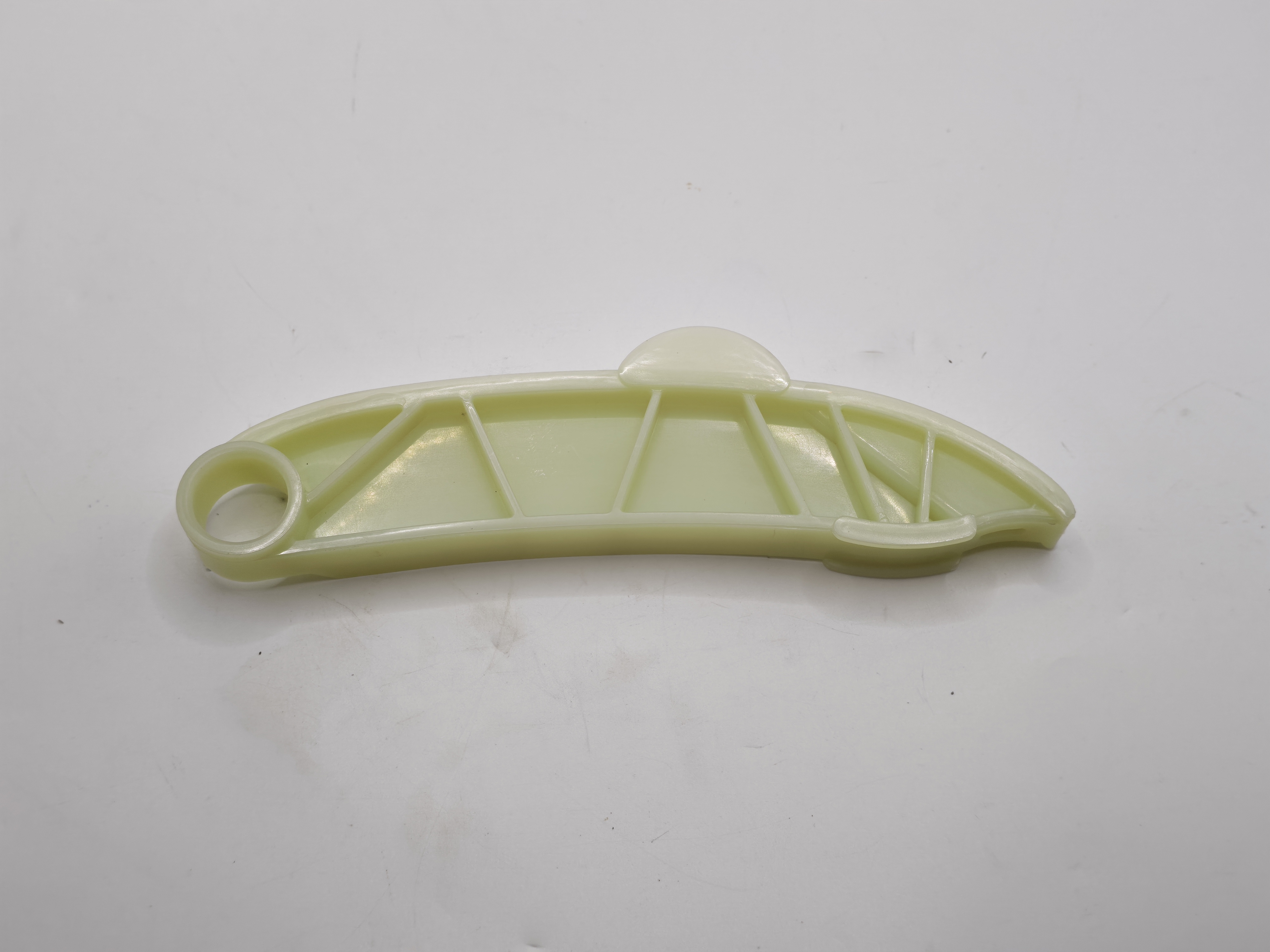

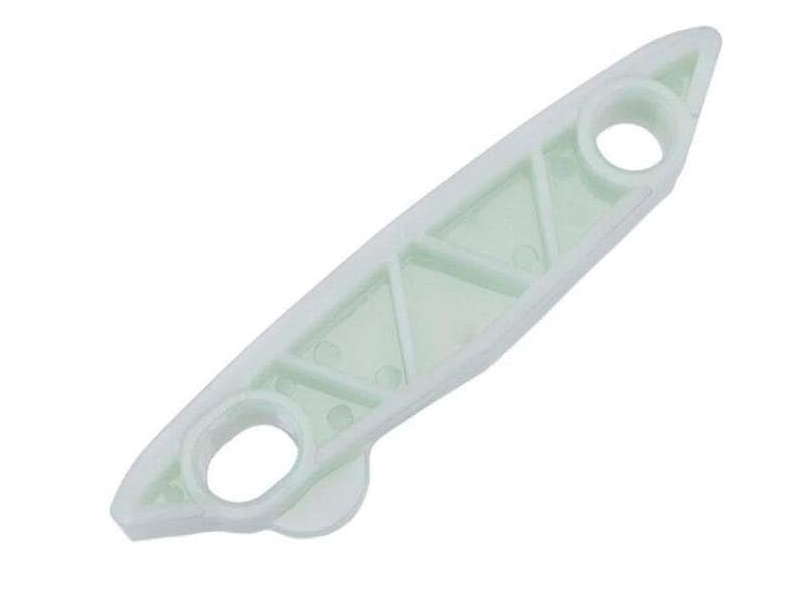

The 24377-2F000 Timing Chain Guide is designed for selected Hyundai and Kia 2.0L/2.2L CRDi diesel engines. Installed inside the engine timing system, it supports and guides the timing chain along its correct operating path, helping control chain vibration, reduce mechanical noise and maintain accurate engine timing.
Manufactured using OE 1:1 tooling, this Kingmay replacement provides accurate mounting positions and dependable fitment. Its wear-resistant guide surface is engineered to withstand continuous chain contact, engine heat and oil exposure, making it suitable for professional engine repairs, wholesale distribution and aftermarket replacement.
| Specification | Details |
|---|---|
| Product Name | Timing Chain Guide |
| Catalog Name | Guide – Timing Chain |
| OE Number | 24377-2F000 / 243772F000 |
| Related References | 24377-2F001 / 24377-2F600 |
| Product Category | Engine Parts – Timing Components |
| Engine Application | 2.0L and 2.2L CRDi Diesel |
| Common Engine Codes | D4HA / D4HB |
| Installation Position | Engine Timing Chain System |
| Catalog Quantity | 1 Piece per Vehicle |
| Material | Wear- and heat-resistant engineering material |
| Condition | 100% New |
| Manufacturing Standard | OE 1:1 Tooling |
| Warranty | 24 Months |
| Sales Model | Wholesale, retail and mixed orders |
| Packaging | Kingmay, neutral or customized packaging |
| Sample Order | Available for first-order confirmation |
| Brand | Model | Approximate Year | Engine |
|---|---|---|---|
| Hyundai | ix35 / Tucson LM | 2009–2012 | 2.0L CRDi D4HA |
| Hyundai | Santa Fe CM | 2009–2012 | 2.0L/2.2L CRDi |
| Kia | Sorento XM | 2009–2012 | 2.0L/2.2L CRDi D4HA/D4HB |
| Kia | Sportage SL / Sportage R | 2010–2012 | 2.0L CRDi D4HA |
The exact application may vary according to the production date, engine code and destination market. OE catalogs confirm 24377-2F000 in selected ix35/Tucson, Santa Fe, Sorento and Sportage timing systems. Buyers should provide the VIN before ordering because later vehicles may use 24377-2F001 or 24377-2F600.
OE-style fitment: Produced with OE 1:1 tooling for accurate mounting and correct alignment.
Wear-resistant construction: Designed to withstand continuous timing-chain contact.
Heat and oil resistance: Suitable for the high-temperature, oil-exposed environment inside the engine.
Reduced chain vibration: Helps stabilize chain movement during starting, idling and acceleration.
Quieter engine operation: Reduces unnecessary chain slap and mechanical rattling.
Stable engine timing: Supports consistent synchronization between the crankshaft and camshaft.
Direct replacement design: No unnecessary modification is normally required when the OE number is correctly matched.
Factory quality control: Each batch is checked for dimensions, mounting points and surface condition before shipment.
The timing chain connects the crankshaft and camshaft so that the engine valves open and close at the correct time. During operation, the chain moves at high speed and is continuously affected by vibration and changes in engine load.
The 24377-2F000 guide keeps the chain moving along its intended path. Together with the tensioner and other guides, it prevents excessive sideways movement, reduces impact between the chain and engine housing, and protects the timing components from premature wear.
Although it is a relatively small component, a damaged guide can affect the entire timing system and may eventually cause serious internal engine damage.
| Problem or Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Rattling during cold start | Worn guide or weak tensioner | Inspect the guides, tensioner and chain |
| Metallic noise near timing cover | Broken guide surface or loose chain | Stop prolonged engine use and inspect the timing system |
| Unstable idle or misfire | Chain movement may have affected timing | Check timing marks and scan for fault codes |
| Plastic fragments in engine oil | Guide surface may be cracked | Replace the guide and inspect the oil passages |
| Excessive chain wear | Guide or tensioner is no longer controlling the chain correctly | Replace worn timing components as a set |
| Check-engine light | Camshaft and crankshaft timing correlation may be abnormal | Diagnose before continued driving |
These symptoms can also be caused by other engine problems. A professional inspection should be completed before replacement.
Installation should be performed by a qualified mechanic because the engine timing marks must be positioned correctly.
Confirm the OE number, VIN and engine code before installation.
Inspect the timing chain, tensioner, sprockets and all other guides simultaneously.
Position the engine according to the manufacturer’s timing procedure.
Do not force the guide into place or modify its mounting holes.
Use the manufacturer-specified tightening torque.
Apply clean engine oil to the required contact surfaces during assembly.
Rotate the engine manually before starting it to confirm free movement.
Replace the engine oil and filter if damaged-guide fragments are found.
For higher-mileage engines, replacing only one worn guide may not fully solve abnormal timing noise. A complete timing-chain-system inspection is recommended.
To complete a timing-system repair, buyers can also order:
Timing chain
Timing chain tensioner
Upper and lower chain guides
Camshaft and crankshaft sprockets
Timing-cover gasket
Crankshaft oil seal
Complete timing chain kit
Kingmay supports mixed-SKU orders, allowing distributors and repair shops to purchase matching components in one shipment.
Kingmay supplies automotive parts directly from China without unnecessary intermediary costs. Our production follows OE-reference dimensions, helping wholesalers obtain competitive pricing while maintaining consistent replacement quality.
OE 1:1 tooling and batch quality inspection
24-month product warranty
Sample confirmation available for first orders
Flexible order quantities and mixed-SKU purchasing
Shared-container and consolidated-shipping support
Quantity-based discounts for bulk orders
Neutral, Kingmay-branded or customized packaging
OEM/ODM and private-label services
Flexible payment arrangements for qualified orders
Pre-sale fitment checking and after-sales support
Popular Hyundai and Kia applications are normally prepared for regular supply. Please tell us the required quantity before placing the order so that we can confirm stock, production time, packaging and the best wholesale quotation.
Each component is packed to protect its guide surface and mounting points from impact, moisture and contamination during transportation. Customized labels, barcodes and outer cartons are available for distributor orders.
Orders can be consolidated or dispatched from Guangzhou or Yiwu logistics hubs. Estimated sea-freight transit to Iraq, Saudi Arabia or Turkey is approximately 25–30 days after vessel departure, depending on the route, customs clearance and destination port.
Urgent samples and small orders can be shipped by DHL or UPS. Large orders can be arranged under FOB, CIF or other agreed shipping terms.
Is this a genuine (OEM) part from Hyundai/Kia?
This is a Kingmay OE-specification aftermarket replacement, not a Hyundai/Kia-logo genuine part unless the quotation specifically states “Genuine Hyundai/Kia.” It is manufactured using OE 1:1 tooling, supplied with a 24-month warranty, and sample confirmation is available for first orders.
Is this the correct part for my vehicle?
Please compare the original part number with 24377-2F000 / 243772F000. Because fitment can vary by production date, engine and market, send us the vehicle’s VIN, model year, engine capacity and old-part photo. Our team will check compatibility before shipment. References 24377-2F001 and 24377-2F600 should not be considered interchangeable without VIN verification.
How long will it take to get my order?
Sea shipping from Guangzhou or through the appropriate China export route to Iraq, Saudi Arabia or Turkey normally takes approximately 25–30 days after vessel departure. Production, consolidation, customs clearance and destination delivery are additional factors. DHL/UPS urgent sample delivery is also supported.
Can you send the order to another address?
Yes. We can ship to your warehouse, freight forwarder, branch company or another designated address. Please provide the complete recipient name, telephone number, postal code and delivery address before dispatch. Address changes after shipment may cause additional charges or may not be possible.
Can I order a sample before purchasing in bulk?
Yes. First-time customers can request a sample to inspect the dimensions, material, packaging and fitment before confirming a bulk order.
Can I customize the packaging?
Yes. Neutral packaging, Kingmay-branded packaging and private-label packaging are available. Customized packaging requirements should be confirmed before production.
Do you offer discounts for larger quantities?
Yes. Wholesale pricing is quantity-based. Larger and long-term orders can receive more competitive prices. Please inform us of the required quantity when requesting a quotation.
