93570-1G200
93570-1G200
Hyundai
2009, 2008, 2007
Electrical System
Switch
| Quantity: | |
|---|---|
Product Description

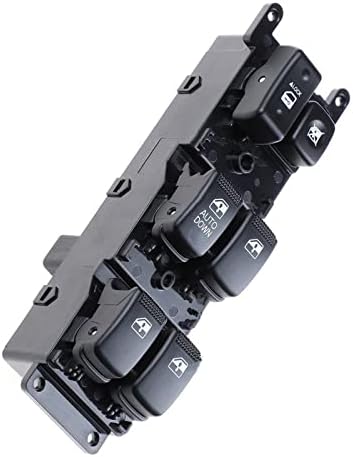

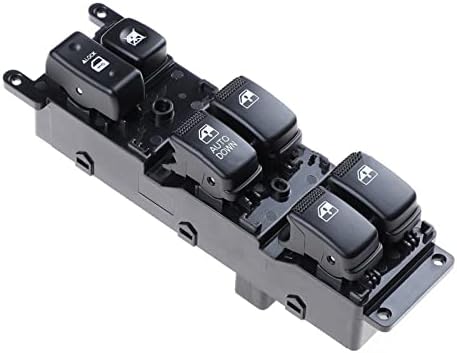

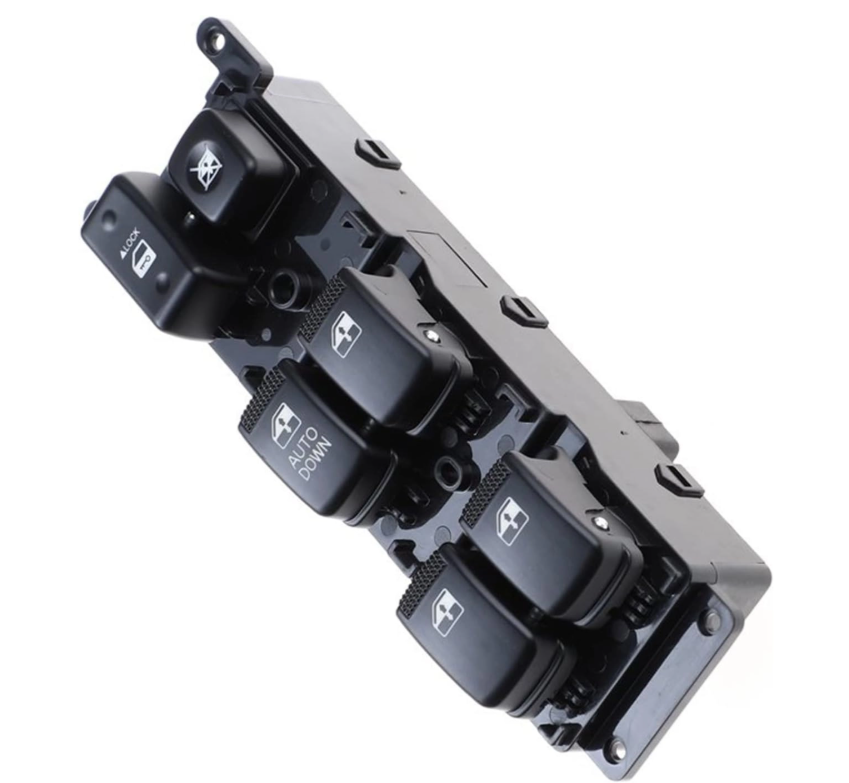

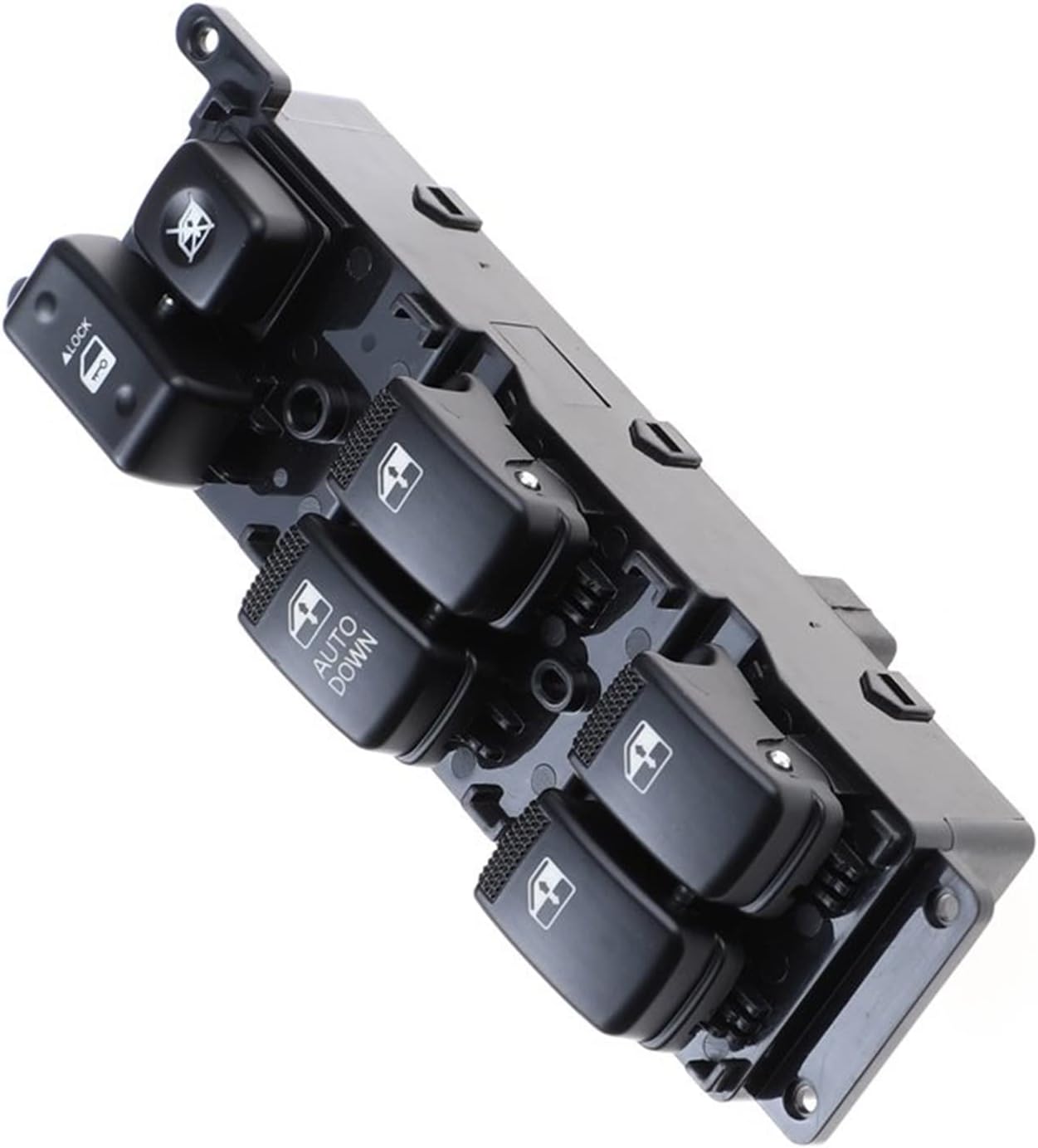

The 93570-1G200 master power window switch serves as a direct replacement component for 2007-2009 Kia Rio vehicles with left-hand drive configuration. It is developed for commercial procurement clients such as auto parts distributors and vehicle repair workshops, with a design aligned to original equipment dimensions and pin definitions. The component supports installation without ECU programming, suitable for compact car electrical repair service scenarios.
Item | Details |
OE Number | 93570-1G200 |
Official OEM Name | SWITCH ASSY-POWER WINDOW MAIN |
Interchange OEM Code | 935701G200 |
Applicable Vehicle | Kia Rio 2007–2009, Left-hand Drive |
Mounting Position | Driver Front Left Door |
Integrated Functions | Driver window one-touch AUTO DOWN; independent lift control for four vehicle doors; window lock safety switch; central door lock & unlock control buttons |
Item | Details |
Rated Operating Voltage | DC 12V automotive standard |
Matching Connector | 18-pin OEM lock-type plug |
Net Weight | Approx 0.18 kg (0.40 lbs) |
Overall Outer Size | 180 × 62 × 43 mm |
Single Package Dimension | 195 × 80 × 55 mm |
Item | Details |
Outer Housing | Matte anti-fingerprint high-rigidity ABS plastic |
Button Panel | Wear-resistant PC plastic with printed functional icons |
Internal Conductive Parts | Gold-plated micro-switches |
Circuit Board | FR-4 vehicle-grade high-temperature resistant PCB |
Mounting Brackets | Integrated injection molded fixed lugs |
Production Standard | Matches Mobis OEM manufacturing standard; compliant with IATF16949 automotive electronics certification |
Service Life | Over 100,000 stable pressing cycles |
The switch adopts 1:1 OEM injection molding structure. Its mounting buckles, fixing hole positions, 18-pin pin definition and button layout align with original factory parts. No wiring cutting, circuit modification or extra adapters are required during installation, and no ECU programming is needed.
It integrates multiple door control functions into one compact unit, including four-window lifting, auto down, window child lock and central door lock. After replacement, it can restore all original door electrical auxiliary functions of the vehicle.
Internal switch terminals receive gold plating treatment, which helps reduce poor contact caused by door cabin dust, moisture and metal oxidation. The structure supports over 100,000 stable pressing operations.
The ABS shell adapts to long-term high temperature and humidity environment inside vehicle door panels. The matte surface reduces scratch marks and fingerprint residue accumulation during daily use.
Each unit undergoes vehicle-grade environmental reliability tests, including vibration, high-low temperature cycling, dustproof and splash-proof inspection. It is also equipped with built-in overcurrent protection, to avoid damage to the vehicle door control module.
The driver side window is designed with one-touch AUTO DOWN function, consistent with original vehicle intelligent window control logic. It also comes with a child window lock button, which can disable rear passenger window controls with one press.
The switch matches the texture, black color and assembly gap of original OEM parts, maintaining the original appearance of the door panel after installation.
Confirm the vehicle model and OEM number match 93570-1G200 before purchase. Clean the door mounting area before installation to prevent sand and dust from entering the new switch. Do not pull wires hard during door panel disassembly, to avoid secondary wire breakage. After installation, test all window functions and child lock to confirm normal operation.
For total unresponsiveness of all windows, first check and replace the blown window fuse in the vehicle fuse box. If fuses work normally, inspect the wiring harness plug on the door hinge and clean corroded metal terminals. Replace the switch assembly if wiring and fuses are in normal condition.
For single window failure, clean the corresponding PCB contacts with isopropyl alcohol to remove oxide and dust, and re-seat all harness pins firmly. Test the window motor with separate 12V power supply to rule out motor failure before replacing the master switch.
This switch is designed for 2007-2009 Kia Rio vehicles with left-hand drive, installed on the driver front left door. Please confirm the OE number and vehicle information before purchase.
No. The switch follows 1:1 OEM design for mounting structure and pin definition. It supports plug-and-play installation, with no wiring cutting or ECU programming required.
It can resolve common switch faults including unresponsive window buttons, failed auto down function, invalid door lock control, intermittent contact failure and complete loss of window control function caused by defective original switches.
For bulk orders with MOQ of 500-1000 units, available packaging options include genuine (MOBIS) standard packaging, neutral aftermarket packaging and brand customized packaging.
