93600-D9120WK
93600-D9120WK
Hyundai, Kia
Sportage
2020, 2019, 2018, 2017, 2016
Electrical System
Switch
| Quantity: | |
|---|---|
Product Description

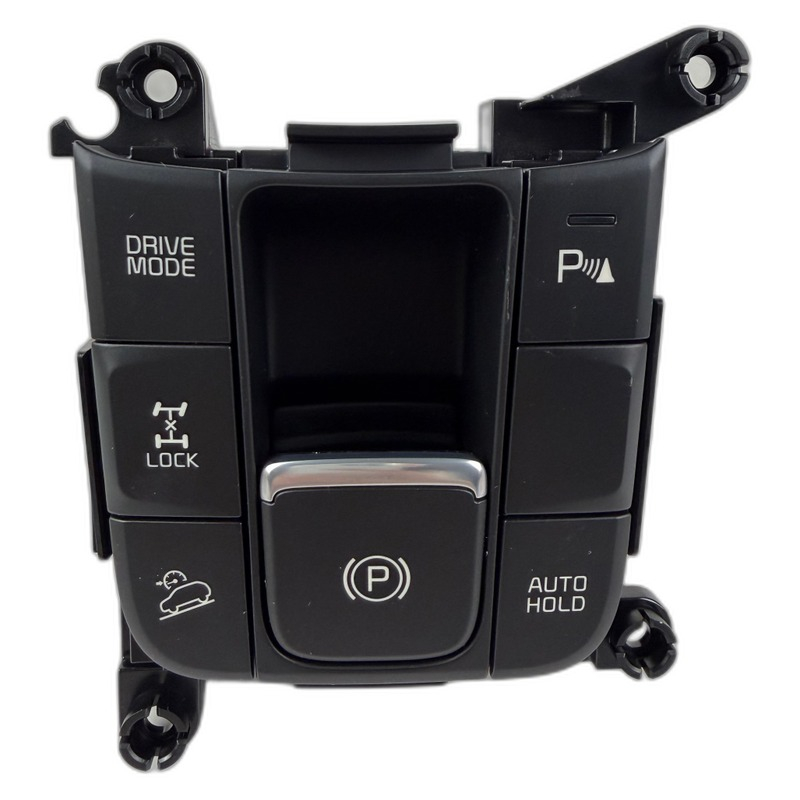

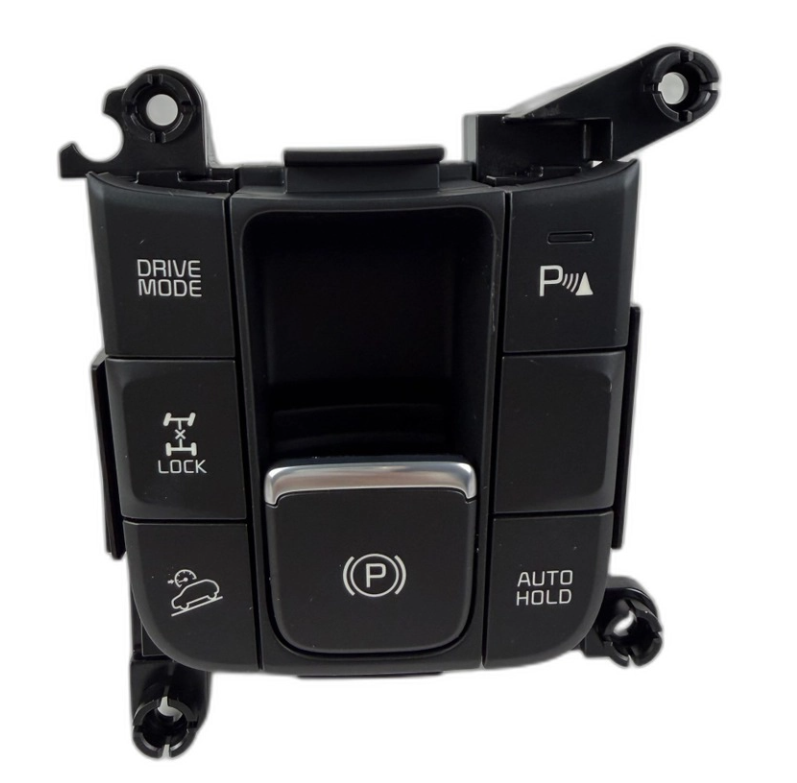

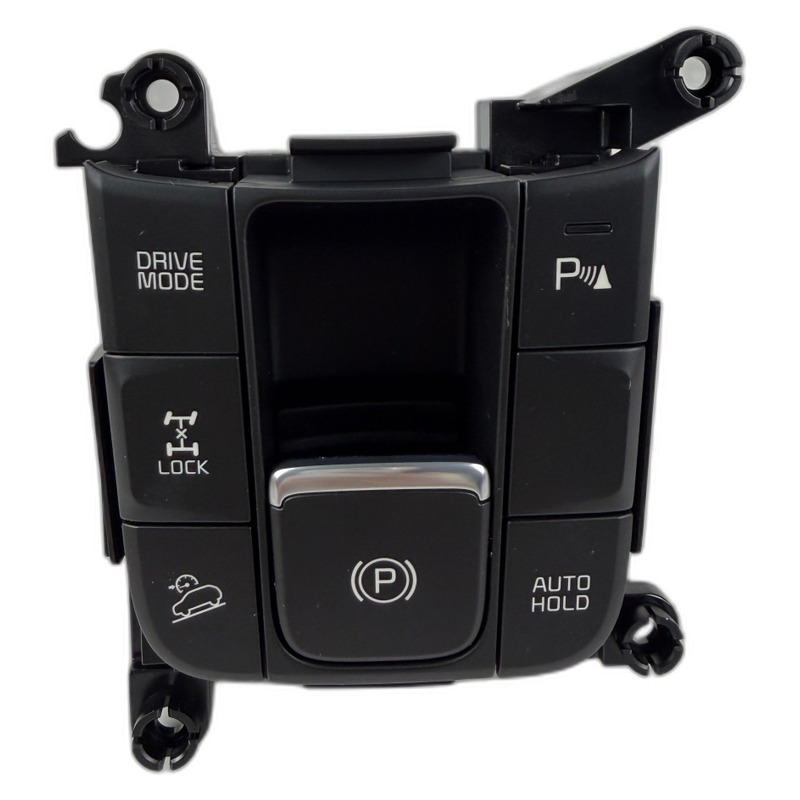

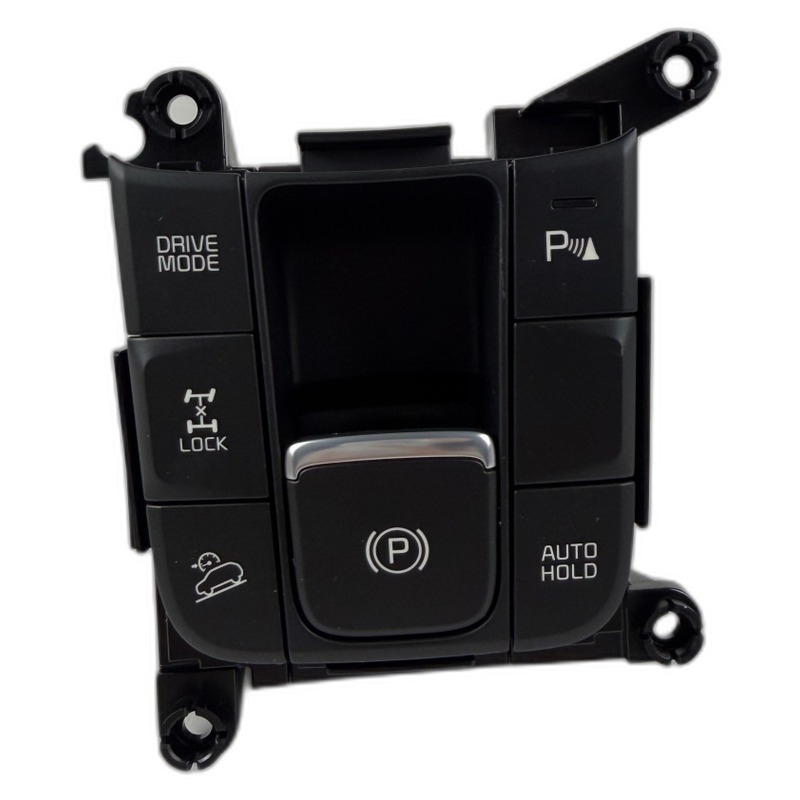

The 93600-D9120WK EPB control switch is engineered for high-mileage fleet operations, parts importers and warehouse distributors in commercial procurement scenarios. Produced on IATF 16949 accredited production lines with 3-stage quality inspection, this component achieves a defect rate of less than 50ppm. Designed as a direct replacement for Kia Sportage center console switch panels, it supports rapid inventory turnover for distribution clients.
Category | Details |
OE Number | 93600-D9120WK |
Official OEM Name | SWITCH COMPLETE-CONSOLE FLOOR |
Interchange OEM Part | 93600-D9120 |
Applicable Vehicle | Kia Sportage QL 2016–2022 Automatic Transmission All Trims |
Integrated Functional Buttons | EPB Electronic Parking Brake Main Button; AUTO HOLD Auto Parking Retention; DRIVE MODE Driving Mode Selector; HDC Hill Descent Control; 4WD LOCK Four-Wheel Drive Lock; PDC Parking Distance Control Sensor Switch; Auto Start-Stop OFF Button |
Rated Operating Voltage | DC 12V automotive standard |

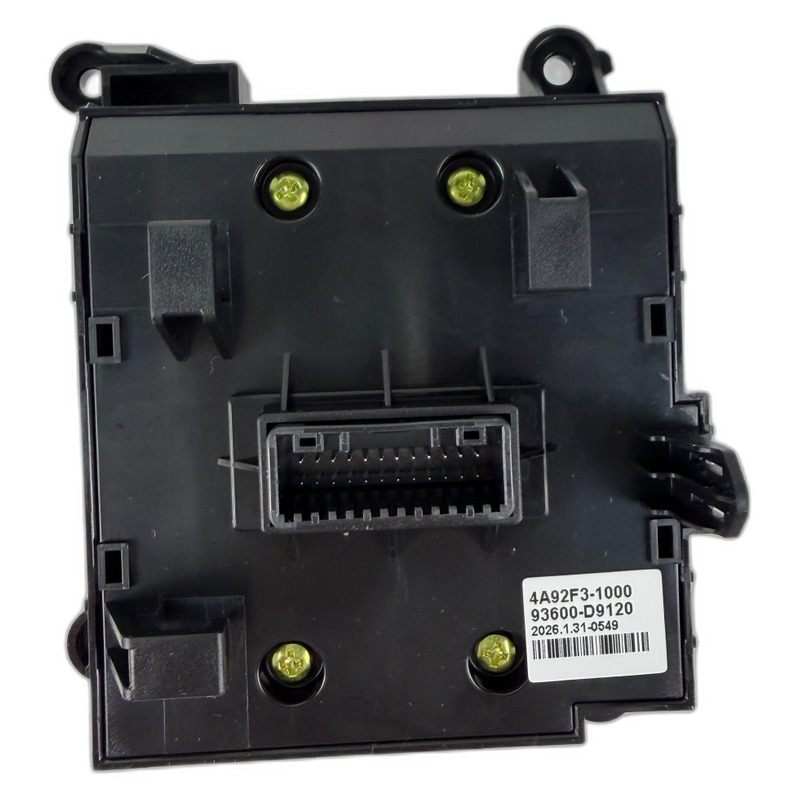

Matching Connector | 20-pin OEM lock-type plug |
Net Weight | Approx 0.30 kg (0.66 lbs) |
Overall Outer Size | 162 × 98 × 44 mm |
Single Packing Dimension | 180 × 115 × 60 mm |
Outer Housing Material | Matte anti-fingerprint high-rigidity ABS+PC composite plastic |
Button Panel Material | Wear-resistant PC material with integrated uniform LED backlight icons |
Internal Contacts | Gold-plated micro-switches for anti-oxidation and stable signal transmission |
Circuit Board | FR-4 vehicle-grade high-temperature resistant PCB |
Mounting Brackets & Fasteners | Zinc-plated anti-rust carbon steel |
Production Standard | Manufactured to Mobis OEM standard, fully compliant with IATF 16949 automotive electronics certification |
Aftermarket Cross Reference Codes | SW-KS-D9120WK, KIA-93600D9120WK |
Mounting buckles, fixing hole positions, connector pin definitions and button layouts match genuine factory parts. No wiring cutting, circuit modification or extra adapters are required, and no additional ECU programming is needed for installation. The precise actuator geometry minimizes dead travel and misalignment issues that appear in many aftermarket replacement units.
This compact panel combines EPB, AUTO HOLD, DRIVE MODE, HDC, 4WD LOCK, auto start-stop and parking radar control functions in one assembly. It fully restores all original driving safety and comfort auxiliary functions after replacing a faulty factory switch panel, allowing distributors to cover multiple repair demands with a single SKU and reduce inventory pressure.
Internal switch terminals feature anti-corrosion gold plating, which reduces poor contact caused by cabin dust, moisture and metal oxidation. Each unit supports over 120,000 stable actuation cycles without signal delay, button jamming or intermittent failure, making it suitable for high-mileage fleet and commercial vehicle applications.
Each unit passes vibration, high-low temperature cycling and dustproof inspection, adapting to complex bumpy roads and seasonal temperature fluctuations. The ABS+PC composite shell resists long-term high temperature inside vehicle cabins, with no yellowing, deformation or brittle cracking under normal long-term use. Built-in short-circuit protection prevents damage to vehicle BCM and ESP control modules.
All function icons and text labels are equipped with matched LED backlight, delivering clear visibility under dark cabin environments. The light tone aligns with the original car interior ambient lamp style. The WK version retains the original wood grain finish, matching factory interior texture, color and assembly gap to preserve center console aesthetics.
This center console switch fits Kia Sportage QL compact SUVs from 2016 to 2022, for all automatic transmission trims. It belongs to the vehicle electrical system, replacing the original floor console switch assembly. It is suitable for aftermarket repair, fleet maintenance and parts distribution scenarios, supporting stable performance in daily commercial vehicle operations.
This switch assembly resolves typical factory panel malfunctions including unresponsive EPB buttons, inactive AUTO HOLD / HDC / 4WD lock functions, dim backlight, intermittent contact failure and abnormal parking sensor warning prompts. For unresponsive single buttons, the integrated modular design means individual buttons are not separately serviceable, so full assembly replacement is required for long-term reliability. For wood grain trim cracking or peeling on WK versions, cosmetic damage cannot be repaired, and full assembly replacement will restore original factory finish. For backlight failure, technicians should first inspect fuses and wiring power circuits; if power supply is normal, panel replacement is the recommended solution.
The 93600-D9120WK is a fully integrated modular unit with no separately replaceable buttons. Partial repair cannot guarantee long-term operational reliability, so replacement of the complete switch assembly is the standard solution for commercial repair and fleet maintenance.
This switch is compatible with 2016–2022 Kia Sportage QL models with automatic transmission. Buyers should confirm vehicle generation and transmission type before bulk procurement to ensure proper fitment.
No dedicated ECU programming is required. After installation, technicians can clear system fault codes with a diagnostic scanner and test all functions to complete the repair.
For volume orders, custom packaging and private labeling services are available with a minimum order quantity of 500-1000 units, supporting inventory and brand needs for industrial clients and parts distributors.
