93570-1E110
93570-1E110
Hyundai
2010, 2009, 2008, 2007
Electrical System
Switch
| Quantity: | |
|---|---|
Product Description

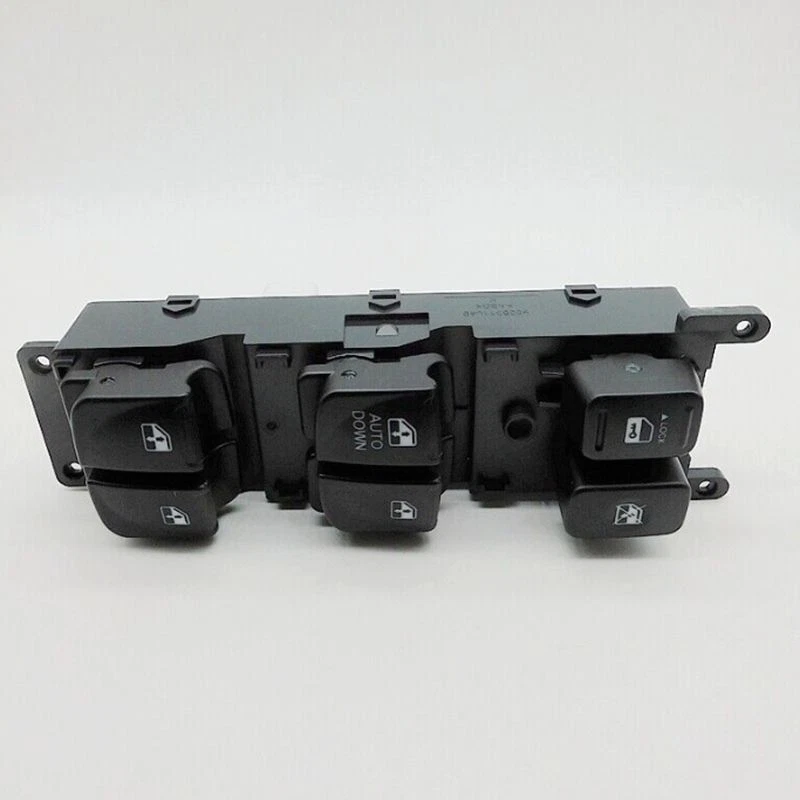

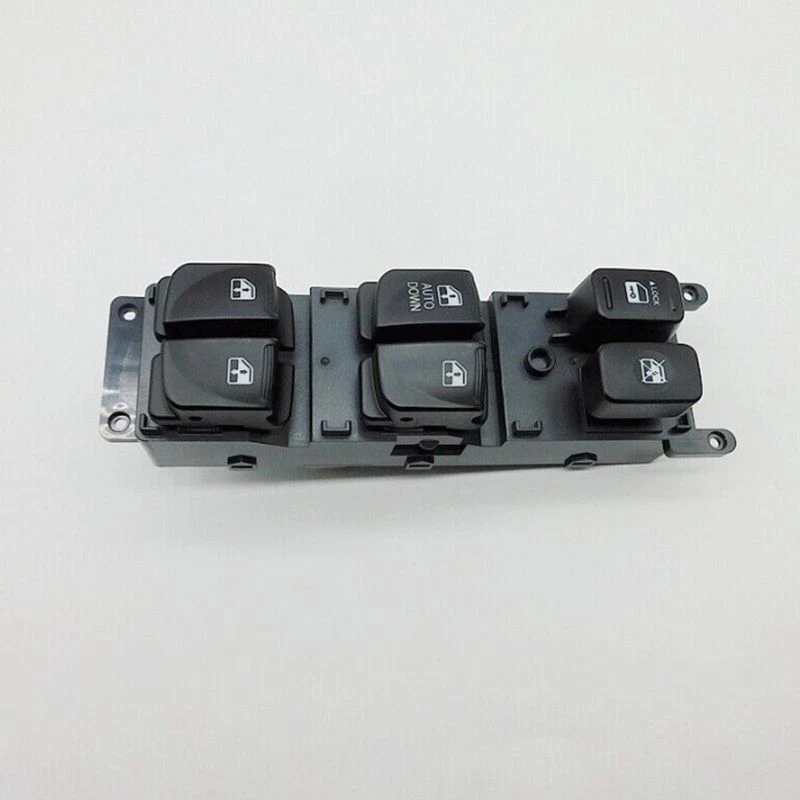

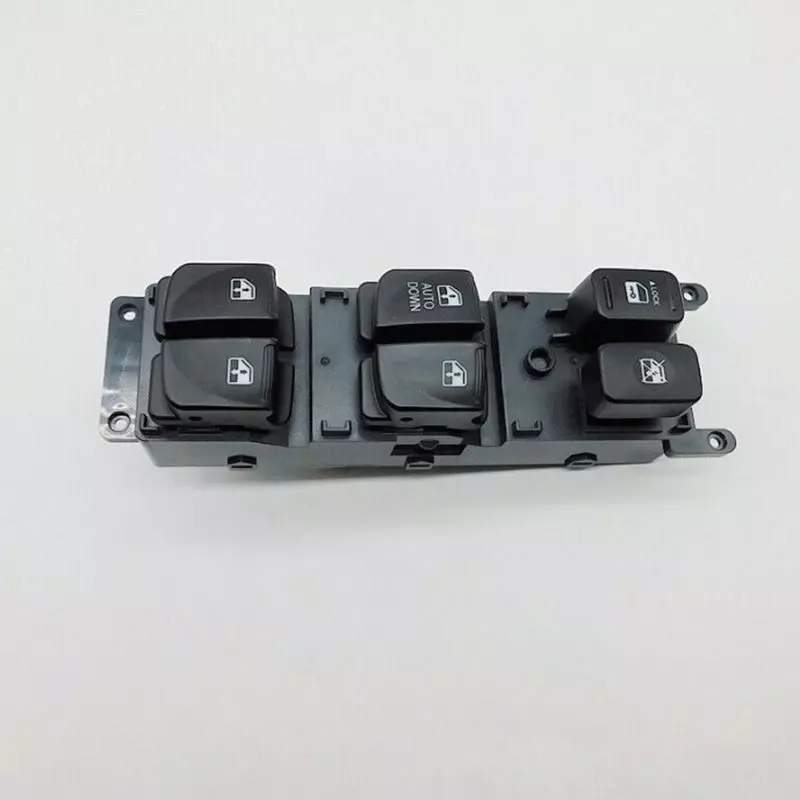

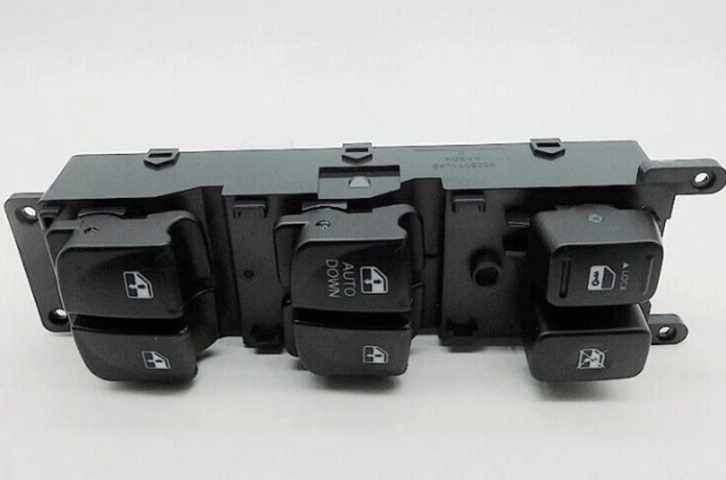

The 93570-1E110 power window lifter switch is manufactured as a direct-fit replacement for 2007-2010 Hyundai Accent vehicles with left-hand drive. It is intended for commercial procurement clients including auto parts wholesale distributors and auto repair service providers. The component adopts a precision connector design with built-in circuit protection, suitable for daily electrical system maintenance of compact sedans.
Item | Details |
OE Number | 93570-1E110 |
Official OEM Name | SWITCH ASSY-POWER WINDOW MAIN |
Interchange OEM Codes | 93570-1E000, 93570-1E030 |
Applicable Vehicle | Hyundai Accent / Accent Era 4-door sedan 2007–2010, Left-hand Drive |
Mounting Position | Driver Front Left Door |
Integrated Functions | Driver window one-touch AUTO DOWN; independent lift control for 4 doors; window lock safety switch; central door lock / unlock control button |
Item | Details |
Rated Operating Voltage | DC 12V automotive standard |

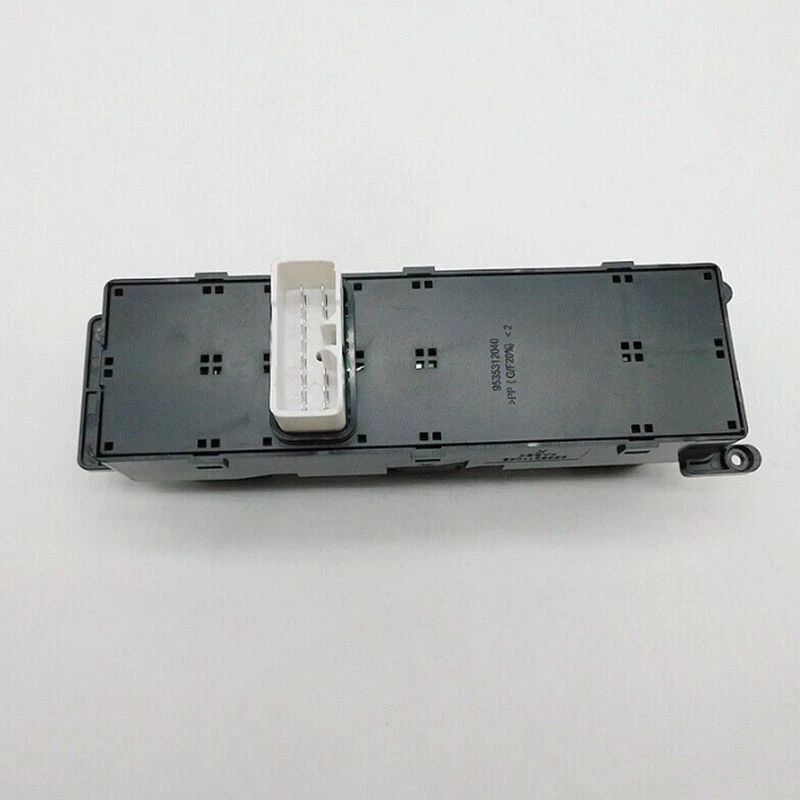

Matching Connector | 14-pin OEM lock-type plug |
Net Weight | Approx 0.15 kg (0.33 lbs) |
Overall Size | 172 × 68 × 42 mm |
Single Pack Dimension | 190 × 80 × 55 mm |
Item | Details |
Outer Housing | Matte scratch-resistant high-rigidity ABS+PC composite plastic, anti-fingerprint |
Button Panel | Wear-resistant PC plastic with clear printed function icons |
Internal Contacts | Gold-plated micro-switches |
Circuit Board | FR-4 vehicle-grade high-temperature resistant PCB |
Mounting Brackets | Integrated injection molded fixed lugs |
Production Standard | Matches Mobis OEM manufacturing standard; compliant with IATF16949 automotive electronics certification |
Service Life | Over 100,000 stable pressing cycles |
This switch adopts 1:1 OEM injection molding structure. Its mounting hole spacing, buckle size, 14-pin pin definition and button layout align with original factory parts. Installation requires no wiring cutting, circuit modification or additional adapters, and no ECU programming is needed.
It concentrates four-window lift, auto down, window lock and central door lock functions into one single unit. After replacing the faulty original switch, it can completely restore all original door electrical auxiliary functions.
Internal switch terminals adopt gold plating treatment, which reduces contact issues caused by cabin dust, moisture and metal oxidation. It supports over 100,000 stable pressing operations without signal delay or button jamming.
The ABS+PC composite shell withstands long-term high temperature inside vehicle door panels and cabin UV exposure. Its matte surface reduces scratch marks and fingerprint residue during long-term use.
Each unit passes vehicle-grade environmental reliability tests including vibration, high-low temperature cycling and dustproof inspection, adapting to complex road conditions and seasonal temperature changes. Built-in overcurrent protection is equipped to avoid damage to the vehicle door control module.
The driver window is designed with one-touch AUTO DOWN function, consistent with original vehicle intelligent window logic. It also has a safety window lock design, which disables all rear passenger window controls with one button.
The switch matches the texture, color and assembly gap of original Mobis OEM parts, maintaining the original aesthetic of the door panel after installation with no mismatched gaps or color difference.
Confirm the OEM number matches 93570-1E110 and the vehicle model fits before purchase. Clean dust and water stains at the door mounting position before installing the new switch. Do not pull the wiring harness hard when removing the door panel, to prevent secondary wire breakage. Avoid high-pressure water flushing the driver door switch area during car washing. After installation, fully test all window functions and child lock to confirm normal operation.
For total failure of all windows, first check the vehicle fuse box and replace blown fuses with matching specifications. If fuses are normal, disconnect the switch plug and clean oxidized metal terminals with alcohol. Replace the complete switch assembly if fuses and wiring remain intact.
For intermittent window control, fully disassemble and clean the circuit board and buttons, then dry thoroughly before reinstallation. Seal the edge of the switch housing with waterproof glue to prevent moisture intrusion. Inspect and repair fractured wires at the door hinge if necessary.
This switch adopts an integrated sealed circuit board design. Repairing individual buttons cannot guarantee long-term stable operation. Full assembly replacement is recommended for commercial maintenance scenarios.
This issue is usually caused by poor contact of the main switch plug or internal circuit damage. Re-plug the connector first; if the problem persists, replace the master switch assembly.
Customized packaging services are available for orders with MOQ of 500-1000 units. Options include genuine standard packaging, neutral packaging and brand-specific packaging.
This switch is designed for left-hand drive vehicles, installed on the driver front left door. It is not compatible with right-hand drive configurations.
