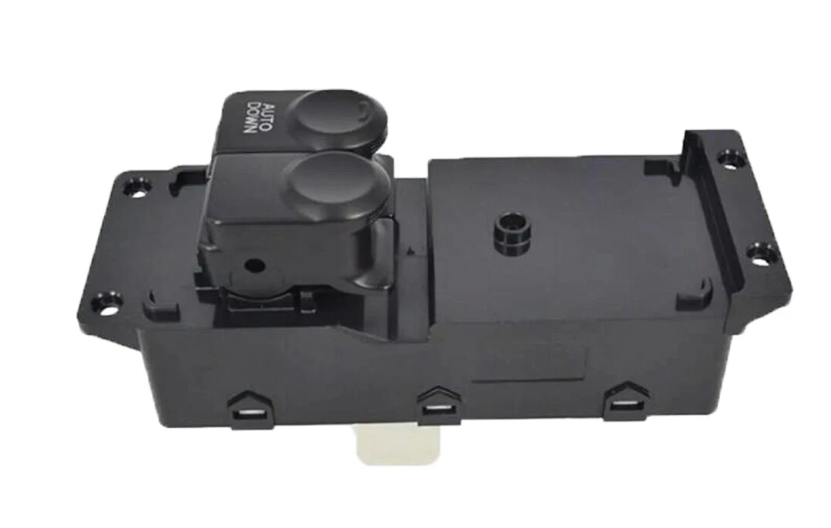

Professionally Tested New Electric Driver Side Window Switch (93570-0U010)

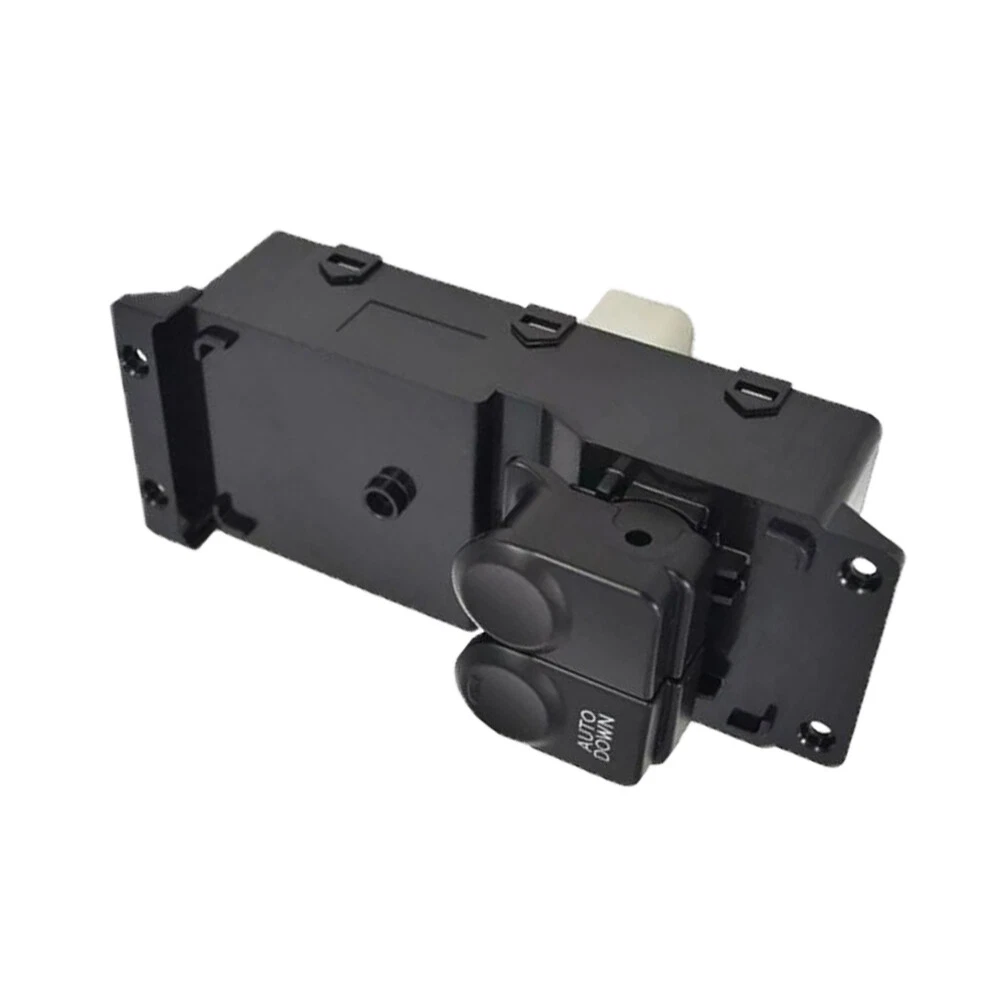

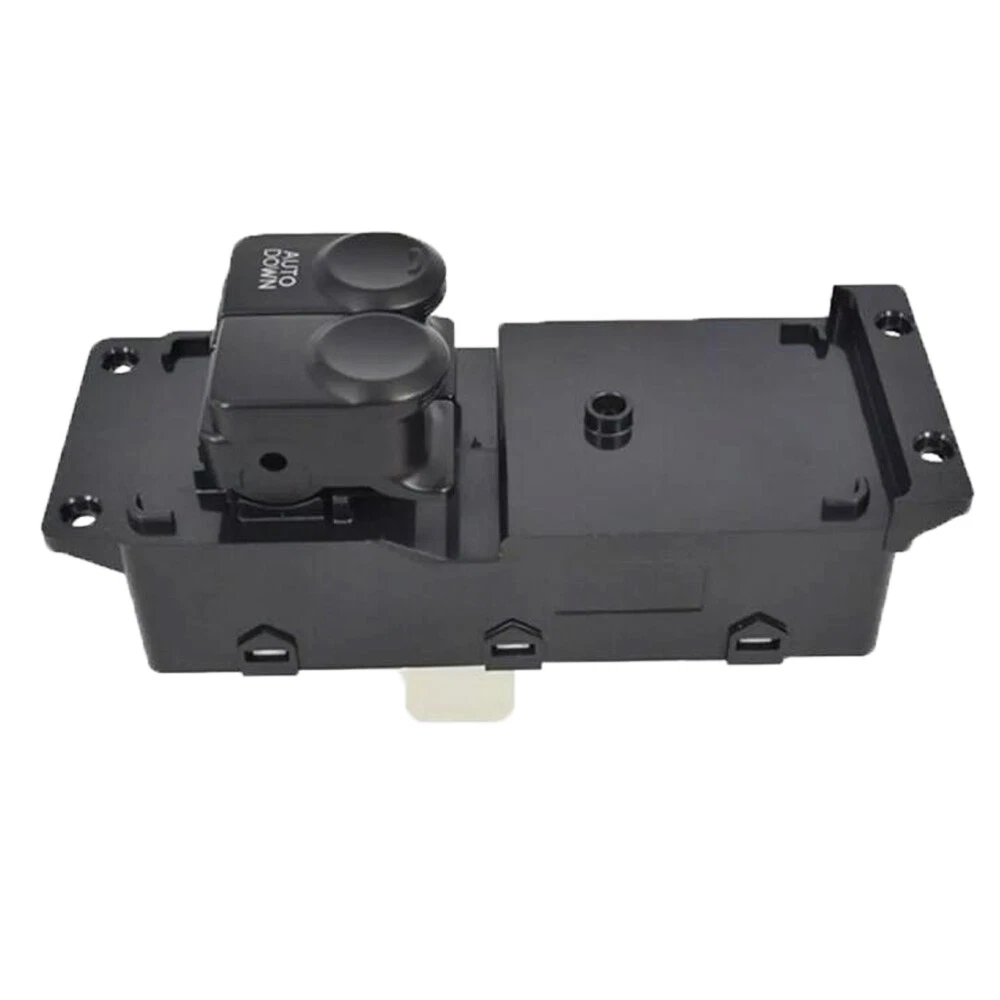

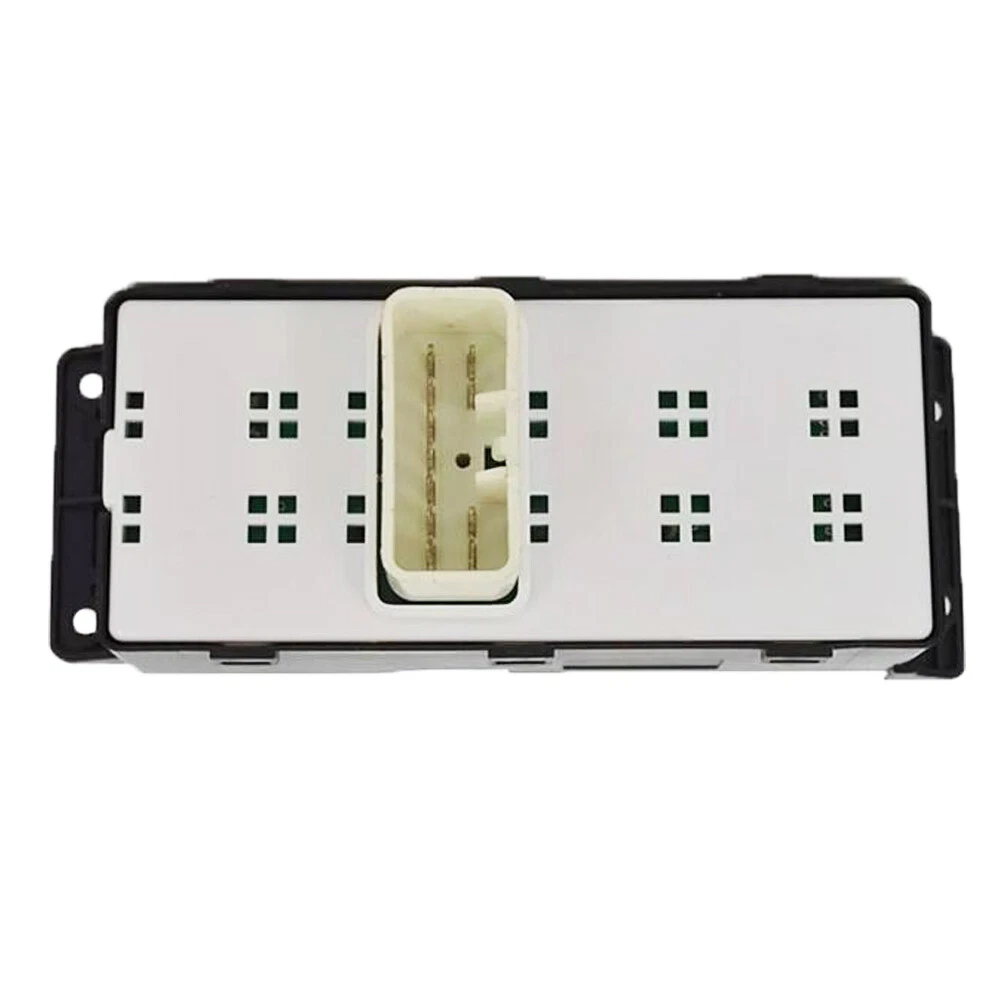

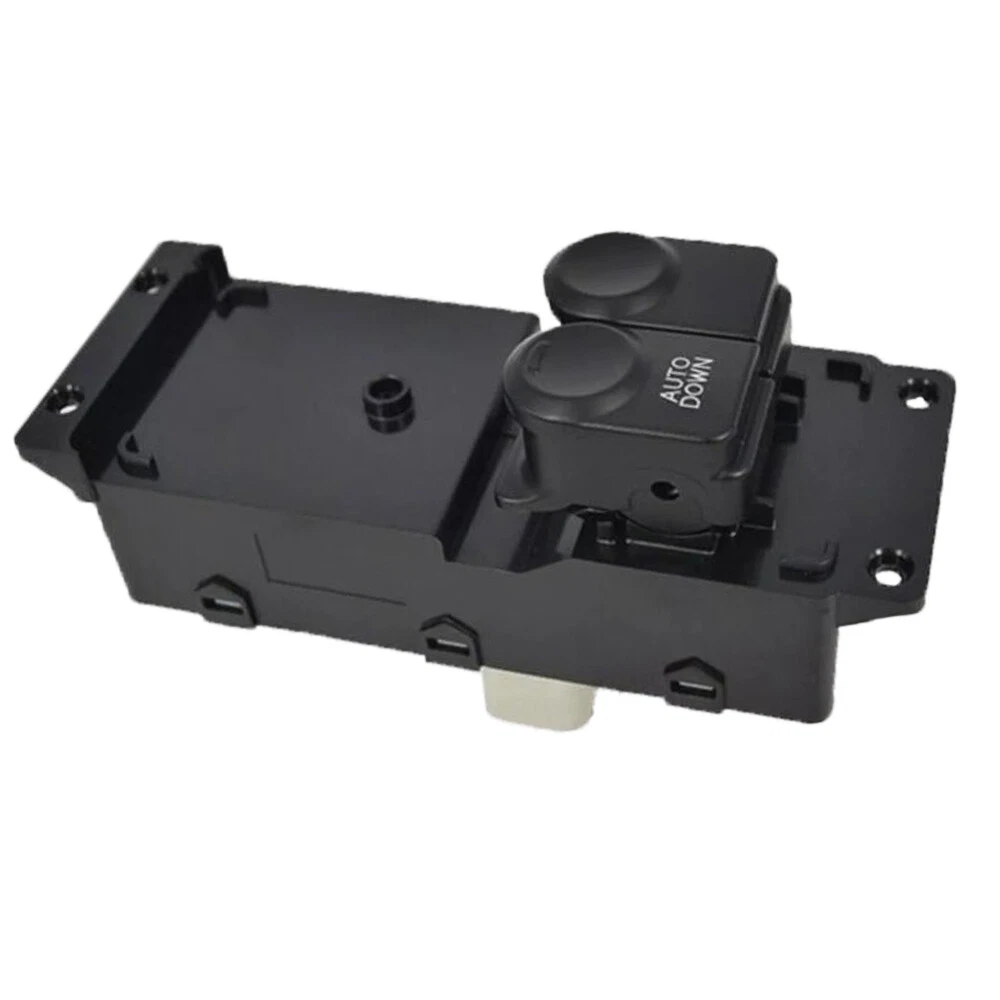

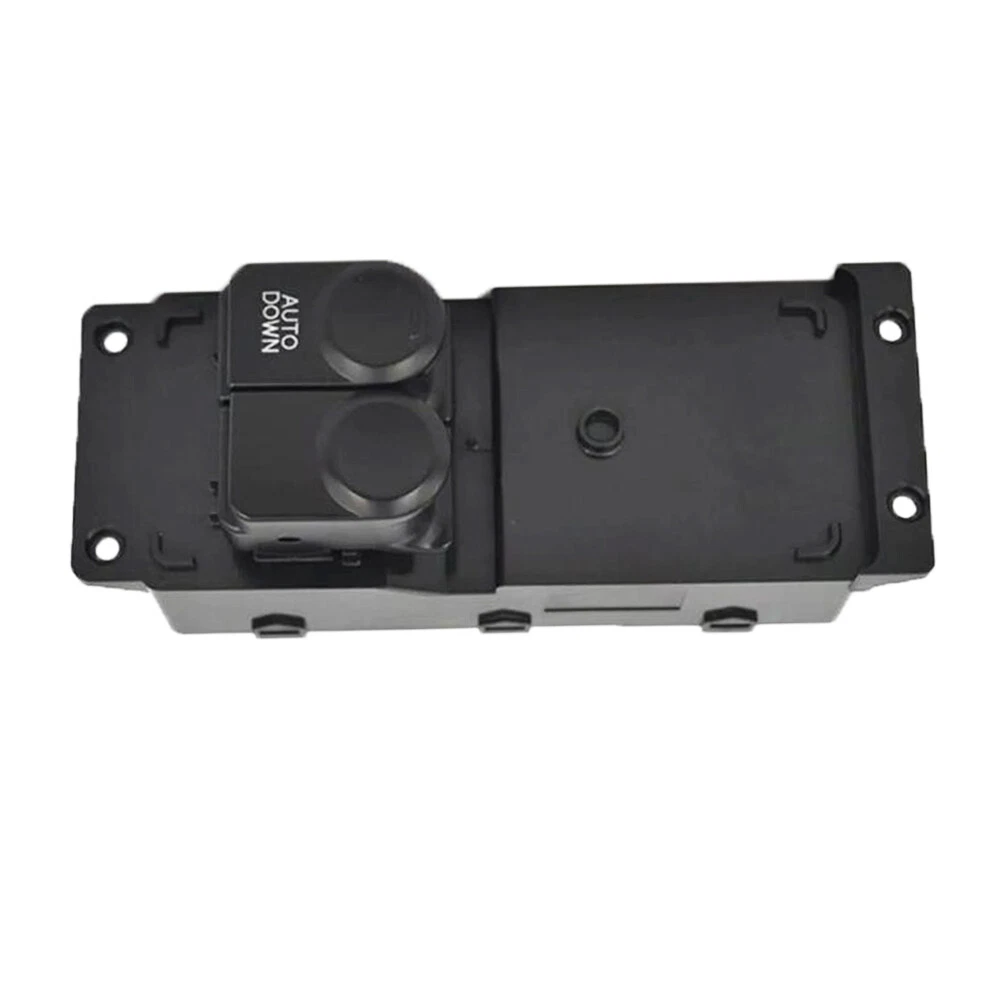

The 93570-0U010 power window switch is designed for front left driver door installation on specified Hyundai sedan models. Produced to match OEM dimensional and electrical specifications, this component serves commercial procurement needs for auto parts wholesalers, repair service providers and fleet maintenance teams. It controls front driver and passenger side window movement, with a dedicated auto-down function for the driver side. Each unit undergoes factory functional testing before packaging to support consistent batch supply for compact sedan replacement markets.

93570-0U010 Power Window Switch Technical Specifications

OE & Vehicle Compatibility

Electrical & Dimensional Parameters

Material & Production Standards

Core Design Features of 93570-0U010 Driver Side Window Switch

This switch adopts 1:1 OEM injection molding structure, with mounting hole spacing, buckle structure, 12-pin pin definition and dual-button layout matching genuine factory parts. No wiring cutting, circuit modification or extra adapters are required for installation, and no ECU programming is needed after replacement. This design reduces on-site installation time for repair teams and lowers technical barriers for batch replacement projects.

The internal switch terminals use gold-plated treatment to reduce oxidation risk from door cavity dust, moisture and metal exposure. This structure supports stable signal transmission across the rated service life, reducing the chance of contact failure, signal delay or button jamming under regular use.

The outer housing is made of flame-retardant ABS material, which adapts to long-term high temperature and humidity environments inside vehicle door panels. The matte surface reduces scratch marks and fingerprint residue, maintaining consistent appearance with original interior trim after installation.

Each unit passes factory vibration, high-low temperature cycling, dustproof and splash-proof inspection before delivery. The built-in overcurrent protection structure helps prevent electrical damage to the window control module during voltage fluctuations. The dedicated AUTO DOWN function follows original vehicle circuit logic, providing operation matching factory settings.

This component is used to replace defective original switches and resolve common issues including unresponsive front window buttons, failed auto down function, intermittent contact failure and complete loss of front window lifting control. It fits high-volume replacement and wholesale scenarios for compact sedan aftermarket supply.

Common Malfunctions & Troubleshooting Guide

For after-sales support and on-site diagnosis, reference the following fault judgment logic:

Both windows unresponsive: Check for blown power window fuses, loose or corroded wiring connector pins, broken power wires at the door hinge area, or internal PCB circuit damage.

Single window failure: Inspect for oxidation or carbon buildup on the corresponding channel contacts, poor contact of single signal pin, or seized window motor/regulator.

Intermittent operation: Check for moisture or dust seepage inside the switch housing, fatigued internal button springs, or partially cracked wires in the door hinge harness.

Disabled auto down function: Inspect for worn dedicated auto-down contact points, or ECU memory reset after battery disconnection. Re-calibrate by holding the down button for 5 seconds after the glass fully lowers, then holding the up button for 5 seconds after the glass fully rises.

Sticky or sunken buttons: Check for aging conductive rubber pads or trapped debris between buttons and circuit board.

Buzzing or sparking noise during operation: Inspect for oxidized contacts creating high resistance, or overheated copper traces on the internal PCB. Discontinue operation if burning odor or melted plastic appears.

Installation & Maintenance Instructions

Confirm the OEM number matches 93570-0U010 before procurement to avoid fitment mismatch. Clean dust and water stains on the door mounting surface before installation. Do not pull the wiring harness violently during door panel removal to avoid secondary wire damage. Avoid high-pressure water flushing on the driver door switch area during vehicle cleaning. After installation, test both windows and the auto-down function to confirm normal operation.

FAQ About 93570-0U010 Window Switch

Can I replace only the faulty button instead of the whole switch assembly?

This switch adopts an integrated sealed PCB design. Single button repair cannot guarantee long-term stable performance, so full assembly replacement is recommended for commercial maintenance projects.

The passenger window works from its own door switch but cannot be controlled by the master switch. What is the cause?

This issue usually stems from a loose harness plug or internal circuit damage of the master switch. Reconnect the connector first; replace the switch assembly if the fault persists after reconnection.

What packaging options are available for bulk orders?

For commercial bulk procurement, packaging options include genuine (MOBIS) standard packaging, neutral aftermarket packaging and custom brand packaging. The minimum order quantity for customized packaging ranges from 500 to 1000 units.
