93600-C5210WK
93600-C5210WK
Hyundai, Kia
Sorento
2020, 2019, 2018, 2017, 2016, 2015
Electrical System
Throttle Position Sensor
| Quantity: | |
|---|---|
Product Description
The 93600-C5210WK is an integrated console floor control switch designed for Kia Sorento UM 2014–2020 all trim levels. This unit consolidates multiple vehicle control functions into a single console-mounted panel, which reduces SKU complexity for parts distributors and streamlines inventory management for commercial procurement. Manufactured to match Mobis OEM production standards and certified under ISO/TS16949 for automotive electronics, the switch serves as a direct replacement for faulty original components. It also supports custom pin configurations and logo printing for tiered automotive suppliers and specialty vehicle builders.
Item | Specification |
OE Number | 93600-C5210WK |
Official Name | SWITCH COMPLETE-CONSOLE FLOOR |
Interchange OEM Part | 93600-C5210, 93600-C5200 |
Make | Hyundai, Kia |
Vehicle Model | Sorento |
Model Years | 2014–2020 |
System | Electrical System |
Part Type | Console Floor Multi-Function Switch |
Aftermarket Cross Reference Codes | SW-KS-C5210WK, KIA-93600C5210WK |
Production Standard | Matches Mobis OEM manufacturing standard, ISO/TS16949 automotive electronics certified |
Item | Specification |
Rated Operating Voltage | DC 12V Automotive Standard |

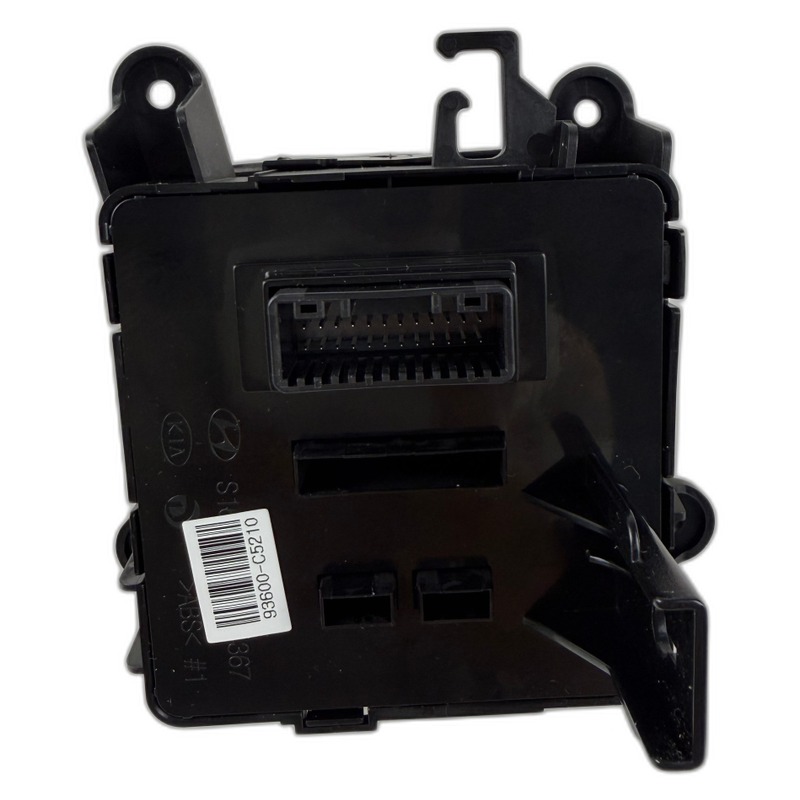

Matching Connector | 18-pin OEM lock-type plug |
Net Weight | Approx 0.31 kg (0.68 lbs) |
Overall Outer Size | 156 × 95 × 40 mm |
Individual Package Dimension | 170 × 110 × 55 mm |
Component | Material |
Outer Shell | Matte anti-fingerprint high-rigidity ABS+PC composite plastic |
Button Panel | Wear-resistant PC with integrated backlight icons |
Internal Contacts | Gold-plated micro-switches for anti-oxidation stable conduction |
Circuit Board | FR-4 vehicle-grade high temperature resistant PCB |
Fastening Brackets | Zinc-plated anti-rust carbon steel |
Mounting buckles, hole positions, connector pin definitions and button layout are fully consistent with original factory parts. No wiring cutting, modification or extra adapters are required, and no additional ECU programming is needed for installation, which reduces on-site service time for repair businesses.

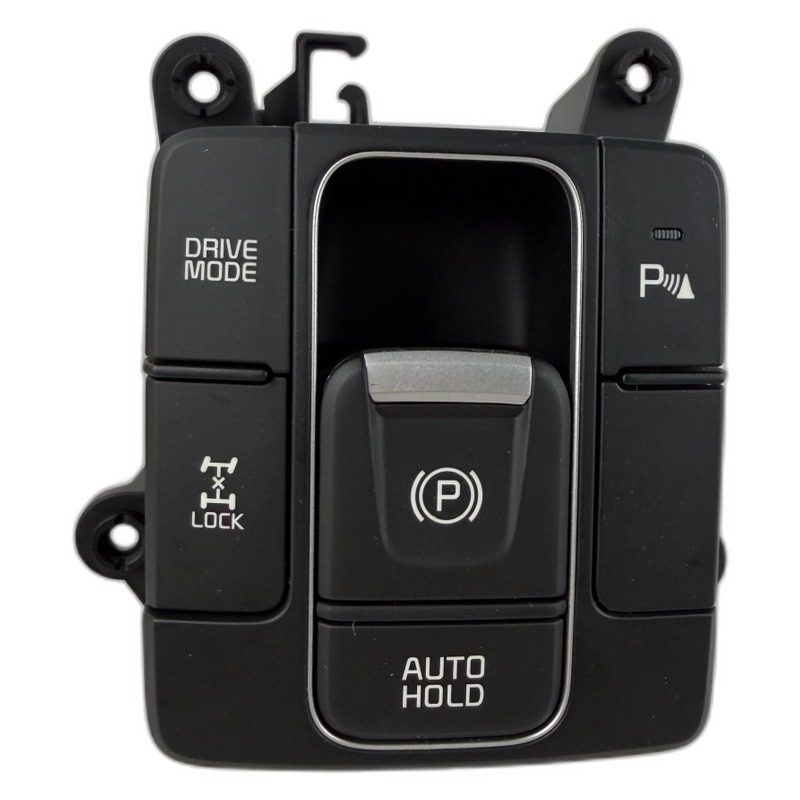

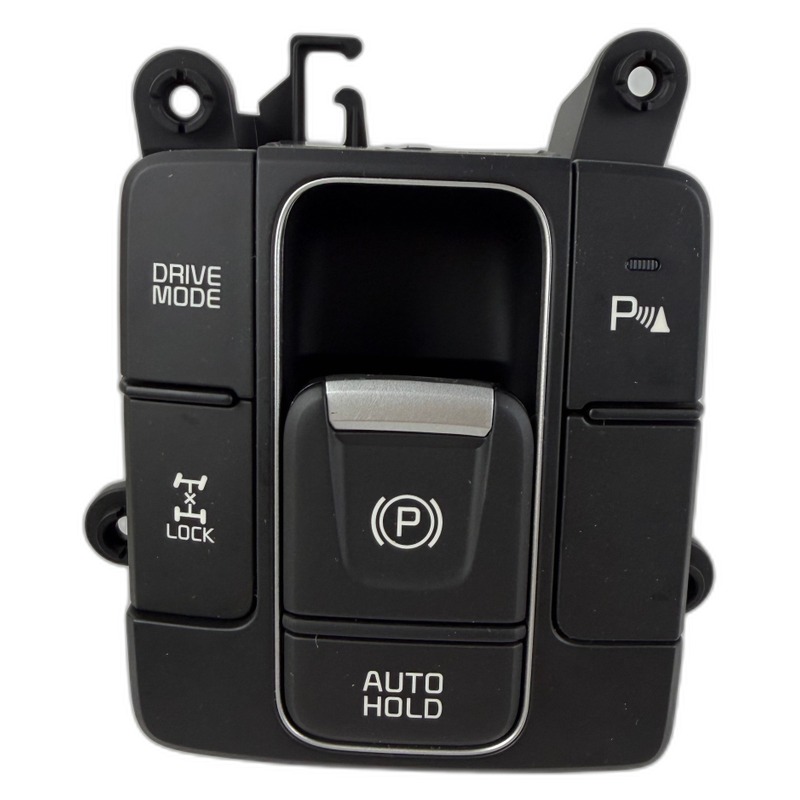

The panel integrates five core functions: EPB electronic parking brake main button, AUTO HOLD auto parking hold function, DRIVE MODE driving mode select switch, 4WD LOCK four-wheel drive lock button, and parking distance control sensor switch. It fully restores all original auxiliary driving safety and comfort functions after replacing a faulty stock switch, and lowers SKU management costs for parts wholesalers.
Internal switch terminals receive anti-corrosion gold plating treatment, which reduces poor contact caused by dust, moisture and oxidation. The switch supports over 120,000 stable presses without delay, jamming or intermittent signal failure.
The ABS+PC composite shell resists long-term high temperature inside vehicle cabins, with no yellowing, deformation or brittle cracking after extended use. Each unit passes vibration, high-low temperature cycling and dustproof inspection to adapt to complex road conditions and seasonal temperature fluctuations. Built-in short-circuit protection prevents damage to vehicle BCM and ESP control modules. Each production lot undergoes 1,000-hour salt spray testing and 50g vibration testing aligned with OEM durability standards.
This switch is compatible with Kia Sorento (UM body style) produced from 2014 to 2020, covering all trim levels. It directly replaces the original console switch with OE number 93600-C5210WK, as well as interchangeable parts 93600-C5210 and 93600-C5200.
It replaces defective original switches to fix typical issues including unresponsive EPB buttons, invalid AUTO HOLD or 4WD lock functions, dim backlighting, intermittent contact failure and abnormal parking sensor warning prompts.
Custom pin layouts and logo printing services are available with a minimum order quantity of 500–1000 units to meet varied industrial applications.
Two categories of packaging are available: genuine Mobis standard packaging, and aftermarket packaging including neutral packaging and branded packaging.
Volume orders include dedicated account management and flexible delivery scheduling to support inventory planning and business operations for parts distributors and repair chains.
