Product Description

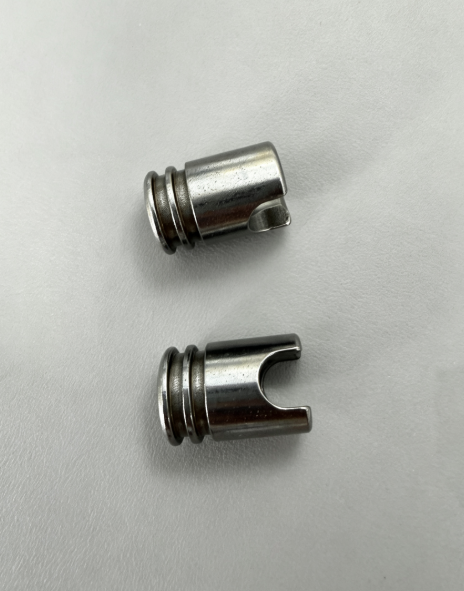

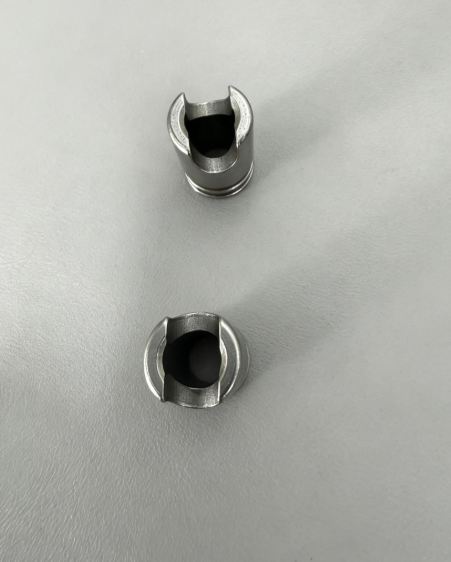

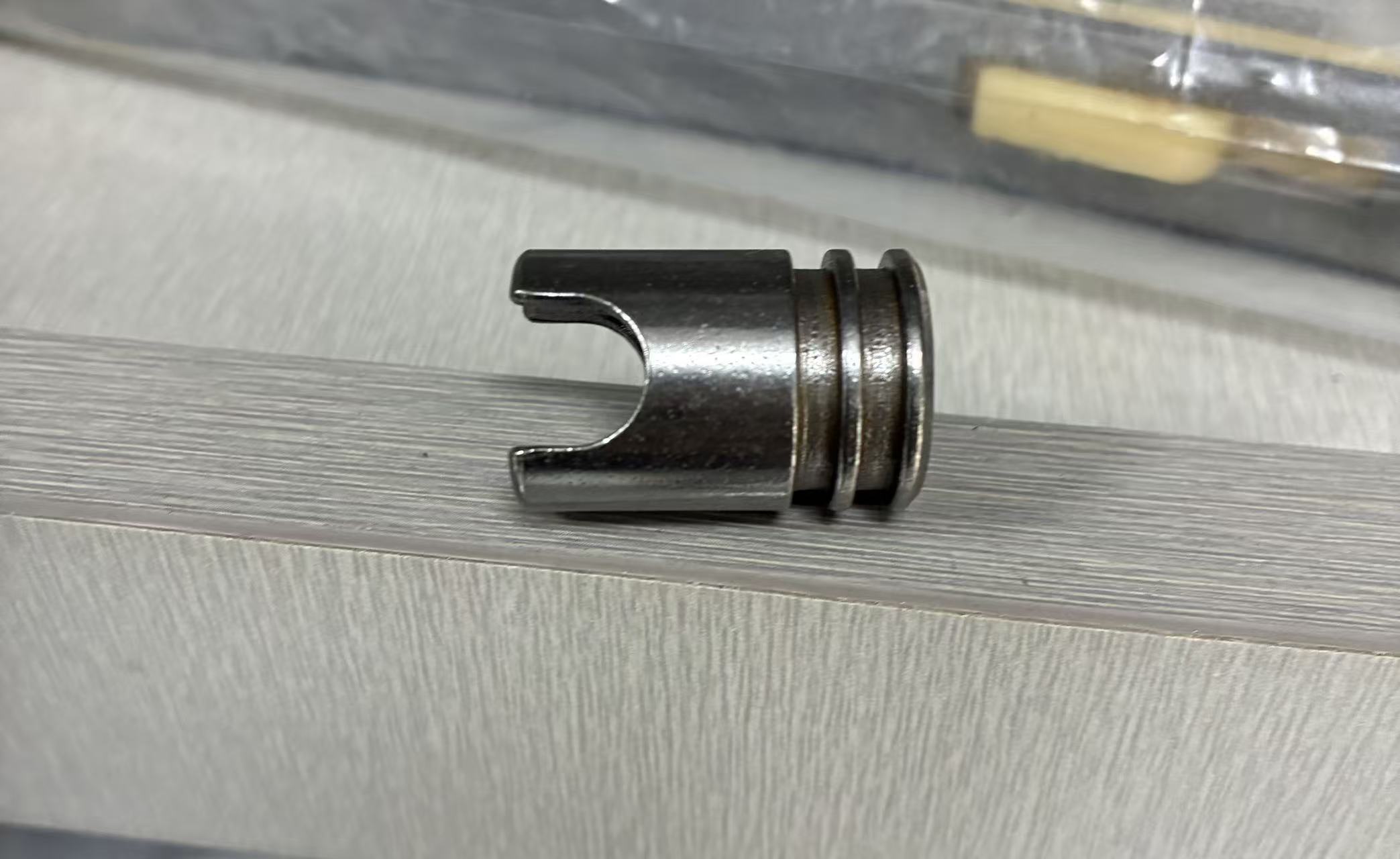

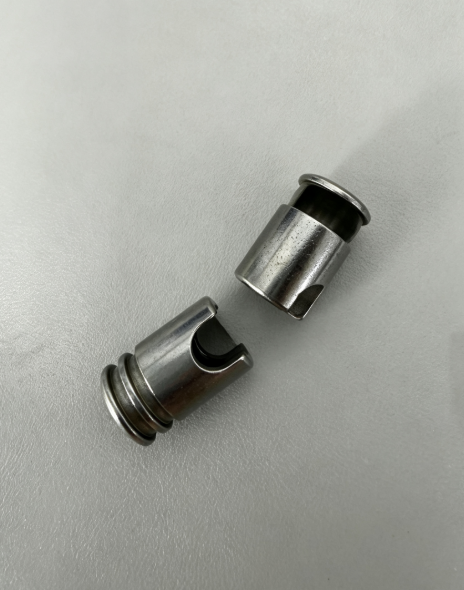

The 019CHA-1602142 Transmission Rear Shell Steel Sleeve Bushing is a compact transmission repair component listed for selected Chery vehicles equipped with the QR019CHA-series CVT gearbox. Current transmission-parts listings identify the component as a rear-shell bushing with OE reference 019CHA-1602142, intended for replacement and gearbox repair applications. The listed applications include Chery E5, G3, A3, Tiggo 3, Arrizo 5 and Arrizo 7.
The component is marketed as a steel sleeve bushing and is specified by the supplier as a metal component measuring approximately 3 × 2 × 2 cm with a listed weight of 0.1 kg. Because transmission bushings operate with very small working clearances, correct fit, surface condition and installation alignment are important for maintaining reliable gearbox operation.
According to the original Chery package supplied in your product photo, the confirmed identification information is:
P/N: 019CHA-1602142
Recommended English Name: Rear Housing Steel Sleeve
Package English Description: OVERHAUL KIT
Quantity: 2 PCS
Manufacturer shown on label: Chery Automobile Co., Ltd.
Package Type: Original Spare Parts packaging
For independent-site use, “Transmission Rear Housing Steel Sleeve Set” is more precise than simply using “Overhaul Kit,” because the Chinese description on the Chery label specifically identifies the components as steel sleeves for the rear housing.
The 019CHA designation is associated with Chery CVT transmission components in aftermarket and transmission-parts catalogs. Published listings show 019CHA-family transmission assemblies and internal components used in several Chery applications, although an authoritative public fitment table for the exact 019CHA-1602142 part number could not be located. Therefore, vehicle fitment should be verified by OE number, transmission code, VIN, and the removed part rather than assumed from the 019CHA prefix alone.
Original Part Number Identification
Clearly marked 019CHA-1602142 on the supplied Chery spare-parts package.
2-Piece Repair Set
The original package label specifies QTY: 2, suitable for transmission overhaul and rear-housing servicing.
Steel Sleeve Construction
The Chinese factory description as steel sleeves, providing a durable metal supporting surface.
Rear Housing Application
The factory description as the rear housing / rear shell of the associated assembly.
Precision-Fit Transmission Component
Sleeve-type components depend on correct housing fit and alignment. Proper installation is important for avoiding excessive play, binding, or premature wear.
Suitable for Professional Gearbox Repair
Designed for transmission rebuilding, overhaul, replacement, and aftermarket servicing applications.
| Specification | Details |
|---|---|
| Product Name | Transmission Rear Housing Steel Sleeve Set |
| Alternative Name | Rear Shell Steel Sleeve / Rear Housing Sleeve |
| Part Number | 019CHA-1602142 |
| Part Number Prefix | 019CHA |
| English Label Description | OVERHAUL KIT |
| Product Type | Transmission Steel Sleeve |
| Category | Transmission System |
| Subcategory | Automatic Transmission / CVT Internal Parts |
| Installation Area | Rear Housing / Rear Shell |
| Material | Steel |
| Quantity per Original Package | 2 PCS |
| Condition | New |
| Application | Transmission Overhaul / Repair |
| Vehicle Brand | Chery |
| Manufacturer on Package | Chery Automobile Co., Ltd. |
| Packaging Identification | Original Spare Parts |
Specification accuracy note: Exact diameter, length, hardness, tolerance, and individual weight are not printed on the supplied Chery label and could not be confirmed from a reliable public technical catalog. These values should be physically measured from your stock before being added to the website rather than estimated.
The 019CHA-1602142 steel sleeves are designed to serve as supporting and wear-control components within the transmission rear housing area.
Their primary functions include:
Providing a stable supporting surface for mating transmission components.
Helping maintain correct positioning and operating clearance.
Reducing direct wear between the housing and associated moving or supported components.
Helping limit excessive radial movement caused by worn contact surfaces.
Supporting accurate mechanical alignment within the transmission.
Helping protect the transmission housing and related components from accelerated wear.
Restoring the original supporting relationship during gearbox rebuilding.
Bushings and sleeve-type plain-bearing components are generally used to support rotating, oscillating, or linear movement, and proper alignment is important to prevent abnormal edge loading and wear. SKF also recommends using suitable mounting tools when installing bushings to prevent deformation or damage during assembly.
Although the 019CHA-1602142 sleeves are relatively small components, their condition can affect the stability of the components supported by the transmission housing.
When a sleeve becomes excessively worn, the working clearance can increase. This may allow abnormal movement, contribute to misalignment, and accelerate wear on surrounding transmission components. Conversely, an incorrectly sized or improperly installed sleeve can create excessive interference and cause binding or premature damage.
Correct dimensions, housing condition, installation alignment, and transmission lubrication should therefore all be checked during overhaul. SKF technical guidance similarly notes that alignment and lubrication conditions influence bushing wear and operating life.
| Common Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Excessive Sleeve Wear | Long service life, contamination, insufficient lubrication, worn mating component | Replace the sleeve and inspect the mating surface and transmission fluid |
| Loose Sleeve in Housing | Worn housing bore or incorrect interference fit | Measure the housing bore and confirm correct sleeve dimensions before replacement |
| Abnormal Gearbox Noise | Excessive clearance or worn supporting components | Inspect the rear housing, sleeves, shafts and related transmission components |
| Transmission Vibration | Sleeve wear, misalignment or excessive mechanical clearance | Inspect component alignment and replace damaged supporting parts |
| Sleeve Surface Scoring | Contaminated fluid or metallic debris | Inspect the complete transmission and clean the lubrication system before installation |
| Premature Wear | Incorrect installation, poor alignment or damaged mating surface | Correct the installation condition before fitting another sleeve |
| Sleeve Binding | Excessive interference or deformation during installation | Measure the bore and sleeve and use the correct press installation tool |
| Repeated Sleeve Failure | Damaged rear housing or related shaft/component wear | Repair or replace the damaged mating component instead of replacing only the sleeve |
General bushing-installation guidance recommends maintaining cleanliness, correct alignment, proper fits, and controlled mounting force to minimize premature component damage.
For best results, installation should be carried out by a professional automatic-transmission technician.
Before installation:
Confirm the replacement number is 019CHA-1602142.
Compare both new sleeves with the original removed parts.
Check the rear housing bore for wear, deformation, cracking, or scoring.
Inspect the associated shaft or mating component for abnormal wear.
Clean the housing and surrounding transmission components thoroughly.
Use an appropriate sleeve/bushing installation tool or press.
Apply installation force evenly to avoid deforming the sleeve.
Do not hammer directly on the precision working surface.
Verify operating clearance and alignment after installation.
Check transmission fluid for metallic debris that could indicate additional internal damage.
SKF recommends dedicated mounting tools for bushing installation and emphasizes appropriate fits and alignment in bushing arrangements.
The exact 019CHA-1602142 vehicle-year application is not reliably published in the public catalogs located during this search, so it would be inaccurate to assign specific Chery models and years without additional EPC/VIN verification.
The broader 019CHA transmission family appears in Chery CVT applications, including parts catalogs and transmission listings associated with vehicles such as Tiggo and Arrizo models. For example, 019CHA-family transmission assemblies and internal parts are documented for applications including Arrizo 3, Arrizo 5, Tiggo 3, Tiggo 5, A3, and E5 depending on transmission version. This does not prove that every one of those vehicles uses 019CHA-1602142.
For accurate ordering, customers should provide:
OE Number + VIN / Chassis Number + Vehicle Model + Model Year + Transmission Code + Old Part Photo
KINGMAY states that its supplied automotive parts are manufactured to match or exceed original-equipment specifications for fit, form, and function. Its quality system includes 100% dimensional checks, batch traceability, and SGS/TÜV material certification availability on request.
For transmission sleeves, dimensional control is particularly important because both excessive clearance and excessive interference can affect installation and operation. KINGMAY also states that orders undergo pre-shipment inspection, with inspection records available for wholesale buyers.
KINGMAY focuses on B2B automotive-parts supply and offers flexible wholesale purchasing. Its official website lists MOQ from 50 pieces as part of its general wholesale program, while the exact MOQ for 019CHA-1602142 should be confirmed during quotation.
Private-label/OEM packaging is available for qualifying bulk orders, and KINGMAY can consolidate multiple automotive-parts categories into one Guangzhou shipment, reducing the need for buyers to manage several separate suppliers and shipments.
KINGMAY provides OEM-number cross-reference and fitment support. Buyers can submit the VIN, chassis number, OE number, or a photo of the old part, and the company states that OEM look-ups and technical inquiries are normally handled within 24 hours.
For international wholesale orders, KINGMAY also provides export packing and documentation support, including commercial invoices, packing lists, and certificates of origin where applicable. Orders can be consolidated and shipped through Nansha Port, Guangzhou, with shipment tracking.
